Medicine/Surgery/Operating Room/ICU/CCU

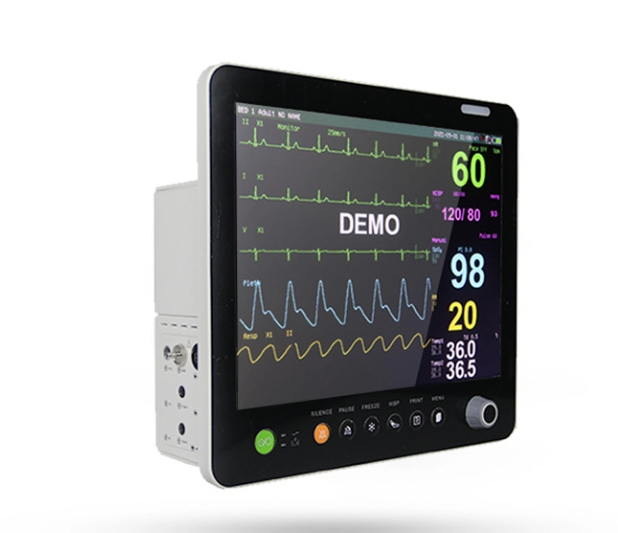

15"Color TFT LCD
41*29.5*38cm 5.85Kg
Product brief
Plug -in rechargeable battery, AC/DC available
Parameters include ECG, Respiration, NIBP, dual temperature,SpO2, pulse rate, dual IBP, CO₂
Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
ECG monitoring include arrhythmia analysis, ST calculation and Pace analysis
Protected against defibrillation, ESU and myoelectric artifact
NIBP over pressure protection
Human voice alarm helps the user to identify the source of alarms
Embedded network can connect to central monitor server
Maximum 720 hours trend review, 1000 NIBP review, 2 hours full wave review and 200 alarm event review
Multi-display:standard,large font,trend coexis
Support Central Monitoring System
15'' TFT color LCD, resolution: 800*600
Multi~lead ECG waveforms display in phase.
All-round monitor for adult, pediatric and neonate.
Display
Alarm LED: Flash when alarms happen.
Charging LED: It turns green when the external power is connected with the monitor.
Power On/OffLED: It turns green when the monitor turns on.
Connector
Temp (1/2) probe connector: Link to the temperature probe.
(Masimo) Sp02 sensor (mini) connector: Link to the SpO2 sensor.
ECG cable (mini) connector: Link to the ECG cable.
NIBP cuff connector: Link to the NIBP cuff.
IBP (1/2) connector: Link to the IBP "cuff*.
CO2 sensor connector: Link to the SpO2 sensor
Network connector: Link to internet for updating the software of the monitor.
USB connector: Link to PC for updating the software of the monitor.
External power input connector: Link to the external power.
Handle: Portable design.
Mounting holes for hanging bracket (1/2): Reserve for hanging bracket.
Support bracket: Adjust it to achieve different angle of the monitor.
Speaker holes (1/2): Alarms voice.
Nameplate place: The place for the nameplate.
Battery place: The place for battery.
Recorder place: The place for recorder.
Fuse: Safety.
Equipotential Grounding System: Safety.
Product Features
1. New mirror mold design, the top of the body comes with accessories box.
2. High brightness resolution 15 inches color TFT LCD display.
3. Built-in battery,standby time to 120 minus,AC/DC power conversion.
4. With the function of battery power detection, can display the battery power
5. Unique human voice alarm,sound, light and character three level intelligent alarm.
6. A variety of display interface: a single guide, standard, large font, all leads trend charts coexist to meet more clinical needs.
7. Using the new digital Oxygen technology, when do weak perfusion and finger shaking measurement, it is more accurate.
8. NIBP dual overvoltage drift control and many other technology, Anti-movement-interference to minimize failures and adjustable for low or high pulse measurement.
9. Using standard Ethernet protocol, support for wired and wireless networking capabilities,can be composed of up to 64 central monitoring system,support online software upgrades.
Environment
Working 0-40℃
Storage -20 ~ 50℃
Humidity
Working 15% ~ 90 %
Storage 15% ~ 90 % (no coagulation)
Atmospheric pressure
Working 86.0kPa~106.0kPa;
Storage 86.0kPa~106.0kPa
