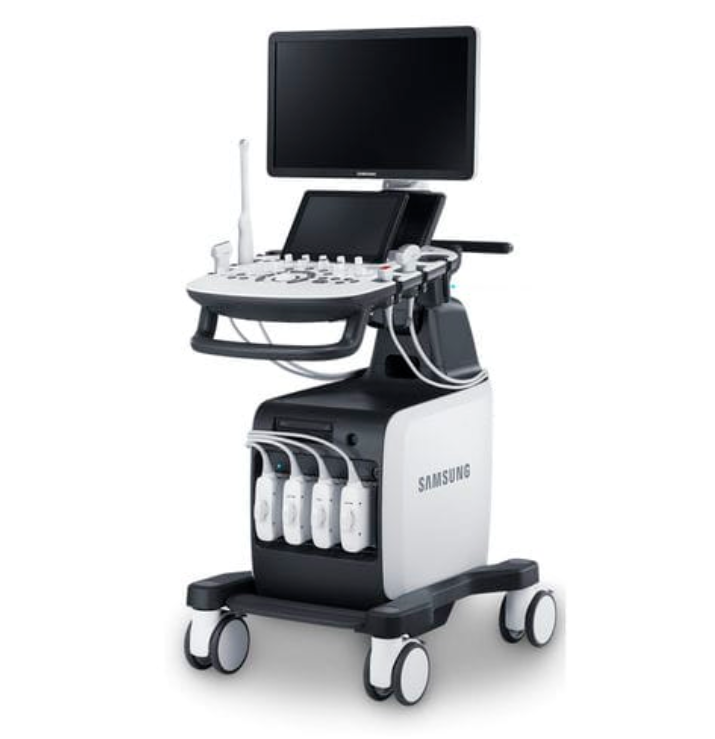

3D/4D 5DSamsung HS50 ultrasound machine
21.5in LED monitor with 1920x1080 resolution
Touch screen monitor::

10.1in LED monitor with 1280x800 resolution D-Mode, M-Mode, Color M-Mode

5D diagnostic solutions:

(5D NT™, 5D Follicle™) (CA1-7AD, CA2-9AD, CV1-8AD)

warranty:

1 year

Consult Now Product PDF
Products
Ultrasound System
Laboratory Equipment
Operating Theater Equipment
Ward Room Products
Endoscopy/CPAP
Ophthalmic equipment
PRODUCT DETAILS

The Samsung HS50 is a midrange multi-purpose diagnostic ultrasound system designed to cover a wide range of applications including OB-GYN, abdominal, pediatric, small parts, neonatal cephalic, adult cephalic,, trans-vaginal, musculoskeletal (conventional, superficial), urology, adult and pediatric cardiac, and peripheral vascular.

The HS50 uses Samsung’s innovative imaging engine and single crystal transducer technology to deliver superior 2D imaging in a wide range of clinical applications.


HS50 Ultrasound Features and Specificities:

  • Main monitor: 21.5in LED monitor with 1920x1080 resolution

  • Touch screen monitor: 10.1in LED monitor with 1280x800 resolution

  • 2D-Mode, M-Mode, Color M-Mode

  • Anatomical Mode

  • Color Doppler Mode

  • Pulsed Wave (PW) Spectral Doppler Mode

  • Continuous Wave (CW) Doppler Mode

  • Tissue Doppler Imaging (TDI) Mode

  • Tissue Doppler Wave (TDW) Mode

  • Power Doppler (PD) Mode

  • ElastoScan Mode

  • 3D/4D/XI STIC Imaging Mode

  • Dual Mode

  • Quad Mode

  • Combined mode

  • Simultaneous Mode

  • S-Flow Mode

Compatible Ultrasound Probes / Transducers:

  • Samsung CA1-7AD Curved Array Transducer

  • Samsung CA2-9AD Curved Array Transducer

  • Samsung CF4-9 Curved Array Transducer

  • Samsung CV1-8AD Curved Array 3D/4D Transducer

  • Samsung CW6.0 Non-imaging

  • Samsung ER4-9 Endocavitary Transducer

  • Samsung LA3-14AD Linear Array Transducer

  • Samsung LA3-16A Linear Array Transducer

  • Samsung PA3-8B Phased Array Transducer

  • Samsung PE2-4 Phased ArrayTransducer

  • Samsung V5-9 Vector Array Transducer


Bringing efficient screening to General Imaging


21.5 inch LCD monitor (LED backlight unit)


The HS40 features a 21.5 inch LCD monitor (LED backlight unit), delivering excellent contrast resolution, image clarity and vibrant color in any lighting condition.

10.1-inch touchscreen


The Samsung 10.1-inch touchscreen is highly sensitive, allowing for an efficient interaction during the examination.


Articulating monitor arm


Adjust the system to your preferred height without straining, thanks to the smooth upward and downward motion of the gas lift.

Gas lift


Adjust the system to your preferred height without straining, thanks to the smooth upward and downward motion of the gas lift.

NeedleMate+™


NeedleMate+ ensures precise needle targeting when performing commonly used intervention procedures. Beam Steer allows the linear ultrasound image to be steered and improves needle visibility when the angle of insonation and the needle are perpendicular to each other.

Auto IMT+


Auto IMT+ is a screening tool to analyze a patient’s potential risk of cardiovascular disease. It allows easy intima-media thickness measurement of both the anterior and posterior wall of the common carotid with the click of a button. This simple procedure enhances exam productivity and adds diagnostic value.

S-Vue™ transducers (transducer dependent)


HS50 incorporates single crystal technology. Employing an innovative crystal design, S-Vue™ transducers provide more efficient piezoelectric properties, resulting in wider bandwidths that enable better penetration and higher quality resolution on even challenging patients.

Low noise


This exceptionally quiet device allows physical exams to be performed, including auscultation, while the ultrasound system is turned on.
