288 × 203 × 275 mm 4.7Kg
Manual Defib Mode AED Mode Pacer Mode Monitor Mode
mains voltage: 100 to 240 VAC (±10%) current: 1.8 to 0.8 A frequency: 50-60 Hz (±3 Hz)
Features

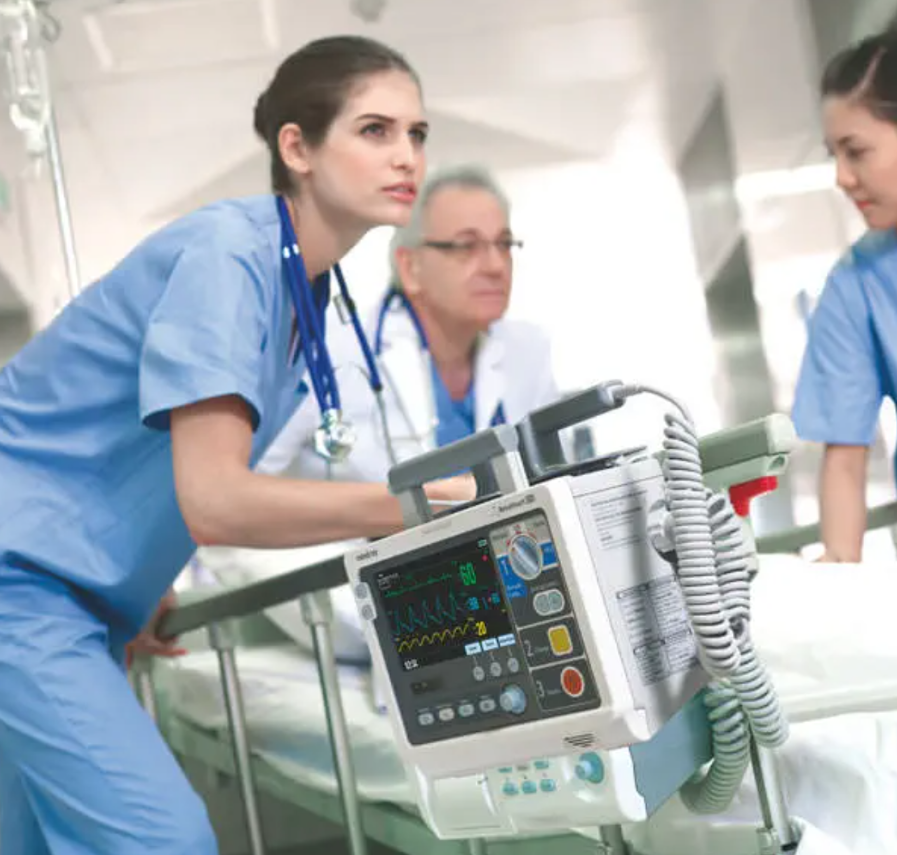

BeneHeart D3 is one compact , durable, light weighted defibrillator which integrated monitoring,manual defibrillation,AED and pacer.It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics use worldwide.
Key Features
Compact 4-in-one integrated design: monitoring, Manual Defib, AED and pacer
Power on within 2s, charging to 200J within 3s, ECG recovery within 2.5s
Up to 360J escalating dose energy to maximize defibrillation success
Powerful power capacity with battery to support continuous long time monitoring and shocks during transport without external power supply
Compact, light weighted design
The Beneheart D3 is a portable defibrillator with four modes of operation: Monitor, Manual Defib, AED and Stimulus.
In Monitor mode, the unit is designed to monitor, display, view, record and print various physiological parameters and waveforms, including ECG, pulse oximetry (SpO2) and pulse rate (PR).
In AED mode, the unit automatically analyzes the patient's ECG rhythm and indicates whether or not a shockable rhythm is detected.
In Manual Defib Mode, the operator analyzes the patient's ECG. Defibrillation can be performed using paddles or MFE Pads. In Manual Defib Mode, you can also perform synchronised cardioversion.
The Stimulus Mode allows you to perform non-invasive transcutaneous pacing therapy.
The equipment has the following main functions:
Manual Defib Mode
AED Mode
Pacer Mode
Monitor Mode
Quality standards
EN 60601-2-4, 2011, +A1 2019 Medical electrical equipment - Part 2-4: Particular requirements for the basic safety and essential performance of cardiac defibrillators
Components
1x) Li-ion battery
(1x) 50 mm recorder
(1x) External paddles Adu/ped
(1x) tubing + adulte cuff (24-35 cm) for NIBP
(1x) conductive gel
(2x) Thermal paper (50mm*20m), set of 3 rolls
(1x) MASIMO SpO2 extension cable
(1x) LNCS DCI adult sensor for MASIMO SpO2
(1x) 5 Leads-ECG trunk cable + wires, clip + electrodes
Technical specifications
Mains power supply:
mains voltage: 100 to 240 VAC (±10%)
current: 1.8 to 0.8 A
frequency: 50-60 Hz (±3 Hz)
DC power supply (with DC/AC adapter):
input voltage: 12 Vdc.
Power consumption: 190 W
Battery: 14.8 V / 3 Ah, intelligent lithium-ion battery, rechargeable and maintenance-free - a battery can be configured.
Charging time:
Less than 2 hours at 80% and less than 3 hours at 100% of with the appliance switched off
Less than 3.5 hours at 80% and less than 4.5 hours at 100% when the power is on
Defibrillation mode: manual defibrillation, synchronised cardioversion, ECD
Defibrillation trace: biphasic truncated exponential biphasic (ETB) trace, self-compensating according to the patient's impedance.
Defibrillation electrodes: set of external paddles supplied with pediatric paddles included, multifunction electrodes.
External defibrillation: 20 to 200 Ω.
Operating conditions:
temperature: 0° to 45°C.
humidity: 10-95% non-condensing
altitude: -381 m to +4575 m
Dimensions
(LxPxH): 288 × 203 × 275 mm
Weight of main unit: 4.7kg
Battery pack weight: 0.5kg
Weight external pallet set: 0,8kg
