5-lead or 12-lead ECG, NIBP, SPO2, TEMP, RESP, ETCO2, IBP, CO, and other parameters
Internationalized operation interface with support for up to 15 languages
VGA display, RJ45 network port, and other signal interfaces

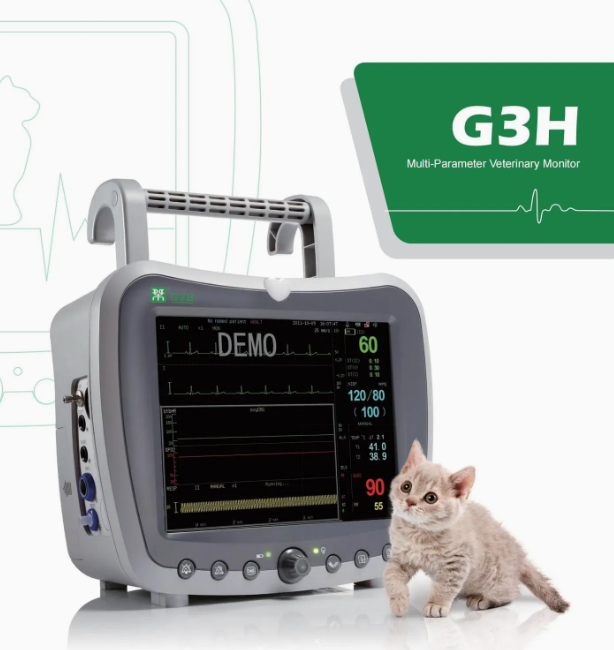

Patient Monitor G3H
Introducing the innovative medical device by RHC Medical., featuring unique patents and cutting-edge technology. With a focus on fast defibrillation recovery, it ensures swift and effective response in critical situations. The vital monitoring device provides accurate and stable display of ECG/HR, allowing for precise monitoring and analysis. With up to 34 classifications of arrhythmia analysis, it offers comprehensive diagnostic capabilities.
The inclusion of ST-segment analysis, bed-to-bed view, venipuncture, pace-maker integration, and drug calculation further enhances its versatility. With patented technology to counter electrosurgical interface interference, it ensures reliable performance. The device also incorporates unique patents for impedance RESP and nasal tube respiration testing, enabling advanced respiratory assessment. Supporting WAN communication and wired/wireless networking, it seamlessly integrates with the HL7 system.
Display 8.4" color TFT liquid crystal display
Brightness Digitally adjustable brightness
Handle Design Convenient handle design with hook for easy transportation of the monitor
Battery Life Built-in high-energy lithium-ion rechargeable battery for extended battery life
Operation Pop-up menu and jog shuttle operation for easy and convenient operation
Signal Interfaces VGA display, RJ45 network port, and other signal interfaces
Operation Interface Internationalized operation interface with support for up to 15 languages
Supported Parameters 5-lead or 12-lead ECG, NIBP, SPO2, TEMP, RESP, ETCO2, IBP, CO, and other parameters
Features
Display: 8.4" color TFT LCD screen with maximum 8-waveform display.
- Battery: Rechargeable high-energy built-in battery
- Advanced streamline outline design, portable, compact, lightweight
- Operating menu with multi-language interface selection: English, Spanish, Portuguese, Chinese, French, Arabic, Russian, etc.
- Easy operation with user friendly menu structure design and rotary dial
- Against electrosurgical interference and defibrillation and no need to disconnect the monitor from the patient in process of defibrillating.
- WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible
-Optional built-in wireless networking function
- Support external printer to record graph and trend
- Intelligent audio and visual comprehensive alarm
- In-hospital applications include emergency pre-and post-operative care, ambulatory surgery, intermediate care/step down units, labor and delivery, and hospital-based special procedure areas.
- Suitable for use in physicians� offices, clinics, outpatient surgical centers, extended care facilities and other patient care areas, which of require affordable monitoring
Standard configuration: ECG, HR, PR, SpO2, ST analysis, RESP*2 (RA-LL impedance and nasal cavity), NIBP (with venous punch), TEMP*2(surface and rectal type), Drug dose calculation.
