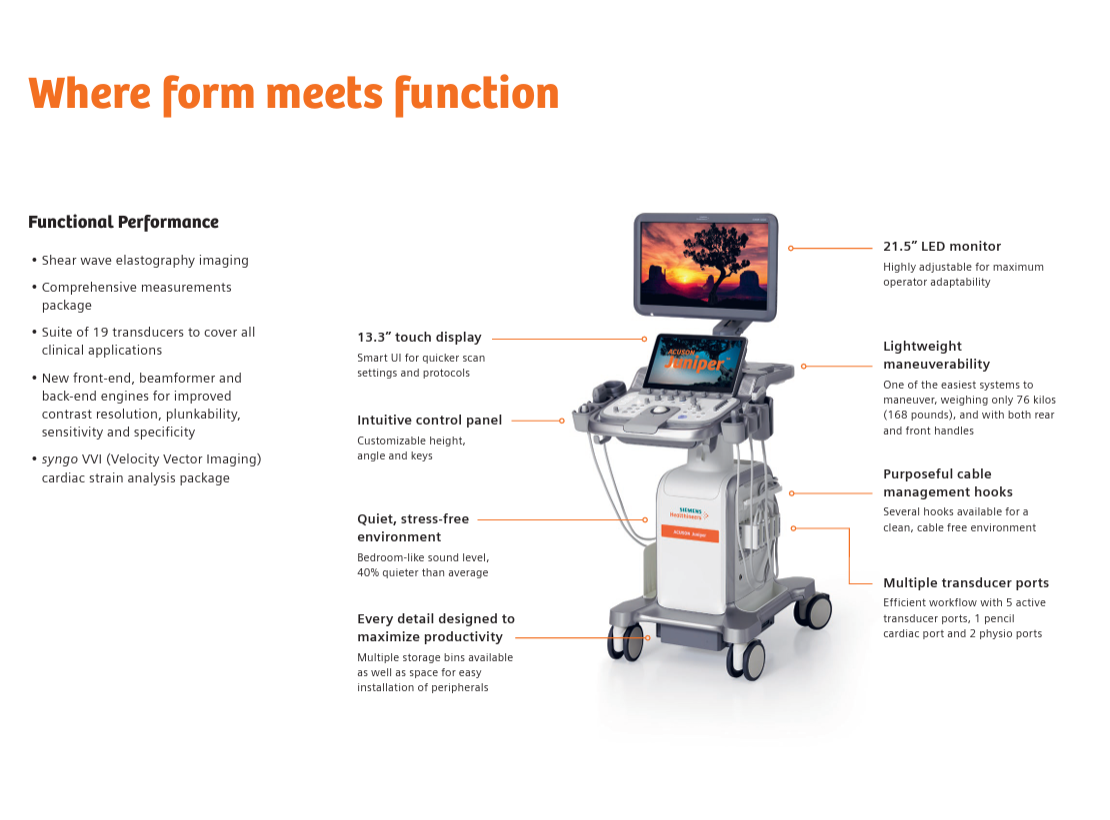

Ultra-quiet ultrasonic device (28 dB) Intuitive user interface 5 active detection ports
LCD (13.3”, 16 : 9) touch panel Screen resolution: 1920 × 1080
50,7 cm x 84,5 cm 76 kg

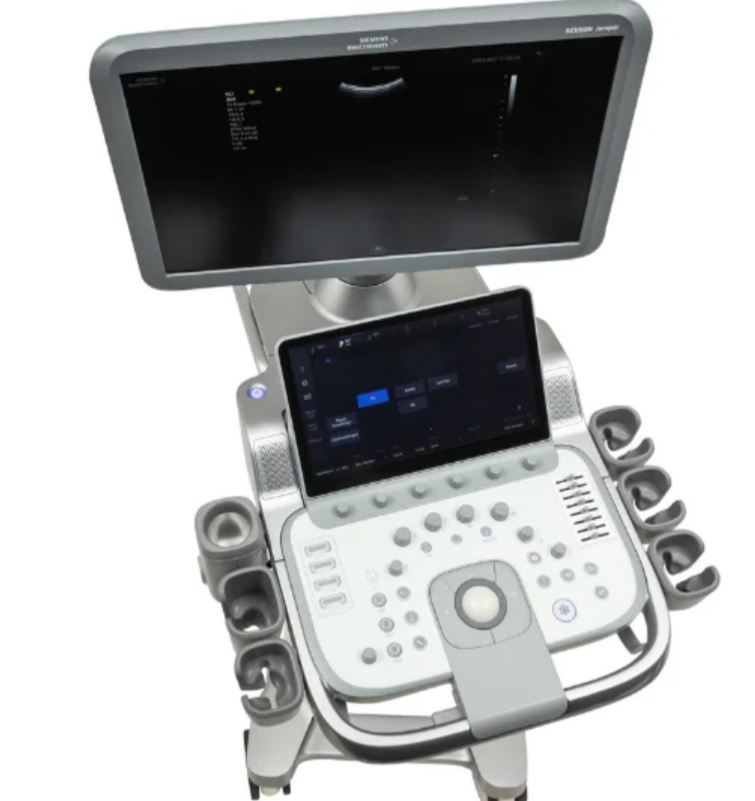

Siemens Acuson Juniper Ultrasound Helping You Transform Care Delivery

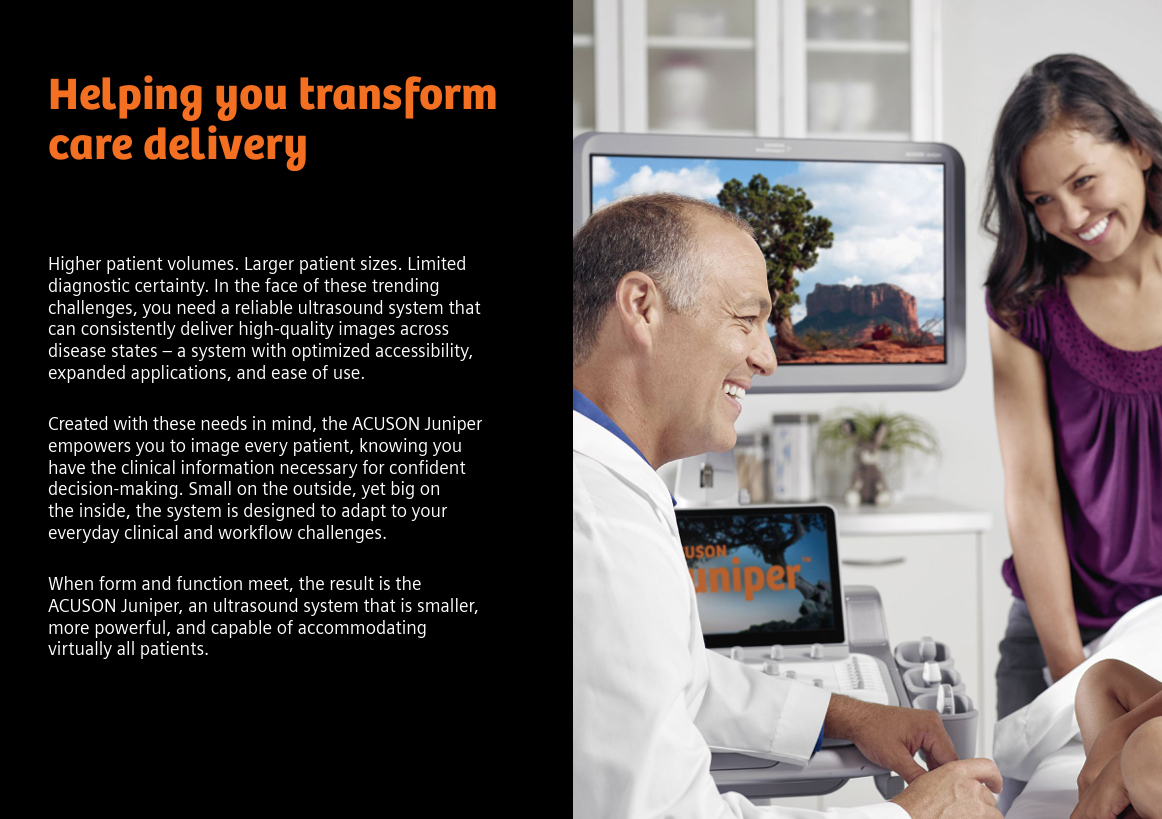

Higher patient volumes. Larger patient sizes. Limited diagnostic certainty. In the face of these trending challenges, you need a reliable ultrasound system that can consistently deliver high-quality images across disease states—a system with optimized accessibility, expanded applications, and ease of use.
Created with these needs in mind, the ACUSON Juniper empowers you to image every patient, knowing you have the clinical information necessary for confident decision-making. Small on the outside, yet big on the inside, the system is designed to adapt to your everyday clinical and workflow challenges.
Below is a generalized description of this systems technology, specifications, features, and options. The below may not reflect the features and options available on units in our inventory.
Higher patient volumes. Larger patient sizes. Limited diagnostic certainty. In the face of these trending challenges, you need a reliable ultrasound system that can consistently deliver high-quality images across disease states—a system with optimized accessibility, expanded applications, and ease of use. Created with these needs in mind, the ACUSON Juniper empowers you to image every patient, knowing you have the clinical information necessary for confident decision-making. Small on the outside, yet big on the inside, the system is designed to adapt to your everyday clinical and workflow challenges. When form and function meet, the result is the ACUSON Juniper, an ultrasound system that is smaller, more powerful, and capable of accommodating virtually all patients.
Everything You Need, Nothing You Don’tSmall on the outside, yet big on the inside.ACUSON Juniper is powered by a completely new platform, designed from the ground up to offer high-fidelity transmit and receive acoustic signals that greatly reduces noise and offers premium image quality and industry leading elasticity solutions.
System Overview System Dimensions
System height: (upright FPD) 122.5 – 163.4 cm (upright FPD: Max. Arm + 11 cm up/down stroke)
Width: 50.8 cm
Depth: 65.4 cm; maximum depth: 84.5 cm
Weight: 76 kg
User-select control panel/monitor height adjustment
Control panel lowest position: 81 cm from handle
Control panel highest position: 92 cm from handle
Monitor lowest position: 141 cm measured to top of monitor with upright FPD
Monitor highest position: 174 cm measured from top of monitor with upright FPD
System Architecture Simple, intuitive user interface with home-base design minimizes repetitive hand motions and enables motor memory learning. All-digital signal processing and multibeam formation technology provide best-in-class imaging in all modes and enable seamless integration of features and options:
Parallel Quad beam processing of the RF signal data in the time and amplitude domains with new generation all digital beamformer technology – 2D-mode line density: Up to 512 lines
Processing channels: Up to 1032192 channels
Total system dynamic range: > 227 dB
New front-end, beamformer and back-end engines for improved contrast resolution, plunkability, sensitivity and specificity

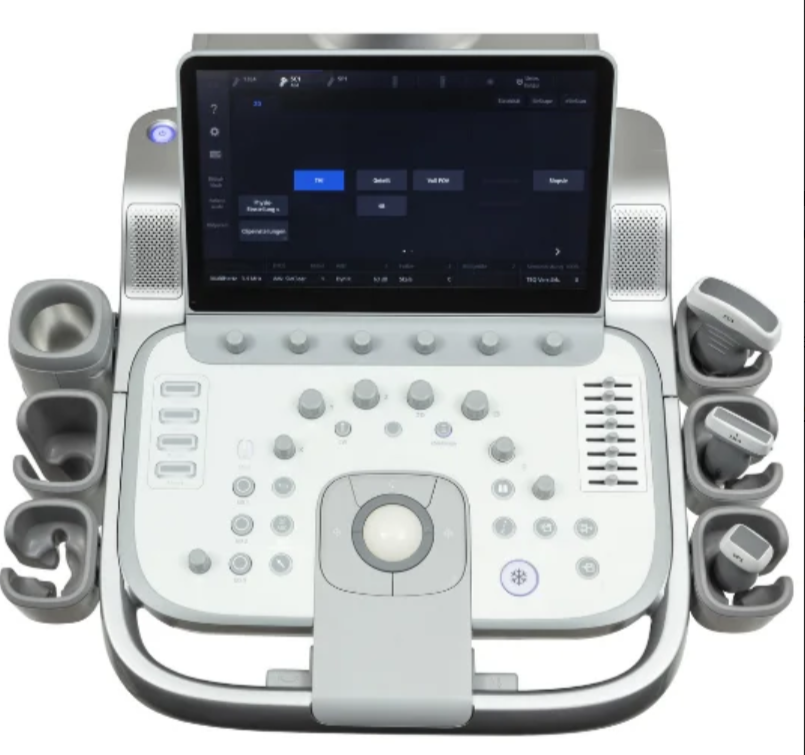

Floating control panel allows a wide range of adjustment for operator comfort in standing and sitting positions
Left/Right swivel articulation: ± 90º
Vertical articulation: 11 cm
System control panel illumination via Off/White/Blue (Not used/Available/Active) backlighting
13.3 inch touch screen (resolution 1920 × 1080)
Laser-optical trackball for higher sensitivity
Digital and pull-out keyboard

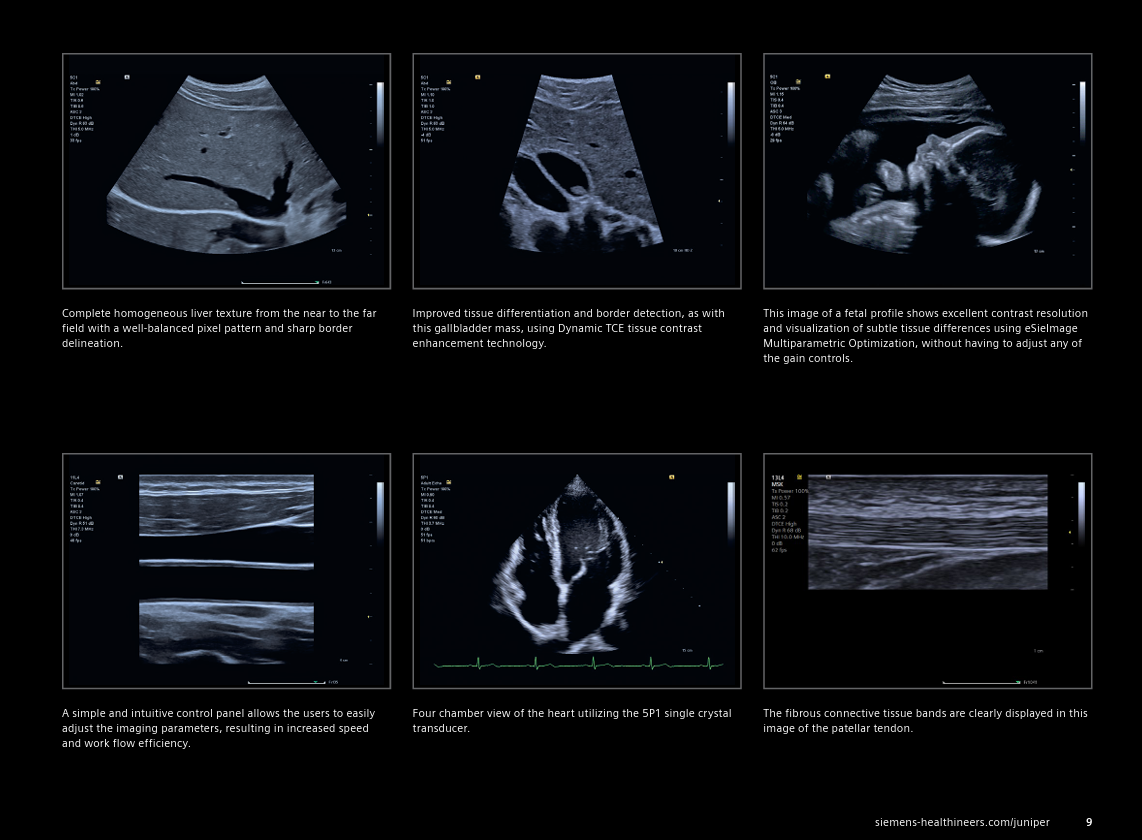

Dynamic TCE™ Tissue Contrast Enhancement technology,
Advanced SieClear™ spatial compounding, SieClear compounding and Clarify™ Vascular Enhancement (VE) technology are built into the ACUSON Juniper system to provide excellent image quality

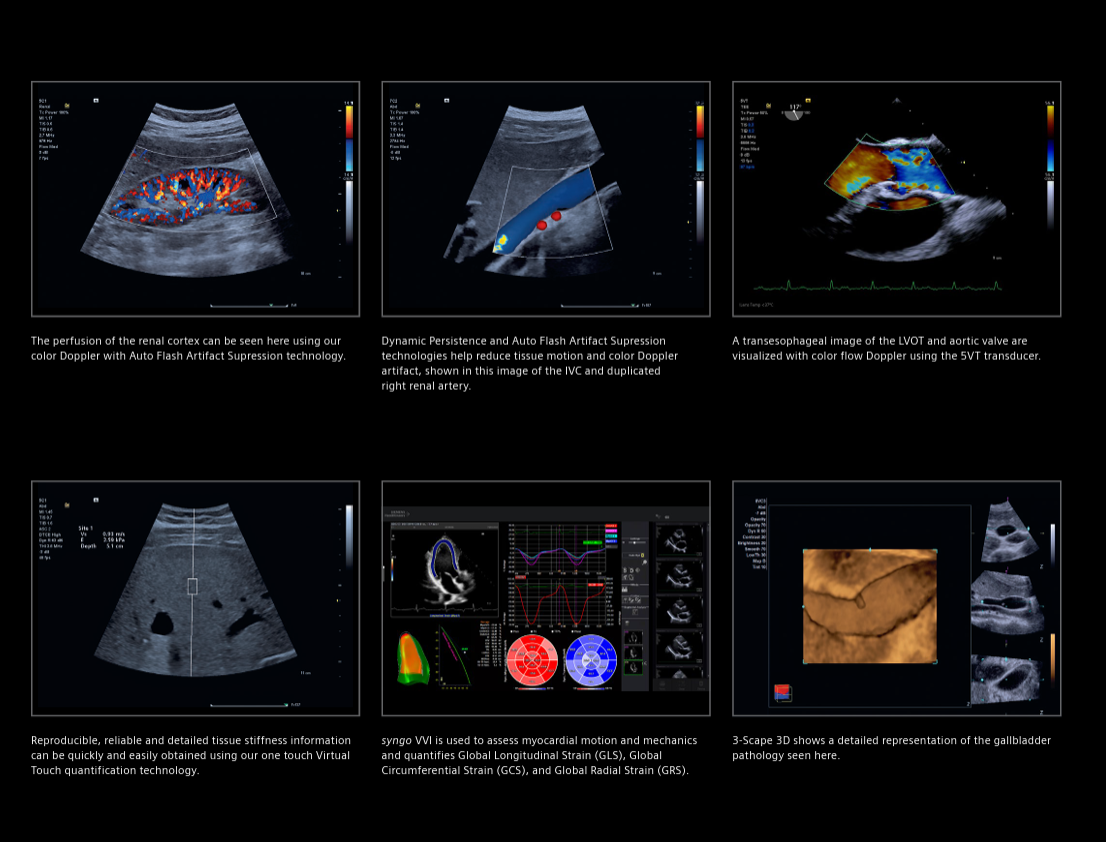

Detect and prevent motion artifacts and reduce noise, simultaneously enhance color sensitivity with Dynamic Persistence proprietary technology and Auto Flash Color Artifact Suppression patent-pending technology
Enhance productivity through application-specific imaging presets, eSieImage tissue grayscale optimization technology Doppler auto optimization, enhanced measurement and report functionality, knowledge based workflow tools including syngo® Auto OB, Auto follcile measurements, eSie LH and standardized imaging protocols
Improve accuracy and reproducibility with the eSie Measure™ workflow acceleration package
Virtual touch quantification™ (VTQ) for personalized quantification of liver stiffness. This has been shown to help grade liver disease and may help physicians avoid liver biopsies in those patients that don’t need them
Streamline connectivity with solutions such as DICOM Print/Store, DICOM Modality Worklist, DICOM MPPS and DICOM structured reporting for OB/GYN, Vascular and Cardiac exams
Increase functionality with fourSight™ 4D transducer technology, and integrated stress echo
US security virus protection
Anatomical M mode (angle rotation and free hand drawing AMM)
Full user customizable preset, measurement and reporting package.
Automatic mode switching
Fast system boot up: from off, approximately 90 seconds
Transport mode: from sleep mode to on, approximately5 seconds
Transport mode lasts 30 minutes before recharge is needed
User Interface
On-screen text, control panel overlay and operating instructions are available in the following languages: Chinese, English, French, Italian, German, Spanish
Russian keyboard and operating instructions supported
Operating instructions are available in 27 languages
Thumbnail menu provides on-screen thumbnail images and dynamic clips during exams
On-screen acoustic power indicator (AIUM/NEMA) output display standard Dual-Option Keyboard

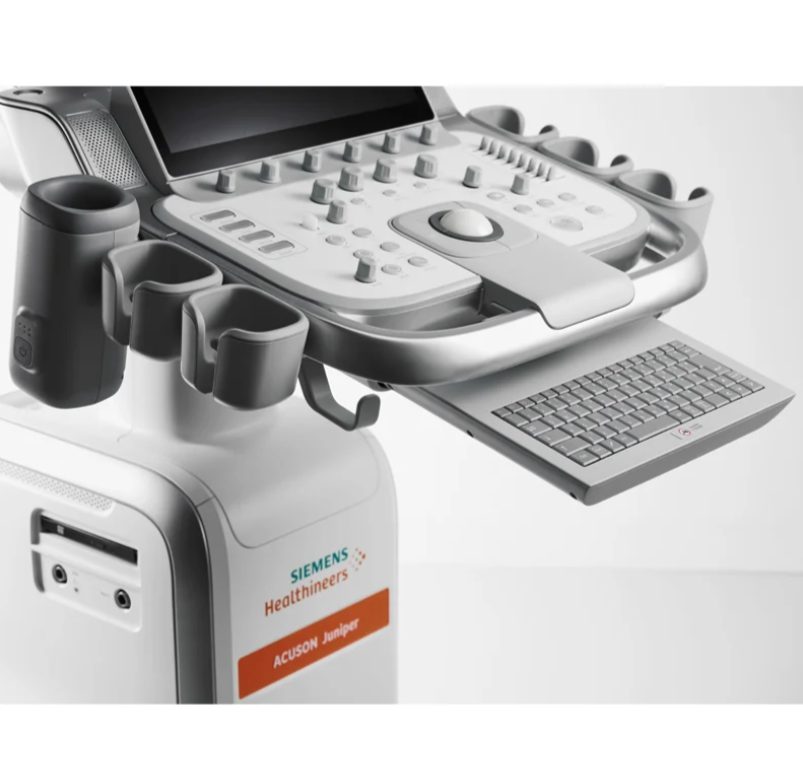

Conventional Pull-out keyboard
Touch screen keyboard Ergonomics
Laser-optical trackball
Context sensitive: Dynamic back lighting

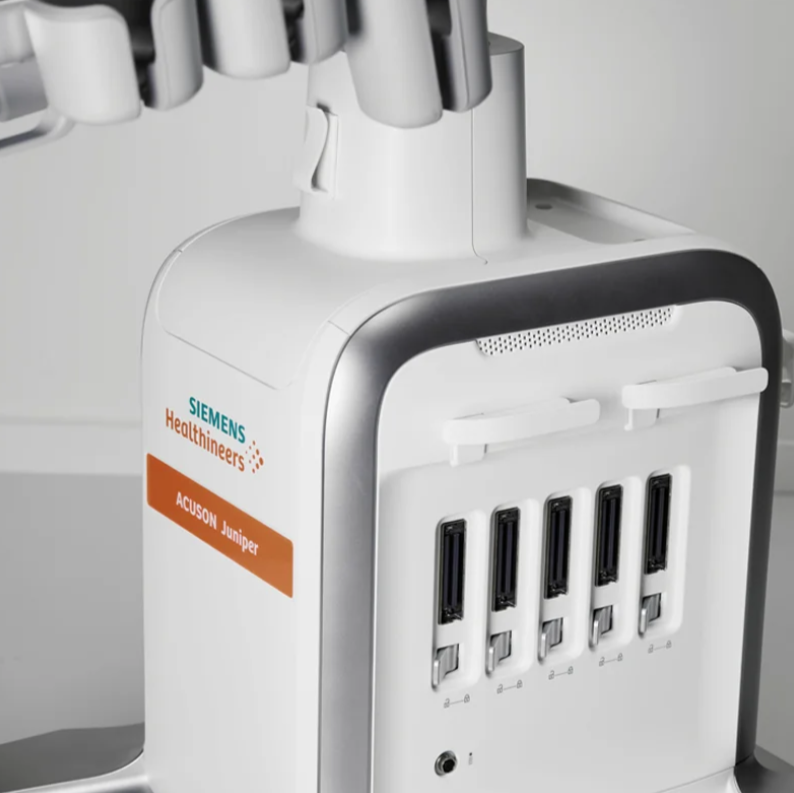

5 active transducer ports
Intuitively organized user interface
Vertical articulation: 11 cm
Left/Right swivel articulation: ± 90°
Ergonomic, tactile button designs
Smart-adaptive annotations
Smart-intuitive body markers and pictograms
Robust selection for protocol

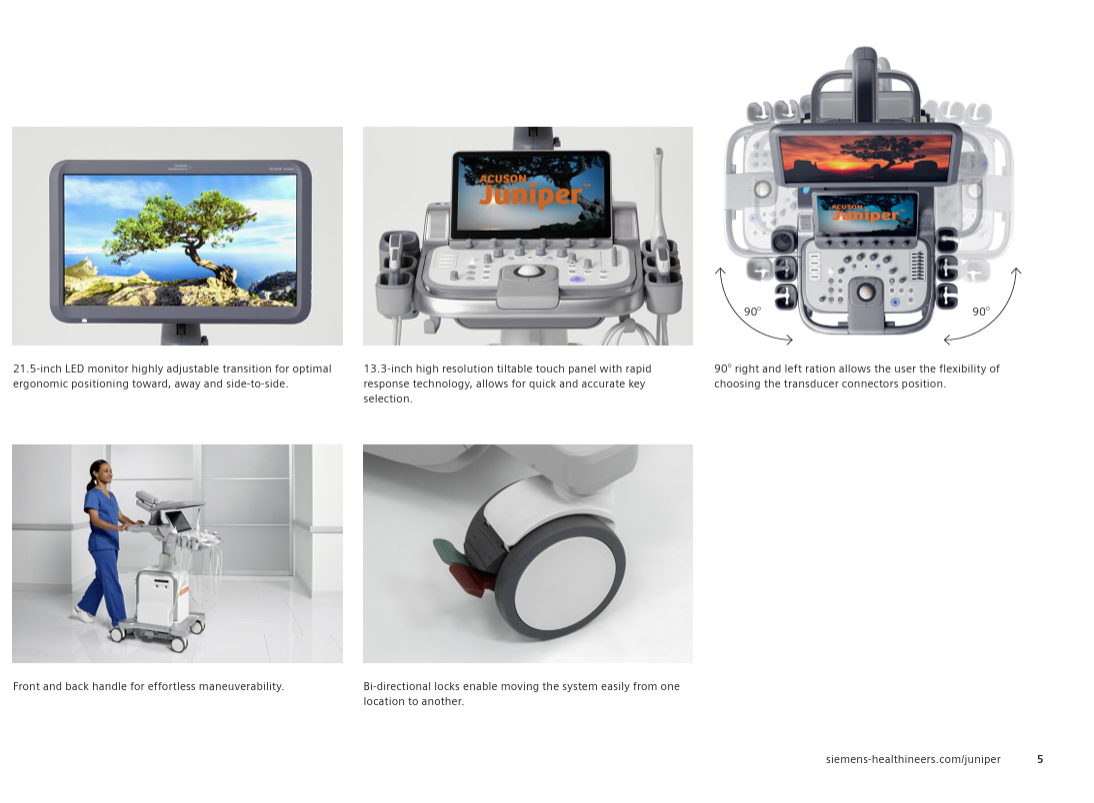

Tiltable touch screen with two USB ports Fully Articulated Flat Panel Display
21.5“ full HD 1080P, flat panel liquid crystal display (LCD) with LED backlighting and wide-angle
IPS (in-plane switching) technology
High contrast ratio 1000 : 1
Variable monitor positioning adjustment (height, swivel, tilt)
Range of height: (upright FPD) 163-141 cm (64.2-55.5 in)
Extended wide viewing angle: ± 89º
Folds down for transport
Minimum fold-down system height: 122 cm (48.0315 inch)
Default brightness: 170 cd/m²
Response time: 14 ms
Articulating Arm
Allows monitor transition for optimal ergonomic positioning toward, away and side-to-side
Articulation independent of system and control panel Left/Right swivel articulation: ± 180º in either direction
Horizontal articulation

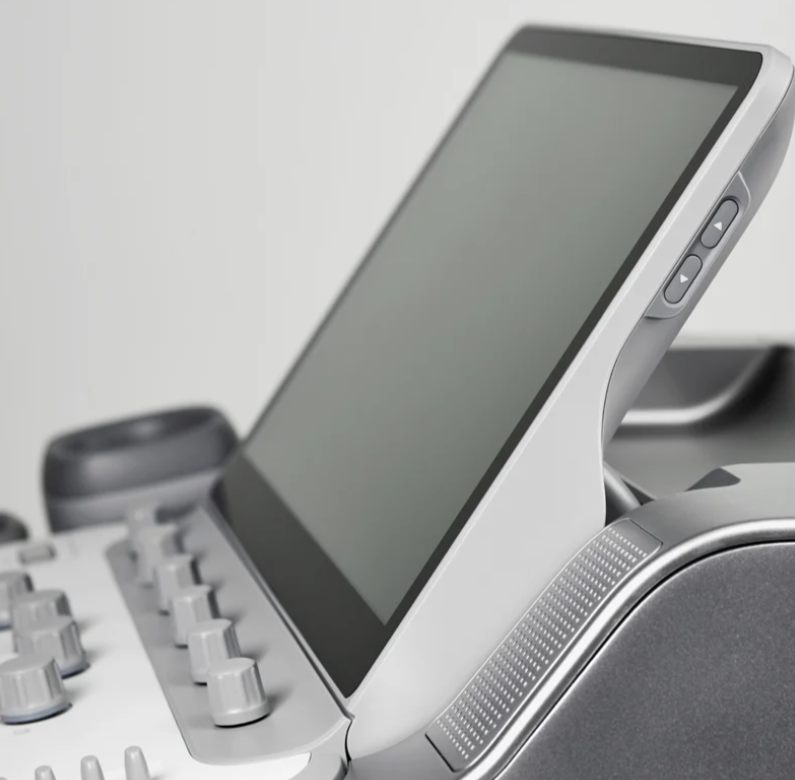

Touch Screen
LCD (13.3”, 16 : 9) touch panel
Screen resolution: 1920 × 1080
Dot pitch: 0.204 mm × 0.204 mm – USB 2.0 interface with host system
2 USB ports
16 : 9 aspect ratio
QuikStart Standby Mode
QuikStart standby mode enhances system portability by reducing startup and shutdown times.
Fast system boot up: from off, approximately 90 seconds
Transport mode: from sleep mode to on, approximately 5 seconds
Transport mode lasts 30 minutes
Audio Speakers
High-performance audio speakers integrated with control panel
Electrical/Environmental Specifications
Voltage: 100 – 240 Vac (50/60 Hz)
Power connections:
Universal input: 90 – 264 Vac
Power consumption: Maximum 1.0 kVA (may vary with configuration)
Atmospheric pressure range: 3000 m(700 – 1060 hPa)
Ambient temperature range (without OEM’s): + 10 to + 40°C (50° to 104°F)
Humidity: 10 – 80%, non-condensing
Maximum heat output: 2400 BTU/hr
Fan noise: 28 – 33 dBA

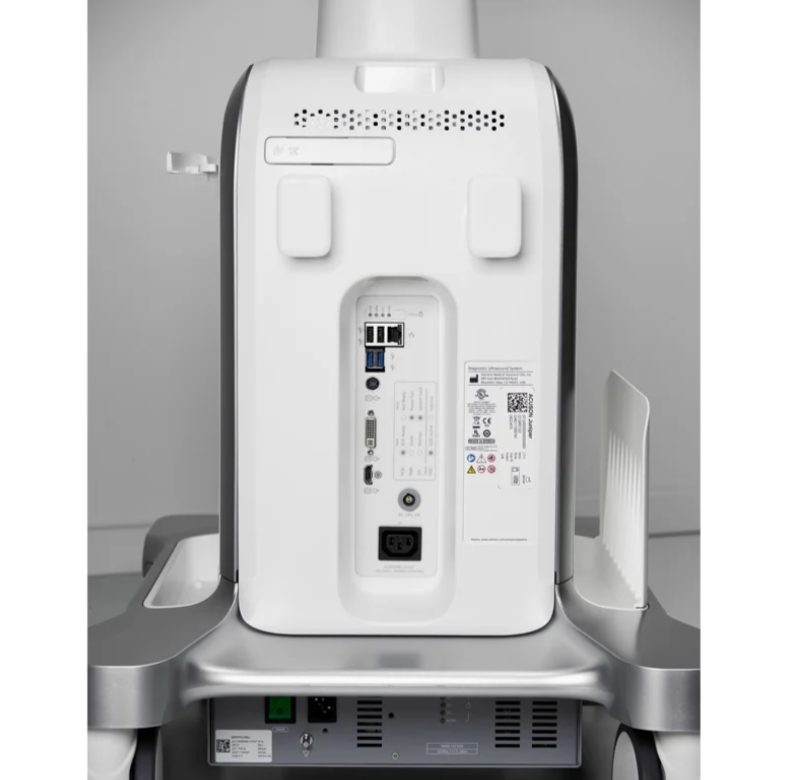

Input/Output: USB 2.0 x2 Port (USB-A), USB 3.0 x2 Port (USB-A), Ethernet (10 BaseT/100 BaseT/1000 BaseT) (RJ45), S-Vide (4 Pin-Mini DIN), DVI (24 Pin DVI), HDMI (19 Pin HDMI)
Video standard for DVI/HDMI
Resolution: 1920 × 1080 (fixed), Full HD
