5x, 8x, 12x, 20x, 32x (6x, 10x, 16x, 25x, 40x with optional eyepieces 12.5x)
in steps 0,3 / 2,5 / 3,5 / 7 / 10 / 14 mm triple slit
In stock

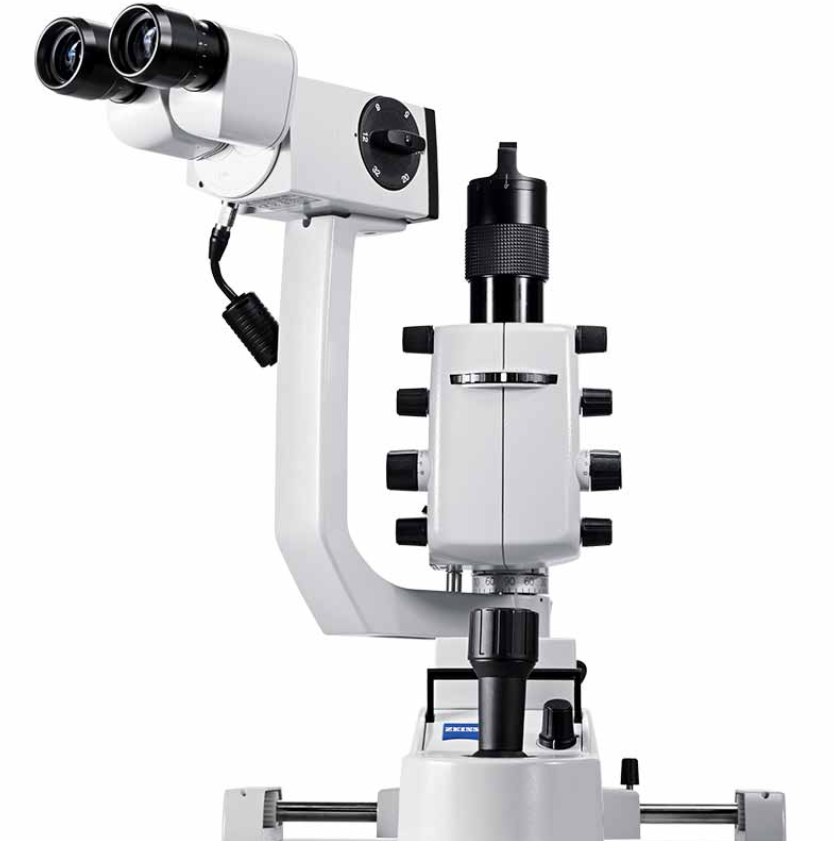

The SL 130 Slit Lamp is an all-in-one instrument for observation, measurement, diagnosis and documentation. Its optimally structured design also allows the SL 130 to be used in laser therapy: this has been achieved by the possibility of operating the slit projector in the central position with either the left or right hand. The instrument configuration allows you to use different prism heads and a micromanipulator.
Ideal operation

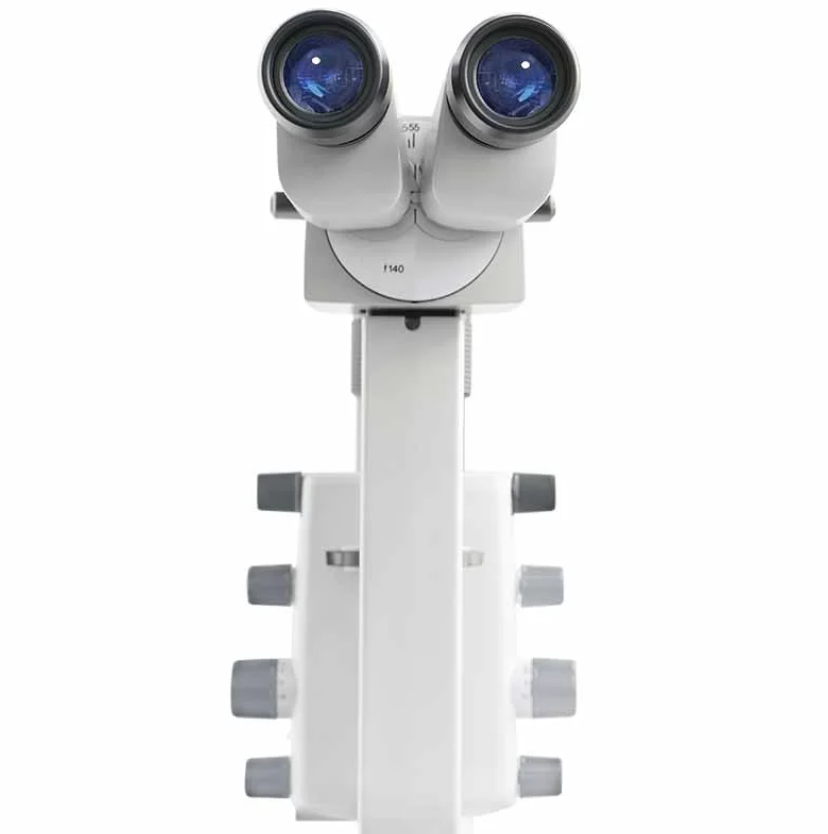

With its symmetrically arranged, easy-grip slit projector controls, the SL 130 provides excellent support for laser therapies with the optional VISULINK® 532/U in combination with VISULAS® 532s, as well as for contact glass examinations. System operation is intuitive and highly accurate, enabling precise adjustments of length, width and rotated slit image. And ergonomic advances are also very much in evidence in the form of the ACCENTO® ergo tube, which supports comfortable working positions and prevents neck and back strain. The SL 130 comes with a choice of parallel or convergent tube to cater to different working preferences.
Convenient imaging

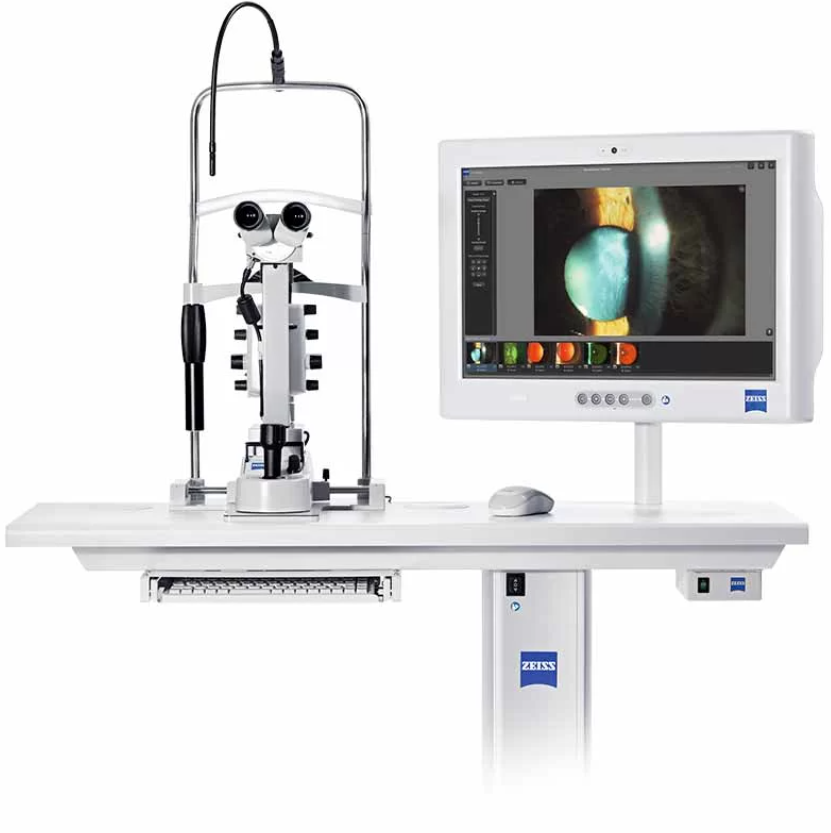

The SL 130 features the SL Imaging Module, enabling image and video recording of all examinations – whether for documentation, patient consultation or presentations. The SL cam 5.0, a fully integrated, highly compact 5-megapixel camera, and the SL imaging software, combine forces to deliver high-resolution images and videos. User-specific capture settings and image review functionalities promote a smooth workflow.
The SL Imaging Module is also available as an easy upgrade kit for existing SL 130 slit lamps.
A wide range of accessories available for your ZEISS Slit Lamp
From measurement and documentation to therapy, a broad spectrum of optional accessories is available for your slit lamp. If you are looking for more patient comfort, improved ergonomics or imaging solutions, learn more about suitable options for your ophthalmic workstation now.
| Optional accessories for SL 130 | |
| Imaging Solution | SL cam 5.0 – SL 120/130 |
| Applanation tonometer | AT 020 with measuring prism AT 030 with measuring prism |
| Tube | Parallel tube Convergent tube |
| Eyepiece | 10x or 12.5x eyepieces; 10x eyepiece for length and anglemeasurement |
| Ergonomics | ACCENTO® ergo tube ACCENTO® vario Fixation light |
| Hygiene accessories | Breath shield Paper for chin cup |
| Laser attachment | VISULINK® 532/U with laser application for VISULAS® 532s |
| Instrument tables | Instrument table IT 760 (120 V, 50/60 Hz or 230 V, 50/60 Hz) Instrument table IT 1060 (120 V, 50/60 Hz or 230 V, 50/60 Hz) |
| Others | Coobservation accessory Barrier filter (yellow) Focus rod |
