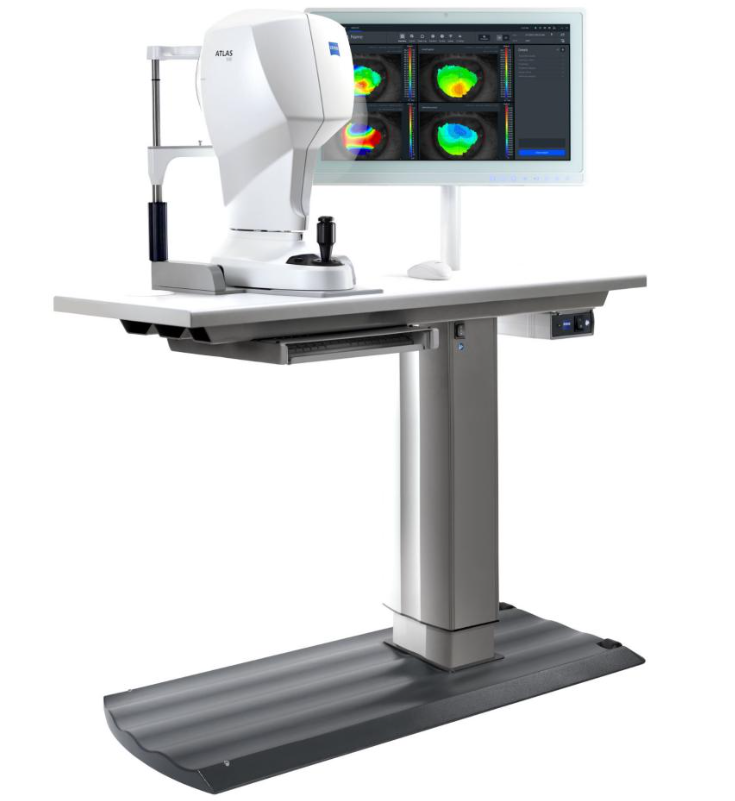

#ZEISS ATLAS 500 Next generation ocular surface analysis.
A state-of-the-art solution for the anterior eye segment, ATLAS® 500 from ZEISS offers corneal topography. Additionally, the system enables clinicians to carry out quick and accurate measurements through an intuitive and well-organized user interface, providing increased efficiency in a compact design.
Features：
Extended insights
Optimized design
Digital documentation

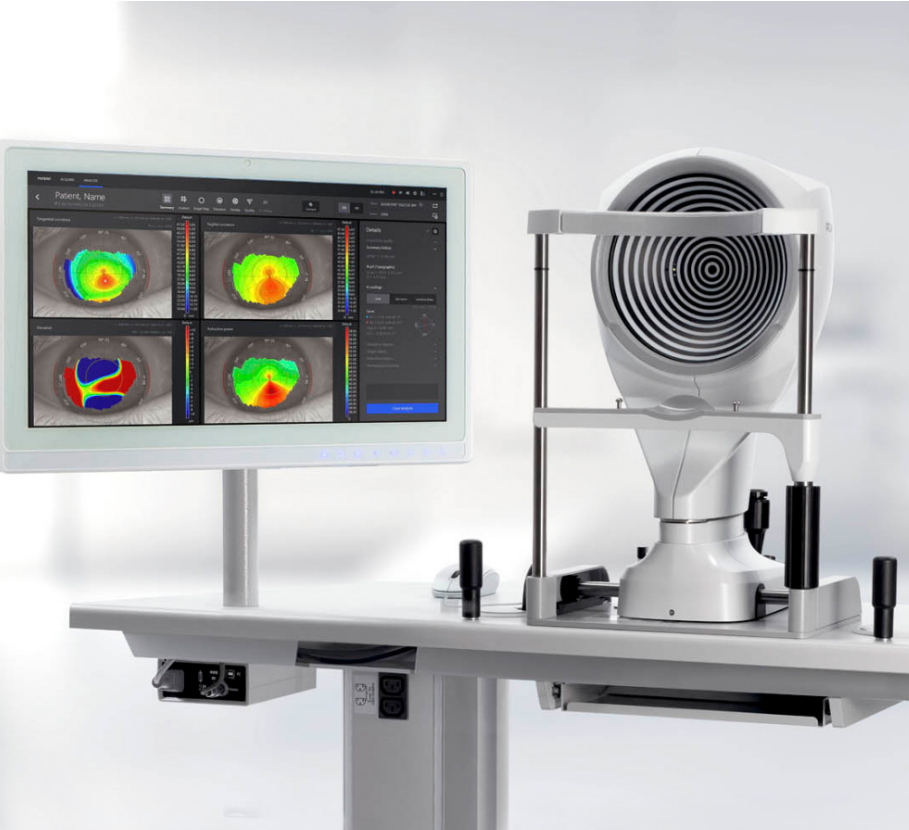

Extended insights
Precise corneal topography and visualization
Equipped with a variety of measurement capabilities, the ZEISS ATLAS 500 quickly captures relevant corneal properties with high resolution images and videos.
The Placido-based measurements provide a variety of corneal topography analysis options:
Summary/custom view including all common topographic maps
Elevation (spheric, aspheric and aspheric-toric)
Corneal wavefront analysis
Optical quality analysis
Contact lens fitting

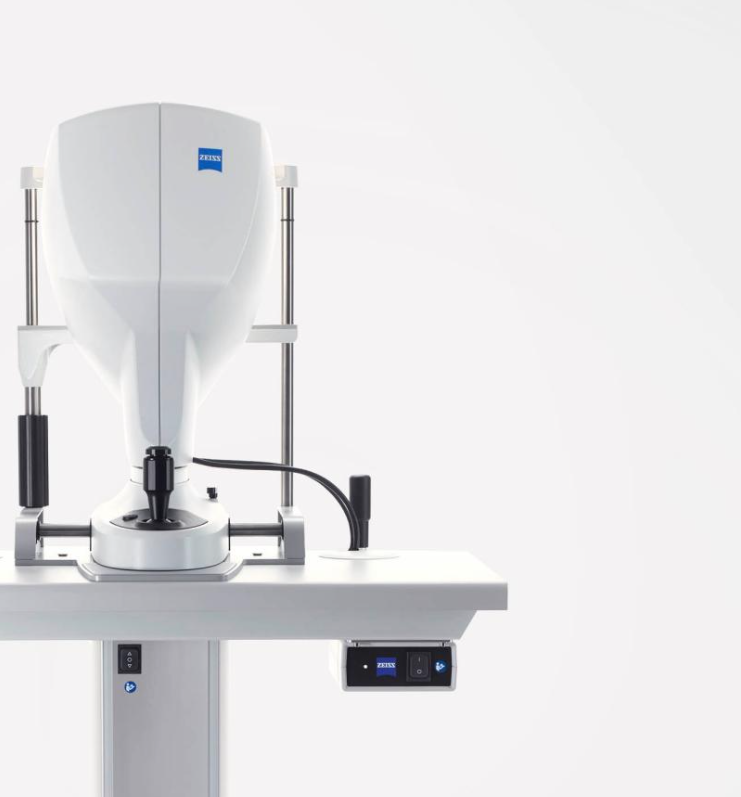

Optimized design
Easy operation and quick data acquisition
With its proven performance, advanced features and streamlined, contemporary design, the ZEISS ATLAS 500 is designed to fit into any modern clinic or practice environment and provides a positive experience for both operator and patients.

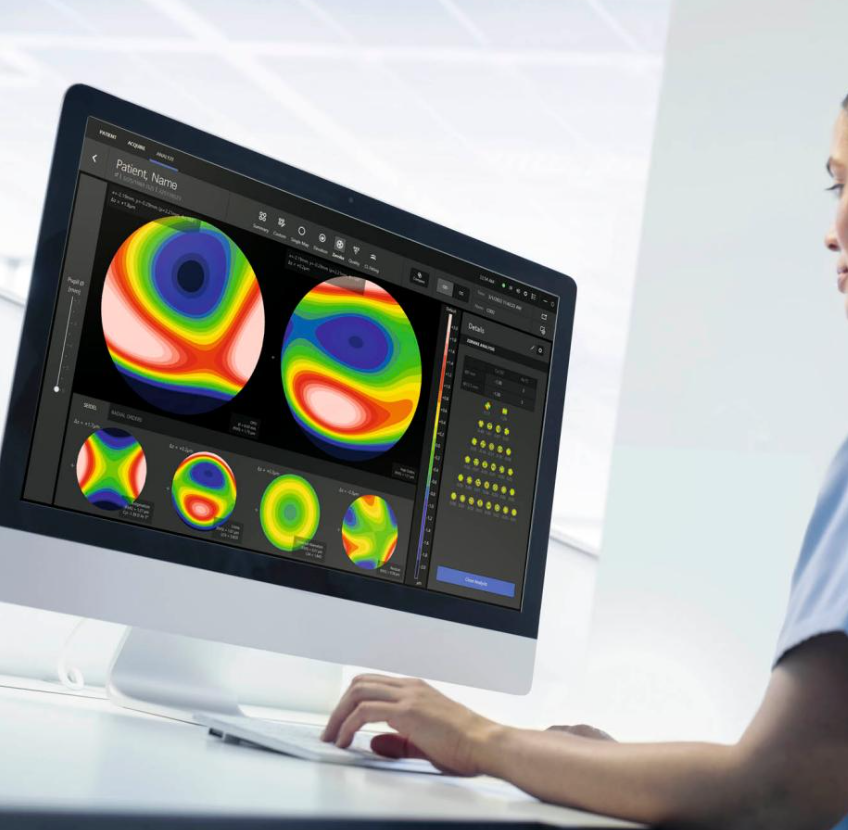

Digital documentation
Speed up practice workflow with less manual errors
The ZEISS ATLAS 500 is optimized for integration into the ZEISS medical ecosystem. The ZEISS FORUM connectivity enables patient data export, including PDF reports, to optimize your workflow.
Key Parameters
| Placido rings | 24 |
| Measurement points | 6144 |
| Topographic covering (in 42.2D) | 9.3 mm |
| Dioptric range | up to 95D |
| Accuracy | Type A (ISO 19980 / ANSI Z80.23, ISO 10343) |
| Measurement head position | Straight, +/- 15° swivel-out |
| Working distance | 74 mm |
| Adjustment range instrument base | 110 mm x 30 mm x 110 mm(W x H x D) |
| Placido Fluorescence stimulation | White light LED 450-650 nm LED 465 nm LED 950 nm |
| Dimensions (W x H x D) | 319 mm x 504 mm (+/- 15 mm) x 420 mm |
| Weight | 12.2 kg |
| Power supply | 100 V to 240 V AC 50/60 Hz |
| Data transfer | USB 3.0 |
| Compatibility with standard | DICOM |
