ZST+ Technology: Delivers enhanced image clarity with zone-based processing. Smart Scene 3D, iTouch, iWorks: AI tools for automated workflow and image optimization. Ultra-light Transducers: Designed for patient comfort and clinician ease. Ergonomic Design: Includes folding keyboard and multi-angle touchscreen. AI Measurement & Annotation: Intelligent automation for precise diagnostics. Full DICOM & PACS Integration: Ensures seamless hospital data connectivity.
Abdominal, cardiac, vascular and small parts probes Foldable transport trolley Long-life rechargeable battery CT/MRI image fusion kit Multi-probe docking station Protective cover for screen and console Wireless foot control Cleaning and maintenance kit

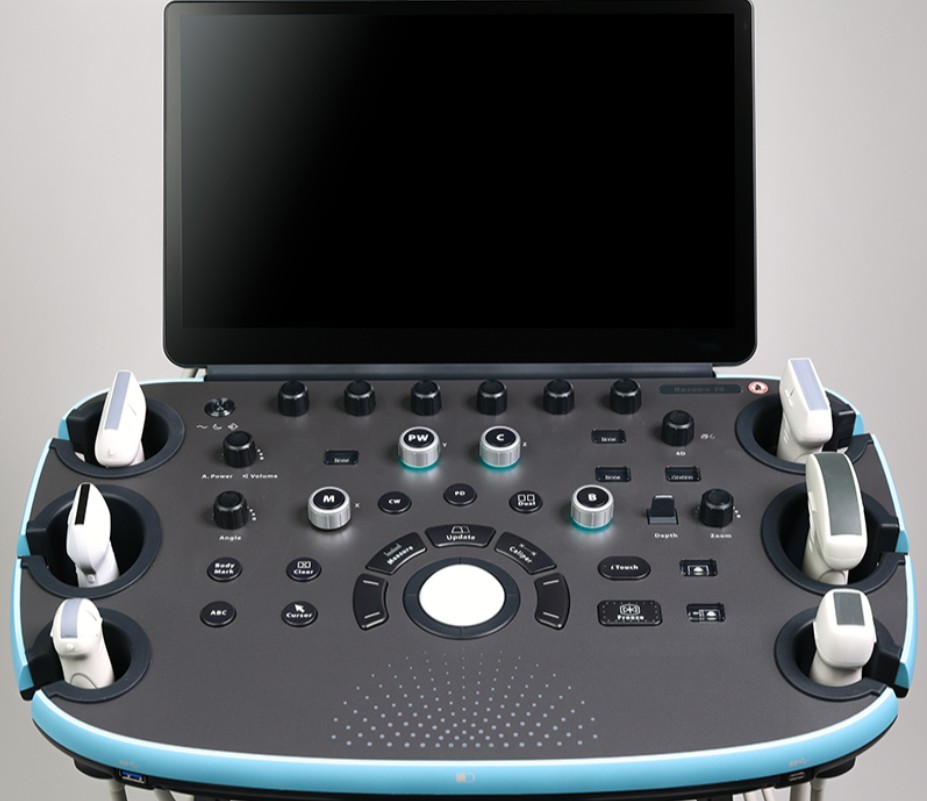

23.8” LED monitor with high-resolution display 15.6” HD intuitive touchscreen with fully-adjustable floating control panel The battery supports up to 2 hours continuous scanning Elevated transducer ports for comfortable connecting

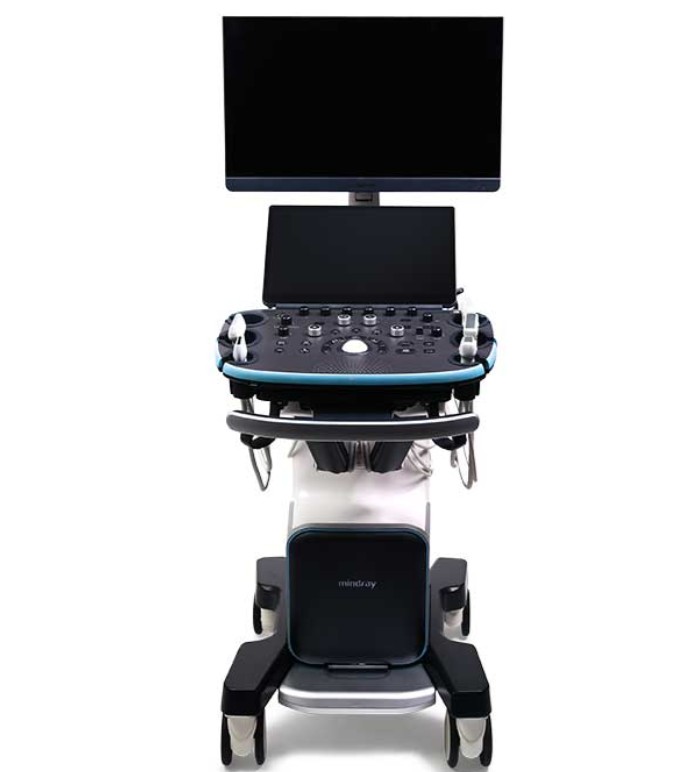

#Mindray's Resona I9 is a high-end ultrasound system designed to deliver an unrivalled diagnostic experience. Featuring the innovative ZST+ platform, it combines exceptional image quality, state-of-the-art ergonomics and remarkable clinical intelligence. With its accurate analysis tools, intelligent features such as Smart Breast and Smart Thyroid, and its foldable, quiet design, it adapts to all clinical environments. It offers unprecedented flexibility and increased productivity, ensuring reliable diagnosis and optimal patient care.

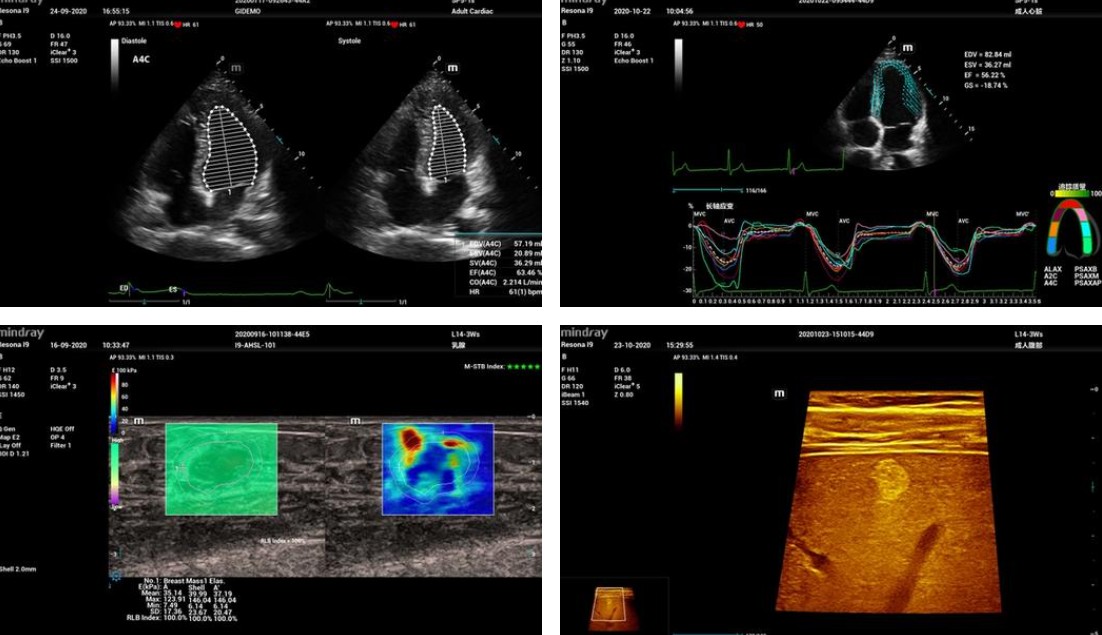

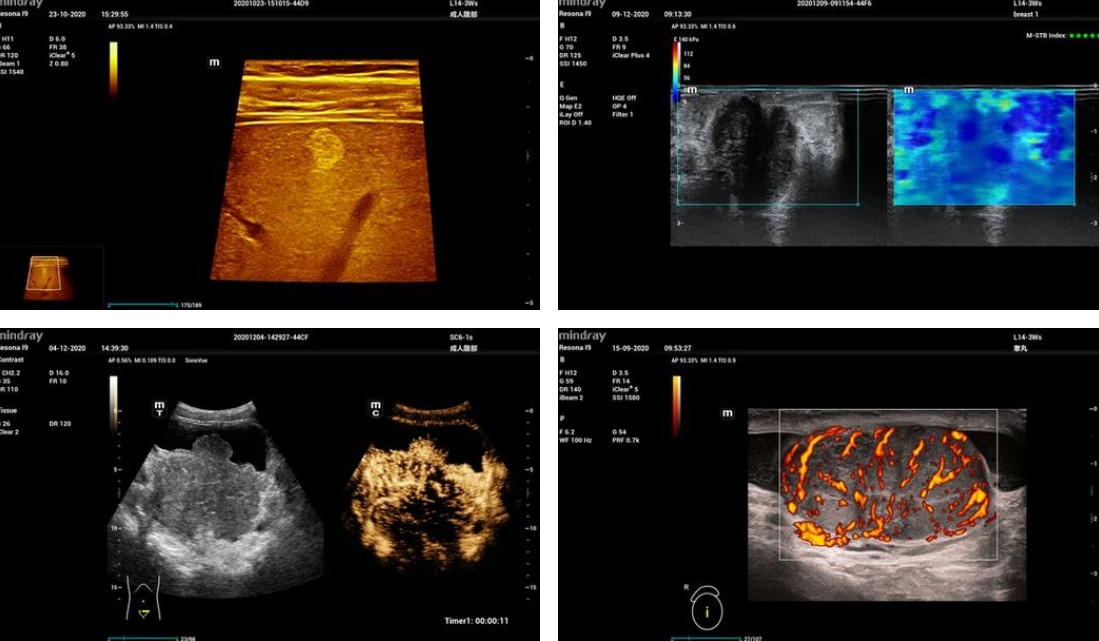

This system features an extensive suite of artificial intelligence (AI)-enhanced technologies, which improve reproducibility, optimize productivity, and increase consistency for end-users. The enriched Glazing Flow technology provides optimal visualization of micro-vascular perfusion states, while the Contrast-Enhanced Ultrasound (CEUS) imaging improves contrast and temporal resolution during CEUS studies. The Sound Speed Compensation (SSC) algorithm automatically detects and analyzes different tissue characteristics to determine the optimal signal speed needed for improved image quality. The system's Shear Wave Elastography (SWE) allows for smoother transition times and faster refresh rates, ensuring more consistent acquisition and assessment during live 2D shear wave imaging.
Mindray Resona i9 Ultrasound Ergonomic Highlights:
23.8” LED monitor with high-resolution display

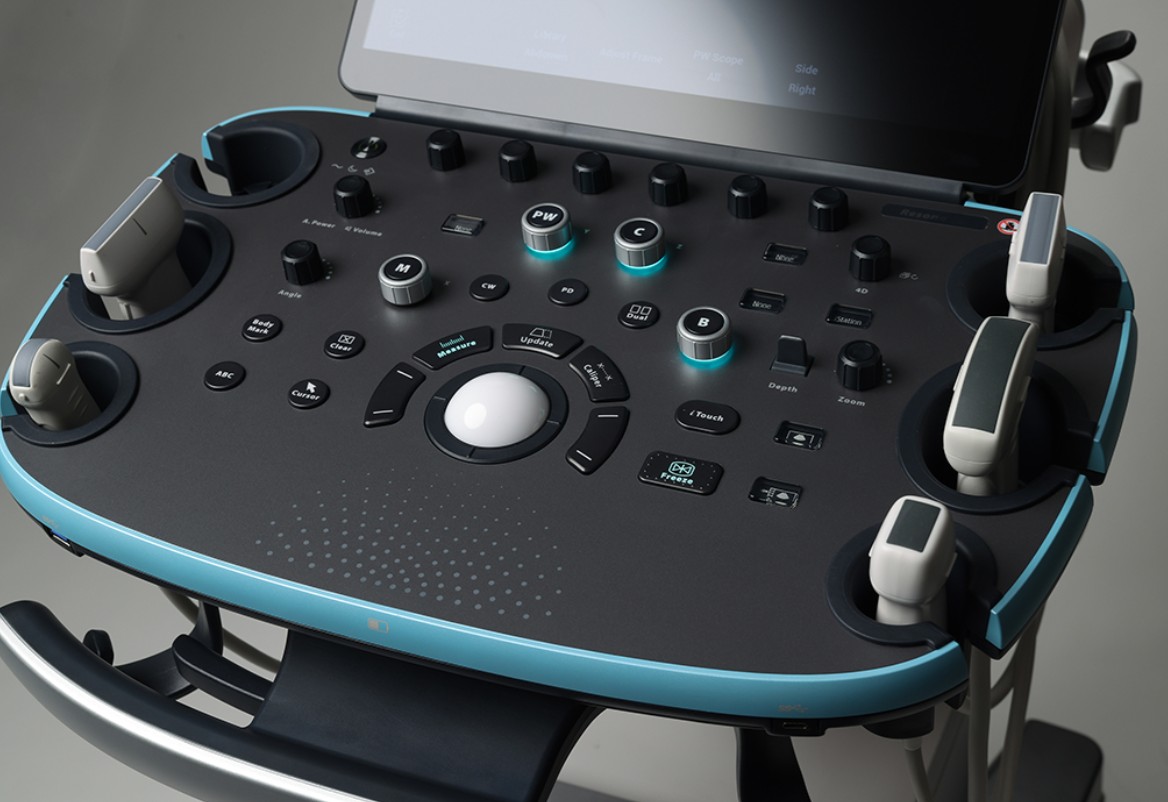

15.6” HD intuitive touchscreen with fully-adjustable floating control panel
The battery supports up to 2 hours continuous scanning

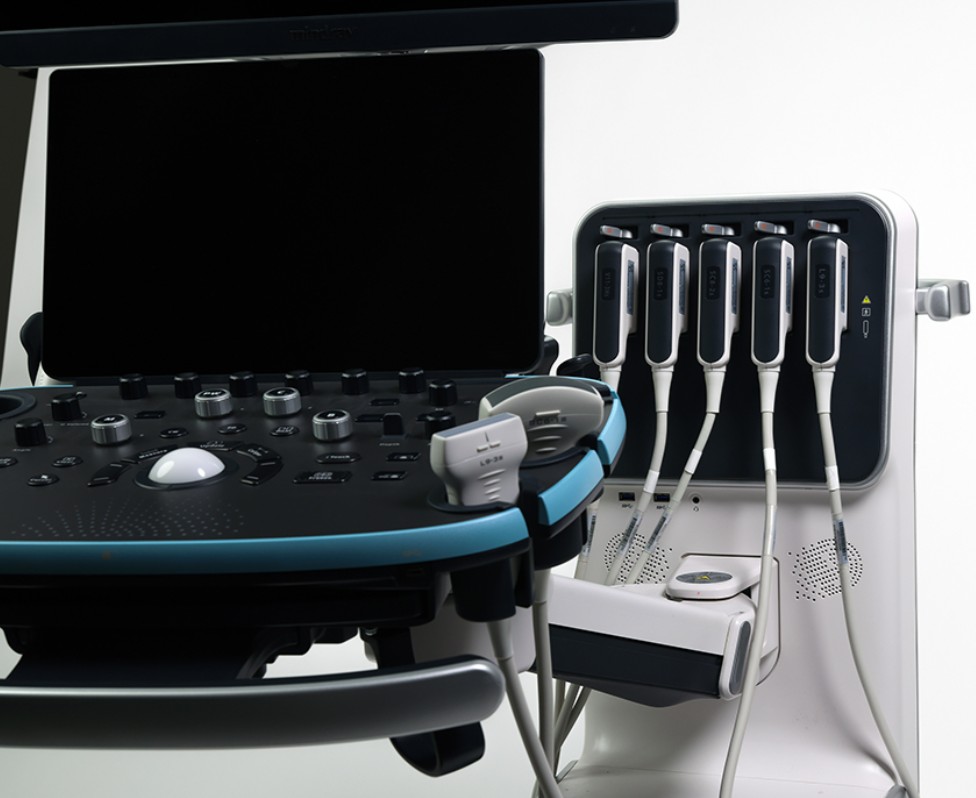

Elevated transducer ports for comfortable connecting
Exceptional Vascular Diagnostic Imaging On The Move:
Ultrasound is the modality of choice for vascular imaging due to its many advantages, such as cost-effectiveness, real-time results without sedation or anesthesia, and high-quality imaging without ionizing radiation exposure. From routine preventative screenings to vascular surgical interventions, ultrasound provides confident answers for a wide range of vascular conditions. With a two-hour scanning battery and a small, modular footprint, the Resona I9 Ultrasound enables Vascular clinicians to obtain rapid diagnostic results.

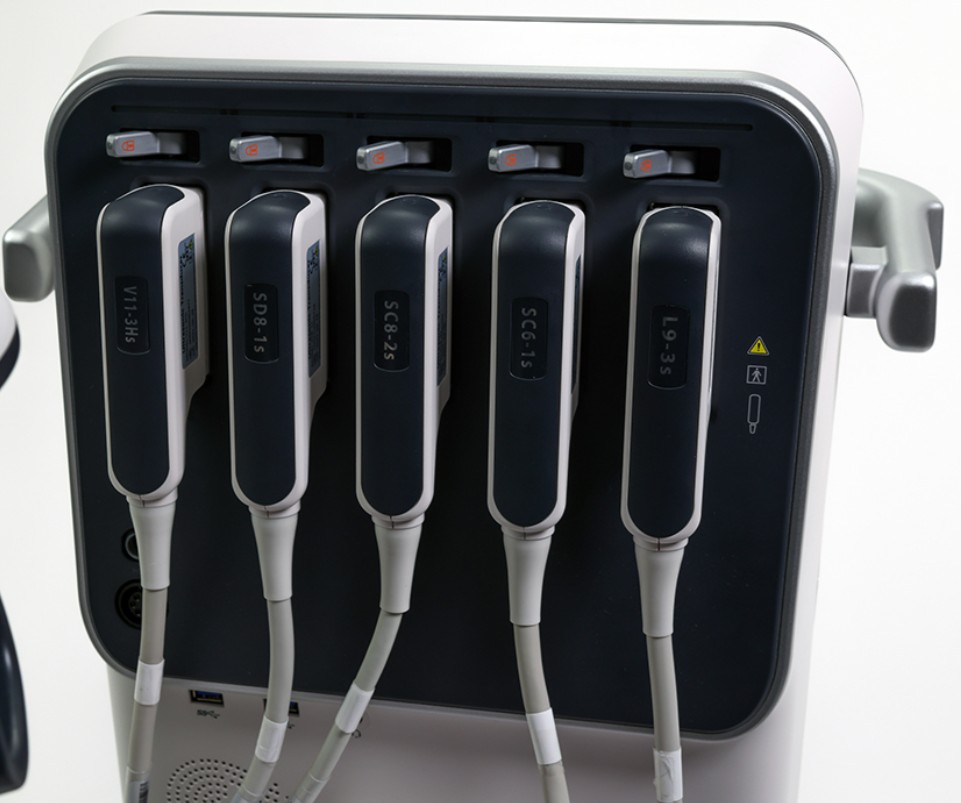

Mindray Resona i9 Ultrasound Transducers / Probes:
Mindray SC6-1s Single Crystal Convex Transducer
Applications: Abdomen, MSK, Nerve, OB/GYN, Small Parts, Urology, Vascular
Bandwidth: 1.2 - 6 MHz
FOV: 60°
Convex Radius: 60 mm
Biopsy kit: NGB-022, multi-angle, reusable
Mindray L9-3s Linear Transducer
Applications: Abdomen, MSK, Nerve, OB, Pediatric, Small Parts, Thoracic/Pleural, Vascular
Bandwidth: 2.5 – 9.0 MHz
FOV: 43.7 mm
Needle guide: NGB-034, multiangle, reusable
Mindray SC8-2s Single Crystal Convex Transducer
Applications: Abdomen, OB/GYN, Urology, Vascular
Bandwidth: 1.8 – 8.2 MHz
FOV: 76°
Convex radius: 40 mm
Biopsy kit: NGB-029, multi-angle, reusable
Mindray L14-3Ws Linear Transducer
Applications: Abdomen, MSK, Pediatric, Small Parts, Thoracic/Pleural, Vascular
Bandwidth: 3.0 – 14.0 MHz
FOV: 50.8 mm
Biopsy kit: NGB-054, multi-angle, reusable
Mindray C6-2Gs Convex Transducer
Applications: Abdomen, OB/GYN, Urology, Vascular
Bandwidth: 1.2 – 6.0 MHz
FOV: 94°
Convex radius: 20 mm
Biopsy kit: NGB-024, multi-angle, reusable
Mindray L20-5s Linear Transducer
Applications: Abdomen, MSK, Nerve, Small Parts, Vascular
Bandwidth: 6.0 – 23.0 MHz
FOV: 28.5 mm
Biopsy kit: NA
Mindray C11-3s Micro-convex Transducer
Applications: Abdomen, Cardiac, Cranial, Pediatric, Small Parts, Vascular
Bandwidth: 2.6 – 12.6 MHz
FOV: 101°
Convex radius: 15 mm
Biopsy kit: NGB-018, multi-angle,
reusable
Mindray SP5-1s Single Crystal Phased Transducer
Applications: Abdomen, Cardiac, Cranial, Thoracic/Pleural, Vascular
Bandwidth: 1.5 – 4.5 MHz
FOV: 90°
Biopsy kit: NGB-011, multi-angle, reusable
Mindray V11-3Hs Endocavity Transducer
Applications: OB/GYN, Urology
Bandwidth: 3.0 – 11.0 MHz
FOV: 170°
Convex radius: 11 mm
Biopsy kit: NGB-025, single-angle, reusable
Mindray CW2s Continuous Wave Transducer
Applications: Cardiac, Cranial
Bandwidth: 2 MHz
Biopsy kit: NA
Mindray SD8-1s Single Crystal Volume Transducer
Applications: Abdomen, OB/GYN
Bandwidth: 1.8 – 8.2 MHz
FOV: max: 66° B x 85° sweep
Convex radius: 45 mm
Biopsy kit: NGB-039, multi-angle, reusable
Mindray CW5s Continuous Wave Transducer
Applications: Cranial, Vascular
Bandwidth: 5 MHz
Biopsy kit: NA
Mindray DE11-3Ws Endocavity Volume Transducer
Applications: OB/GYN, Urology
Bandwidth: 2.0 – 9.0 MHz
FOV: max: 162° B x 120° sweep
Extended FOV: 187°
Convex radius: 10 mm
Biopsy kit: NGB-047, single-angle, reusable
Mindray P7-3Ts Transesophageal Transducer
Applications: Cardiac
Bandwidth: 2.3 – 7.2 MHz
FOV: 90°
Biopsy kit: NA
