(W) 530 × (D) 742 × (H) 1170–1660 mm 85 Kg
#The Fujifilm Arietta 650 DeepInsight is a high-performance ultrasound system designed to deliver remarkable imaging accuracy across all clinical specialties. Thanks to its DeepInsight technology, combining artificial intelligence and advanced signal processing, it provides exceptionally clear images while ensuring smooth and ergonomic use. Its optimised architecture, automated tools and intuitive workflow enable clinicians to gain in efficiency, reliability and comfort, while ensuring optimal reproducibility of ultrasound examinations.
Arietta 650 DeepInsight by Fujifilm: precision for diagnosis
Fujifilm's Arietta 650 DeepInsight ultrasound system heralds a new era in medical ultrasound imaging. Using DeepInsight technology, based on artificial intelligence, it extracts and processes only the essential information from the acoustic signal to produce images of remarkable precision. This process ensures accurate reproduction of anatomical structures, regardless of the complexity of the examination. Combined with eFocusing Lite technology, the platform offers optimised automatic focusing, ensuring better penetration and superior spatial resolution even at depth. The system also incorporates Carving Imaging technology, which enhances contrast and reduces operator dependence, enabling reliable and reproducible diagnoses. The result is clear, stable and consistent imaging, suitable for all medical specialties.
A smooth and ergonomic workflow
The Arietta 650 DeepInsight has been designed to meet the growing demands of healthcare professionals for efficiency and comfort. Its intuitive interface, complemented by careful ergonomics, facilitates complex examinations while reducing the cognitive load on the user. The system incorporates Protocol Assistant, a feature that guides the operator through each step of the examination according to predefined protocols. This approach ensures standardised procedures and greater consistency of results between different practitioners. The device also supports the automatic creation of standardised reports, simplifying documentation and patient record management. Its high-resolution screen mounted on a 360° articulated arm, adjustable control panel and compact design ensure optimal user comfort, reducing fatigue and musculoskeletal disorders associated with prolonged use. Every detail of the design has been thought out to optimise productivity and the fluidity of clinical work.
Clinical versatility for all applications
A truly versatile system, the Arietta 650 DeepInsight is suitable for a wide range of clinical applications, from cardiovascular diagnostics to obstetric and gynaecological imaging, radiology, paediatrics and musculoskeletal examinations. Its accuracy allows for the detection and characterisation of lesions in their early stages, the analysis of tumour vascularisation and the reliable monitoring of disease progression. In hepatology, it offers powerful tools for assessing steatosis and fibrosis, while in women's health, it supports all stages of prenatal and postnatal care. In cardiology, its automatic measurement module facilitates the assessment of cardiac and vascular functions with exemplary speed and consistency. Thanks to its DICOM compatibility, the system integrates easily into any hospital environment or imaging network, enabling secure data sharing and archiving.
The Arietta 650 DeepInsight embodies Fujifilm's vision: to offer high-performance, accurate and sustainable imaging solutions that improve the quality of care and simplify clinical practice. By combining image quality, ergonomics and artificial intelligence, it redefines the standards of modern ultrasound diagnostics and establishes itself as an essential tool for healthcare facilities seeking excellence, reliability and productivity on a daily basis.
Technical Details
DeepInsight technology using artificial intelligence
Carving Imaging image processing for better tissue differentiation
eFocusing Lite system for consistent automatic focusing

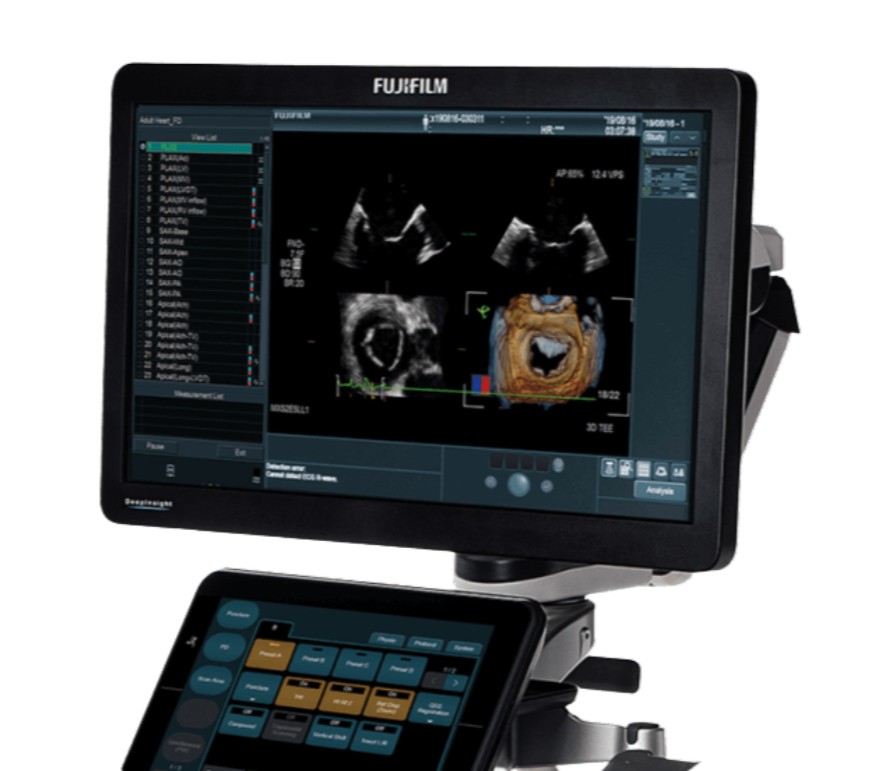

High-resolution screen mounted on a 360° articulated arm
Height- and angle-adjustable control panel
Pure Symphonic architecture for fast signal processing
Full DICOM compatibility
Dimensions: (W) 530 × (D) 742 × (H) 1170–1660 mm
Weight: 85 kg
Power: 750 VA
Features
High-precision ultrasound imaging across a wide clinical spectrum
Intuitive interface and smooth navigation
Protocol wizard to standardise examinations
Automatic generation of patient reports
Guide View function for comparing reference images
Fewer operations for time savings
Ergonomic design promoting healthy working posture
Scalable system compatible with numerous probes
Automatic measurements for cardiac and vascular examinations
Easy integration into hospital networks via DICOM

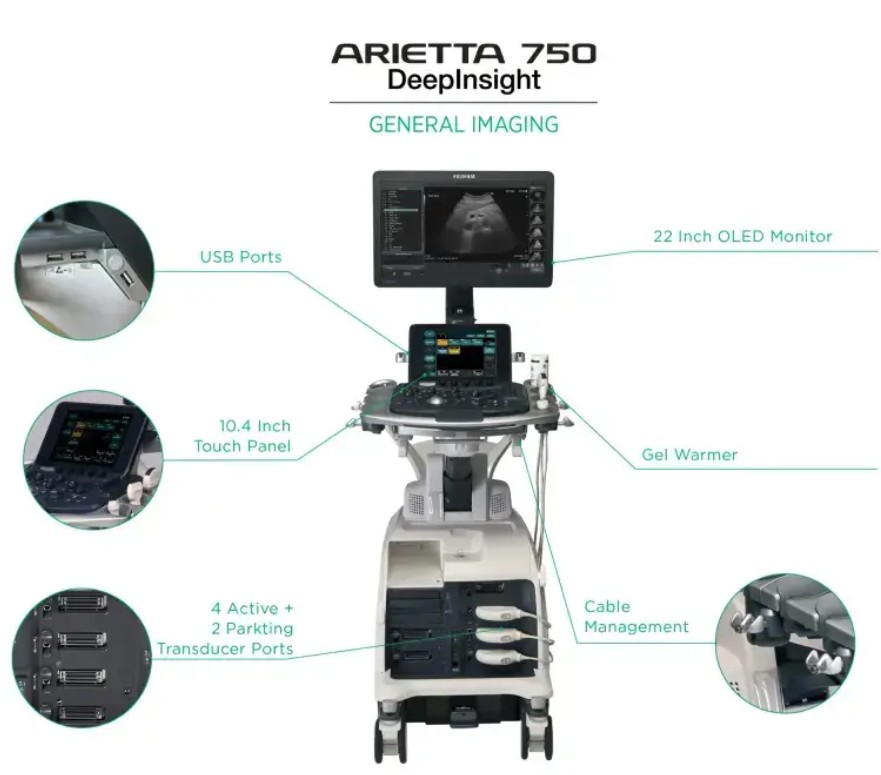

#Features of the new ARIETTA 750 DeepInsight ultrasound system include:
Pure images: clear, high definition images without inter-operator and inter-patient variability
The ARIETTA 750 DeepInsight ultrasound system software suite is designed to solve common challenges associated with ultrasound imaging, such as inter-operator and inter-patient variability, and sub-optimal image clarity. The DeepInsight software uses AI for signal processing – resulting in extremely high definition – while the eFocusing full focus function provides homogenous image quality and improves sensitivity for both near and far field screening. In addition, tissue structure clarity is further enhanced through Carving Imaging, based on Fujifilm’s advanced image processing technology. Together, these technologies ensure high image quality and consistency for both routine and complex examinations, ultimately contributing to faster diagnoses.
Tools to cover a wide range of clinical applications
1) Abdominal/superficial
Hepatic diseases resulting from fatty liver changes have been increasing in recent years, and non-invasive examination methods are required for early detection, pharmacotherapy, and follow-up.

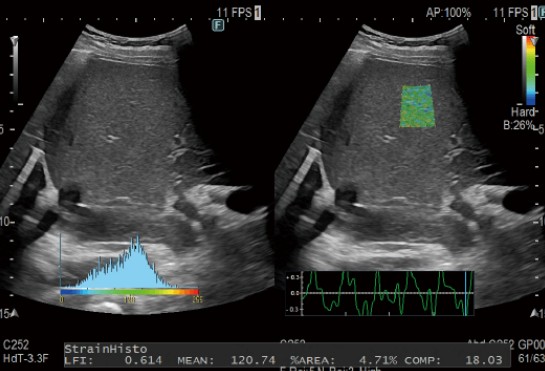

• Real-time Tissue Elastography (RTE) and Shear Wave Measurement (SWM) support a comprehensive diagnosis of hepatic diseases such as hepatitis, hepatic fibrosis, and hepatic cirrhosis by evaluating tissue stiffness.
• Attenuation Measurement (iATT) determines the ultrasound attenuation coefficient of liver tissue, and can estimate the degree of fatty liver, contributing to early detection of hepatic diseases. SWM and iATT can be performed simultaneously in one scan.
• Real-time Virtual Sonography (RVS) is an advanced application that can combine a CT, MRI or PET-CT scan with real-time ultrasound imaging. Overlaid images are displayed on the monitor of the diagnostic ultrasound system to support procedure guidance and treatment evaluation.
• Fat Lesion Ratio (FLR) measurements can be used to help diagnose breast cancer.
• Assist Strain Ratio tool can automatically set the region of interest during an examination.
• Auto Frame Selection identifies the optimal measurement frame.
2) Cardiac
The prevalence of heart failure increases with age, and is highly related to lifestyle choices. Fujifilm has several applications that can help obtain a comprehensive diagnosis of heart failure.

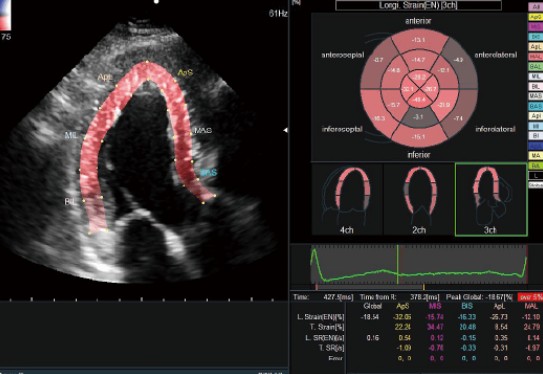

• 2D Tissue Tracking (2DTT) can be used in routine examinations to quantify the local movement of the whole left ventricle or myocardium. This contributes to the calculation of Global Longitudinal Strain (GLS), which has been recognised as an important parameter in the evaluation
of the left ventricle function, attracting attention in heart failure diagnosis.
• Dual Gate Doppler, powered by AI, allows automatic settings of two separate sample volumes, enabling the operator to observe Doppler waveforms from two different locations during the same heartbeat.
• R-R Navigation can be used for patients with arrythmia, as it can detect an interval where the heartbeat is stable, and use it for further measurements.
