Revolutionary Image Quality: Powered by Mindray’s ZONE Sonography® Technology+ (ZST+), the Consona N9 creates perfectly focused images with every pixel and frame. Ergonomic Design: Enjoy a fully-adjustable floating control panel and an intuitive, gesture-powered touchscreen for seamless workflow and intuitive operation. Enhanced User Experience: Minimize repetitive keystrokes and ensure consistency between users with the Consona N9's user-friendly interface. Comprehensive Transducer Selection: Tailored for women's health, radiology, and cardiovascular needs, offering unparalleled versatility.
23.8” High-Resolution LED Monitor: Crystal-clear imaging for precise diagnostics. 15.6” HD Intuitive Touchscreen: Customizable and gesture-powered for effortless control. Waterproof Control Panel: Easy to disinfect, promoting hygiene. 90-Minute Scanning Battery Life: Ideal for uninterrupted sessions. Magnetic Protective Cover: Offers efficient cable management. Ergonomic Foot Rest: Ensures comfort during long scanning sessions.
#Mindray Consona N6 N7 N8 N9 Color Doppler Ultrasound Cardiovascular Obstetrics Gynecology Urology USG Machine

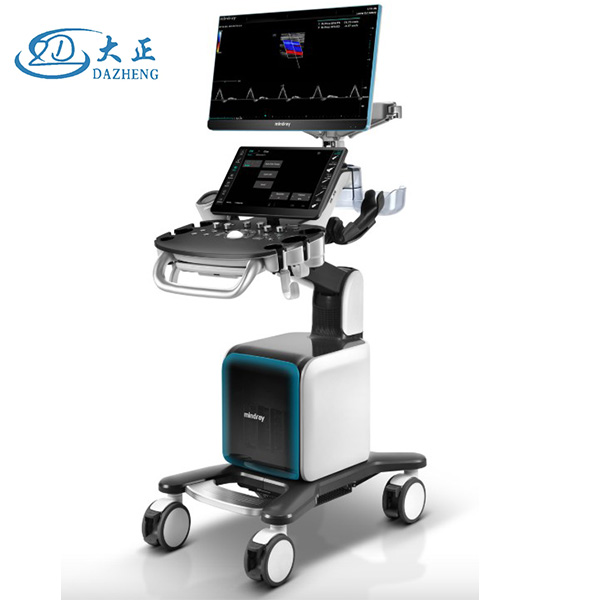

The Mindray Consona N9 Ultrasound System sets a new standard in image quality and ergonomic design, tailored specifically for women's health, radiology, and cardiovascular departments. This advanced ultrasound system offers a comprehensive array of transducers and features designed to maximize performance and enhance both user and patient experiences.
Key Features
Revolutionary Image Quality: Powered by Mindray’s ZONE Sonography® Technology+ (ZST+), the Consona N9 creates perfectly focused images with every pixel and frame.
Ergonomic Design: Enjoy a fully-adjustable floating control panel and an intuitive, gesture-powered touchscreen for seamless workflow and intuitive operation.
Enhanced User Experience: Minimize repetitive keystrokes and ensure consistency between users with the Consona N9's user-friendly interface.
Comprehensive Transducer Selection: Tailored for women's health, radiology, and cardiovascular needs, offering unparalleled versatility.

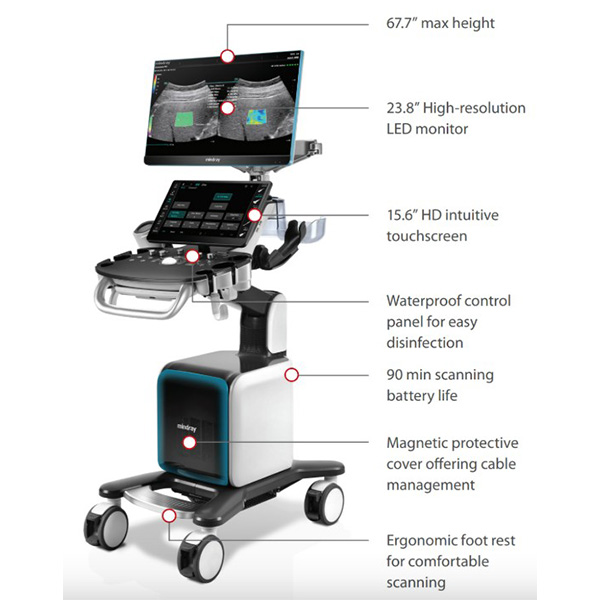

Innovative Ergonomics
Mindray is dedicated to advancing healthcare through innovation. The Consona N9 system embodies this commitment with ergonomic enhancements designed for ease of use and efficiency.
67.7” Max Height: Adjustable to suit any scanning environment.

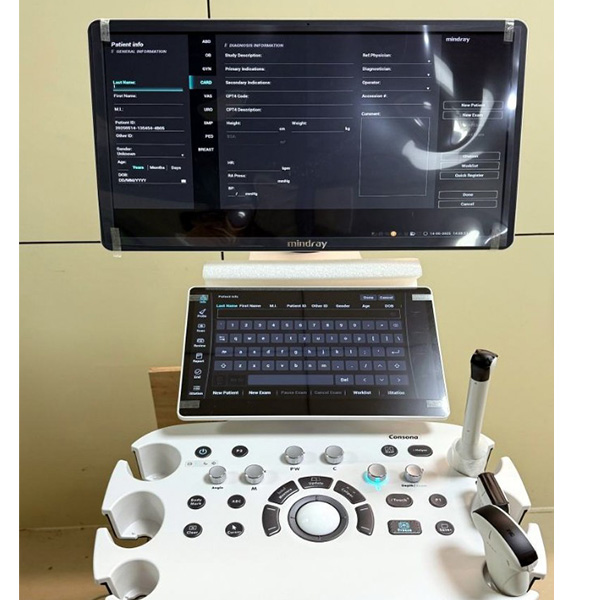

23.8” High-Resolution LED Monitor: Crystal-clear imaging for precise diagnostics.

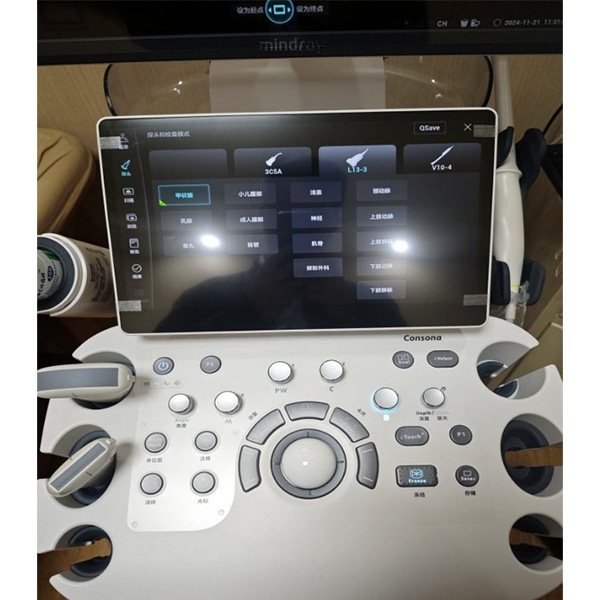

15.6” HD Intuitive Touchscreen: Customizable and gesture-powered for effortless control.
Waterproof Control Panel: Easy to disinfect, promoting hygiene.
90-Minute Scanning Battery Life: Ideal for uninterrupted sessions.
Magnetic Protective Cover: Offers efficient cable management.
Ergonomic Foot Rest: Ensures comfort during long scanning sessions.
Advanced Imaging Capabilities
Experience the pinnacle of ultrasound imaging with the Consona N9. Here are some examples of its advanced imaging capabilities:
Bidirectional Power Doppler with HR Flow
Lower Arterial Triplex
Smart Planes CNS
2D Complex Thyroid Lesion
Color Doppler Common Carotid Artery
Pancreas with HD Scope
Sound Touch Elastography
2D Liver Anatomy Visualized with ZST+

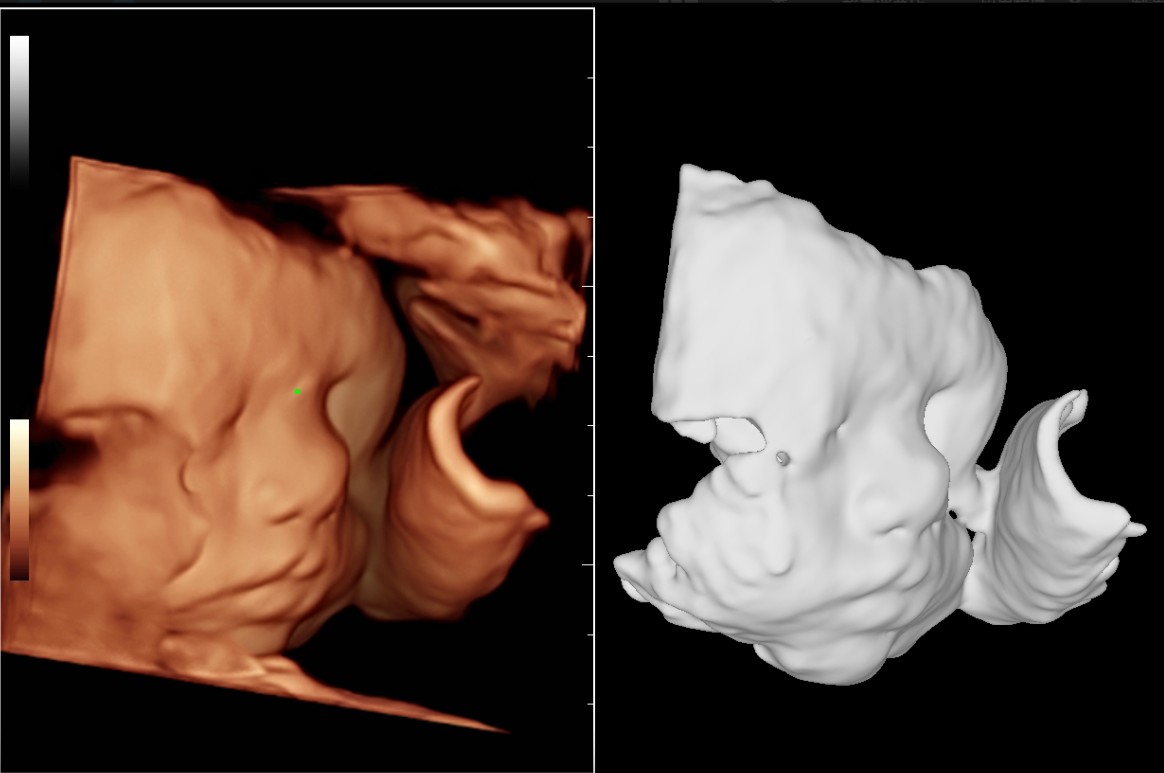

Fetal Face iLive+
Smart Pelvic
Tissue Doppler Imaging
3D Color Fetal Umbilical Cord
Minday Consona N9 Ultrasound Transducers
Mindray SC5-1N Single Crystal Convex Transducer
Applications: Abdominal, OB/GYN, Vascular, Nerve, MSK, Urology, Thoracic, Small Parts
Bandwidth: 1.2 – 6.0 MHz
FOV: 74°
Convex radius: 60 mm
Biopsy kit: NGB-022, multi-angle, reusable
Mindray L9-3 Linear Transducer
Applications: Vascular, Small Parts, MSK, Nerve, Abdomen, Pediatric
Bandwidth: 2.5 – 9.0 MHz
FOV (Max):
Non-extended: 4.37 cm
Extended: 40°
Biopsy kit: NGB-034, multi-angle, reusable
Mindray C11-3 Micro-convex Transducer
Applications: Abdominal, Cardiac, Vascular, Pediatric
Bandwidth: 2.6 – 12.8 MHz
FOV: 114°
Convex radius: 15 mm
Biopsy kit: NGB-018, multi-angle, reusable
Mindray L13-3N Linear Transducer
Applications: Small Parts, Vascular, MSK, Nerve, Abdominal, Pediatric
Bandwidth: 3.0-13.0 MHz
FOV (Max):
Non-extended: 3.8 cm
Extended: 40°
Biopsy kit: NGB-052, NGB-053
Mindray SP5-1N Single Crystal Phased Transducer
Applications: Cardiac, Transcranial, Thoracic, Abdomen, Vascular
Bandwidth: 1.5 – 4.5 MHz
FOV: 90°
Biopsy kit: NGB-011, multi-angle, reusable
Mindray V11-3H Endocavity Transducer
Applications: OB/GYN, Urology
Bandwidth: 3.0-12.0 MHz
FOV: 196°
Convex radius: 11 mm
Biopsy kit: NGB-025, single-angle, reusable
Mindray P8-2 Phased Transducer
Applications: Pediatric, Cardiac, Transcranial, Thoracic, Abdomen,
Vascular
FOV: 90°
Biopsy kit: NA
Mindray DE11-3 Endocavity Volume Transducer
Applications: OB/GYN, Urology
Bandwidth: 2.0 – 9.0 MHz
FOV: (max) 162 (B) x 120 (sweep)
Convex Radius: 11 mm
Biopsy kit: NGB-027, single angle, reusable
Mindray SD8-1 Single Crystal Volume Transducer
Applications: OB/GYN, Abdomen
Bandwidth: 1.8 – 8.2 MHz
FOV: (max) 66 (B) x 85 (sweep)
Convex Radius: 45 mm
Biopsy kit: NGB-039, multi-angle, reusable
Mindray L16-4HS Intra-operative Transducer
Applications: MSK, Superficial, Nerve, Vascular, Pediatric
Bandwidth: 3.5 – 16 MHz
FOV (Max):
Non-extended: 2.53 cm
Extended: 40°
Biopsy kit: NA
*Requires adapter
Mindray CW5s Non-imaging Transducer
Applications: Transcranial, Vascular
Bandwidth: 5.0 MHz
Biopsy kit: NA
Mindray CW2s Non-Imaging Transducer
Applications: Adult Cardiac, Adult
Transcranial, Pediatric Cardiac
Bandwidth: 2.0 MHz
Biopsy kit: NA
Why Choose the Mindray Consona N9?
The Consona N9 Ultrasound System is designed to meet the diverse needs of healthcare providers, offering superior image quality, innovative ergonomic design, and advanced technology. It enhances workflow efficiency and provides exceptional diagnostic capabilities, making it an indispensable tool in modern medical practice.
