21.5” standard LED monitor Unique dual-wing floating arm Ultra-slim multi-gesture touchscreen Built-in battery Five active transducer ports
Crystal-Clear Imagery: Innovative imaging technology enhances precision, enabling confident diagnoses and detailed views even in complex cases. X-Insight Platform: Combines intelligent imaging functionalities with high-performance processing for unmatched speed and accuracy. Enhanced Workflow: Automates key processes to reduce time spent on routine tasks, allowing clinicians to focus on patient care. Dedicated Solutions: Tailored capabilities for diverse clinical needs, from OB/GYN to cardiology and general imaging.

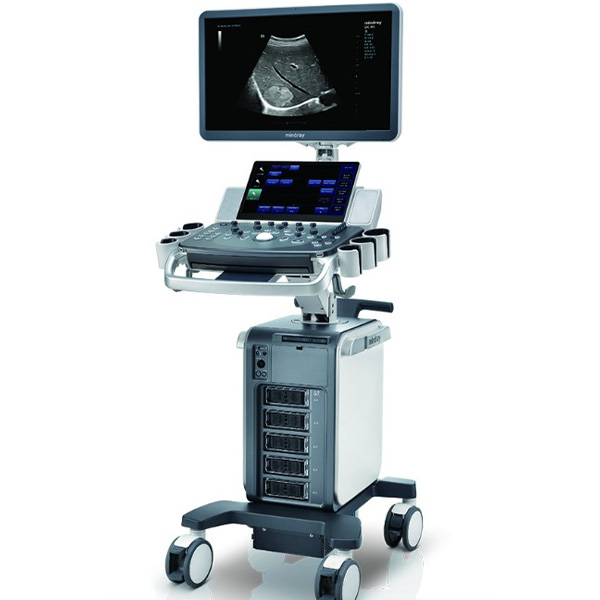

#Mindray DC-90 ultrasound The Mindray DC-90 ultrasound is designed to meet the high demands of today's fast-paced hospital environment with innovative solutions that help clinicians identify high-risk patients efficiently, track disease progression quantifiably, and make informed decisions to optimize treatment efficacy throughout the care continuum
Mindray DC-90 Ultrasound System Description:

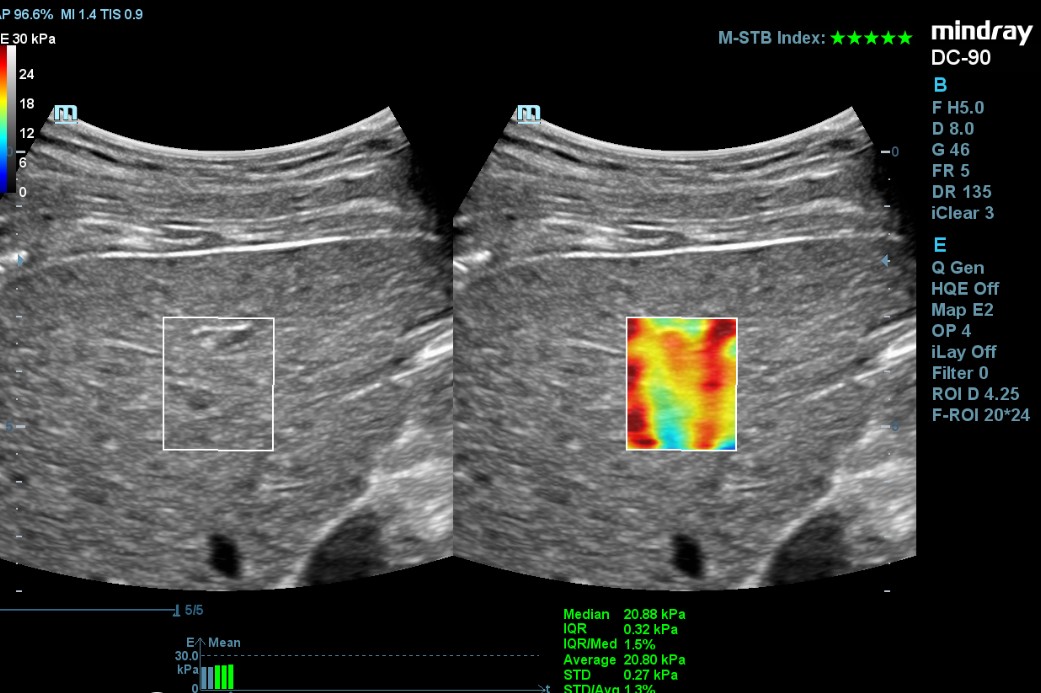

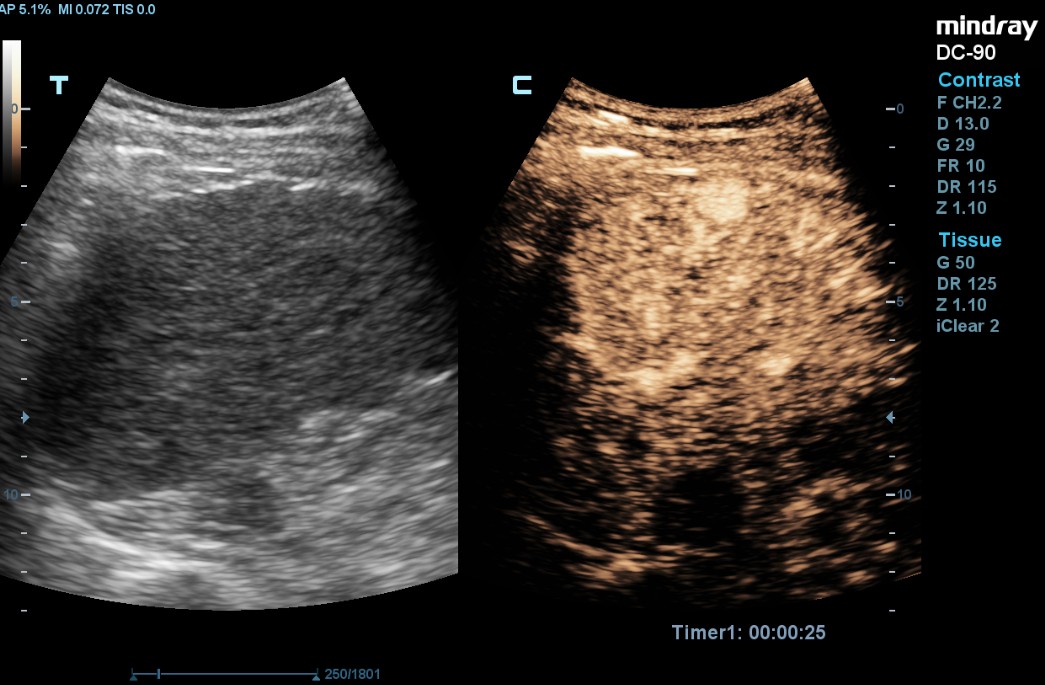

Advanced technologies provide clinical certainty within reach, including the Sound Touch Elastography (STE) which utilizes exclusive Ultra-Wide Beam Tracking technology to deliver comprehensive quantification metrics and dynamic visual displays of tissue stiffness, and the Ultra-Wideband Non-Linear CEUS imaging that uses both harmonic and fundamental signals to improve contrast and temporal resolution during CEUS studies.

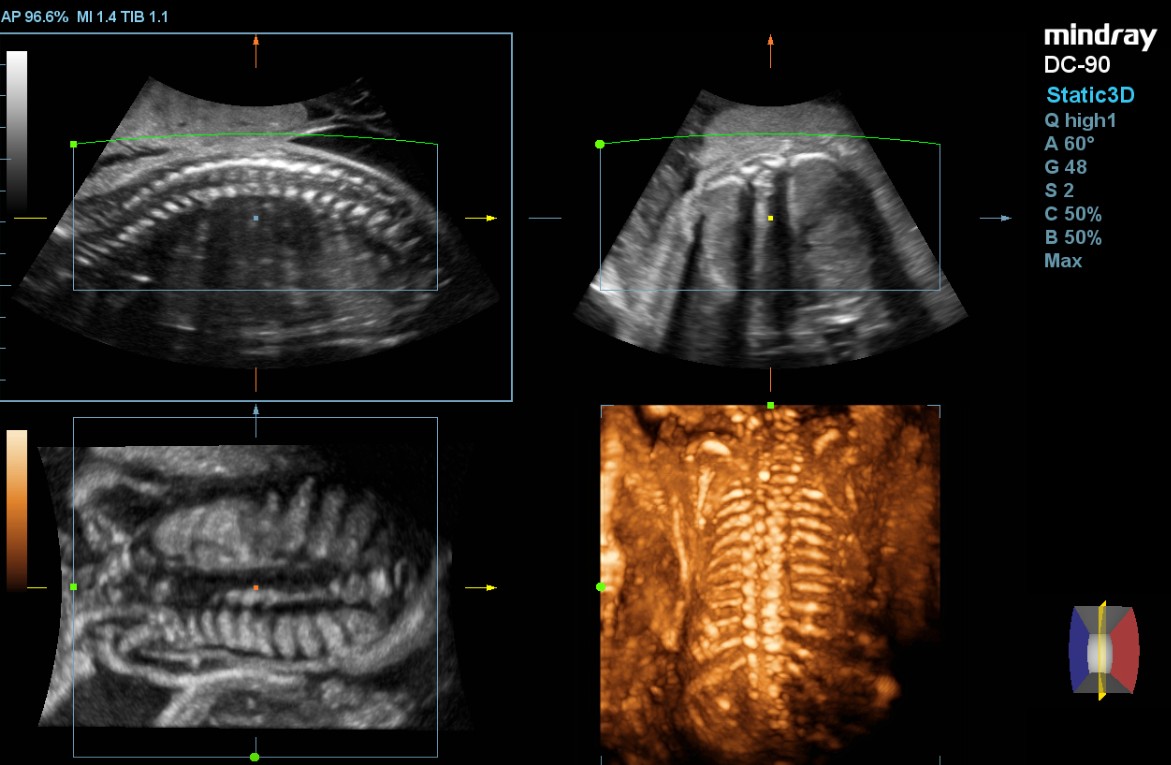

Smart Planes CNS technology is designed to automatically detect planes and calculate frequently used measurements of the central nervous system in fetal brain examinations, while Smart Face provides a fast and intelligent optimization for the fetal faces with a simple one-touch operation.

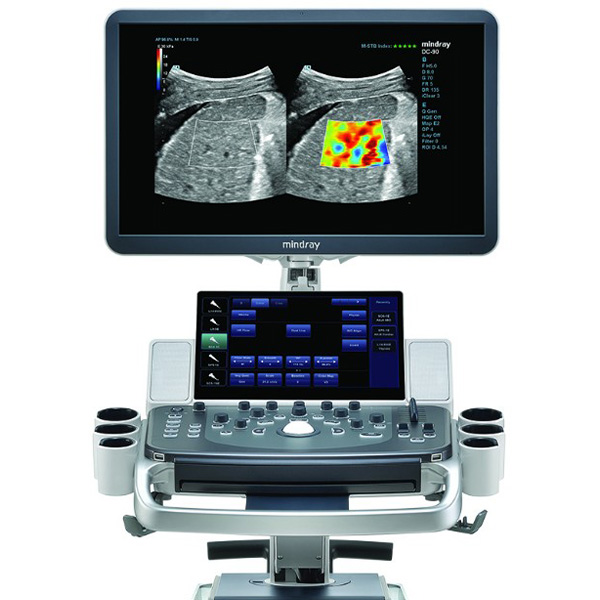

Mindray prioritizes your well-being first with enhanced ergonomics, featuring a 21.5” standard LED monitor, unique dual-wing floating arm, ultra-slim multi-gesture touchscreen, built-in battery, and five active transducer ports. Designed by users for users, the DC-90 System delivers high efficiency and dynamic performance, with intelligent, precise, and clear imaging. Experience healthcare within reach with Mindray's DC-90 Ultrasound System.
Enhanced Ergonomics: Your Well-Being First
The DC-90 with X-Insight focuses on what matters to you and refines your user experience by providing clarity, flexibility, and intuitive technologies that exceed your expectations.
Designed by users for users
21.5” standard LED monitor

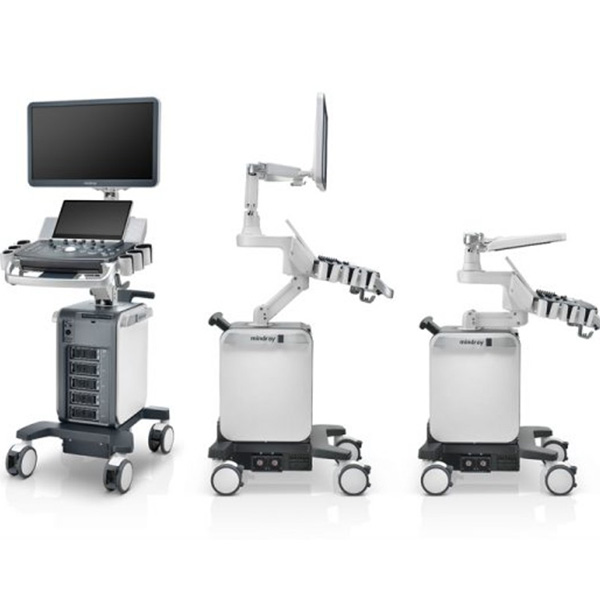

Unique dual-wing floating arm
Ultra-slim multi-gesture touchscreen
Built-in battery
Five active transducer ports

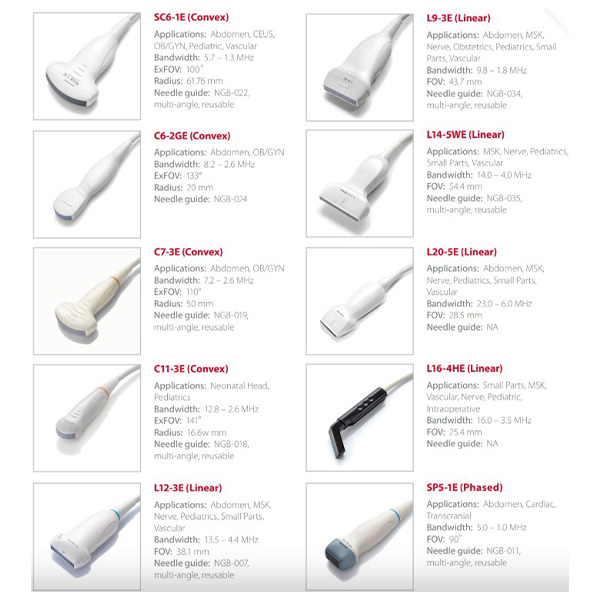

Mindray DC-90 Ultrasound Compatible Transducers / Probes:
Mindray SC6-1E Convex Transducer
Applications: Abdomen, CEUS, OB/GYN, Pediatric, Vascular
Bandwidth: 5.7 – 1.3 MHz
ExFOV: 100°
Radius: 61.76 mm
Needle guide: NGB-022,
multi-angle, reusable
Mindray L9-3E Linear Transducer
Applications: Abdomen, MSK, Nerve, Obstetrics, Pediatrics, Small Parts, Vascular
Bandwidth: 9.8 – 1.8 MHz
FOV: 43.7 mm
Needle guide: NGB-034,
multi-angle, reusable
Mindray C6-2GE Convex Transducer
Applications: Abdomen, OB/GYN
Bandwidth: 8.2 – 2.6 MHz
ExFOV: 133°
Radius: 20 mm
Needle guide: NGB-024
Mindray L14-5WE Linear Transducer
Applications: MSK, Nerve, Pediatrics, Small Parts, Vascular
Bandwidth: 14.0 – 4.0 MHz
FOV: 54.4 mm
Needle guide: NGB-035,
multi-angle, reusable
Mindray C7-3E Convex Transducer
Applications: Abdomen, OB/GYN
Bandwidth: 7.2 – 2.6 MHz
ExFOV: 110°
Radius: 50 mm
Needle guide: NGB-019,
multi-angle, reusable
Mindray L20-5E Linear Transducer
Applications: Abdomen, MSK, Nerve, Pediatrics, Small Parts, Vascular
Bandwidth: 23.0 – 6.0 MHz
FOV: 28.5 mm
Needle guide: NA
Mindray C11-3E Convex Transducer
Applications: Neonatal Head, Pediatrics
Bandwidth: 12.8 – 2.6 MHz
ExFOV: 141°
Radius: 16.6w mm
Needle guide: NGB-018,
multi-angle, reusable
Mindray L16-4HE Linear Transducer
Applications: Small Parts, MSK, Vascular, Nerve, Pediatric, Intraoperative
Bandwidth: 16.0 – 3.5 MHz
FOV: 25.4 mm
Needle guide: NA
Mindray L12-3E Linear Transducer
Applications: Abdomen, MSK, Nerve, Pediatrics, Small Parts, Vascular
Bandwidth: 13.5 – 4.4 MHz
FOV: 38.1 mm
Needle guide: NGB-007, multi-angle, reusable
Mindray SP5-1E Phased Transducer
Applications: Abdomen, Cardiac, Transcranial
Bandwidth: 5.0 – 1.0 MHz
FOV: 90°
Needle guide: NGB-011, multi-angle, reusable

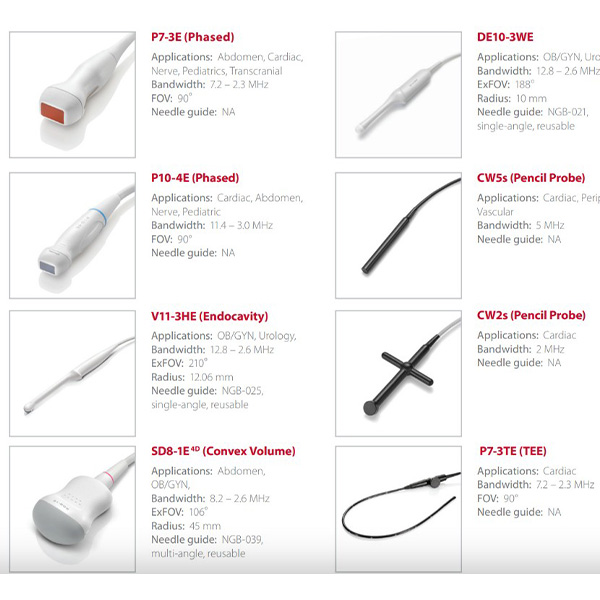

Mindray P7-3E Phased Transducer
Applications: Abdomen, Cardiac, Nerve, Pediatrics, Transcranial
Bandwidth: 7.2 – 2.3 MHz
FOV: 90°
Needle guide: NA
Mindray DE10-3WE Transducer
Applications: OB/GYN, Urology
Bandwidth: 12.8 – 2.6 MHz
ExFOV: 188o
Radius: 10 mm
Needle guide: NGB-021, single-angle, reusable
Mindray P10-4E Phased Transducer
Applications: Cardiac, Abdomen, Nerve, Pediatric
Bandwidth: 11.4 – 3.0 MHz
FOV: 90°
Needle guide: NA
Mindray CW5s Pencil Probe Transducer
Applications: Cardiac, Peripheral, Vascular
Bandwidth: 5 MHz
Needle guide: NA
Mindray V11-3HE Endocavity Transducer
Applications: OB/GYN, Urology
Bandwidth: 12.8 – 2.6 MHz
ExFOV: 210°
Radius: 12.06 mm
Needle guide: NGB-025, single-angle, reusable
Mindray CW2s Pencil Probe Transducer
Applications: Cardiac
Bandwidth: 2 MHz
Needle guide: NA
Mindray SD8-1E 4D Convex Volume Transducer
Applications: Abdomen, OB/GYN
Bandwidth: 8.2 – 2.6 MHz
ExFOV: 106°
Radius: 45 mm
Needle guide: NGB-039, multi-angle, reusable
Mindray P7-3TE TEE Transducer
Applications: Cardiac
Bandwidth: 7.2 – 2.3 MHz
FOV: 90°
Needle guide: NA
Mindray DC-70 X-Insight Ultrasound
#Mindray DC-70 Ultrasound System Description:
Based on insight from ultrasound professionals, the DC-70 ultrasound system with X-Insight is designed to deliver precision imaging and improve efficiencies in today’s demanding ultrasound environment. The system provides the optimal balance of advanced technologies and workflow management tools which sets it apart from other systems in its class. The integrated X-Engine, with both GPU and CPU, enables multi-core parallel processing for rapid and precise imaging. Combined with Mindray’s unique 3T transducer technology, the DC-70 system provides fast image acquisition, increased penetration, and high-resolution imaging across all general imaging, women’s imaging, and shared service applications.
Mindray DC-70 with X-Insight combines outstanding ease-of-use with better ergonomics, which results in more patient focus and high quality exams. Mindray’s unique dual-wing floating monitor arm delivers seamless movement for unlimited viewing angles and monitor positioning. The dual-wing arm also minimizes system height for easy transportation when folded down. A 21.5” HD monitor and a 13.3” ultra-slim touchscreen with angle adjustment and powerful gesture-based operation provides clinicians with an agile, smart, and intuitive user experience. The system’s flexible control panel can rotate from left to right and is height adjustable, making the DC-70 accessible to operators in different clinical scenarios.
Simply More Intelligence
To improve scanning efficiencies with more accuracy and consistency, the DC-70 with X-Insight provides intelligent workflow throughout the entire exam with rich tools such as Smart Planes CNS, Smart Face, Smart Track, iTouch™, Smart FLC and Smart OB/NT
Smart Planes CNS provides a robust and user-friendly solution to automatically detect planes and calculate frequently used measurements of the central nervous system (CNS) in fetal brain examinations. With a simple click of a button on a 3D fetal brain volume image, the standard CNS scanning planes (MSP, TCP, TTP, and TVP) and a range of related anatomical measurements (BPD, HC, OFD, TCD, CM, and LVW) are obtained immediately with high accuracy.
Features:
DC-70 X-Insight provides better ergonomics by combining ease-of-use with user friendly solutions, resulting in higher quality exams and better patient focus.The Mindray DC-70 X-Insight mid-high range system features the following key benefits:
Auto EF (Ejection Fraction
Single Crystal probes

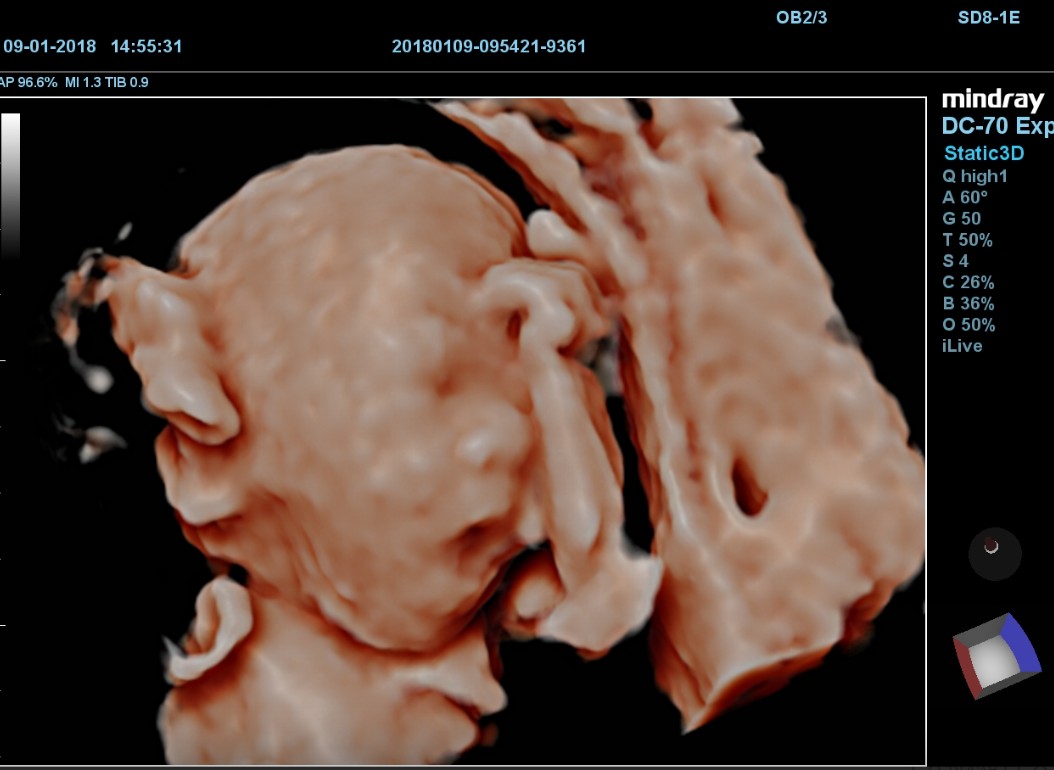

4D Live imaging with Smart Face Technology
iWorks
iClear (Speckle Suppression Imaging)
iBeam (Compound Imaging)
Stress Echo
Smart Planes CNS
Smart Track
3t transducer technology
21.5-inch or 23.8-inch high resolution color LED monitor
3.3″ Multi-Touch and Gesture Driven LED touchscreen
Tissue Tracking with Quantitative Analysis
Elastography
iNeedle (Needle Visualization Technology)
