OCT Imaging Catheter: LumenCross F2 High-Resolution Imaging: Offers exceptional clarity of the vessel wall and lumen, supporting accurate lesion assessment and treatment planning.
Excellent Lesion Crossing Performance: With its low-profile 3 Fr design, the catheter ensures smooth navigation through complex and narrowed vessels.
Rapid Image Acquisition: Facilitates fast pullback imaging, reducing procedure time and improving real-time clinical decision-making.
Angiography Co-Registration (ACR): Integrates OCT imaging with angiography, helping physicians quickly locate lesions and optimize stent placement.
Reliable Design: A robust optical lens system with protective structure ensures image stability and catheter durability.

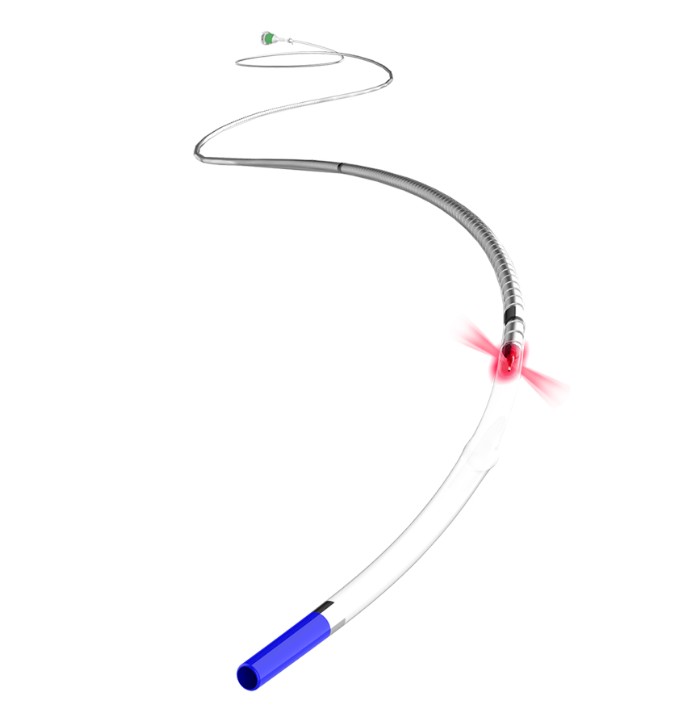

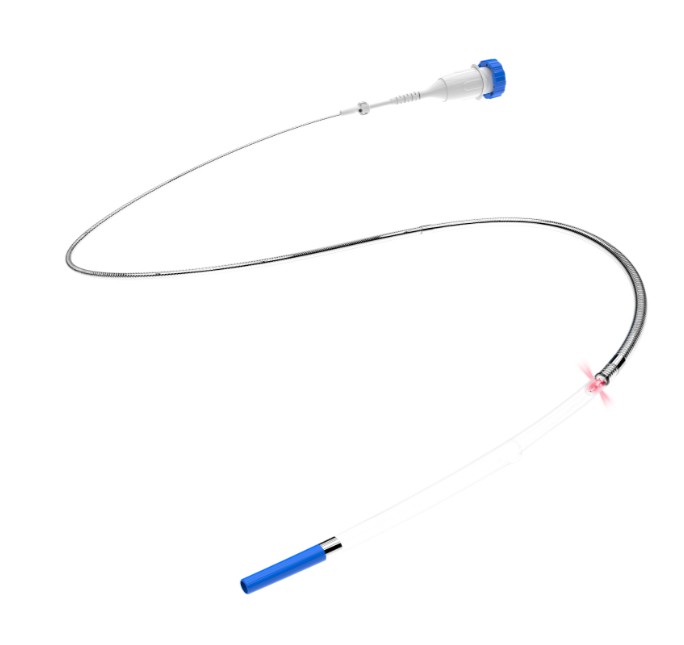

LumenCross F2 OCT Imaging Catheter
Vivolight LumenCross® F2 Intravascular OCT Imaging Catheter is specifically engineered for high-resolution coronary imaging during percutaneous coronary interventions (PCI). Powered by advanced Optical Coherence Tomography (OCT) technology, the catheter provides ultra-clear cross-sectional images of blood vessels, enabling physicians to precisely assess vascular lesions, plaque morphology, and stent deployment.
Product Details
High-resolution Imaging: Delivers exceptional clarity and detail for accurate visualization of the vessel wall and lumen.
Rapid Image Acquisition: Allows for quick and efficient imaging, facilitating real-time diagnostic and interventional decisions.
Features
With low profile of 2.67 Fr and enhanced distal material to provide excellent lesion crossing ability. Special design to protect imaging lens during delivery
Shorter Distance from Lens to TIP
Shorter distance from lens to tip (20 mm) to observe more distant artery
Excellent lesion Crossing ability
Excellent crossing ability & maneuverability, making complex cases easier
Compatible with OCT Angiographic co-registration
Compatible with ACR function. Shorten OCT learning curve, reduce operation time & contract volume
Specifications
Working Length 1350mm
Profile 2.67Fr
Distance from Lens to Tip 20mm
Lens protection design Yes
