SonoScape HD-550 High Definition Video Endoscopy System
SonoScape HD-550,
SonoScape HD550,
HD-550 Endoscopy,
SonoScape Video Endoscope,
SonoScape HD-550 Price,
SonoScape Gastroscope
Video Endoscopy System (视频内窥镜系统)
Flexible Video Endoscope (软式视频内窥镜)
High Definition Endoscopy System (高清内窥镜系统)
Gastrointestinal Endoscope System (消化内窥镜系统)
Medical Endoscopy Equipment (医用内窥镜设备)
Application
VIST & SFI Chromoendoscopy (VIST与SFI光电染色早癌筛查)
Gastroscope & Colonoscope (电子胃镜与电子肠镜)
Full HD 1080P Medical Image (全高清1080P医用图像)
LED Cold Light Source (LED冷光源)
GI Tract & Bronchoscopy Inspection (胃肠道与支气管检查)
Water Jet & Air/Water Pump (水冲洗与气水泵功能)
Gastroenterology endoscopy procedures.
Upper GI endoscopy (Gastroscopy).
Lower GI endoscopy (Colonoscopy).
Diagnostic gastrointestinal examinations.
Therapeutic endoscopic interventions.
Hospital endoscopy units and specialty GI centers.
Sonoscape HD550 Full-HD Video Endoscopy System : Productdescription
The SonoScape HD-550 is a Full HD video endoscopy system designed for gastrointestinal diagnostic and therapeuticprocedures. Combining a 108oP video processor, advanced VIST (Variable Intelligent Staining Technology), dual-LEDlight source, and Full HD endoscopes, the system delivers bright, detailed images with enhanced mucosal and vascularvisualization. Its integrated data management capabiities and ergonomic scope design help improve workflow and
clinical efficiency.
Key Features:
Full HD 1080P imaging with a 2 MP CMOS sensor.
Advanced VIST technology for enhanced tissue visualization.
Dual-LED light source with 10,000-hour lifespan.
VIST 1 and VIST 2 image enhancement modes.
Full HD video processor with integrated workstation.
Built-in 500 GB storage for image and video management.
One-touch scope connection and hot-plugging support.
Water jet function for improved visibility during procedures.
Ergonomic scope handle design for user comfort.
Waterproof endoscopes for easy cleaning and disinfection.
Multiple video output options for flexible integration.
Hospital Benefits:
· Provides bright and detailed Full HD visualization.
Enhances detection of mucosal and vascular abnormalities.
· Improves workflow with built-in storage and reporting functions.
· Reduces downtime through hot-plugging capability.
· Supports both routine and complex GI procedures.
Simplifies cleaning and reprocessing of endoscopes.
Increases operator comfort during long procedures.
Technical Specifications:

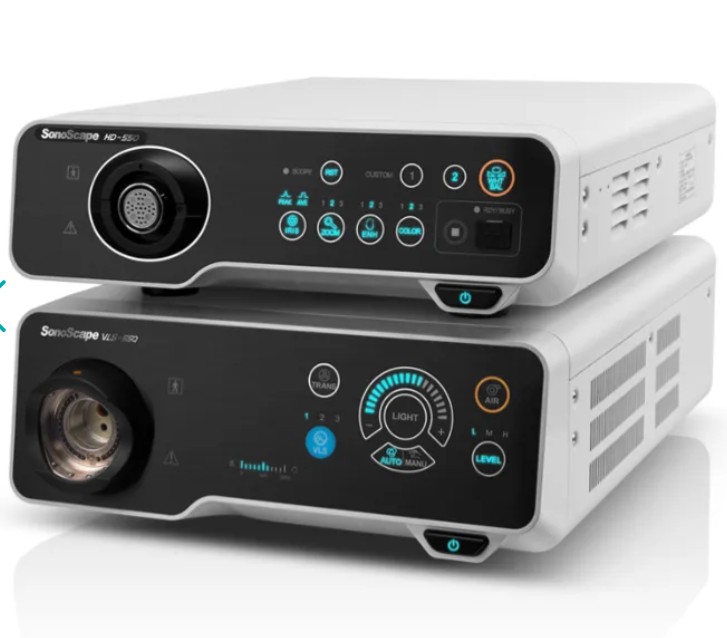

·Video Processor (HD-550)
o Brand: SonoScape
o Model: HD-550
o Product Type: Full HD Video Endoscopy System
o Resolution: 1080P Full HD
o Video Outputs: SDI, DVI, VGA, CVBS, Y/C
o Image Enhancement: Structure Enhancement & Edge Enhancement
o Chromo Modes: VIST 1, VIST 2
o Digital Zoom: 1.4x, 1.6x, 1.8x
o Patient Data Storage: >10,000 Records
o Internal Storage: 500 GB Built-in Hard Disk
o USB Support: 5 USB Ports
o DICOM Support: Yes
o AGC: Yes
o White Balance: Auto-Saved
o Air Feeding: 4 Levels (Off / Low / Medium / High)
o Brightness Control: Auto / Manual
Color Adjustment: Red, Blue, Saturation (15 Levels)
Noise Reduction: Auto Denoise
Dimensions: 480 x 370 x 125 mm
· VLS-50 Light Source
o Light Source Type: Dual LED
o LED Power: 70W White LED + 50W Violet LED
o Lamp Life: 10,000 Hours
o Brightness Control: Auto / Manual (19 Levels)
o VIST Chromoendoscopy: Supported
o Transition Time: 6-8 Seconds
o Hot Plugging: Supportedo Dimensions: 473 x 370 x 154 mm

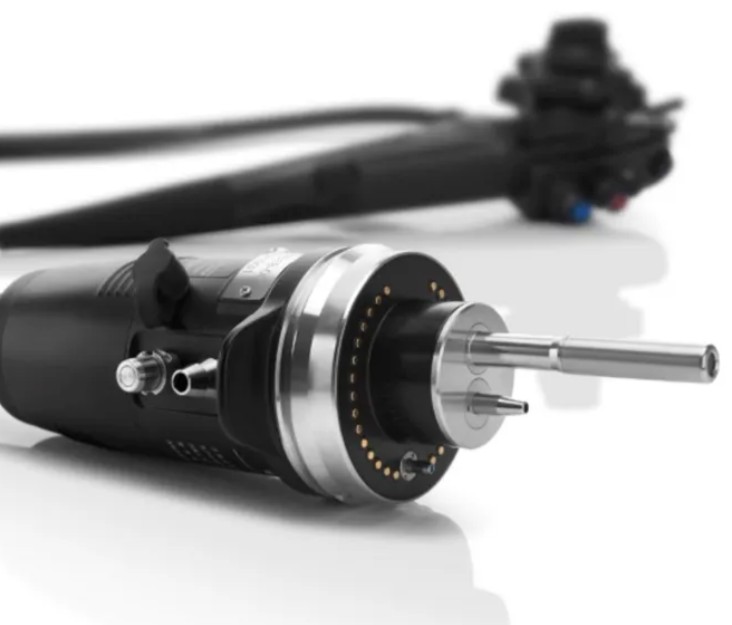

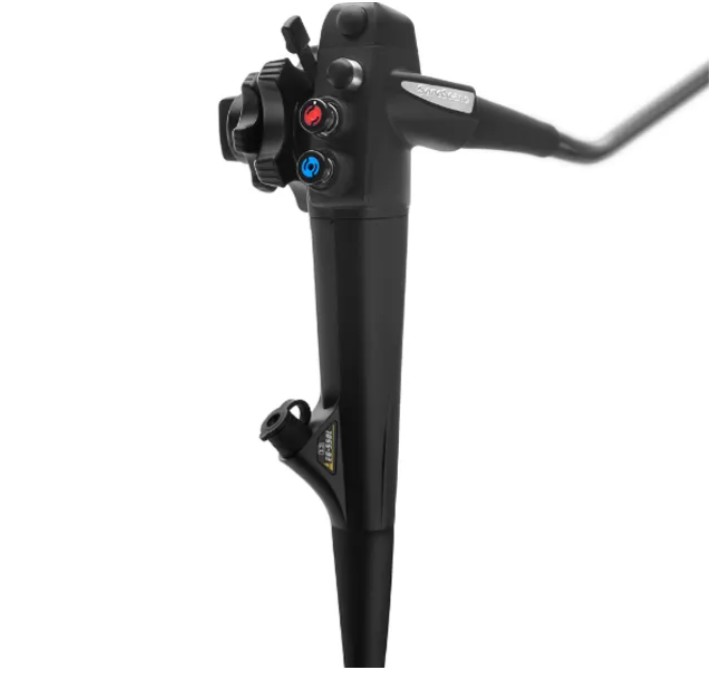

Endoscope Features
Image Sensor: 2 MP CMOS Sensor
Water Jet Function: Yes
One-Touch Connection: Yes
Waterproof Design: Yes
Optical Fiber Transmission: Yes

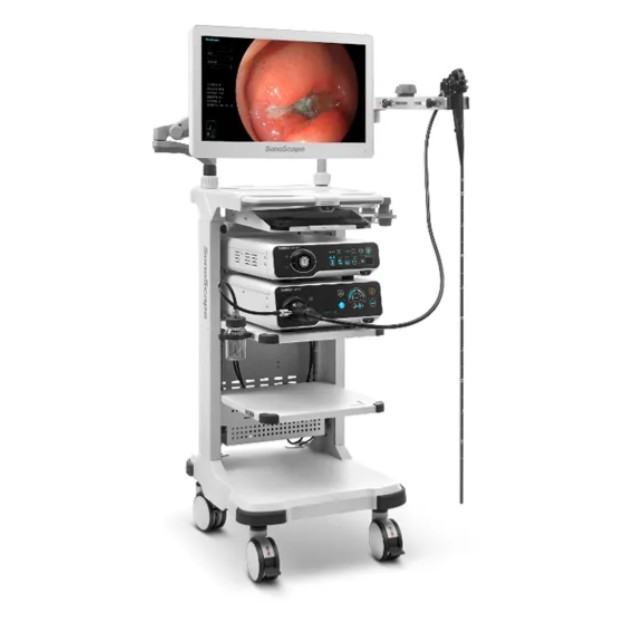

SonoScape HD-550 High Definition Video Endoscopy System Gastroscope Colonoscope
Application Area
Gastroenterology endoscopy procedures.
Upper GI endoscopy (Gastroscopy).
Lower GI endoscopy (Colonoscopy).
Diagnostic gastrointestinal examinations.
Therapeutic endoscopic interventions.
Hospital endoscopy units and specialty GI centers.
How It Works
The CMOS sensor captures high-definition images inside the GI tract.
Dual-LED illumination provides bright and uniform lighting.
VIST technology enhances mucosal and vascular patterns for better visualization.
The HD processor applies image enhancement and displays Full HD images.
Images and videos can be stored directly in the built-in workstation for reporting and review.
How to use
Connect the HD-550 processor and VLS-50 light source.
Attach the compatible SonoScape endoscope.
Perform white balance and patient setup.
Select White Light, VIST 1, or VIST 2 mode.
Conduct the examination while viewing real-time Full HD images.
Capture images and record videos for documentation.
FAQ
What is the SonoScape HD-550 used for?
It is used for gastrointestinal endoscopy procedures including gastroscopy and colonoscopy
What is VIST technology?
VIST (Variable Intelligent Staining Technology) enhances mucosal and vascular structures to improve visualization
during endoscopy.
Does the system provide Full HD imaging?
Yes, the system supports Full HD 1080P visualization with a 2 MP CMOS sensor.
What is the lifespan of the LED light source?
The dual-LED light source provides approximately 10,000 hours of operation.
Does the system support image and video storage?
Yes, it includes a built-in 500 GB hard drive and supports image/video recording and patient data management
