Mobile 6-channel resting ECG device
L 322 x W 310 x H 101 mm 6Kg
Internal storage: approx. 100 ECGs

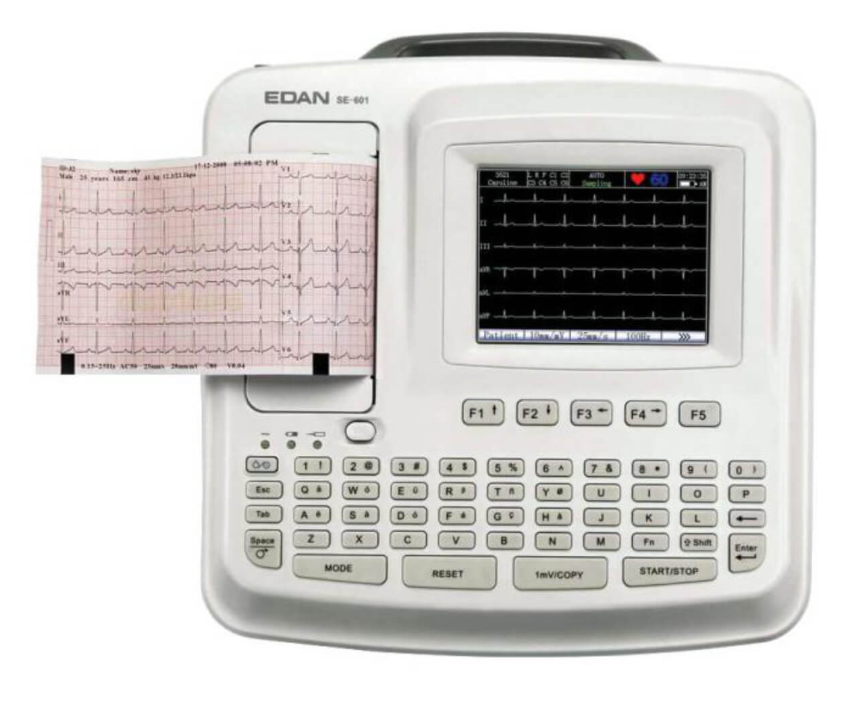

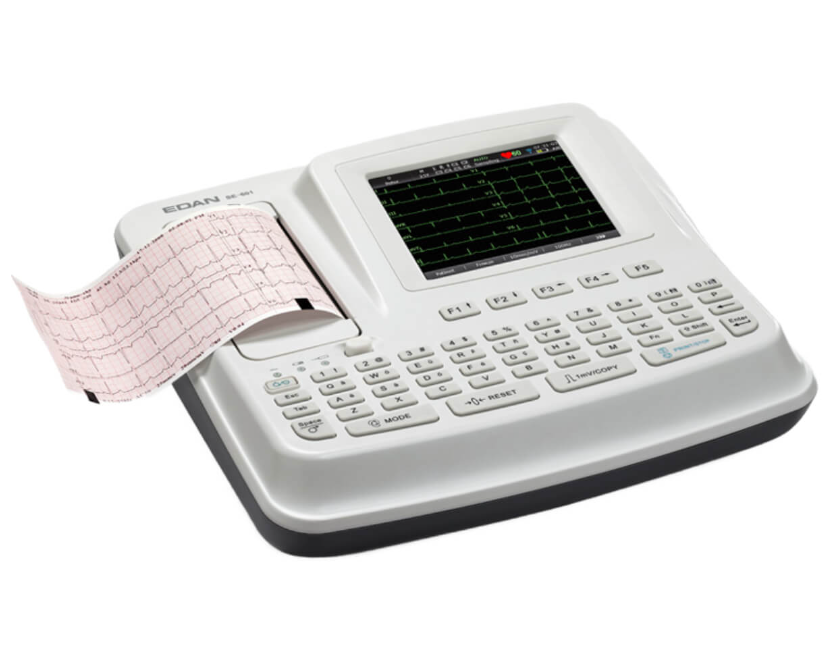

SE-601 B ECG from EDAN
The Edan SE-601 B is a 6-channel ECG that is ready for use out of the box. With its large 5.7" display, integrated printer, and alphanumeric keyboard, nothing stands in the way of a flexible and mobile usage. ECG waves can be tracked in real time on the monochrome display and the internal storage offers space for up to 100 patient records. The measured examination values can be exported in a clear test report via the RS-232 interface or thermal printer.
Product details
Mobile 6-channel resting ECG device
Integrated, high-resolution thermal printer
Automatic measurement and interpretation
Pacemaker control
Data transfer via ethernet or RS-232
Real-time display of the ECG

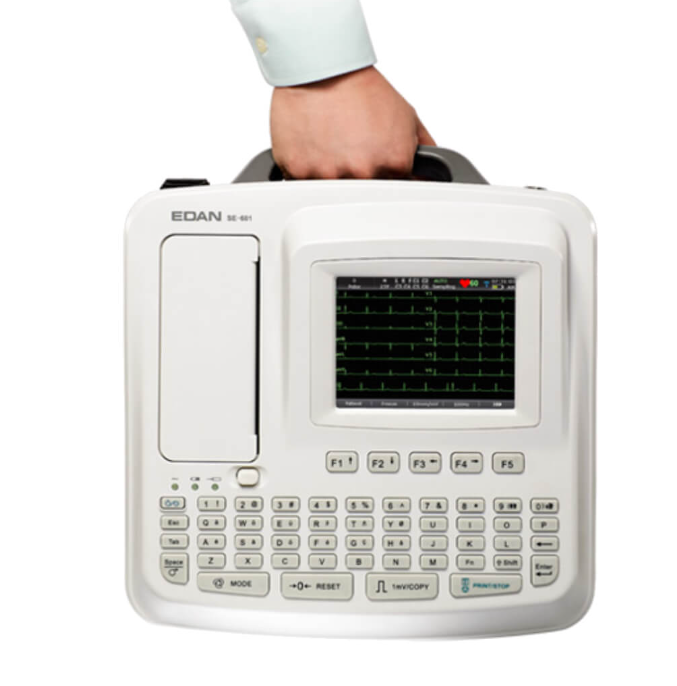

Easy transport thanks to practical handles
Measurements: L 322 x W 310 x H 101 mm
Weight: approx. 6 kg
Technical details
Internal storage: approx. 100 ECGs
Sampling frequency: 1,000 Hz/channel, 10,000 Hz for pacemaker control

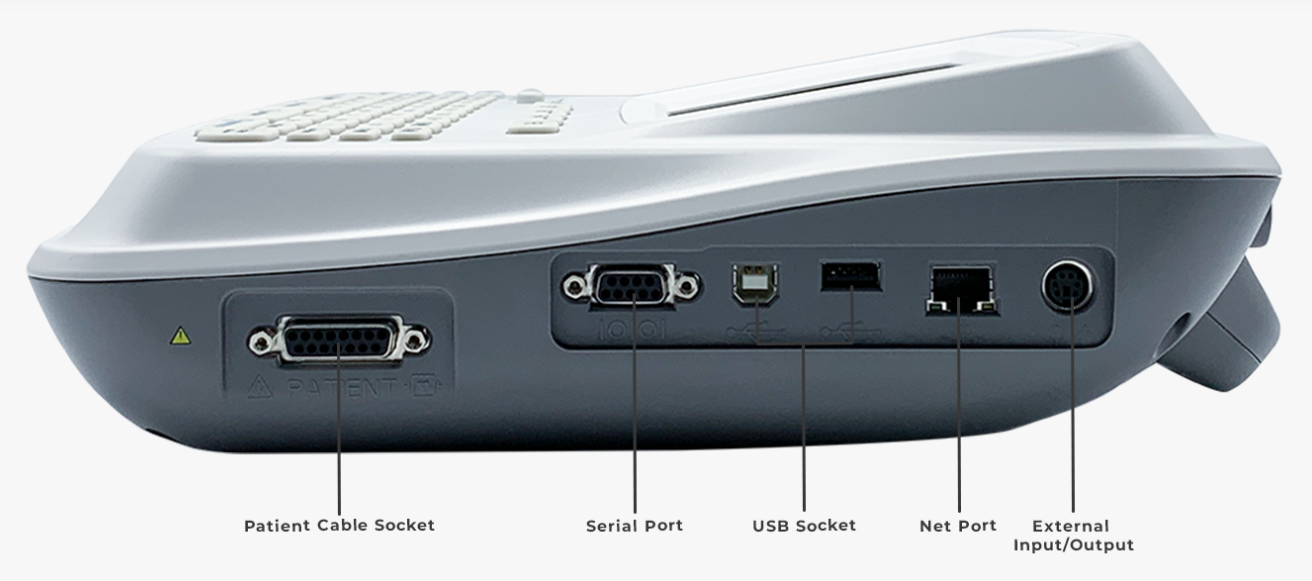

Interfaces: ethernet, RS-232, USB
Work mode: auto, manual, rhythm
Power supply: mains or battery power
Battery life: up to 6 hours
QWERTY keyboard layout

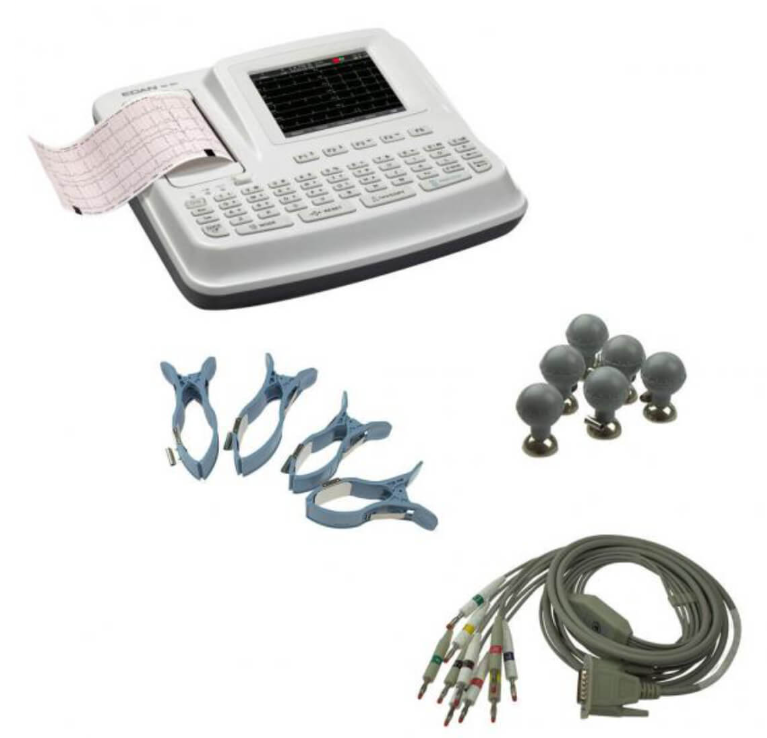

Delivery contents
1 Edan SE-601 B ECG
1 patient cable
4 clip electrodes
6 suction electrodes
1 battery
1 power cord
ECG recording paper
