Large Display: 15" high-resolution color touchscreen for detailed waveform review. Smart Workflow: One-touch operation with automatically adjusting screen luminance. Advanced Analysis: SEMIP algorithm for precise measurements and interpretation. High-End Connectivity: Built-in WiFi and LAN for direct HL7 and DICOM support. Signal Integrity: Enhanced weak signal detection and comprehensive anti-noise filters. Expandable Design: Supports future upgrades to 15-lead or 18-lead configurations.
MPN: SE-18.12. Lead Type: 12-Lead Standard (Supports 9/12-Lead Test). Sampling Rate: 16,000 Hz. Internal Memory: 512MB (Enlargeable via USB). Weight: 15 lbs.
with 15" Color Touchscreen and Built-in WiFi (1 EA)
#Edan SE-18 ECG Machine Premium 18 Channel Electrocardiograph Touch Screen Alphanumeric Keyboard Digital EKG /8 Channel Electrocardiograph Wi-Fi DICOM HL7/ SEMIP Interpretation

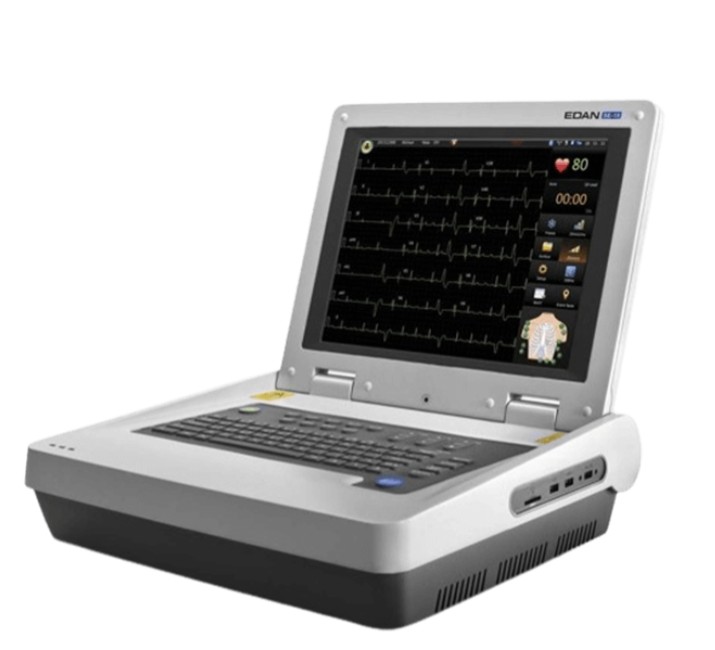

The Edan SE-18 is a professional-grade ECG system designed to enhance clinical efficiency with its advanced features and reliable interpretation capabilities. Available in three different lead configurations, this innovative machine supports simultaneous sampling and can easily expand from a standard 12-lead ECG to 15, 16, or 18 leads using additional pluggable lead wires.

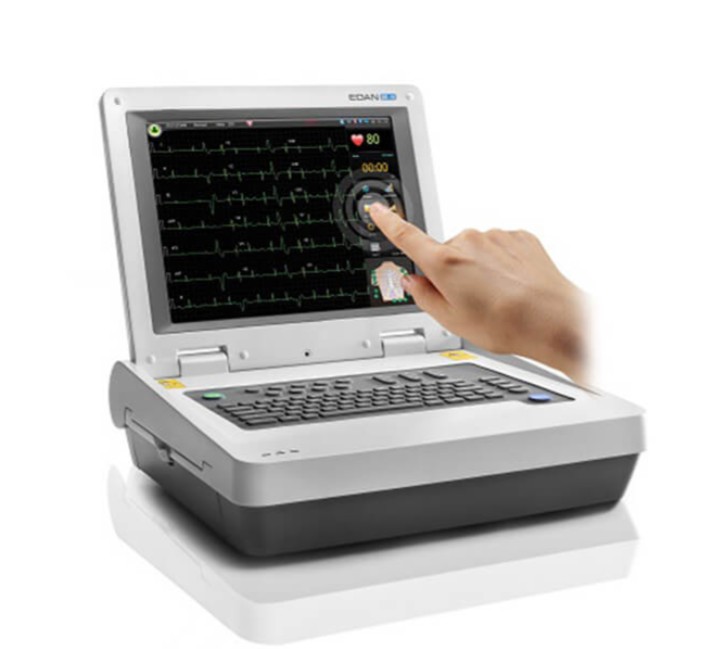

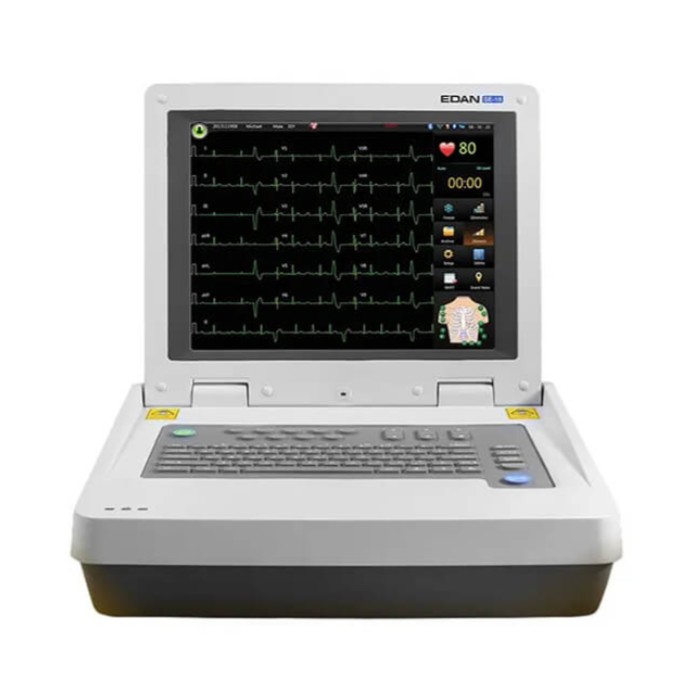

Equipped with a 15" color touch-screen and a waterproof alphanumeric keyboard, the SE-18 ensures ease of use in any clinical environment. EDAN’s cutting-edge ECG acquisition and analysis technology, exemplified by the newly-designed DE18 sampling box, empowers clinicians to deliver accurate and comprehensive cardiac assessments, boosting overall productivity and patient care.
Edan SE-18 ECG Features

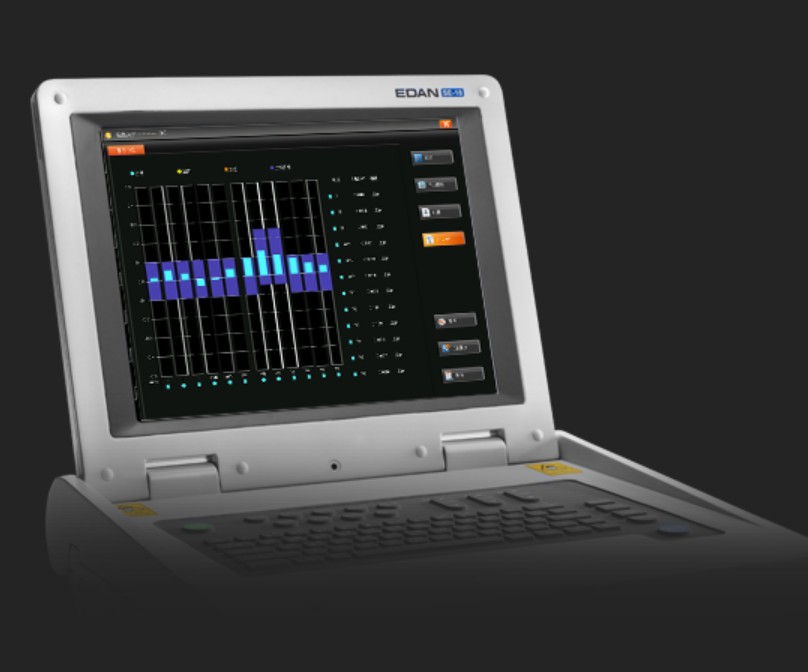

15" color touch-screen and waterproof keyboard.
512 M internal memory in addition to USB/SD card external memory.
Powerful data management functions.
Bi-directional communication with the SE-1515 Data Management System.

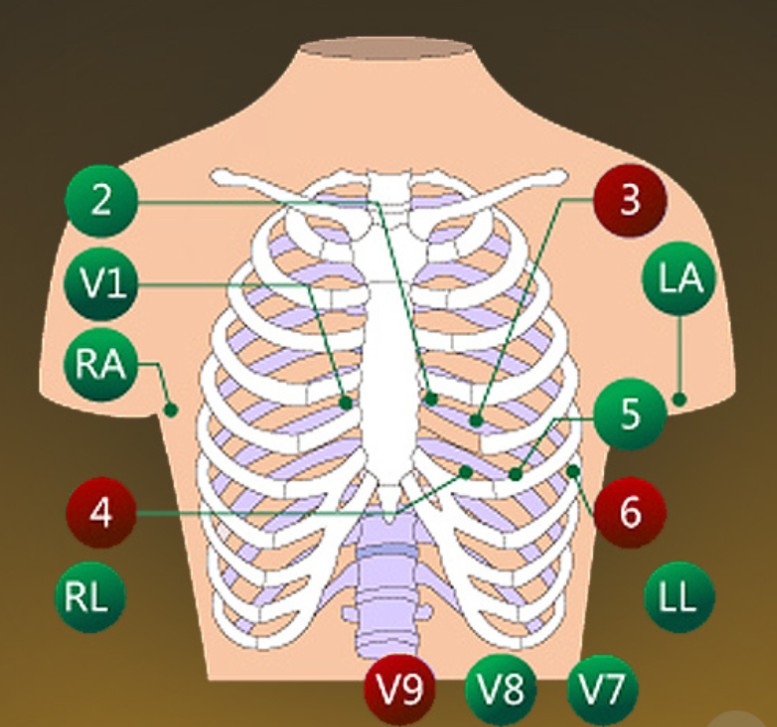

Capable of long time sampling, analyzing, and storing thanks to the 9/12/15/18-lead configurations.
Easy to use thanks to an intuitive one-touch operation.
Utilizes comprehensive filters and anti-noise technology.

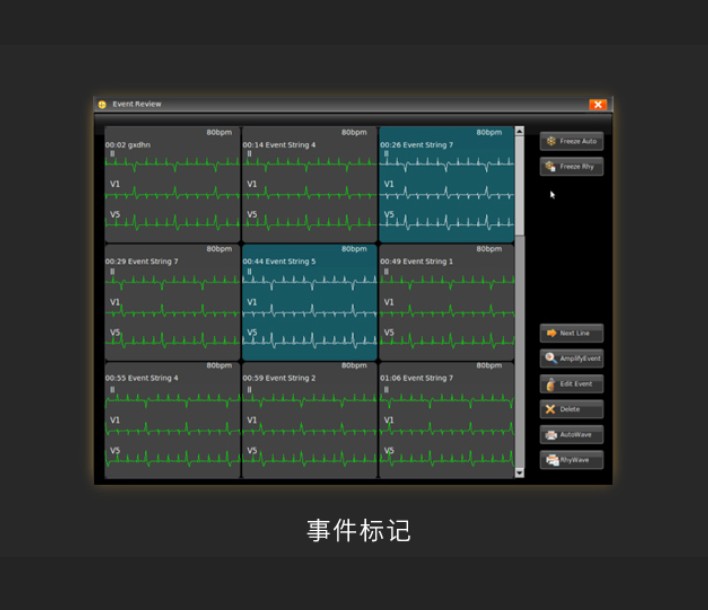

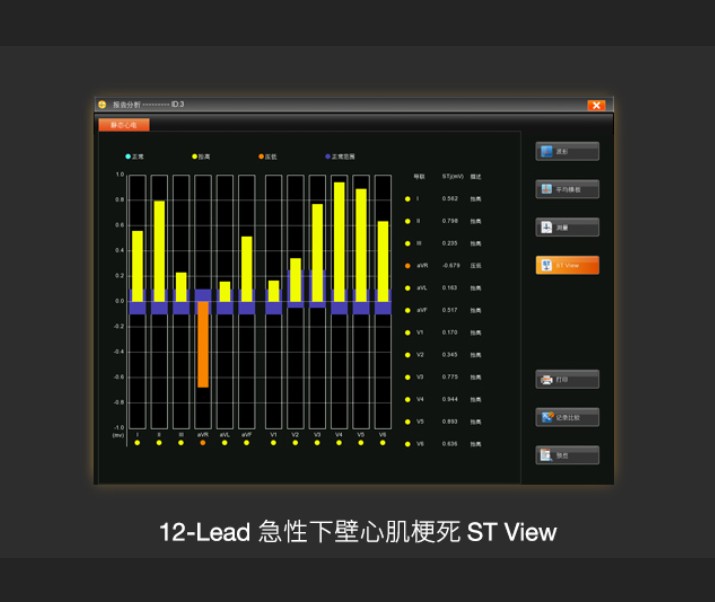

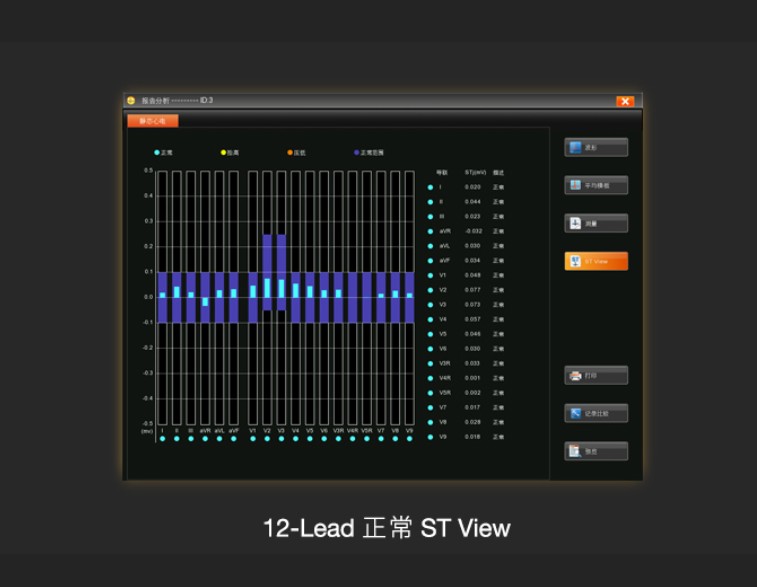

Supports on-screen diagnosis like waveform amplifying, measuring, and confirming.

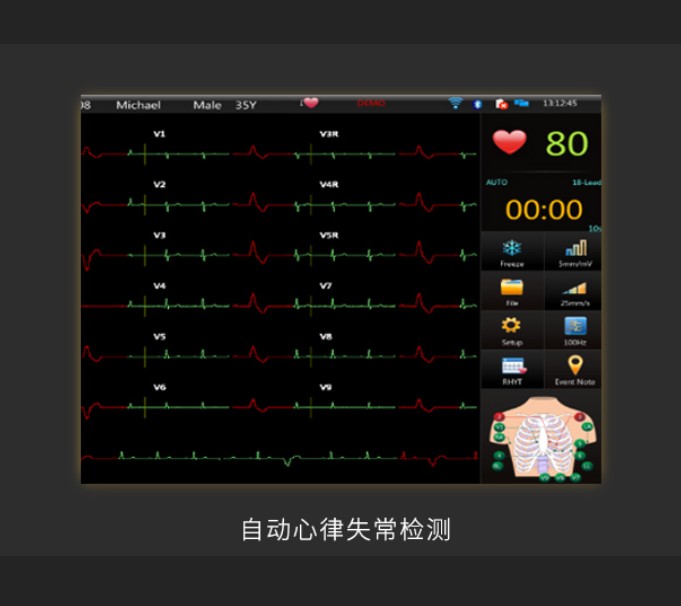

Color identification of arrhythmia.
Advanced SEMIP algorithm allows for automatic measurements and interpretation.
Automatically luminance adjustment in relation to the ambient lightness.
Smart light sensor automatically changes the brightness of the screen in accordance with the environment to protect the user's eyes.
Three color signal quality indicator enables users to identify the signal quality of each lead with a glance.
Also boasts enhanced weak signal detection.
Optional LAN/Wi-Fi connections.
Optional VCG/TVCG/VLP/HRV/Pharmacological Study.
Optional Direct HL7 and DICOM support.
Edan SE-18 ECG Configurations
* 12-lead Configuration, Supports 9/12-lead ECG Test (#SE-18.12).
* 15-lead Configuration, Supports 9/12/15-lead ECG Test (#SE-18.15).
* 18-lead Configuration, Supports 9/12/15/18-lead ECG Test (#SE-18.18).
Edan SE-18 ECG Accessories
The Edan SE-18 ECG is commonly purchased with:
* Edan SE-18 12-Lead Wires.
* Edan SE-18 C7/C8/C9/C3R/C4R/C5R Leadwires Kit (#01.57.471688011).
* Edan SE-18 V7/V8/V9/V3R/V4R/V5R Leadwires Kit (#01.57.471689011).
* Edan SE-18 CA-100 Cable Arm (#02.04.242643).
* Edan SE-18 Calculated VCG (Calculated Vector ECG) Package (#18-CVCG).
* Edan SE-18 FDA-XML Export Format Package (#18-FDA-XML).
* Edan SE-18 SCP Export Format Package (#18-SCP).
* Edan SE-18 TVCG (Time Vector ECG) Package (#18-TVCG).
* Edan SE-18 VCG (Vector ECG) Package (#18-VCG).
* Edan SE-18 VLP (Ventricular late potentials) Package (#18-VLP).
* Edan SE-1515 Data Management System (#83.61.360597).
* Edan Upgrade SE-18 from 12-lead to 15-lead 1 x 15-lead Function (#SE-18U12-15).
* Edan Upgrade SE-18 from 12-lead to 18-lead 1 x 18-lead Function (#SE-18U12-18).
* Edan Upgrade SE-18 from 15-lead to 18-lead 1 x 18-lead Function (#SE-18U15-18).
Edan SE-18 ECG Machine Specification
| Leads: | 18 standard leads |
| Acquisition Mode | simultaneously 18 leads |
| Screen: | 15 inch |
| Dimensions: | 438mm×395mm×135mm |
| Weight: | 9.5kg (Excluding recorder paper and battery) |
| AC input voltage: | 100-240V, 50/60Hz |
| Input Current: | 0.9-0.4A |
| Rated voltage: | 14.8V |
| Rated capacity: | 5000mAh |
| Charge time | 6 hours |
| HIS connection | DICOM Worklist/DICOM Storage/HL7/GDT |
| Data Management System | SE-1515 Data Management System, bi-directional communication |
| Data Transmission | Wi-Fi, Ethernet, RS232 |
| Report Format | PDF, XML, DICOM, FDA-SCP |
| HR Range | 30 BPM-300 BPM |
| Accuracy | ±1 BPM |
| Recorder: | Thermal dot-matrix recorder |
| Transmitting Frequency: | 2.4GHz |
| Pacemaker Amplitude | ±750μV to ±700 mV |
| Pacemaker Width | 50μs to 2.0 ms |
| A/D Converter | 24 bits |
| Time Constant: | ≥3.2s |
| Sampling Frequency: | 16000 Hz |
| Resolution | 0.1575 μV/LSB |
| Frequency Response: | 0.01Hz ~ 300Hz (-3dB) |
| Gain | 2.5, 5, 10, 20, 10/5 mm/mV, AGC |
| Input Impedance: | ≥100MΩ 10Hz |
| Input Circuit Current | ≤0.01μA |
| Input Voltage Range | ≤±5 mVpp |
| Calibration Voltage | 1mV±2% |
| AC Filter: | 50/60Hz |
| EMG Filter | Off/25Hz/35Hz/45Hz |
| DFT Filter | 0.01Hz/0.05Hz/0.32Hz/0.67Hz |
| LOWPASS Filter | 300Hz/270Hz/150Hz/100Hz/75Hz |
