Olympus CV-190 Video Processor Olympus CLV-190 Xenon Light Source Olympus GIF-H190 Video Gastroscope Olympus CF-H190L Video Colonoscope New 22″ Flat Screen Color Monitor Biopsy Forceps & Cleaning BrushFREE Leak Tester 1 Olympus MAJ-1941 cable 1 Olympus MAJ-1933 cable. 1 Olympus MAJ-901 water bottle. 1 Olympus MAJ-1921 keyboard.
Height: 3.6″ (9.1 cm) Width: 15″ (38.2 cm) Depth: 19.3″ (48.9 cm) Weight: 23.6 lbs (10.7 kg)

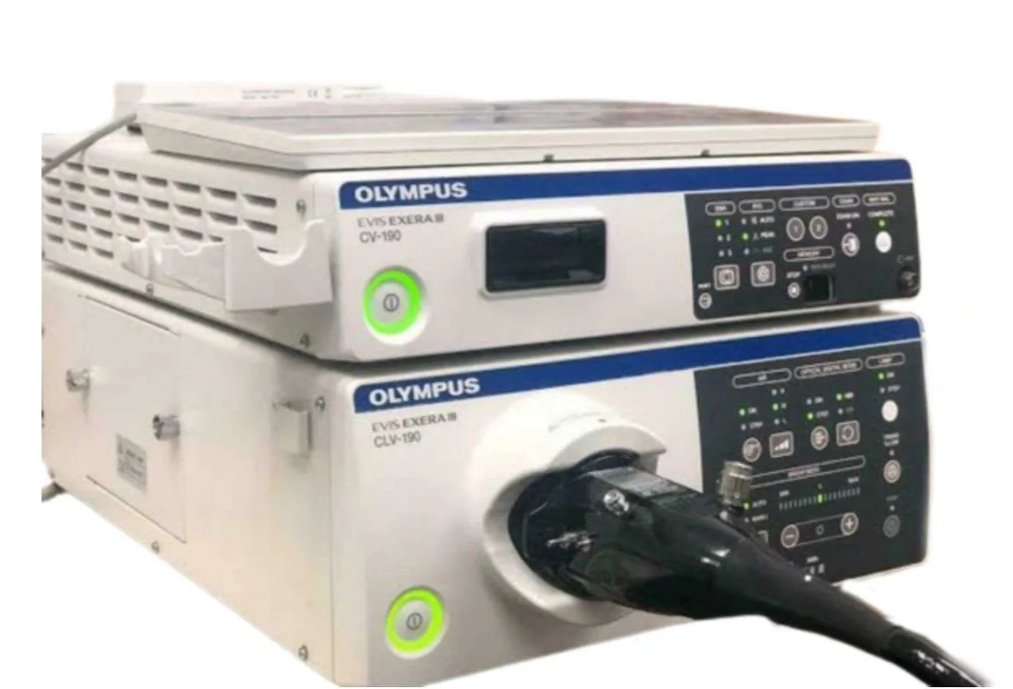

Olympus CV-190 Evis Exera III Video Endoscopy System
Description
The Olympus CV-190 is a state-of-the-art endoscopy system that provides healthcare professionals with unparalleled imaging capabilities during diagnostic and therapeutic procedures. This advanced medical device sets new standards in endoscopy technology, enabling more accurate diagnoses and better patient outcomes.
Olympus CV-190 Key Features:
High-Definition Imaging: The Olympus CV-190 boasts high-definition (HD) imaging technology, offering exceptional clarity and detail in real-time. Medical professionals can visualize tissues and structures with unprecedented precision, making more accurate diagnoses.
Narrow-Band Imaging (NBI): NBI enhances visualization of blood vessels and mucosal patterns, aiding in detecting subtle lesions and abnormalities. This feature is precious in early cancer detection.
Responsive Control: The system’s user-friendly interface allows intuitive control, enabling healthcare providers to focus on patient care rather than complex equipment operations. The responsive touch screen ensures efficient navigation.
Versatility: The Olympus CV-190 is compatible with various endoscopic accessories, including scopes and imaging peripherals. This versatility ensures that it can be tailored to meet specific procedural requirements.
Advanced Image Processing: The system incorporates advanced image processing technology that optimizes image quality, reducing artifacts and enhancing clarity.
Durable Design: Built to withstand the demands of a busy medical environment, the CV-190 is durably constructed to ensure reliability and longevity, reducing the need for frequent repairs or replacements.
Benefits:
Enhanced Diagnosis: The high-definition imaging and NBI capabilities of the CV-190 enable healthcare professionals to detect abnormalities and lesions earlier, potentially leading to more successful treatment outcomes.
Improved Patient Care: With intuitive controls and responsive operation, medical practitioners can perform procedures more efficiently, minimizing patient discomfort and reducing procedure time.
Cost-Efficiency: The durable design and reliability of the Olympus CV-190 contribute to lower maintenance and replacement costs, making it a cost-effective choice for healthcare facilities.
Adaptability: Its compatibility with various endoscopic accessories ensures that the CV-190 can be used across multiple medical specialties.
Clinical Confidence: Healthcare providers can have confidence in their diagnostic and therapeutic decisions, knowing they have access to cutting-edge technology that delivers superior imaging quality.
Olympus Evis Exera III CV-190 Specifications
Olympus CLV-190 Light Source
Light Source: 300-watt xenon lamp
Front Panel: Backlit
Filters: Specially coated filters for NBI (Narrow Band Imaging)
Visualization: Automatically adjusts the light intensity to achieve ideal illumination for observation
Olympus CVF-VH Video Cystoscope
The CYF-VH is the world’s first flexible HD cysto-nephro videoscope. Its variable stiffness shaft ensures operator control for a wide range of bladder diagnostic procedures, focusing on bladder cancer management.
Dimensions
Height: 3.6″ (9.1 cm)
Width: 15″ (38.2 cm)
Depth: 19.3″ (48.9 cm)
Weight: 23.6 lbs (10.7 kg)
Power Supply
Voltage: 100-240 V AC (NTSC)/220-240 V AC (PAL); within ±10%
Frequency: 50/60 Hz; within ±1 Hz
Consumption Electric Power: 150 VA
Portable Memory
Media: MAJ-1925 (OLYMPUS)
Recording Format: TIFF: no compression; JPEG (1/5): approx. 1/5 compression; JPEG (1/10): approx. 1/10 compression
Number of Recorded Images: TIFF: approx. 227 images; JPEG (1/5): approx. 1024 images; JPEG (1/10): approx. 2048 images
Memory Backup
User settings: Up to 20 user settings can be registered.
Memorization of Selected Setting: The following settings are held in memory even after the video system center is turned off: Color tone; Iris mode; Enhancement; Color-enhancement mode; Contrast; AGC; Color mode; White balance
Lithium battery Life: 5 years
Documentation
Patient Data: The following data can be displayed on the monitor using the keyboard: Patient ID; Patient name; Sex; Age; Date of birth; Date of recording (time, stopwatch); Comments
Displaying the Record State: The recording state of the following ancillary equipment can be displayed on the monitor: Portable memory and internal buffer; DVR; Video printer; Image filing system
Displaying the image information: The following data can be displayed on the monitor: Structure-enhancement level, Edge-enhancement level; Zoom ratio, Color mode; Focus
Advance Registration of Patient Data: Data for up to 50 patients can be registered, such as Patient ID; Patient name, Sex and age, Date of birth
Includes:
Olympus CV-190 Video Processor
Olympus CLV-190 Xenon Light Source
Olympus GIF-H190 Video Gastroscope
Olympus CF-H190L Video Colonoscope
New 22″ Flat Screen Color Monitor
Biopsy Forceps & Cleaning BrushFREE Leak Tester
1 Olympus MAJ-1941 cable

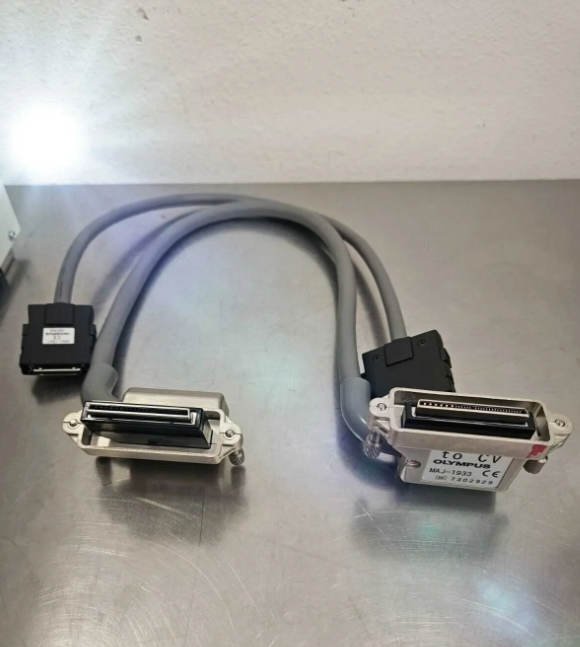

1 Olympus MAJ-1933 cable.
1 Olympus MAJ-901 water bottle.
1 Olympus MAJ-1921 keyboard.
