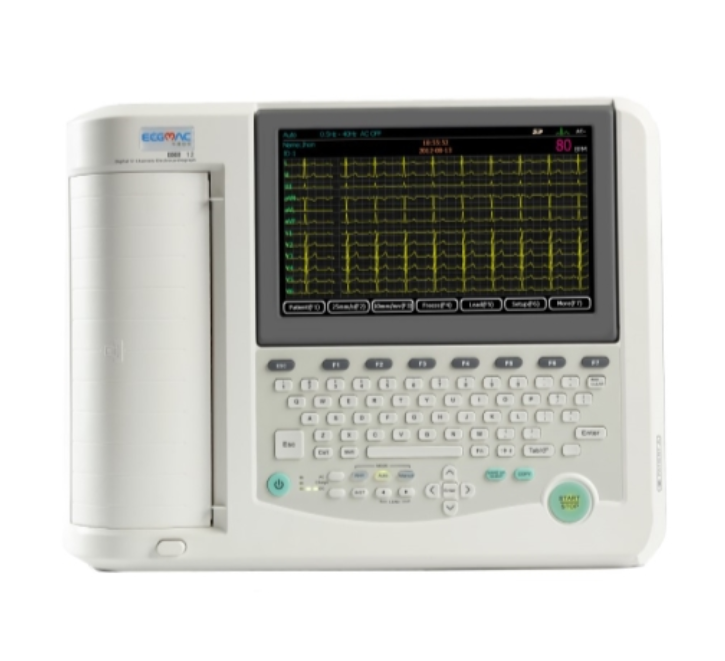

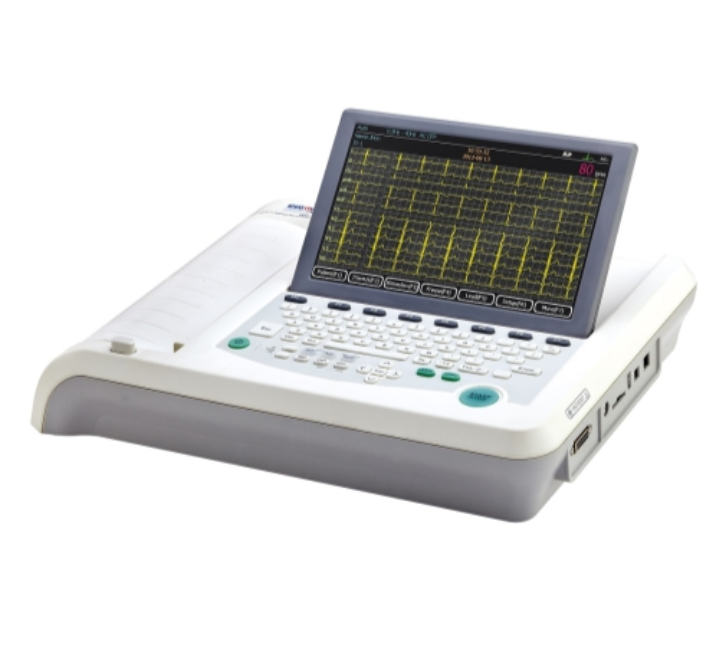

EM-1201 Twelve-channel ECG Machine
EM-1201A Large Foldable LCD Display, clear and intuitive
10 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen
Ergonomic Design
Full alphanumeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry
Product Features
Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff
Large Foldable LCD Display, clear and intuitive 10 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen | Built-in Lithium Battery, Large Storage Capacity Built-in rechargeable lithium high capacity battery, Local internal memory up to 1000 ECGs |
Ergonomic Design Full alphanumeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry | Support both Roll and Z-fold paper Built-in high resolution thermal printer, support roll and Z-fold paper, A4 printouts on internal or external printer* |
Technical Specification
Sampling rate: 32000sps/channel, A/D Converter: 24bits
Frequency response: 0.01 Hz～350 Hz
CMRR: ≥110 dB（AC Filter off）, ≥120 dB（AC Filter on）
DC offset voltage: >±980mV
Input impedance: ≥100MΩ
Software Features
Simultaneous 12 leads ECG acquisition and display
Automatic ECG measurements and interpretation
Supports pacemaker detection
Comprehensive file management system to query, delete and edit patient data
Supports auto, manual and rhythm mode
Supports triggered sample mode to start recording once arrhythmia are detected

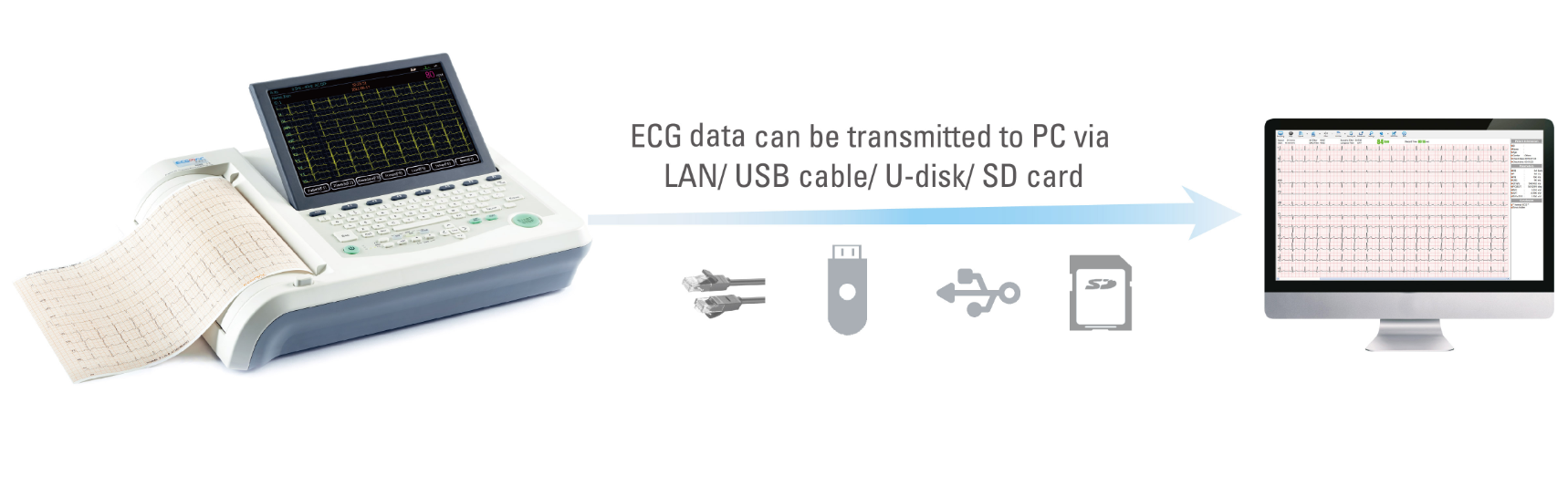

Seamless Connectivity
Multiple format reports export, such as PDF, JPG, BMP ,EM-XML, SCP*, DICOM, FDA-XML*
Data access with HIS/ PACS/ EMR system based on FTP* / DICOM* standard protocol
Patient information can be retrieved from the worklist*
