96 and 384 wells
Maximum block ramp rate: 96-well 0.1 mL block: 9.0°C/sec 96-well 0.2 mL block: 6.5°C/sec 384-well block: 6.0°C/sec
54.7 x 33.8 x 52.5 cm

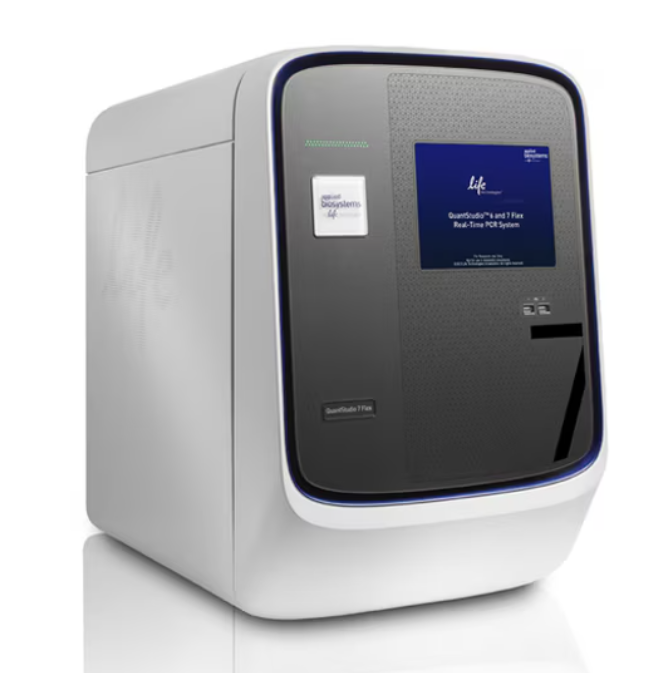

The Applied Biosystems QuantStudio 7 Pro Real-Time PCR System adds innovative smart features to the real-time PCR (qPCR) workflow, all in a compact footprint. With facial authentication, voice commands, Smart Help, multiplex capability, motorized interchangeable blocks, simplified workflow, intuitive software, automation capabilities, and large capacitive touch-screen interface, the QuantStudio 7 Pro system offers exceptional reproducibility with minimal well-to-well and instrument-to-instrument variation. Designed for ultimate ease-of-use, the system offers high quality, high throughput, excellent reliability, and an optimal user experience for researchers who want to work smarter in the lab.
Features:
Easy and convenient hands-free operation with facial authentication and voice commands
Reduced errors and manual entries with smart qPCR workflow and TaqMan Array Plates with RFID
Space savings with small footprint and true standalone operation; setup, start, monitor, and analyze directly on the touchscreen
Peace of mind with Smart Help; contact Technical Support directly from the touchscreen
Reduced downtime with Smart Remote Support; show issues to Technical Support for speedy resolution
Application versatility with easily changed blocks and four different block types
Increased productivity with automation compatibility for 24/7 operation
Access, analyze, and share data anytime, anywhere with our Connect cloud-based platform for real-time information access, secure data storage, and online results sharing
Remote monitoring of run status using the Instrument Connect monitoring app
Design and Analysis software compatible with PC and Mac operating systems
Compatible with over 8 million TaqMan Assays for gene expression, genetic variation, gene regulation, or protein expression experiments
Product Specs
| Item | Applied Biosystems™ QuantStudio™ 7 Pro Real-Time PCR System |
| Company | Thermo Fisher Scientific |
| Applications | Gene expression, genotyping, genetic variation analysis, microbial detection, pathogen detection |
| Wells | 96 and 384 wells |
| Temperature Range | 4–99.9°C |
| Heating Rate | Maximum block ramp rate: 96-well 0.1 mL block: 9.0°C/sec 96-well 0.2 mL block: 6.5°C/sec 384-well block: 6.0°C/sec |
| Dimensions | (H x W x D) 54.7 x 33.8 x 52.5 cm |
| Volume | 96-well 0.1 mL block: 10–30 µL 96-well 0.2 mL block: 10–100 µL 384-well block: 5–20 µL |
| Regulatory Status | For Research Use Only. Not for use in diagnostic procedures. |
| Throughput | 96 or 384 sample capacity (wells) |
| Type | Real-Time PCR (qPCR) System |
| Compatibility | Compatible dyes: FAM™, SYBR™ Green, VIC™, JOE™, TET™, ABY™, NED™, TAMRA™, Cy®3, JUN™, ROX™, Texas Red™, Mustang Purple™, Cy®5, LIZ™, Cy®5.5 |
Includes:
ABI QuantStudio 7 Flex System
384/96 well FAST Block Kit with New Spectral Dye Testing Calibrations.
Dell Latitude E6430 laptop loaded with QS 7 Software
Operates Per Factory OEM Specifications
Different block sets are available for an additional cost (96 0.2ml, 384 well, or TaqMan Array block)
MicroAmp™ Optical 384-Well Reaction Plate with Barcode – 500 plates
TaqMan Array Respiratory Tract Microbiota Comprehensive Card – 1 plate
TaqPath™ 1-Step RT-qPCR Master Mix – 1 x 10 mL
MagMAX Viral/Pathogen Nucleic Acid Isolation Kit – Up to 200 preps
TaqMan Fast Advanced Master Mix – 1 x 10 mL
3 Month Warranty
