Search for more information
96-well Peltier block
Quartz-tungsten halogen lamp
35.6 × 50.8 × 45.7 cm 20 Kg

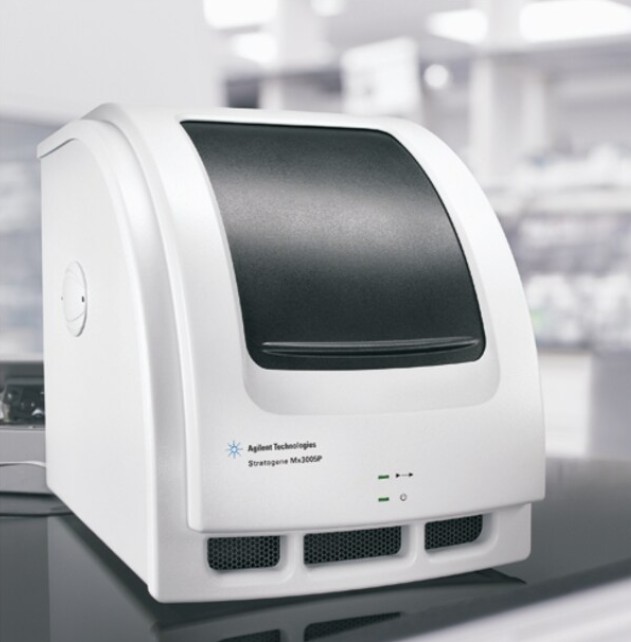

#Agilent Stratagene MX3005P Quantitative PCR System The Stratagene Mx3005P from Agilent is a real-time qPCR system designed to offer maximum flexibility for molecular biology applications. Compatible with the simultaneous detection of up to five fluorophores, it supports complex applications such as gene expression quantification, SNP genotyping, methylation analysis, and pathogen detection. Equipped with a fiber-optic scanning detection system and an open-platform design, it ensures reliable, reproducible, and accurate results across 96 wells. Its MxPro software streamlines protocol setup, data analysis, and report generation.
The Agilent Stratagene MX3005P Quantitative PCR System are the most flexible and reliable instruments available for gene expression analysis, microarray data validation, SNP genotyping, pathogen detection, DNA methylation analysis, and chromatin immuno-precipitation studies.
Mx3005P QPCR System: Performance and Flexibility for Your qPCR Applications
The Stratagene Mx3005P is a high-performance real-time thermal cycler designed to meet the current demands of laboratories for analytical precision, experimental versatility, and ease of use. Developed by Agilent, this system is suited for a wide range of applications such as gene expression analysis, microarray data validation, DNA methylation studies, pathogen detection, and ChIP-qPCR experiments.
The main strength of the Mx3005P lies in its ability to detect up to five fluorescent targets per well, thanks to its five independent optical channels with customizable filters. This efficient multiplexing enables users to optimize sample usage while significantly reducing the overall time required for detection processes.
Its optical architecture is based on a fiber-optic scanning system combined with a broad-spectrum halogen lamp, providing uniform excitation of each well in the 96-well block without the need for reference dyes. Emission signals are then collected and analyzed by a single photomultiplier tube, ensuring high sensitivity and low background noise. This results in a linear dynamic range of up to ten orders of magnitude, allowing precise quantification even for low-abundance targets.
On the thermal side, the Mx3005P utilizes an aluminum Peltier block designed to provide optimal uniformity and reproducibility from well to well. Temperature variations are tightly controlled, ensuring homogeneity that enhances the reliability of results, even during long or complex experiments.
The MxPro QPCR software simplifies plate design, thermal profile creation, and data analysis. It supports a wide range of analytical methods, including standard curve generation, efficiency calculation, relative and absolute quantification, as well as customizable report export. Compliance with 21 CFR Part 11 regulations is available for laboratories operating under regulatory constraints.

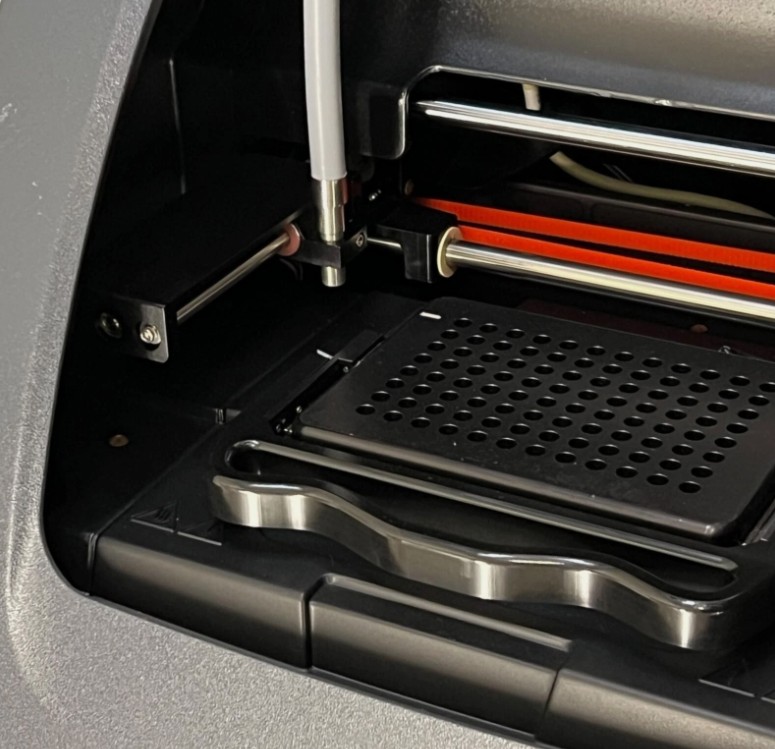

The Stratagene Mx3005P is compatible with a wide range of 96-well PCR plastics, strip tubes, or individual tubes, provided that appropriate consumables are used to maintain experimental integrity. The system also features a Perfect Fit frame, facilitating tube insertion and ensuring proper thermal contact.
With its compatibility with multiple fluorescent chemistries, precise optical and thermal performance, and user-friendly software interface, the Mx3005P stands out as a leading tool for laboratories seeking robustness, flexibility, and reliability in their qPCR analyses.
Excitation source: Quartz-tungsten halogen lamp
Detector: Photomultiplier tube (PMT)
Optical system: 5 user-selectable filters
Thermal system: 96-well Peltier block
Temperature range: 25 °C to 99 °C
Reaction volume: 10 to 50 µl per well
Multiplexing capability: Up to 5 dyes per well
Dimensions: 35.6 × 50.8 × 45.7 cm
Weight: 20.4 kg
Power requirements: 100–120 V / 200–240 V, 50/60 Hz
Operating environment: 18–35 °C, up to 85% humidity
Fuse holder kit
Serial-to-USB adapter
USB driver installation CD
MxPro QPCR software
Compatible laptop or desktop computer
RS-232 null modem cable
Mouse
Non-skirted 96-well PCR plates
8-cap optical strip tubes
Perfect Fit frame
Open platform compatible with most fluorescent chemistries
User-friendly MxPro software with real-time analysis, quantification functions, and report generation
Fiber-optic scanning system for consistent well-to-well signal uniformity
Thermal uniformity ensured by Peltier technology
Easy setup with automatic filter recognition feature
Compatible with Windows XP, Vista, and Microsoft Office
