GE Vivid E95; GE Vivid E90; GE Vivid E9; GE Logiq E9; GE Logiq S8
Abdominal, Obstetrics, Gynaecology, Vascular, Urology, Fetal Heart.
Product Overview

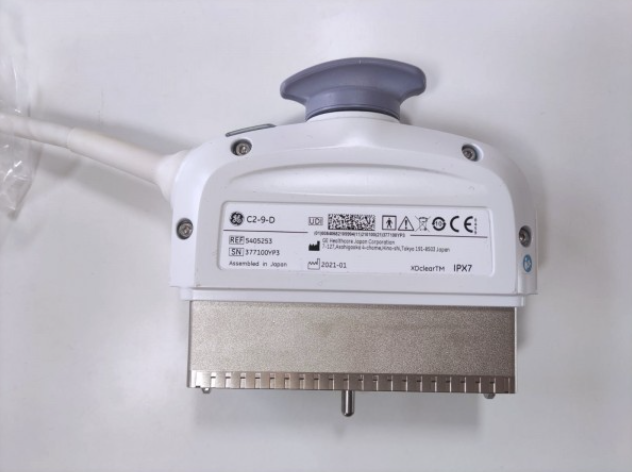

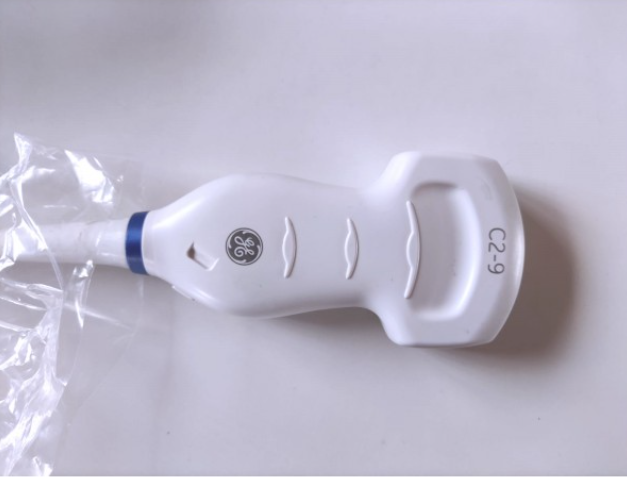

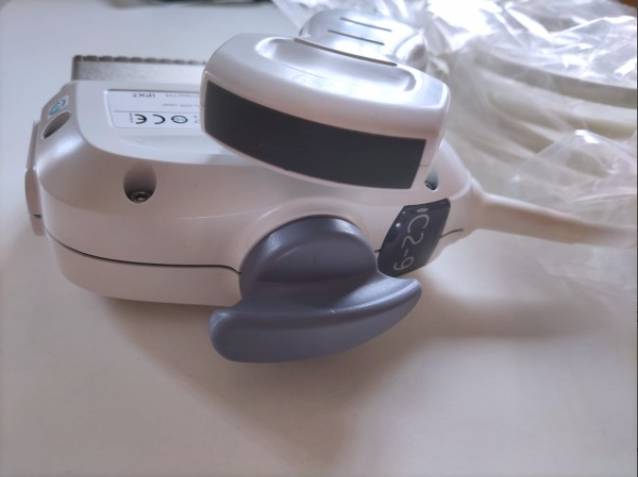

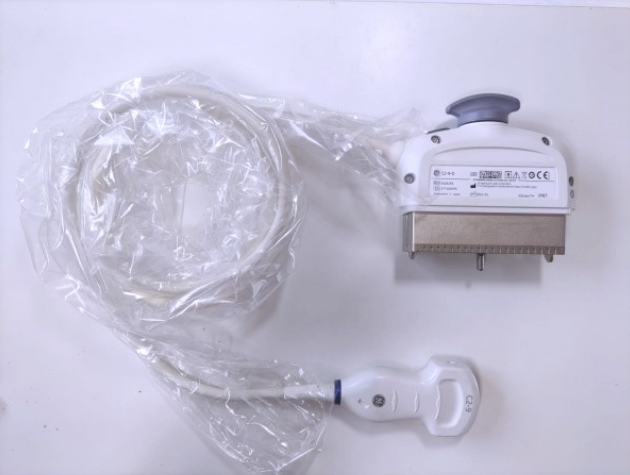

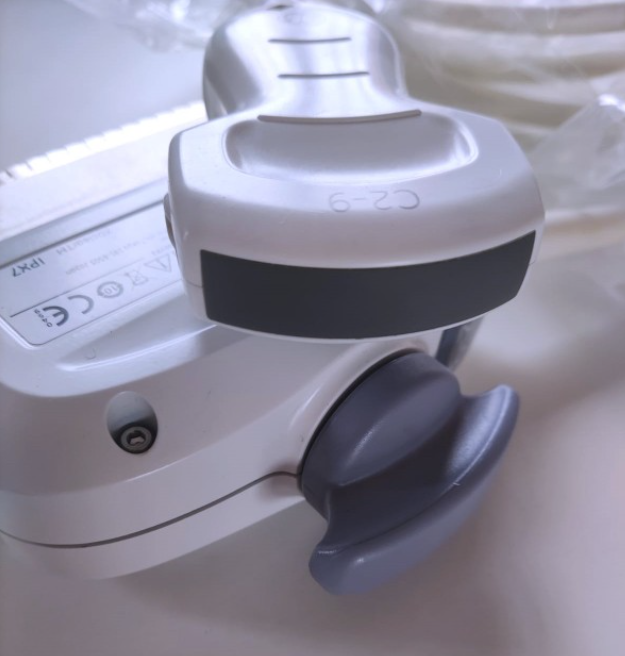

The C2-9-D is a high-performance curved array transducer designed for high-resolution imaging in abdominal, OB-GYN, and vascular applications. With its advanced imaging technology and broad frequency range, the C2-9-D delivers exceptional clarity and depth for accurate diagnostics. Its lightweight and ergonomic design ensures operator comfort and efficiency, making it an excellent tool for routine and specialized imaging needs.
Compatibility
GE Vivid E90;
GE Vivid E9;
GE Logiq E9;
GE Logiq S8
Technical Specifications
Frequency Range: 2.3 – 8.4 MHz for high-resolution imaging of mid-to-deep anatomical structures.
Scan Modes: B-Mode, Color Doppler, Pulse Wave Doppler.
Field of View: 70° for comprehensive visualization of abdominal and pelvic regions.
Depth of Field: Up to 20 cm for detailed imaging of deeper structures.
Footprint: Compact curved array design for enhanced access to anatomical regions.
Connector Type: Standard GE proprietary connector.
Design: Lightweight and ergonomic for improved operator comfort and patient safety.
Applications
Abdominal Imaging: Provides precise imaging of abdominal organs, including the liver, kidneys, and pancreas.
OB-GN Imaging: Supports detailed assessment of fetal development and gynecological anatomy.
Vascular Imaging: Enables high-resolution imaging of blood vessels and flow dynamics.
Clinical Performance Highlights
Wide frequency range ensures exceptional resolution and detail for mid-to-deep structures.
Advanced Doppler capabilities provide precise vascular flow and velocity assessments.
Reliable imaging performance for both routine and complex diagnostic applications.
Advanced Imaging Features
High-resolution imaging supports confident diagnostics for abdominal and vascular structures.
band technology enhances clarity and depth for a variety of clinical applications.
Optimized design improves accessibility to challenging anatomical regions.
