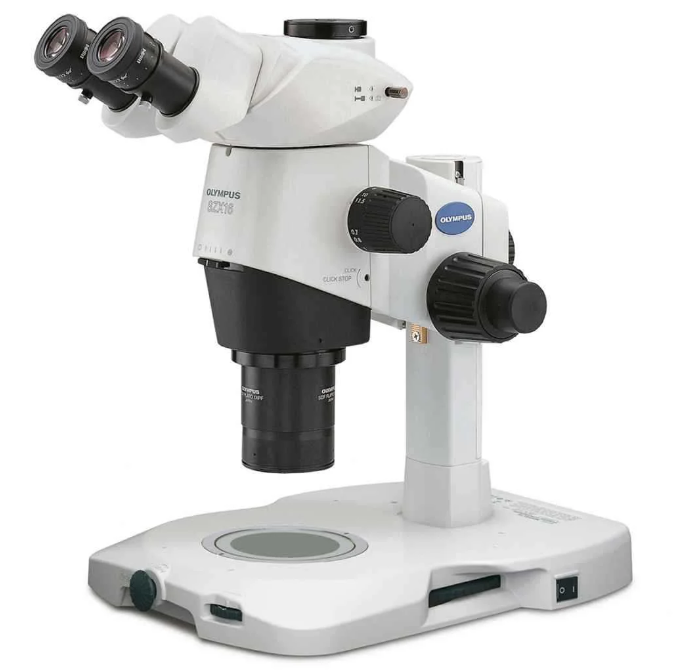

Dive into advanced microscopy with the Olympus SZX16, a high-performance stereo microscope designed for precision and versatility. Ideal for biological and material science studies, its ergonomic design and high-resolution imaging capabilities make it a top choice for researchers.
Meeting the Challenge of Life Science Imaging
Designed for advanced research, the SZX16 stereo microscope’s darkfield and polarization capabilities, 0.3 numerical aperture, and large 16.4:1 zoom ratio enable you to image whole organisms down to fine microscopic and individual cell structures.
Wide 16.4:1 Zoom Ratio
The SZX16 boasts a wide zoom ratio of 16.4:1, enabling 7x-115x magnification with a 1x objective, and up to 230x magnification with a 2x objective. This wide zoom range makes it suitable for a wide range of research applications, with low-magnification macro views for dissection and specimen manipulation, and sharp high-magnification views for close observation of microstructures.
With a slim 41.5 mm design, that is approximately half the thickness of previous halogen lamp transmitted light illumination bases, new LED transmitted light illumination bases have a lower height to enable a low eyepoint and easy access to base-mounted samples during observation and operation. The LED illumination base SZX2-ILLTQ with quad position turret enables the user to choose cartridges and to switch from brightfield (standard/high/low), oblique (standard/high/low), darkfield, polarized illumination, and shutter with a simple turn. A one position LED illumination base is also an option (SZX2-ILLTS). This makes the SZX16 a flexible all-in-one microscope for various samples and observation tasks. Another advantage of LED illumination is a cooler base surface, which is suitable for long duration manipulation of live specimens. Power consumption is lower than a conventional 30W halogen light source. A life cycle of over 60,000 hours significantly reduces operation costs.
Ample Working Space for Manipulation

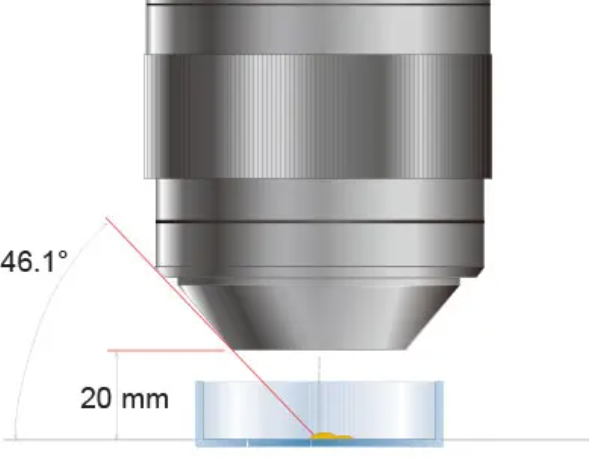

Any type of manipulation under a microscope requires an ample space between the top of the sample and the bottom of the objective for the tools. The objectives available for the SZX16 have large working distance, which enable the use of both manual and automated manipulation and injection tools. Moreover, since the front end of the high-magnification 1.6x and 2x objectives is tapered, the available movement range for manipulator is significantly increased.

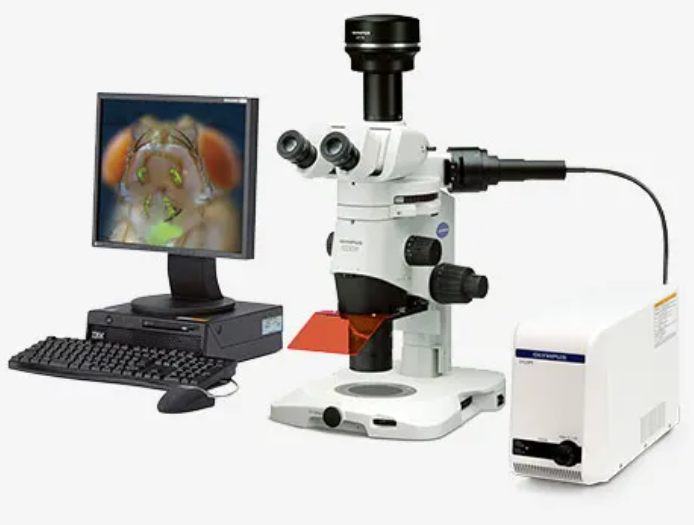

The SZX16 is suitable as a fluorescence microscope for observing everything from whole organisms to nuclear detail, thanks to its precisely engineered optics and high NA. The advanced glass materials with low autofluorescence and new surface coatings greatly increase the transmission of light and consequently improve image clarity. Furthermore, these features result in an excellent S/N ratio and high fluorescence signal intensity. Full control of the excitation light is facilitated by the 5-position filter wheel, which enables flexible illumination for low-magnification, high-resolution imaging.
Furthermore, the newly designed near-vertical reflected light illuminator’s excitation light paths are independent from the observation paths, allowing for substantially improved excitation light efficiency. These features provide far brighter fluorescence observation than conventional stereomicroscopes at all magnifications. Transmitted light observation for verification of specimen outline is possible even under reflected light fluorescence observation.

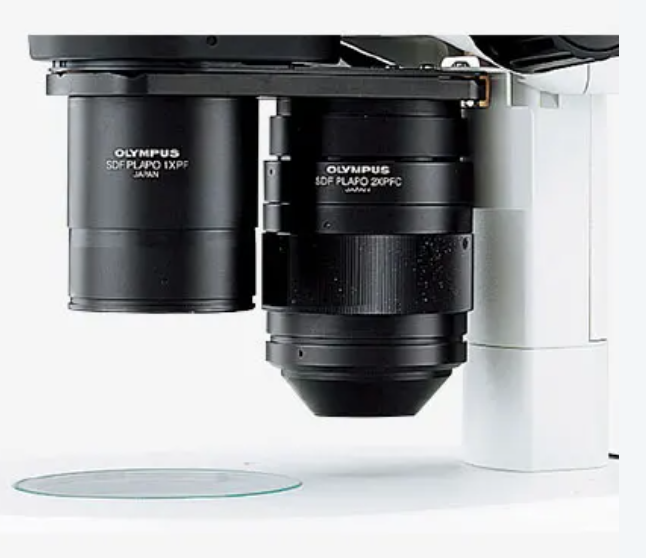

Double Objectives for 3.5x to 230x Zoom

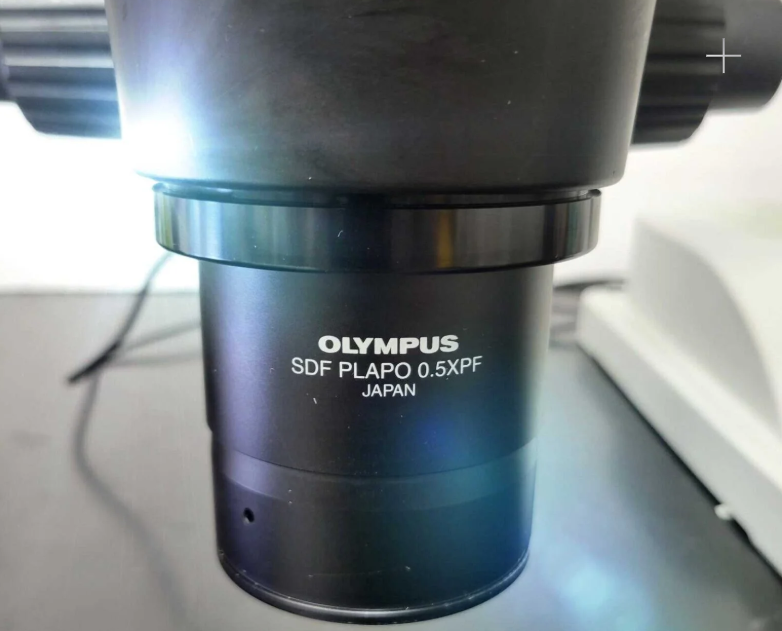

With the parfocal objectives and two-position revolving nosepiece, switching between objectives is very quick and easy, requiring little refocusing. Therefore, with the 0.5x and 2.0x objectives, the uninterrupted magnification range is 3.5x - 230x. This represents an effective zoom ratio of 65.7:1.
Ergonomic Observation Tube and Extendable Eyepoint Adjuster
The SZX2 series features observation tubes with an optimized convergence angle designed to enable users to make observations from a natural position that minimizes eye fatigue. This solution effectively eliminates eyestrain during long periods of observation.
Our long tilting trinocular tube (SZX2-LTTR) improves the ergonomics of our stereo microscopes. This trinocular can be adjusted from 5 to 45 degrees to facilitate a more natural head and neck position while working. In addition, the eyepoint adjuster (SZX2-EEPA) enables users to raise or lower the eyepoint within a 120 mm range to accommodate users of different heights. The combination of these ergonomic components helps reduce stress and fatigue by keeping users in a more natural posture while they’re working.
