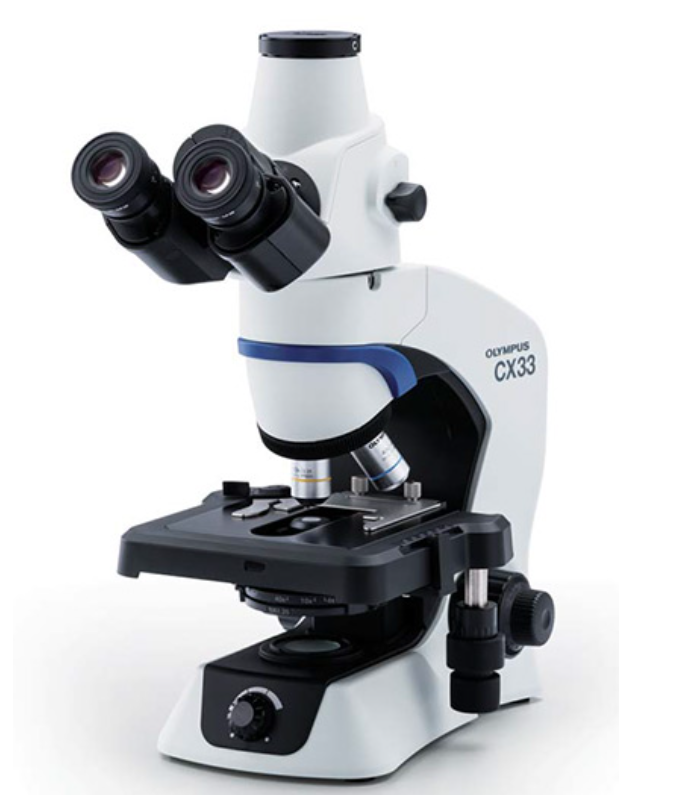

The Olympus CX33 Trinocular Microscope for sale offers improved all-around performance and greater cost efficiency. This biological microscope is ergonomically designed with low-positioned coarse and fine-focusing controls and features convenient hand grips at the front and back to facilitate operation. The ergonomic trinocular head of the Olympus CX33 microscope is inclined 30° for comfortable viewing and has an interpupillary distance adjustment range from 48 to 75mm. The CX33 microscope comes standard with WF 10x/20mm eyepieces. A quadruple inward fit nosepiece with newly developed infinity corrected 4x, 10x, 40x, and 100x objectives are included in this Olympus CX33 Trinocular Microscope setup. The quadruple revolving nosepiece improves access and makes for quick, easy slide changes, improving work productivity. The Olympus microscope CX33 model offers exceptional flatness, producing sharp, clear images right up the edge of the field of view.
A precise graduated mechanical stage with rackless design is standard (76 mm X direction and 52 mm Y direction movement). This Olympus microscope has an Abbe Condenser, which is 1.25 N.A, centerable and focusable and includes a blue filter. Illumination is built in with a 2.4W LED Köhler system, which provides users with consistent color temperatures when viewing samples.
This CX33 Olympus microscope is ideal for educational and medical applications. The CX33 microscope has an anti-fungus treatment, which helps protect the optical parts, even in high-humidity regions. When you buy an Olympus CX33 Trinocular Microscope for sale, you’ll also receive a microscope cover, the CX33 manual, and a power cord. See all microscope accessories available to pair with the Olympus CX33 microscope.
Features:
Infinity corrected objectives offer exceptional flatness producing sharp, clear images right up the edge of the field of view (4x, 10x, 40x, 100x oil)
Anti-fungus treatment helps protect optical parts even in high humidity regions
Inward-facing, quadruple revolving nosepiece improves access and makes for quick, easy slide changes
Fixed Abbe condenser N.A. 1.25, centerable and focusable for Köhler illumination
WF 10x/20mm Eyepieces
2.4W LED provides ample illumination for any observation
Built-in right hand stage with rackless design, low positioned X, Y controls with ergogrips to facilitate operation
Microscope Cover, Manual & Power Cord
Microscope Specifications
| Optical System | Infinity optical system |
| Observation Methods | Brightfield, darkfield |
| Viewing Head | 30° inclined trinocular tube (anti-fungal), eyepiece/camera port = 100/0 or 0/100, Interpupillary distance: 48-75 mm, Eyepoint adjustment: 375.0-427.9 mm |
| Eyepieces (anti-fungal) | 10X Field Number (FN): 20 |
| Revolving Nosepiece | Fixed quadruple nosepiece with inward tilt |
| Objectives | Infinity Plan achromat, anti-fungal 4X, 10X, 40X, 100X |
| Focusing | Stage height movement (coarse movement stroke: 15 mm ), Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 μm) |
| Stage | Wire movement mechanical fixed stage 211 mm x 154 mm, Traveling range: 76 mm x 52 mm, Single specimen holder Stage XY movement stopper |
| Condenser | Abbe condenser NA 1.25 with oil immersion, Built-in aperture iris diaphragm |
| Illumination System | Built-in transmitted illumination system, Köhler illumination (fixed field diaphragm), LED power consumption 2.4 W (nominal value), precentered |
More Specifications
Smoothly changes magnification
The rotary objective converter is positioned low, allowing users to easily change objectives by simply resting their elbows comfortably on the table. The objective changer also faces inward, providing more working space when changing specimens or using immersion oil.

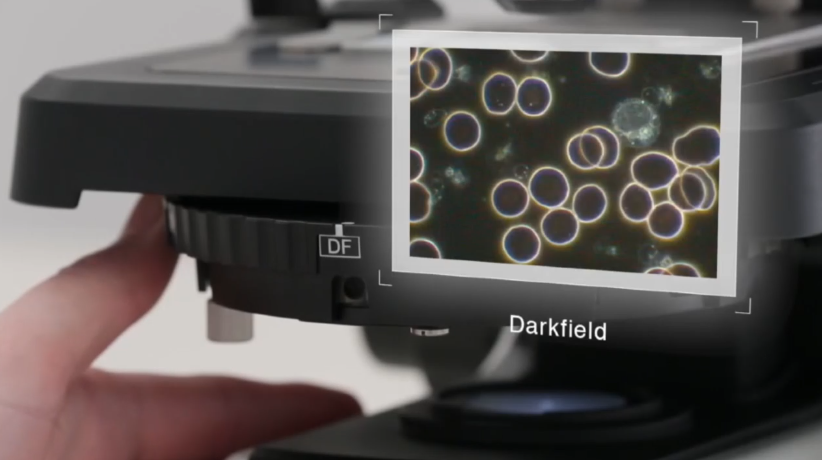

Enhanced contrast with simple aperture adjustment
Contrast is quickly enhanced by reducing the size of the aperture. This technique provides the same, if not better, image than aligned spotting scopes.

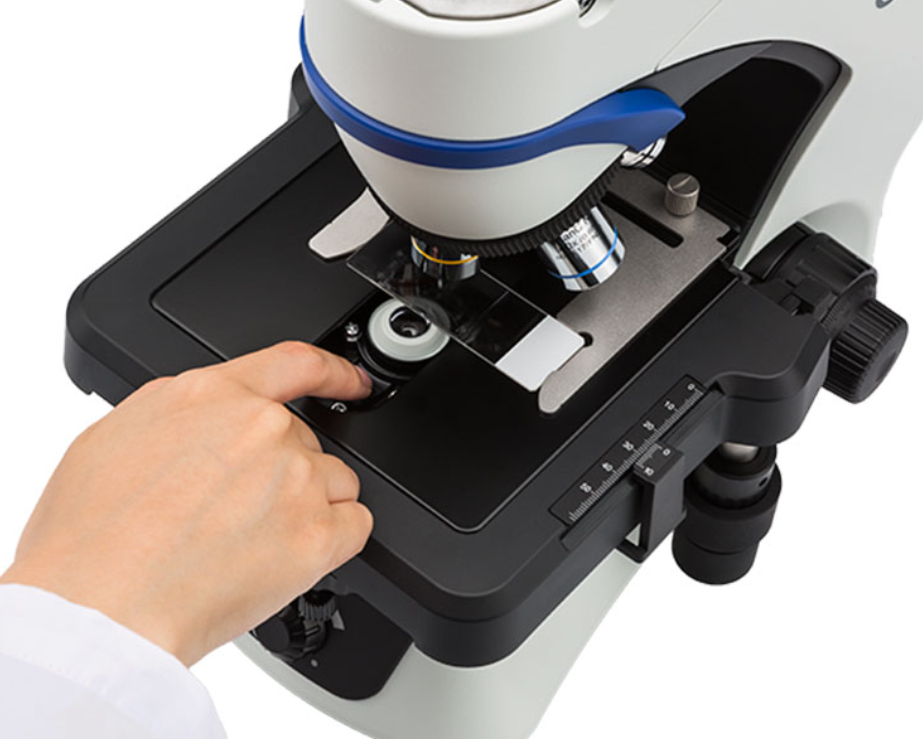

Specimen holders for your observations
A wide variety of carrier accessories are available to increase efficiency. There is no need to lock the specimen in the holder when using a specimen moving plate. Instead, the holder allows you to easily maneuver the slides on the plate. The Dual Specimen Holder accommodates one large specimen or two standard-sized glass slides.
Tube tilt:
30°; camera tube: 50/50; eyepieces: 10x/20; spotting scope: abbey rotating spotting scope NA 1.25 in positions: brightfield, darkfield (to 40x); objective rotator: quadruple (standard)
Dimensions (W×D×H): 211mm×397mm×430mm (standard)
Weight: approx. 7 kg
Ergonomic focusing knob for comfort even after long hours of use
The low focus knob allows you to rest your hand and forearm comfortably on the table while making observations. When working at high magnification, the focus stop prevents specimens from accidentally hitting the objective lens.
Ergonomic Table and Eyepiece Positioning
The CX33 microscope offers features to help you work long hours in the lab:
Low stage position improves comfort and reduces fatigue
Viewing the stage from the point-of-view position allows you to set up and examine specimens smoothly
Low stage knob can be controlled with a single touch, allowing you to view specimens quickly and comfortably
Minimal adjustments are required to retain preferred microscope conditions
Uniform illumination with consistent color temperature
CX33 LED illumination offers several immediate and long-term advantages:
Daylight conditions: the natural color of the specimen can be observed
Consistent color temperature at all brightness levels: no time is wasted in making adjustments when brightness changes
Up to 60,000 hours of service life with constant brightness at all times
Fixed Koehler illumination for comfortable viewing
The CX33 Series microscopes feature fixed Köhler illumination, which gives you the right lighting without having to adjust the spotting scope.
