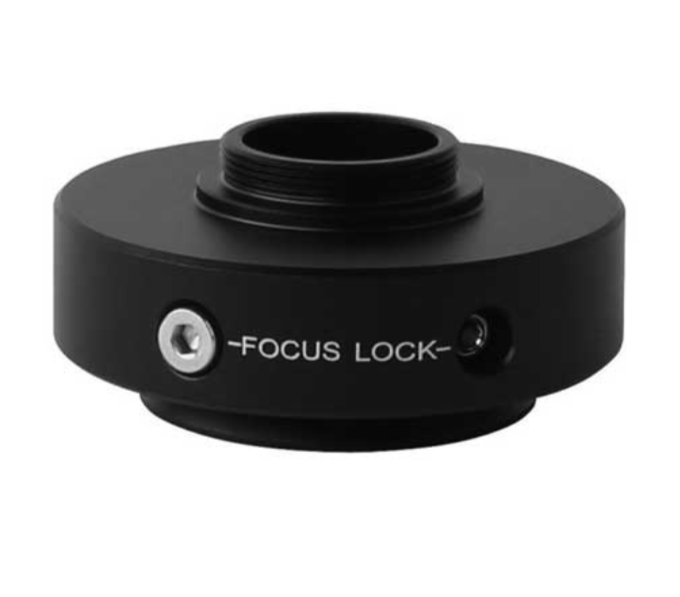

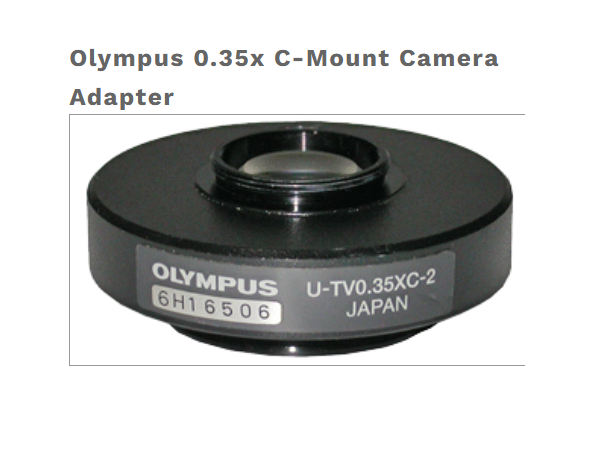

Olympus U-TV0.35XC-2-7 0.35x C-Mount Adapter
The Olympus 0.35x C-Mount Adapter for all current Olympus microscopes with trinocular (photo) ports gives the maximum field of view possible. This C-Mount allows a greater field of view to be captured by the camera compared to a 1x C-Mount.
All modern digital microscope cameras are equipped with a female C-Mount thread and will, therefore, fit onto a C-Mount adapter which has a male C-Mount thread. C-Mount adapters are manufacturer-specific. Please check that the C-Mount adapter you have selected matches the make and model of microscope you wish to mount the camera on. For example, you cannot to use an Olympus C-Mount adapter on a Ceti microscope or vice versa.

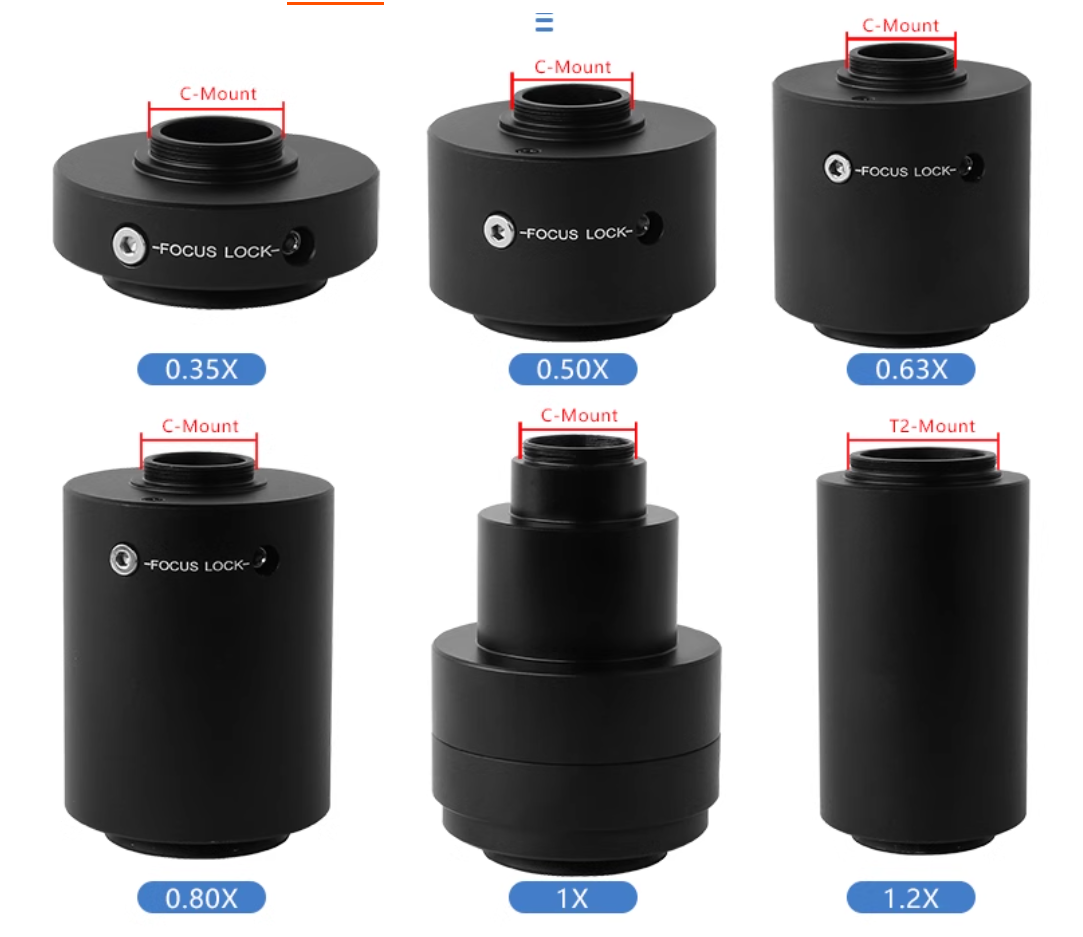

Some C-Mount adapters have lenses in them so that the user sees a similar magnification to the one seen through the 10x eyepieces. A 1x C-Mount adapter has no lenses built into it so it means the user sees a narrower field of view than that viewed through the eyepieces and a 0.35x C-Mount provides the widest possible field of view.
C-MOUNT
COMPATIBLE WITH: CX, BX & IX SERIES MICROSCOPES
CONDITION: EXCELLENT, FLAWLESS OPTICS
UNIVERSITY PURCHASE ORDERS ACCEPTED
