DM1000 LED Ergonomic system microscope
The Leica DM1000 LED features long-life LED illumination that provides near daylight, bright illumination with constant color temperature and emits less heat.
The LED also eliminates the need for lamp changes, which saves time and money. Because of its low power consumption, the system is energy efficient. Users of the Leica DM1000 LED benefit from the system’s ability to uniquely adapt to every user.
It is ideal for all clinical laboratory applications, especially for cytology, haematology, and pathology. For special diagnostics requirements, the microscope is certified for in-vitro-diagnostics (IVD) like in-vitro-fertilization (IVF).
Life of 100,000 hours
The LED bulb has a long product life of approximately 100,000 hours; assuming six hours of use per day, the bulb’s service life is 50 years - this saves laboratories both time and money. Low power consumption of the LED enables even battery operation.
Optics and contrast techniques
A variety of optics and contrast techniques, including fluorescence, are available for cytology, haematology, pathology, and many other applications.

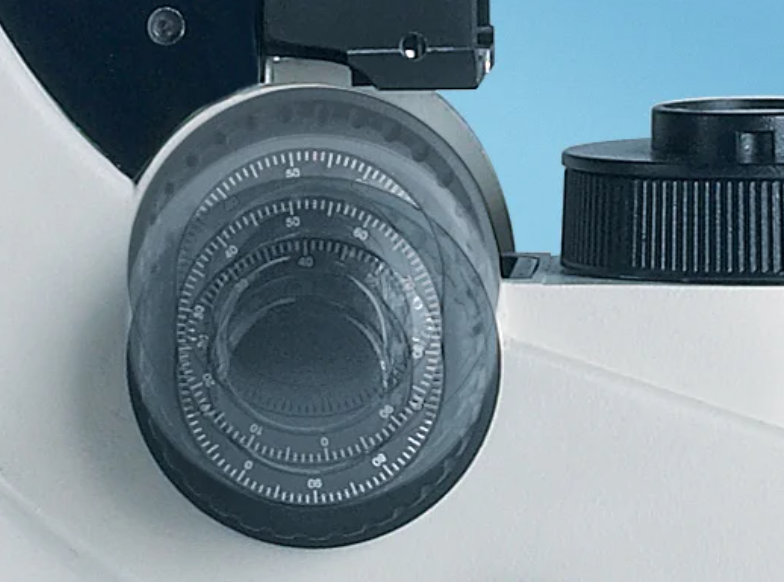

Height-adjustable focus knobs
The unique, patented, height-adjustable focus knobs, easy-to-change stage controls, and the full range of ergonomic equipment customize the Leica DM1000 LED for individual users and make them feel better at the end of a long working day.
Leica Germany
* Leica DM1000 LED Research microscope for examination in transmitted light bright field, with Universal Infinity optics, Specifications are:-
* DM1000 stand for microscopy controls and transmitted light with :
* Stand with Anti-Microbial coating to inhibit the growth of Micro-organisms
* Built-in LED Bright daylight illumination (better than Halogen Illumination) with service life of 25’000 hour.
* Coaxial focus drive for coarse stroke of about 15mm & fine adjustment with 1µm graduations with height adjustable knobs, and preset limit stop.
* Quintuple revolving nosepiece, 5-positions for objectives, suitable for combined DIC and fluorescence .
* X-Y large mechanical Stage, with Ceramic coated ultra- hard surface, coaxial control drive, with Slide holder for up 2-slides
* Centerable Abbe condenser NA 1.2 with iris diaphragm color coded according to obj. magnification , height adjustable by rack& pinion mechanism, with slot for phase contrast & Darkfield sliders.
* Multi- voltage power unit 100-240v/50-60Hz and
* Binocular tube, with 30° viewing angle, sideways tiltable, with 48-75mm IPD adjustment
* Universal Infinity optics anti-fungus treated, for Bright field:
- Plan achromatic Objective Hi PLAN 5x/0.12 (WD=11.7mm)
- Plan achromatic Objective Hi PLAN 10x/0.25 (WD=12mm)
- Plan achromatic Objective Hi PLAN 20x/0.40 (WD=0.9 mm)
- Plan achromatic Objective Hi PLAN 40x/0.65 (WD=0.36mm)
- Plan achromatic Objective Hi PLAN 100x/1.25 OIL (WD=0.10mm)
- 20 ml non-fluorescence immersion oil
- Pair of super wide field high point eyepieces focusable (-5) to (+5), HC PLAN 10x/20FN
