RMS THREAD WORKING DISTANCE: 0.28 MM NUMERICAL APERTURE: 1.20 WATER CORRECTION COLLAR: 0.13 - 0.21 CONDITION: NEW UNIVERSITY PURCHASE ORDERS ACCEPTED
60X
The UPLSAPO Super Apochromat objectives fully compensate for both spherical and chromatic aberrations from the Visible to the near-infrared region. The high sensitivity to fluorescence emissions allows the acquisition of sharp, clear images, without color shift, even in brightfield and Nomarski DIC observations. For quality and performance, they offer an unbeatable solution to every kind of digital imaging need. The High-NA silicone immersion objectives allow high-resolution observations deep inside living tissue.
High Numerical Aperture (NA) up to 1.45

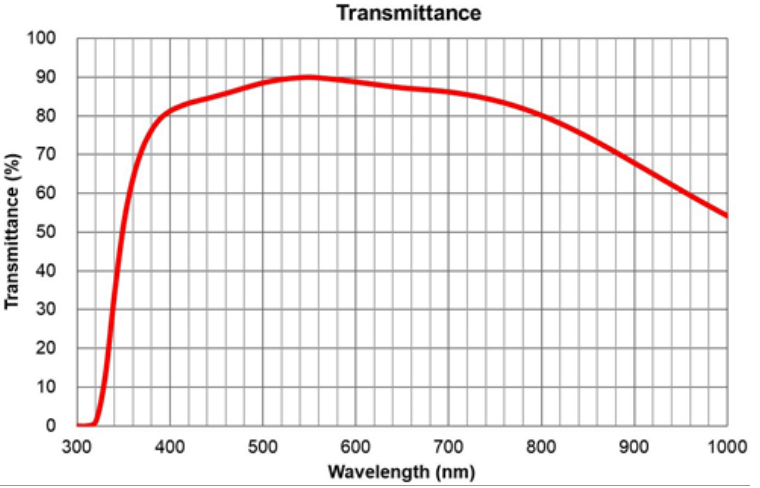

Chromatic Aberration Correction from 400 - 1000nm
Uniform Image Flatness over Large FOVs
| Model | UPLSAPO60XW |
| Magnification [X] | 60 |
| Numerical Aperture (NA) | 1.2 |
| Working Distance (WD) [mm] | 0.28 |
| Objective Field Number [mm] | 26.5 |
| Cover Glass Thickness [mm] | 0.13 - 0.21 |
| Immersion Medium | Water |
| Spring Loaded | yes |
| Correction Collar | yes |
| Remarks (Correction Collar) | Cover Glass: 0.13 - 0.21mm |
| Iris | N/A |
| Correction Level of Chromatic Aberration | Super Apochromat (SAPO) |

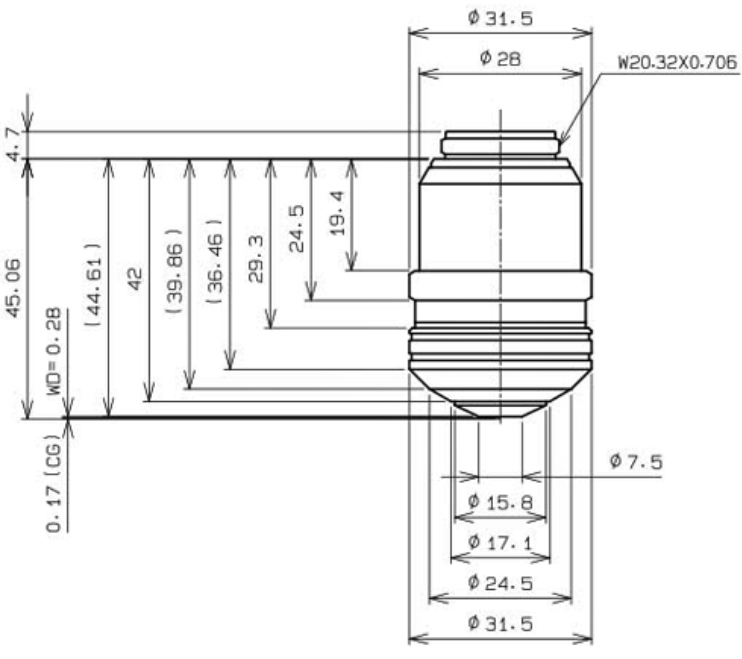

| Parfocalizing Distance [mm] | 45 |
| Back Focal Plane (BFP) Position [mm] | -19.1 |
| Type of Screw Thread | W20.32×0.706 (RMS) |
| Brightfield (Transmitted) | Excellent |
| Brightfield (Reflected) | N/A |
| Darkfield (Transmitted) | N/A |
| Darkfield (Reflected) | N/A |
| DIC (Transmitted) | Excellent |
| DIC (Reflected) | N/A |
| Phase Contrast | N/A |
| Relief Contrast | N/A |
| Polarization | Good |
| Fluorescence (B, G Excitation) | Excellent |
| UV Fluorescence (at 365 nm) | Excellent |
| Multiphoton | Yes |
| TIRF/IR/WLI | N/A |
| Auto Focus | IX3-ZDC2 available |
