Minimising cyclotorsion effect. Natural binocular vision. Facilitating measurement for very young patients. Measuring actual accommodation by using near point chart.
By connecting to a computer, it is possible to continuously measure the Spherical Equivalent(SE) value and pupil diameter at 0.2 second intervals. You can check the accommodation response dynamically.
5.6” Color LCD

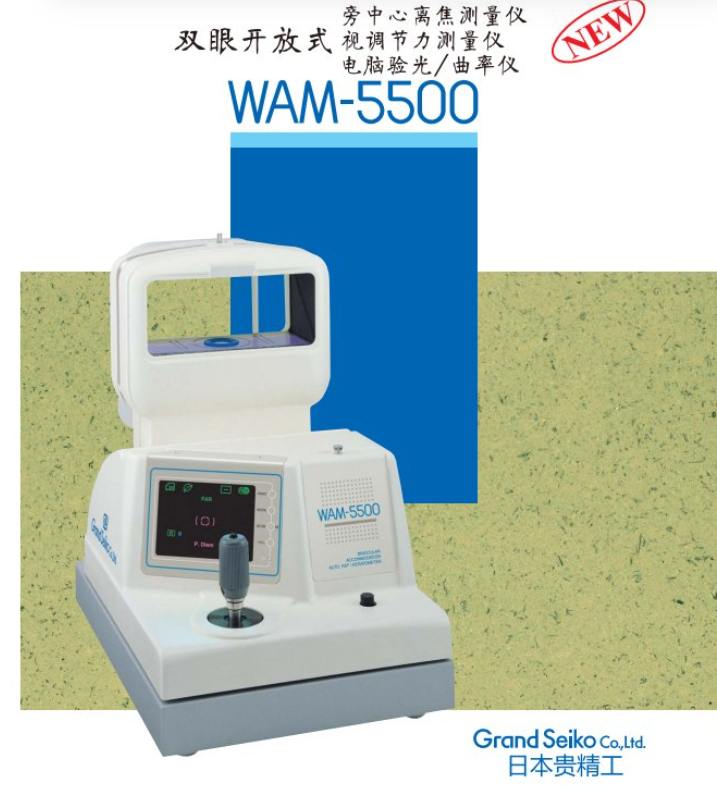

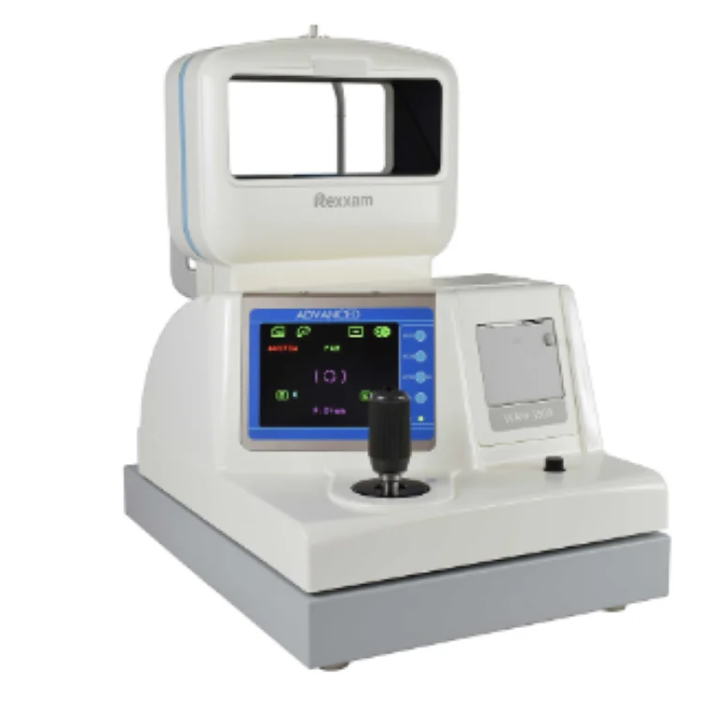

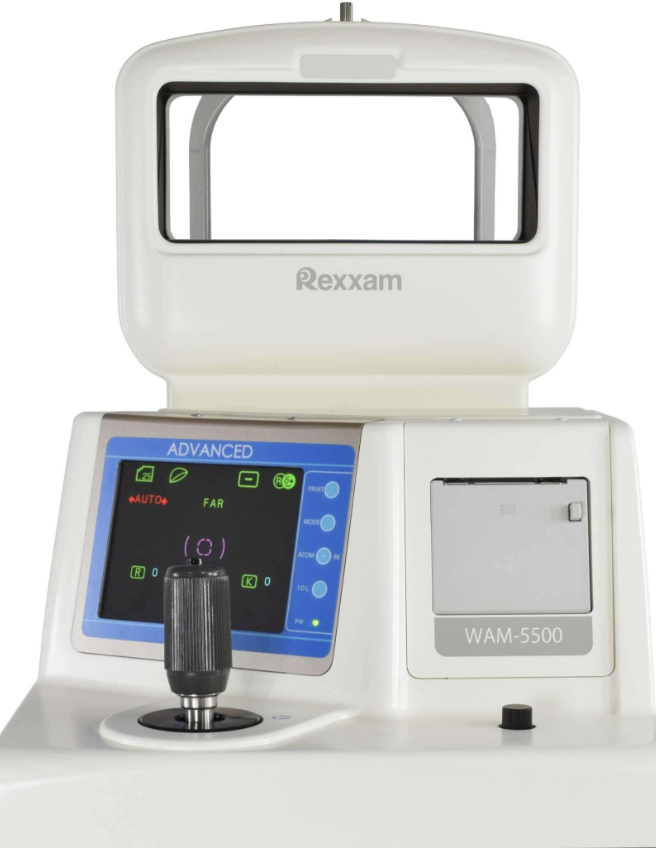

WAM-5500 Advanced Dynamic Binocular Accommodating Autorefractor
The Grand Seiko WAM-5500A Binocular Autorefractor/Keratometer can measure refraction and pupil diameter simultaneously in addition to all of the features present on its sister product, the WR-5100K. It also has the ability to dynamically measure accommodation making it ideal for pediatrics and research applications.
The Grand Seiko WAM-5500A Binocular Autorefractor/Keratometer can measure refraction and pupil diameter simultaneously in addition to all of the features present on its sister product, the WR-5100K. It also has the ability to dynamically measure accommodation making it ideal for pediatrics and research applications.
Features:
A.M. Mode: an advanced function to measure pupil constriction to more objectively measure accommodation

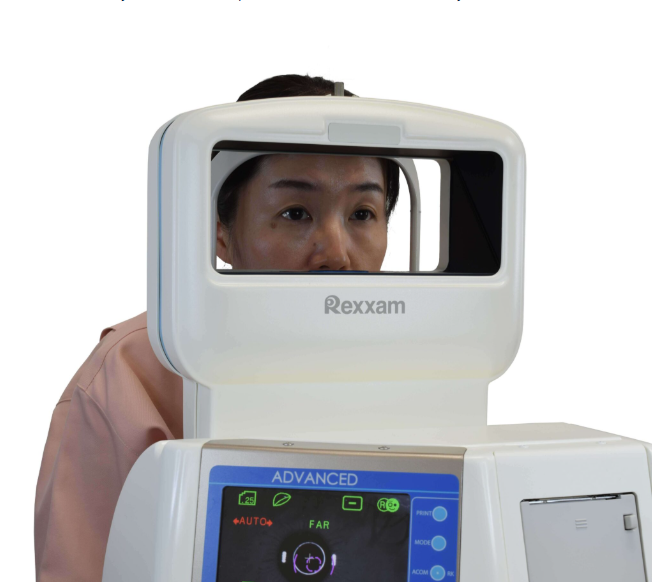

Measures both eyes, providing a more natural viewing condition and eliminating instrument induced myopia

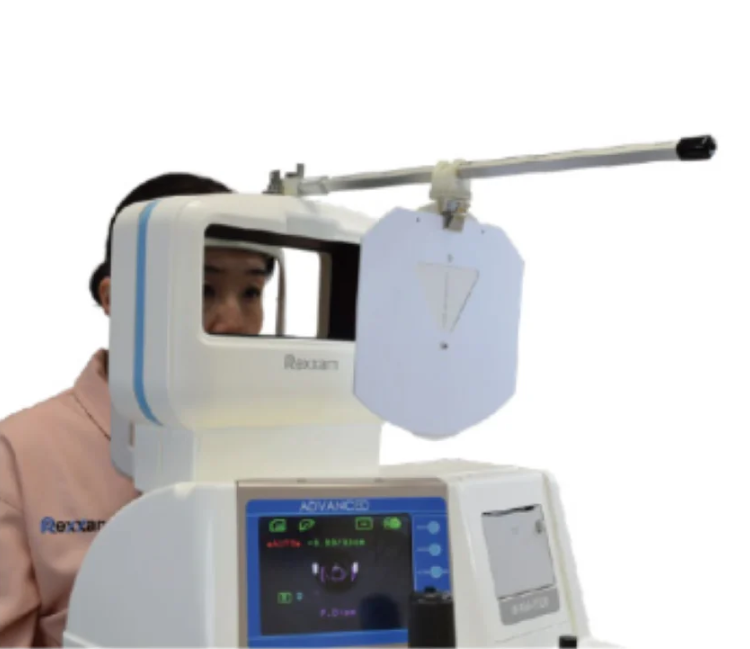

Easier measurement with open view window allows you to choose a target that best suits your patients such as toys or cartoons for children
NEW Improved Hi Speed Mode allows the connection to a PC using our dedicated software WCS-1 to measure the SE Value and pupil diameter at 6Hz
On screen indication of Spherical Equivalent
Measurement can be made easily with patients with contacts, glasses or IOLs
Data Output in the form of Video or through a RS-232C interface to our dedicated software
Easy mode change
MDC-1 Static Measurement Software
NEW Improved operations and measurement capability on IOL subjects
NEW Ability to freeze images for assessment of measurement reliability
| Refraction Measurement | Sph: +/-22D(.01/.02/.25D Step) Cyl: +/-10D(.01/.02/.25D Step) Axis: 0-180°(1°Step) |
| Corneal Measurement | Radius: 5.0-10mm(.01mm Step) Refractive Power: 33.75-67.5D(.01/.12/.25D Step) Cylinder: 0-+/-9D Axis: 0-180°(1°Step) |
| Vertex Distance | 0mm,10mm,12mm,13.5mm,15mm |
| Minimum Pupil Diameter | ø2.3mm |
| Pupillary Distance | 85mm(1mm Step) |
| View Mode | Binocular Open View |
| Accommodation Measurement | SE and Pupil Diameter: 6Hz Measurement Speed |
| Monitor | 5.6” Color LCD |
| Output | RS-232 Video(NTSC) |
| Printer | Thermal w/ Automatic Cutter |
| Chin Rest Movement | Manual |
| Chin Rest Movement Range | B/F: +/-17mm R/L: +/-43mm U/D: +/-15mm |
