Five magnifications: 6X, 10X, 16X, 25X, 40X Optimal clarity, colour resolution and depth-of-field Compact and easy to use Halogen light source DC-4 Digital camera compatible
550mm x 558mm x 399mm (With Table) w/Table: 17 kg

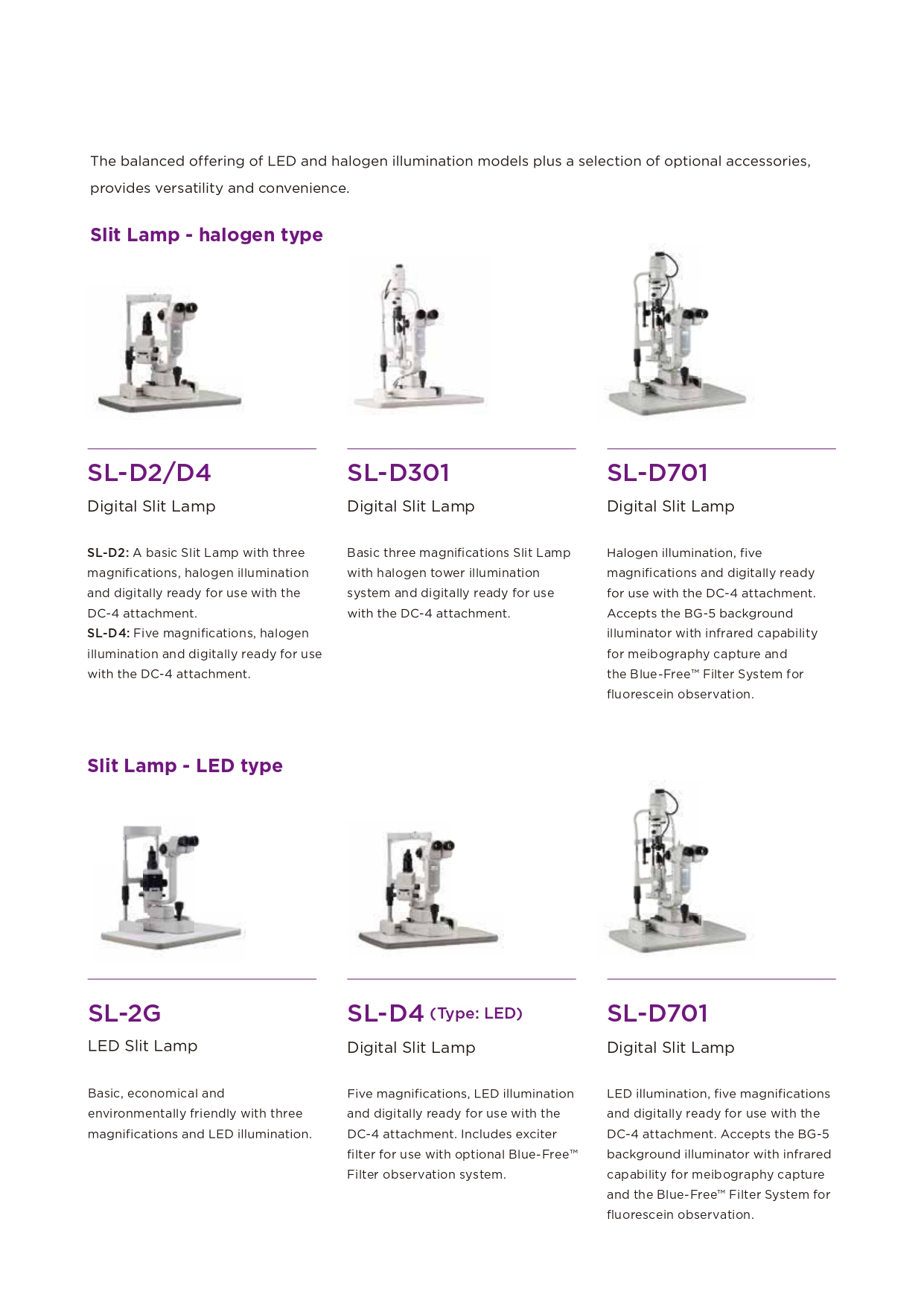

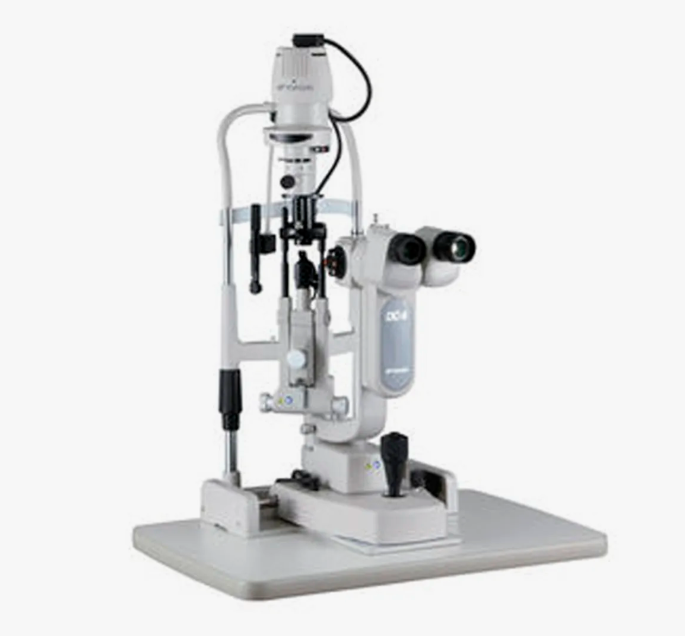

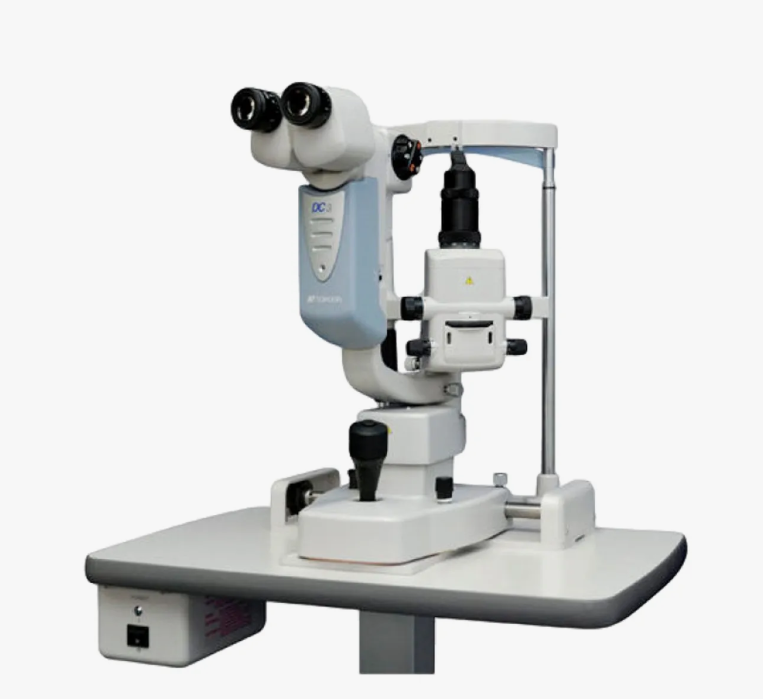

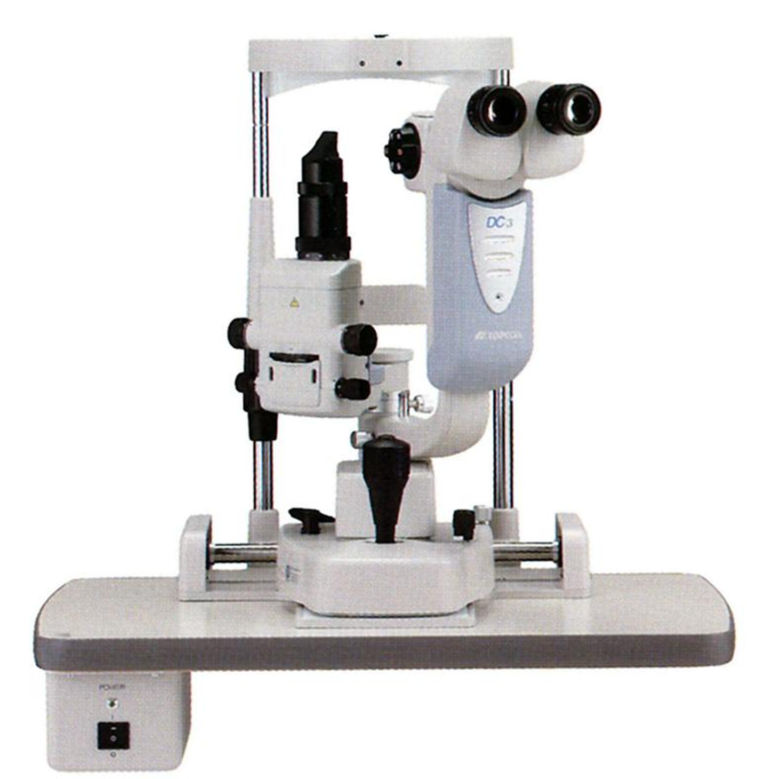

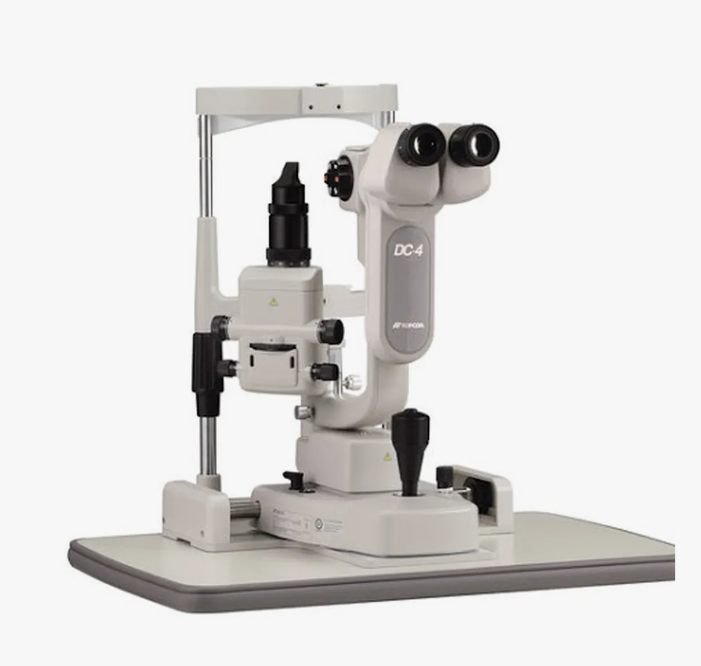

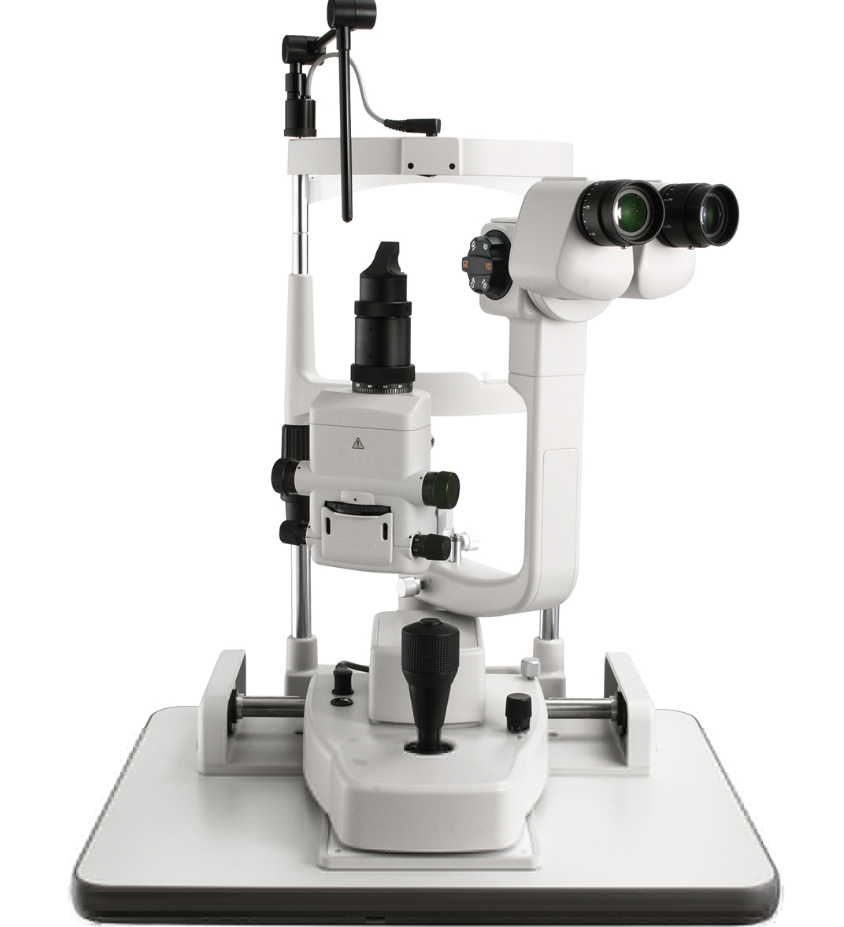

The SL-D4 is part of Topcon’s digital slit lamp series. This digital slit lamp can be used as a conventional biomicroscope or as a slit lamp with several imaging options
Key features
Five magnifications: 6x, 10x, 16x, 25x, 40x ideal for viewing details, for daily specialist practice

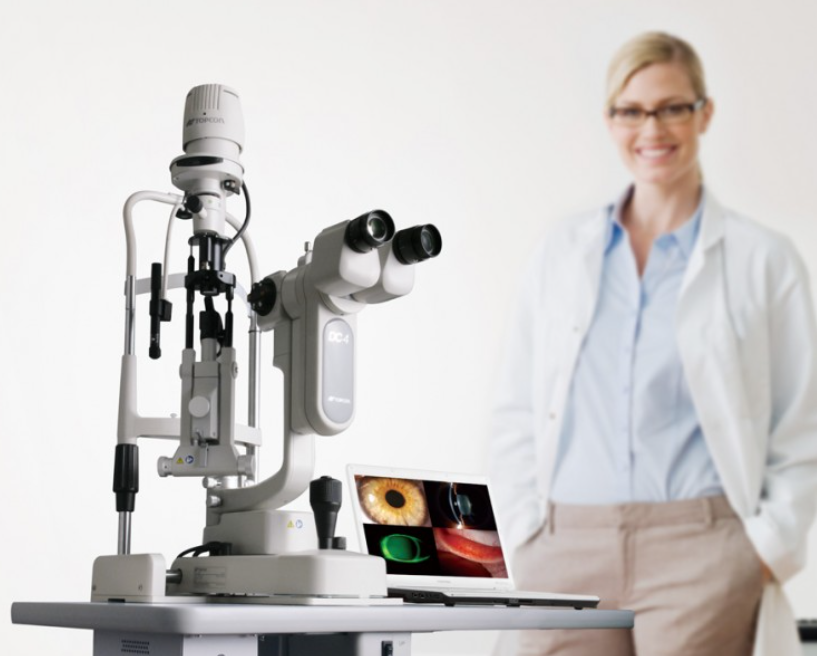

Optional DC-4 digital camera: a modular system
Short construction: user-friendly ergonomics (short ocular distance to patient)
The Topcon SL-D4 has standard 12.5x eye pieces and converging binocular tubes with a parallel magnification body with 6x, 10x, 16x, 25x and 40x magnification for remarkably sharp and comfortable stereoscopic observation.
| Item | SL-D4 Digital-Ready Slit Lamp |
| Company | Topcon Healthcare |
| Catalog Number | SL-D4 |
| Weight | w/Table: 17 kg w/ Unit Table: 16 kg w/o Table and Chinrest: 9.5 kg |
| Microscope | Galilean magnification changer with converging binocular tubes |
| Slit Width | Continuous: 14 - 0 mm (circle at 14 mm) |
| Slit Length | Continuous: 14 - 0 mm (circle at 14 mm) |
| Slit Angles | 0 to 180 degree with horizontal scanning capability |
| Magnification | 6x, 10x, 16x, 25x and 40x |
| Filters | Blue, Red-Free, Amber UV Cut (Normal Use), IR Cut (Normal Use) |
| Light Source | Halogen Lamp / LED |
| Dimensions (W x H x D) | 550mm x 558mm x 399mm (With Table) |
| Power Requirements | 100 to 240V; 50/60Hz |
| Field of View | 6x(35.1mm), 10x(22.5mm), 16x(14.1mm), 25x(8.8mm), 40x(5.6mm) |
| Eyepiece Magnification | 12.5x |
