New Color LCD Screen New Focus Assist New Children’s Mode Improved battery life Automatic Axis Compensation and extended measurement range
weight with battery only 969g
170 x 230 x 240mm
Righton Retinomax Screeen / Righton Retinomax K+ Screen
The Righton Retinomax Screeen Autorefractometer/Keratometer offers accurate autorefraction and keratometry. This handheld device boasts a new focus assist feature that informs the user of the optimum focusing point using an easy color-coding system. The Retinomax Screeen also provides the cylinder axis angle and automatically compensates if not level.
Retinomax Series, the world’s leading handheld Ref and Refract Keratometer, delivers wide measurement range on par with table type Ref, with greater mobility, stability, and accuracy. The Retinomax series is widely used as a global standard device for pediatric, screening, medical care in remote areas, disaster area and a wide range of ophthalmic scenes.
Current informatical society, eye fatigue, one of the typical modern diseases caused by eye accommodation issues are now easily discovered by ACOMOREF2 series during screening basis. Accommodative Micro Fluctuation result will show in the graph for easy reading, plus opacity detection function makes ACOMOREF2 the world’s first multi-functional Refractometer.
The ease of use has made the Retinomax successful worldwide. In its latest generation, it is even lighter and more compact. The highlight of the new model is its tiltable screen, which allows convenient measurement in any position. The Retinomax has always been extremely easy to use.
Refraction values and corneal radii are recorded at the push of a button. Retinomax only needs a fraction of a second for this and is therefore also suitable for toddlers and older subjects with tremors. Automatic axis compensation and intelligent focus assistant always promise reliable results with the highest precision; more accurate than most floor-standing units. Further convincing arguments for the Retinomax Screeen are wireless data transmission, retro-illumination and pupil measurement with brightness reduction.

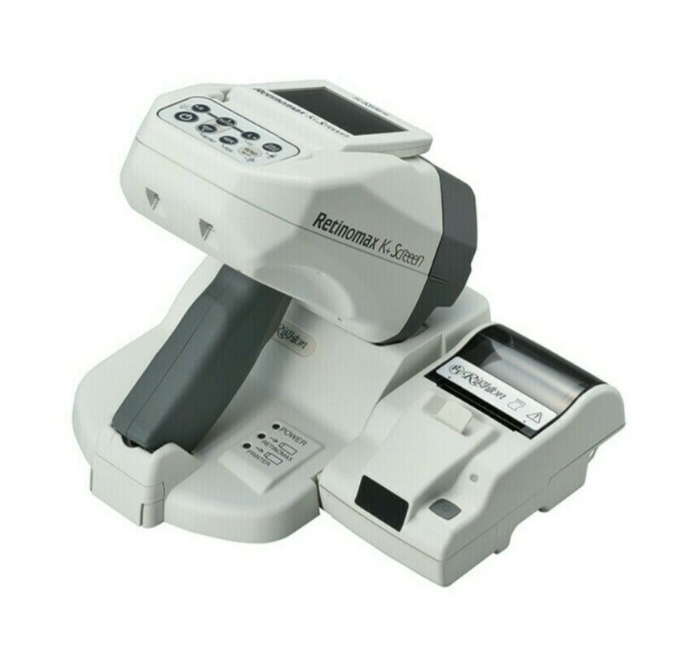

Handheld Autorefract Keratometer Retinomax K+ Screen
New Color LCD Screen
New Focus Assist
New Children’s Mode
Improved battery life
Automatic Axis Compensation and extended measurement range
The industry standard for hand held auto-refraction and keratometry
High speed fogging minimises accommodation
Upwards tilting LCD screen
Auto measurement provides highly accurate and repeatable results
New cylinder axis correction compensation allows the operator to approach patients from any angle

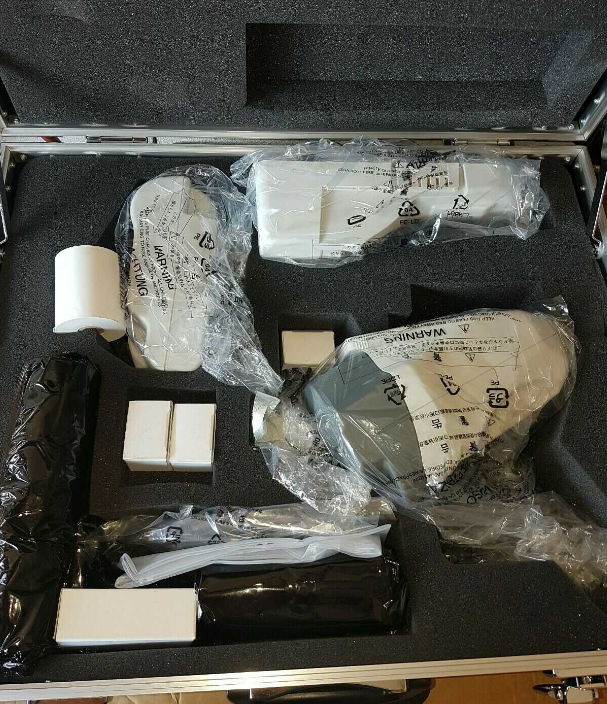

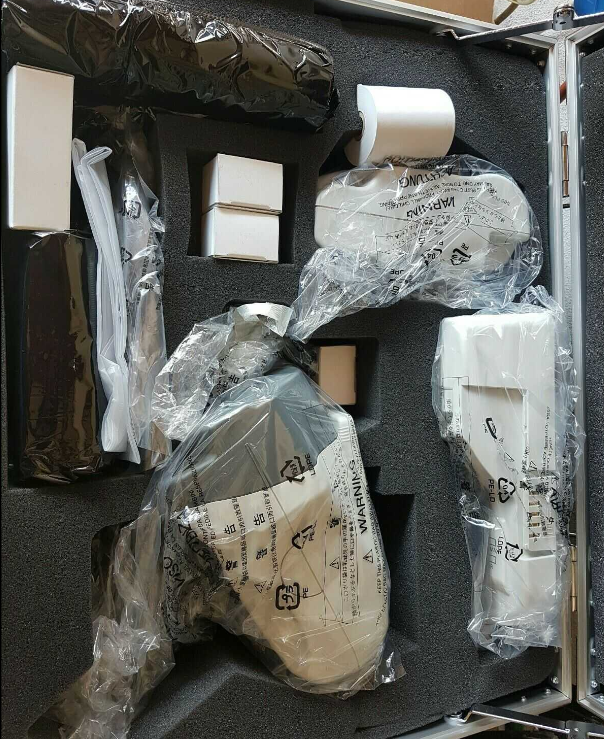

The unit comes complete with a dedicated charging base and infra-red printer unit
Technical data:
weight with battery only 969g !!!
auto refractometer tilt sensor !!!
color screen
indicators of correct setting during the measurement
research memory
advanced control system for measuring accuracy and stability
the automatic pupil diameter measurement
automatic start of the measurement
refraction time 0.07 sec. !!!
Refraction – range:
sphere: -18D to + 23D
cylinder: 0 to -12D, 0 to + 12D
axis: from 1 ° to 180 ° (step: 1 °)
measuring step: Auto / 0.25D
Other parameters:
VD distance: 0, 12 mm
min. pupil diameter: Ø2.3 mm
pupil diameter measurement
measurement start: automatic
measurement mode: automatic / continuous / for children (quick)
medical mode: retroillumination
Quick children’s measurement mode
Melody mode
type of optotype: rocket, tulip or teddy bear, with adjustable brightness
58mm thermal printer, wireless control
measurement reliability indicator
interfaces: wireless infrared / RS-232C
dimensions (WxHxD): 170 x 230 x 240mm
