Metal sorting and valuation Positive Material Identification (PMI) Fingerprint identification Light element analysis (Li, Be, Mg, Al, Si)
2.4KG
US$ 7,500
@Bruker EOS 500 Handheld LIBS, A multi-detector design allows the EOS 500 to cover an extended wavelength range from 170 nm to 720 nm, while maintaining outstanding resolution for a complicated metal matrix such as titanium. This broad wavelength range allows the detection of elements such as Li, Be, Cs, etc., which a single detector could not cover. In addition, the extensive wave-length range also allows the EOS 500 to utilize alternative wavelengths and hence achieve better accuracy by avoiding spectrum overlap.

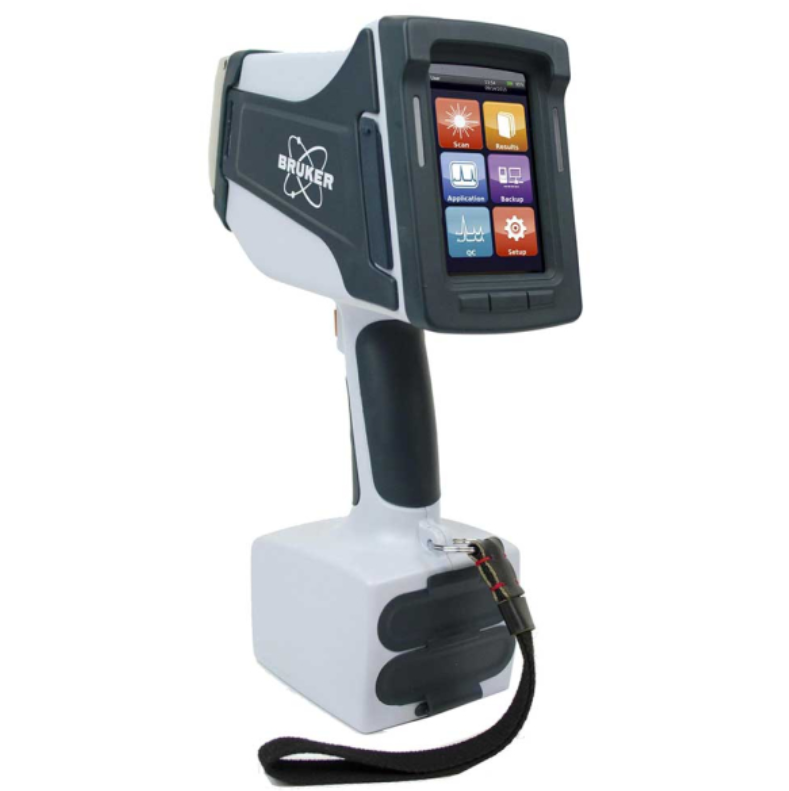

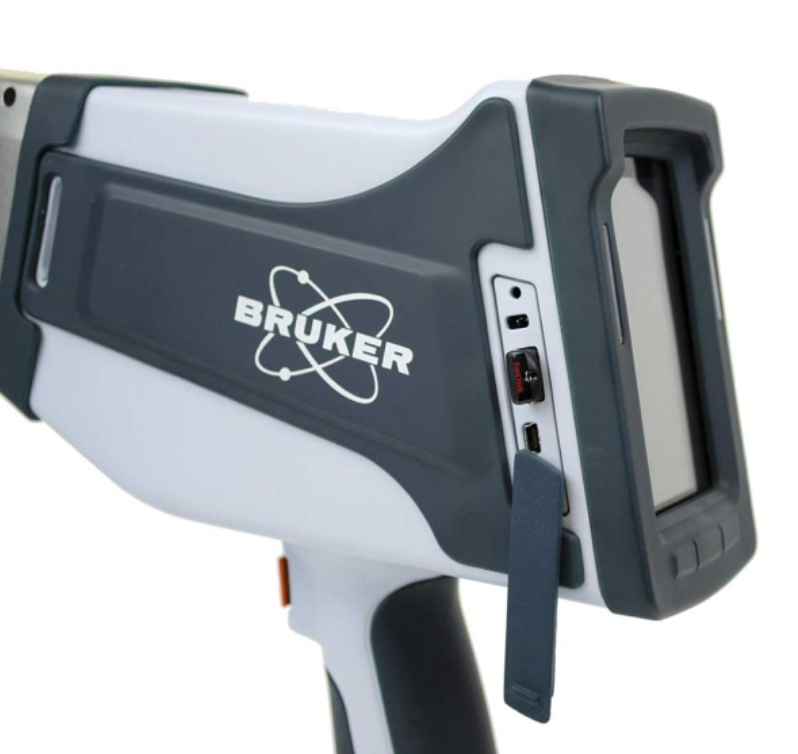

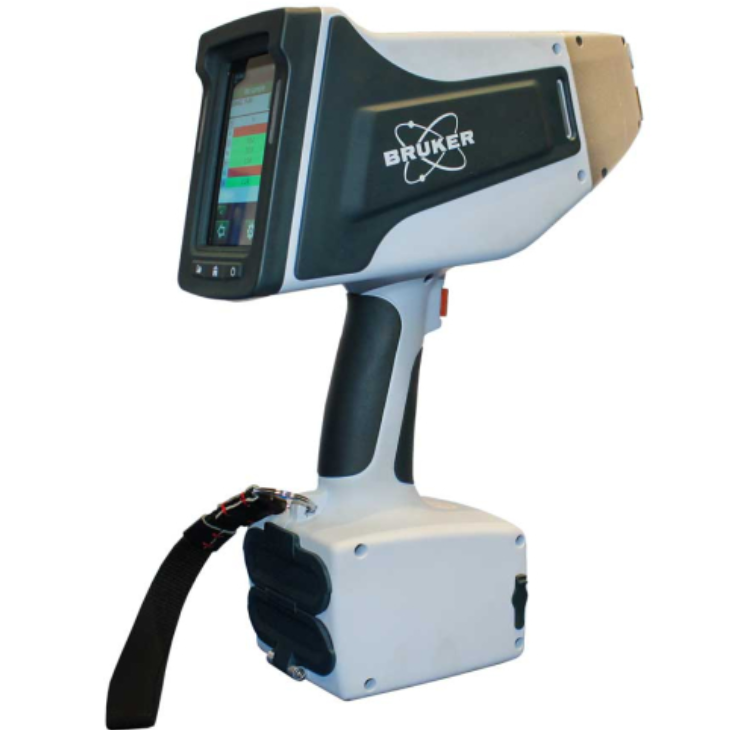

Bruker EOS 500 Handheld LIBS
Bruker EOS 500 Handheld LIBS Induced Breakdown Spectroscopy (HH-LIBS) system. The EOS 500 is based on laser excitation of a metal sample followed by quantitative analysis of the light generated in the plume. This technology provides quick (3-5 sec) analysis of alloys including aluminum/titanium/magnesium alloys.
Easy To Use
The EOS 500 is laboratory-grade hardware however is it easy-to-use. Its interface is intuitive, results presentation simple to read and data management and transfer are a snap. Operating the unit requires very little training. Report generation tools are included.
Fast, Lightweight & Analyzes Light Elements
The EOS 500 is well suited for use in scrap sorting of alloys because of its lightweight (2.4 kg including battery), fast analysis and ease of operation. In addition to the standard XRF elements, the EOS 500 can analyze very light elements such as Li, Be and B, and is the preferred analyzer for measuring elements such as Mg, Al, Si. For light element analysis with the EOS 500, it is approximately 10x faster than XRF, easily saving you time and money. Optional calibrations are available for Iron, Nickel, Copper and Cobalt alloys.
Accurate & Repeatable
Bruker designed the EOS 500 for accurate and repeatable results. Bruker designed an Air-Flow Optics ShieldTM to ensure dust generated from laser ablation does not contaminate measurements.
Key Features
Handheld LIBS Technology for rapid, on-the-go analysis
No X-ray Regulations for safer use
Ideal for Light Element Analysis (Li, Be, Mg, Al, Si)
Quick Grade Identification and Precise Chemistry
Accurate & Repeatable Results
Flexible Battery Design with options for 1 or 2 battery operation
Hot-swap Battery Capability for continuous operation
Lightweight at just 2.4 kg (with battery) for easy portability
Applications
Metal sorting and valuation
Positive Material Identification (PMI)
Fingerprint identification
Light element analysis (Li, Be, Mg, Al, Si)
Software Features
Intuitive, icon-based software for easy navigation
Multi-level user login for secure fleet management
On-board instrument performance checks for consistent reliability
Advanced chemometric algorithms for precise assay and grade identification
Fingerprint spectral ID mode for advanced material identification
Package Included:
EOS 500 HH-LIBS analyzer
Software
2 high performance 7.2V, 6.8Ah Li-Ion batteries with ventilated smart charger
Min 4 GB USB stick for data storage and easy reporting
S1 EOS/TITAN Toolbox software package for library editing
1 laser safety goggle
7075 QC Check Sample
Electronic manuals and safety video
Waterproof and pressure equilibrated PELICAN transport case
