27.3 cm x 9.4 cm x 29.5 cm 1.6KG
CE, FCC part 15

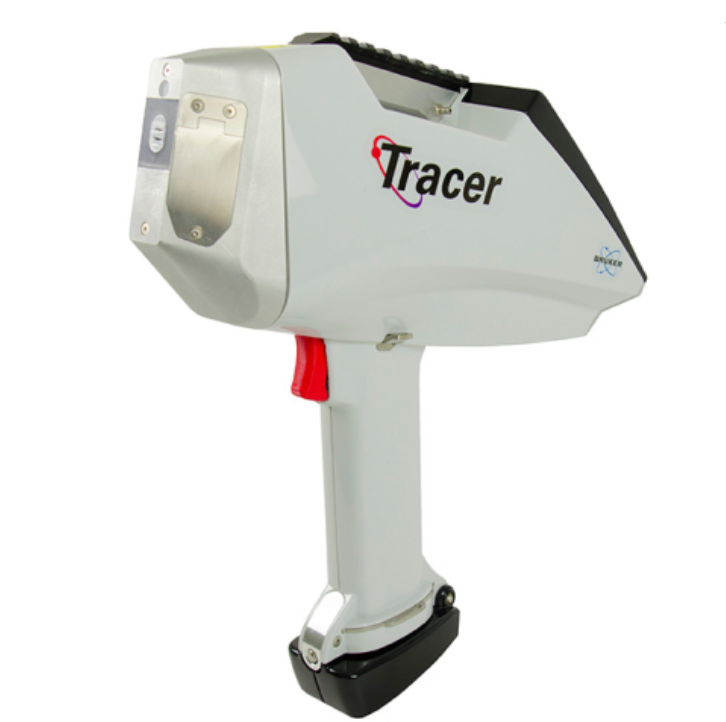

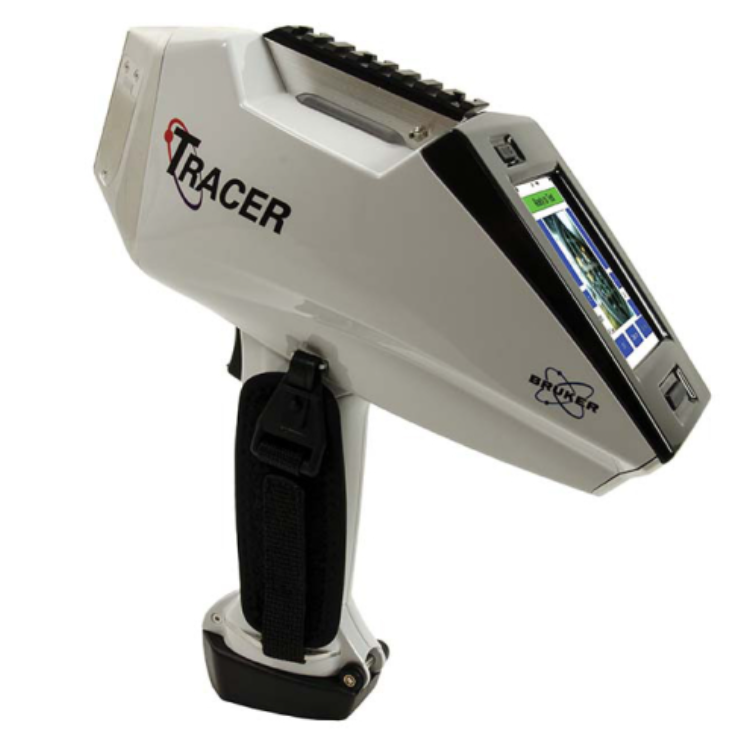

@Bruker TRACER 5i Handheld XRF Analyzer The Bruker TRACER 5i XRF is a handheld, portable spectrometer ideal for elemental analysis in the field and in laboratory-like settings. Specifically designed for methods development, research and complex material analysis, the TRACER 5i detects elements from Sodium to Uranium and analyzes elements from Magnesium to Uranium.
The Bruker TRACER 5i XRF is a handheld, portable spectrometer ideal for elemental analysis in the field and in laboratory-like settings. Specifically designed for methods development, research and complex material analysis, the TRACER 5i detects elements from Sodium to Uranium and analyzes elements from Magnesium to Uranium.
Latest Technology for Advanced Materials Applications
Advanced material, art and archeology users have long seen the TRACER 5i as unique in its ability to provide elemental information regarding objects which require authentication and conservation.

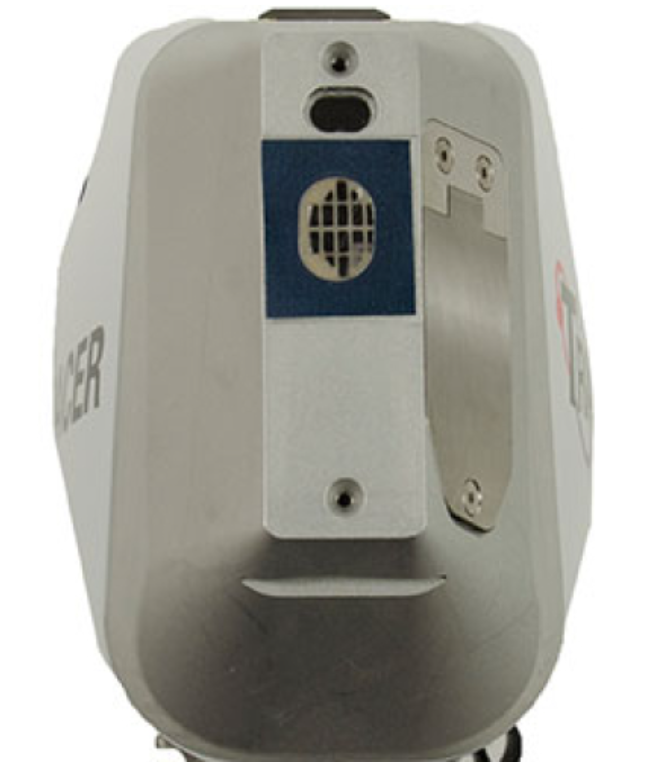

The TRACER 5i features a 8 μm beryllium detector window, an integrated touchscreen display, 50kV X-ray tube, SharpBeam™ front end geometry (for maximizing count rate and light elemental sensitivity), large area silicon drift detector (SDD) with CUBE™ technology (maximizes count rate and light element sensitivity), selectable spot sizes (including 3 and 8 mm collimators) and is capable of operating in air, helium or vacuum environments.
Integrated Camera
The TRACER 5i offers an internal VGA CCD camera with adjustable lighting with the ability to store up to 5 photos per assay.
Connectivity
The TRACER 5i offers Bluetooth, Wi-Fi and USB connectivity. Data can be stored on a thumb drive and transferred to PC as needed.
Software
Each TRACER 5i ships with ARTAX™ software for advanced XRF spectral analysis and also allows for the handling of large data sets and remote control of the instrument. EasyCal™ software is also included for off-line user-created single phase/beam empirical calibrations.
Applications
Art Conservation & Authentication - Evaluate pigments & objects for authentication, dating & understand previous conservation. Also used for determining authenticity, fabrication details and finding non-original material.
Exploratory Geology - Analyze Geochemistry including ores, cores, drill cuttings, soil and sediment
Archeological Studies - Sourcing of obsidian, lithic and ceramics in addition to determining authenticity, proper conservation, and toxic materials analysis.
Food Safety - Quality analysis or raw or finished product, hazardous analysis, foreign body identification and fortificants.
Plant & Soil Health - Quality analysis of fertilizers/nutrients and heavy metals analysis
Material Science and Research - Across disciplines including chemistry, physics, agronomy, geology, and biology.
Education - In labs or field use including qualitative and quantitative analysis.
Other Applications - Analyzing alloys, precious metals and environmental assessments.
Features :
DETECTOR
8 μm Beryllium
SHARPBEAM™ FRONT END GEOMETRY
Maximizes count rate
Increases light element sensitivity
Well defined measurement spot
Minimizes detection of X-ray scatter
MEASUREMENT ATMOSPHERE
Air
Vacuum
Helium
LARGE AREA SDD
CUBETM preamplifier
High count rate capability
Resolution <140 eV at 250,000 cps
Increased sensitivity
EXCITATION FILTERS
Five position filter wheel
User designed manual filter
USER-SELECTED SPOT SIZE
3 mm for small spot analysis
8 mm for maximum counts
INTERNAL CAMERA
Shows exactly where measurement occurs
Up to 5 images of sample at the measurement point
EASY ACCESS™ RAIL MOUNT
Provides easy mounting point

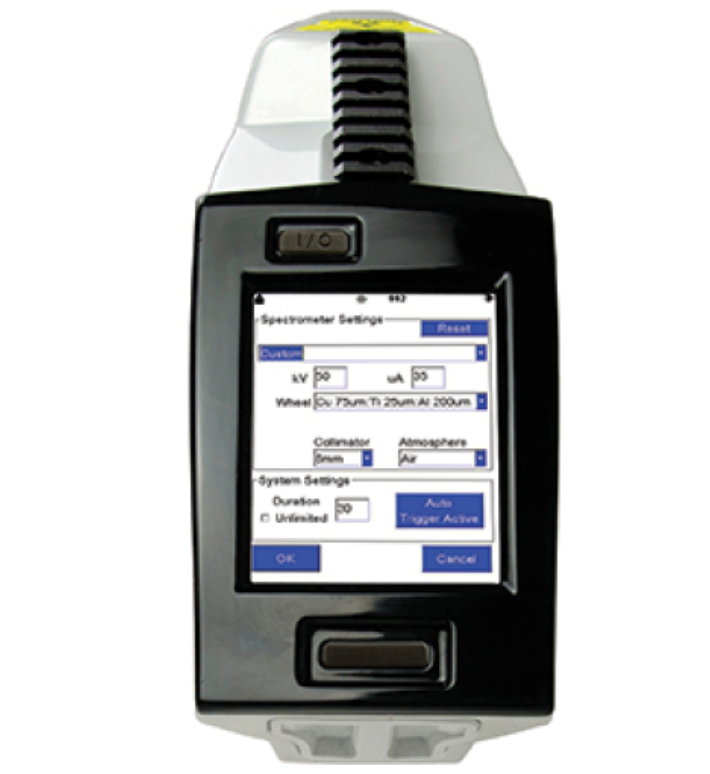

LIVE SPECTRA
Both on instrument display and PC
Provides instant feedback
CLEAN SPECTRUM
Well defined measurement spot
Minimizes detection of X-ray scatter
PC CONNECTIVITY
Wireless Wi-Fi
Wired USB
Includes:
Bruker TRACER 5i 4W Portable Handheld XRF Analyzer
Manual filter kit: Blue and empty (for user-based filter) filter holder, hex wrench, mini PELICAN™ case
Internal VGA CCD camera with adjustable lighting and ability to store up to 5 photos per assay
Proximity safety sensor
Wi-Fi to PC, Bluetooth connectivity and USB port; portable router, USB cable and memory stick
EasyAccess™ Rail for use of optional Tripod, Smartphone mount or universal accessory mount
Relaxed Grip Strap™ for comfort/security
Precious Metals Single Phase Calibration; calibrated in air with 8 mm collimation.
Bruker Instrument Toolbox (BIT) software package for reporting, qualitative spectral analysis, live spectrum functionality and remote instrument control.
ARTAX™ software for advanced XRF spectral analysis with remote control of instrument and capability for large data sets
EasyCal™ software for off-line user created single phase/beam empirical calibrations

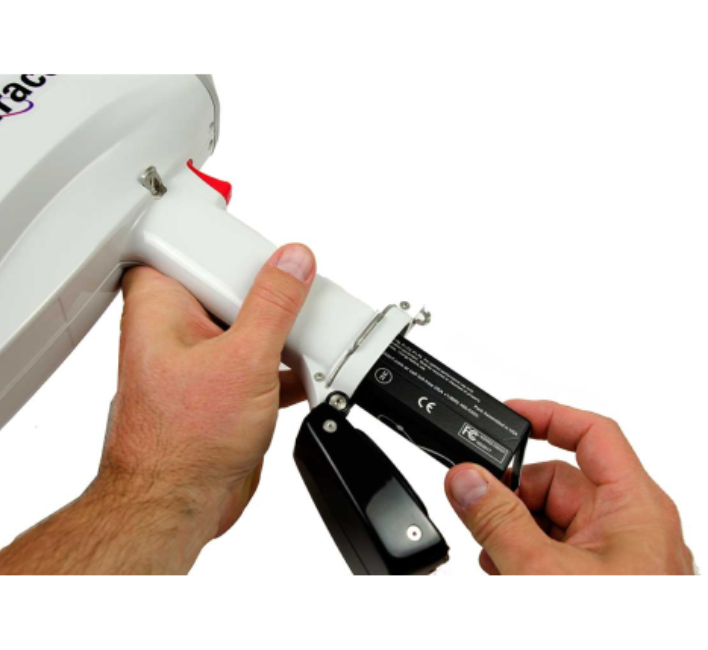

Two (2) high performance Li-Ion batteries with smart charger
5 spare clear windows and 5 spare vacuum gridded windows
Carry-on shipping case with custom foam and wheels
1 year warranty
