4 x 5 MP cameras, Blue LED Multi-line Accuracy: 5 μm (ISO 12836) / 8 μm (Implant bar) Die scan time: 15 sec Full arch scan time: 20 sec Color texture scanning No need for separate die scan All-in-One scanning: room for 2 models Impression scanning
Complete case in one scan – no need to scan models, dies and bite separately Optimized multi-line technology & processing for fast case throughput Simultaneous scanning of Upper and Lower model RealColor Technology – capturing all textures and colors on the model for lifelike design experience
#3shape D2000 Dental Lab Scanner The D2000 and the smaller D1000 lab scanner feature multi-line technology. Multi-line technology utilizes multiple scan lines in a single shot to significantly improve cavity and impression capture.
3shape D2000 Dental Lab Scanner
The 3Shape D2000 is a medical desktop 3D scanner made by 3Shape, a Denmark based manufacturer. The 3Shape company is specialised in 3D scanners and 3D software for dental practices and labs. Their products target professionals such as dentists, dental labs, implantologists, orthodontists and orthodontic labs. The 3Shape D2000 desktop 3D scanner main characteristics are the following: >4 x 5 MP cameras, Blue LED Multi-line >Accuracy: 5 μm (ISO) / 8 μm (Implant bar) >Die scan time: 15 sec >Full arch scan time: 25 sec >Color texture scanning >No need for separate die scan. However, in certain cases (limited interproximal space between dies and neighboring teeth) an additional die scan may be required. The 3Shape D2000 is big enough to accommodate 2 models simultaneously.
This enables the D2000 to accurately scan analog impressions sent to the lab by a dentist. This in turn, eliminates the need for labs having to pour or create a gypsum model from the impression. This saves several steps in the workflow and allows labs to print instead, cost effective 3D models derived from the analog impression if they need a physical working model.
D2000 All-in-one scanning for max volume :
4 x 5 MP cameras, Blue LED Multi-line
Accuracy: 5 μm (ISO 12836) / 8 μm (Implant bar)
Die scan time: 15 sec
Full arch scan time: 20 sec
Color texture scanning
No need for separate die scan

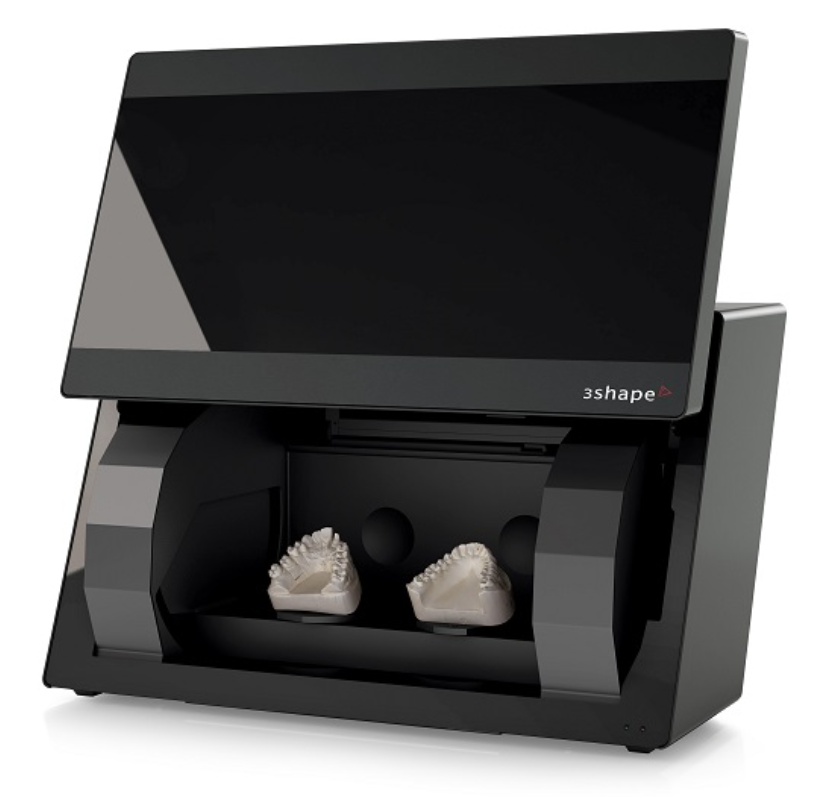

All-in-One scanning: room for 2 models
Impression scanning
Five new ways the D2000 shortens the dental lab workflow:
Optimized processing speed– creates faster performance and better scanning workflows for several indications – Shortens waiting time between creating orders and starting the scan, and enables technicians to begin next scan without having to wait for post-processing.
Calibrated Transfer-plates solution– enables the precise capture of the bite and the model’s position in the articulator to save a step in the workflow. Works with any articulator.
Impression scanning– Multi-line scanning in the D2000 and D1000 improves coverage and performance for accurate scanning of impressions to enable restorative design without the need to pour gypsum models.
All-in-One scanning of triple-tray impressions– Special mount enables triple-tray scanning capture of upper, lower and bite in one scan.
Improved workflows for single-tray impressions– Provides support for single tray impression scanning including bite alignment.
The software upgrades are available for all relevant 3Shape lab scanner models. Current lab scanner owners will receive the upgrades as a LABcare software update, where applicable.
The D2000 and the smaller D1000 lab scanner feature multi-line technology. Multi-line technology utilizes multiple scan lines in a single shot to significantly improve cavity and impression capture.
This enables the D2000 to accurately scan analog impressions sent to the lab by a dentist. This in turn, eliminates the need for labs having to pour or create a gypsum model from the impression. This saves several steps in the workflow and allows labs to print instead, cost effective 3D models derived from the analog impression if they need a physical working model.
3shape D2000 Dental Lab Scanner Features:
– Complete case in one scan – no need to scan models, dies and bite separately
– Optimized multi-line technology & processing for fast case throughput
– Simultaneous scanning of Upper and Lower model
– RealColor Technology – capturing all textures and colors on the model for lifelike design experience
This package includes the following software modules:
– Dental Designer Premium
– Abutment Designer
– Implant Bar & Bridge Designer
– Model Builder All Scans
– Impression Scanning
– Removable Partial Design
– Full Dentures
Technical Specifications
1、Warranty
Scanner warranty: 1 year, including repairs
Computer warranty: 3 years
2、Computer
High-performance PC (model may vary)
Pre-installed operating system and CAD software
Includes mouse and keyboard (monitor not included)
3、Operating System and Recovery
Windows 10 Pro, 64-bit, English (supports 35 languages)
Windows 10 Pro recovery partition on the hard drive
Included Accessories
1 calibration object
3 scanning plates
1 Blu-Tack® model mounting material
1 USB dongle
4、Included Accessories
1 calibration object
3 scanning plates
1 Blu-Tack® model mounting material
1 USB dongle
1 single stamp scanning stand
1 low-profile model scanning adapter
3Shape lab scanners for every need
With the addition of the E1, E2 and E3 scanners to the E4 and D2000 3Shape can offer the widest selection of scanners for the Dental Labs. From the small and price sensitive labs that are just going digital to the large labs that perform hundreds of indication every day we have the solution to match.
3Shape scanner E1 Essential scanning to digitize your lab | 3Shape scanner E2 Increase productivity and texture scanning |
2 x 5 MP cameras, Blue LED Multiline Accuracy (ISO 12836 / implant): 10 µm/12 µm Scan speed (arch): 32sec Scan Speed (full arch impression): 104 sec. Texture: n/a | 2 x 5 MP cameras, Blue LED Multiline Accuracy (ISO 12836 / implant): 10 µm/12 µm Scan speed (arch) : 24sec Scan speed (full arch impression): 72sec Texture: B&W |
3Shape scanner E3 High performance and implant bar accuracy | 3Shape scanner E4 Ultra-high productivity and die-in-model scanning |
2 x 5 MP cameras, Blue LED Multiline Accuracy (ISO 12836/study model): 7 µm/10 µm Scan speed (arch): 18 sec Scan speed (full arch impression): 64 sec Texture: Color | 4 x 5 MP cameras, Blue LED Multiline Accuracy (ISO 12836 / implant): 5 µm/8 µm Scan speed (arch): 9 sec Scan speed (die): 15 sec Scan speed (full arch impression): 45 sec Texture: Color Scanning Strategy: Die in model |
| 3Shape scanner D2000 All-in-one scanning for max volume throughput | |
4 x 5 MP cameras, Blue LED Multiline Accuracy (ISO 12836/study model): 5 µm/8 µm Scan speed (arch): 16 sec Scan speed (die): 15 sec Scan speed (full arch impression): 60 sec Texture: Color Scanning Strategy: All in one |
System Requirements for 3Shape Dental System
| Item | Minimum Requirements* | Recommended |
| Operating System | Windows 8 Home (64-bit) Windows 8.1 Home (64-bit) Windows 10 Home (64-bit) Windows 7 Pro (32-bit) | Windows 7 Pro (64-bit) Windows 8 Pro (64-bit) Windows 8.1 Pro (64-bit) Windows 10 Pro (64-bit) |
| Memory (RAM) | 8GB | 16GB (32GB**) |
| Video Card | 250GB | 500GB (1TB***) |
| Available HDD Space | Minimum of 20GB of free disk space | |
| Processor | Intel Core i5 | Intel Core i7 or equivalent |
| 3D Mouse | 3DConnexion SpaceMouse™ Pro | |
| Monitor Resolution | 1920 x 1080、1920 x 1200 | |
| Network | Internet connection | |
| USB Ports | USB 2.0 for 3Shape desktop scanner**** | |
| Mouse | Mouse with wheel button support | |
