New Design, 3rd Generation Easy To Use User Interface Fast Scan Speeds High Accuracy with Color detail Powerful Smart AI Image Processing Intuitive Lab Communication 2 year warranty Free Cloud Service No Fees. Ever.
281 mm × 33 mm × 46 mm 240 ± 10 g (without cables)
@Shining3D Aoralscan 3 Dental Intraoral Scanner，Extensive Range of Applications，Restoration, Implant, Orthodontics – SHINING 3D Dental 3D Scanning Solutions

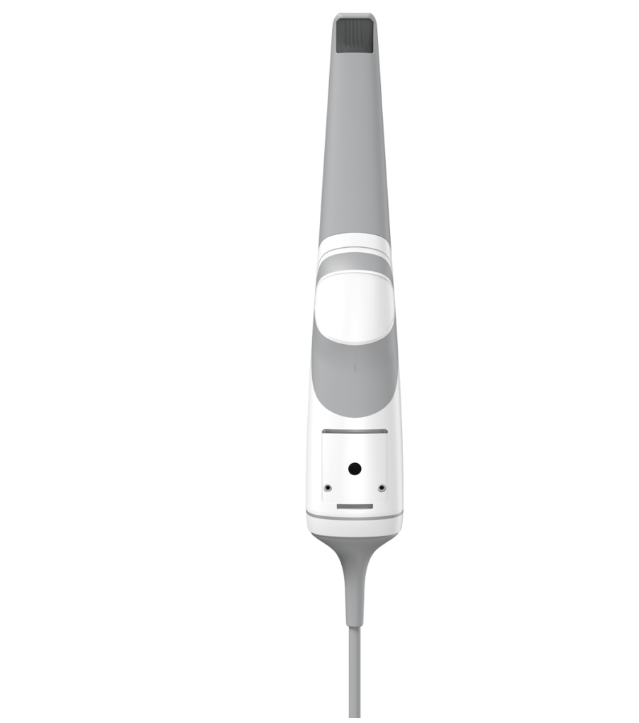

Say hello to SHINING 3D’s brand-new intraoral scanner, Aoralscan 3 (Wired)! Exceptional, smart, and elegant, Aoralscan 3 improves the overall clinical experience. It allows users to easily acquire vivid digital impressions in a faster and more accurate way. Moreover, Aoralscan 3 comes with a wide range of different intelligent functions, guaranteeing a more comfortable chairside experience and efficient clinic-lab collaboration.

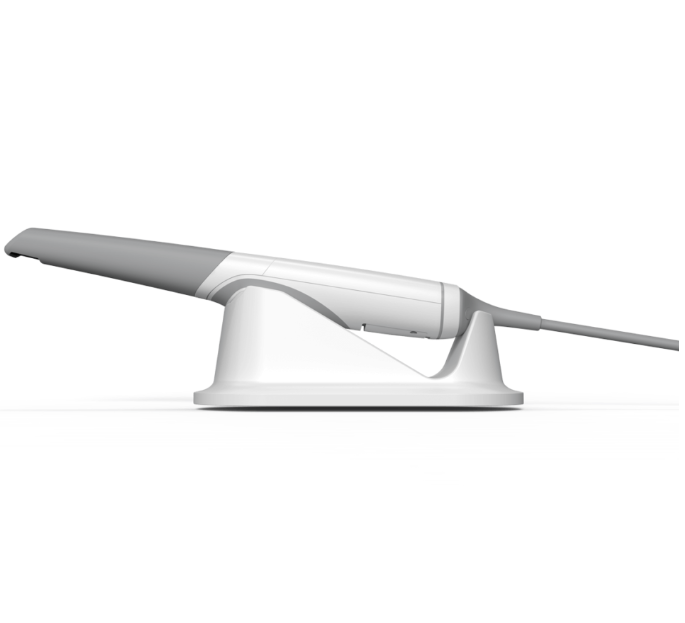

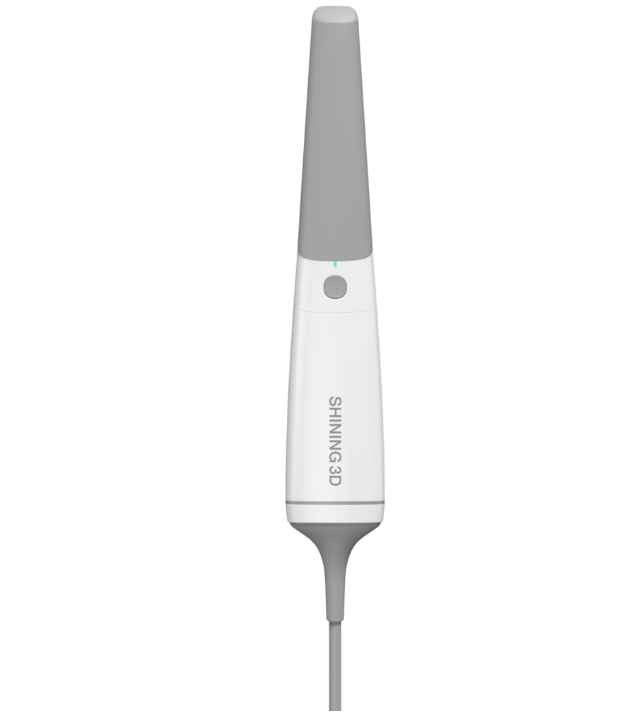

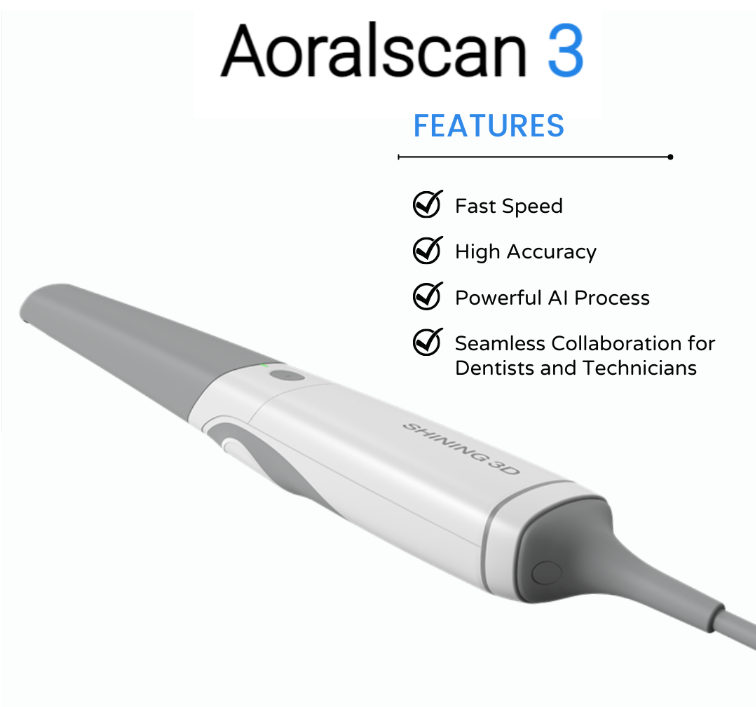

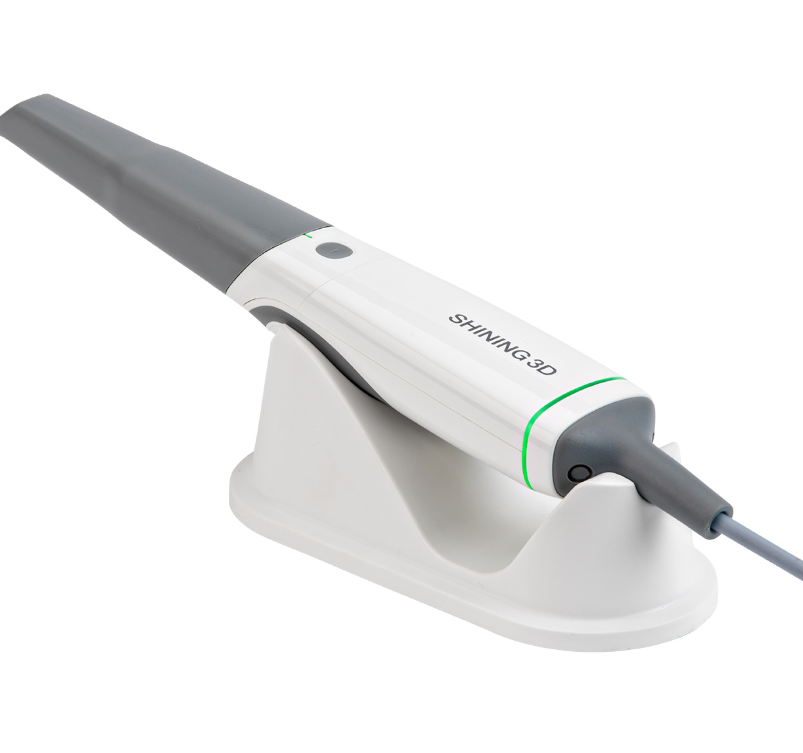

Aoralscan 3
Brand New Design
Fast Speed Customers Constantly Tell Us It Is The Fastest Scanner They Have Used
High Accuracy Scanning
Powerful AI Processes Make Scanning Easy
Extremely Intuitive Software
Makes Lab Connections Easy
Fantastic 2 Year Warranty
Capture Digital Impressions in Real Time
Fast, Accurate, and Exceptional Scan Performance for Chairside Experience
The constant optimization and innovation of SHINING 3D’s hardware and software system led to the release of its latest and finest intraoral scanner, Aoralscan 3.
1、Faster Scan: The scan speed is 30% faster than the last generation due to Aoralscan 3’s drastically upgraded scanning technology.
2、Longer Scan Tip: Slimmer and 15% longer autoclavable scanner tips offer patients a more comfortable clinical experience.
3、More Accurate Scan: Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.
4、Greater Scan Depth: Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans and can scan up to 22mm.
Technical Specifications

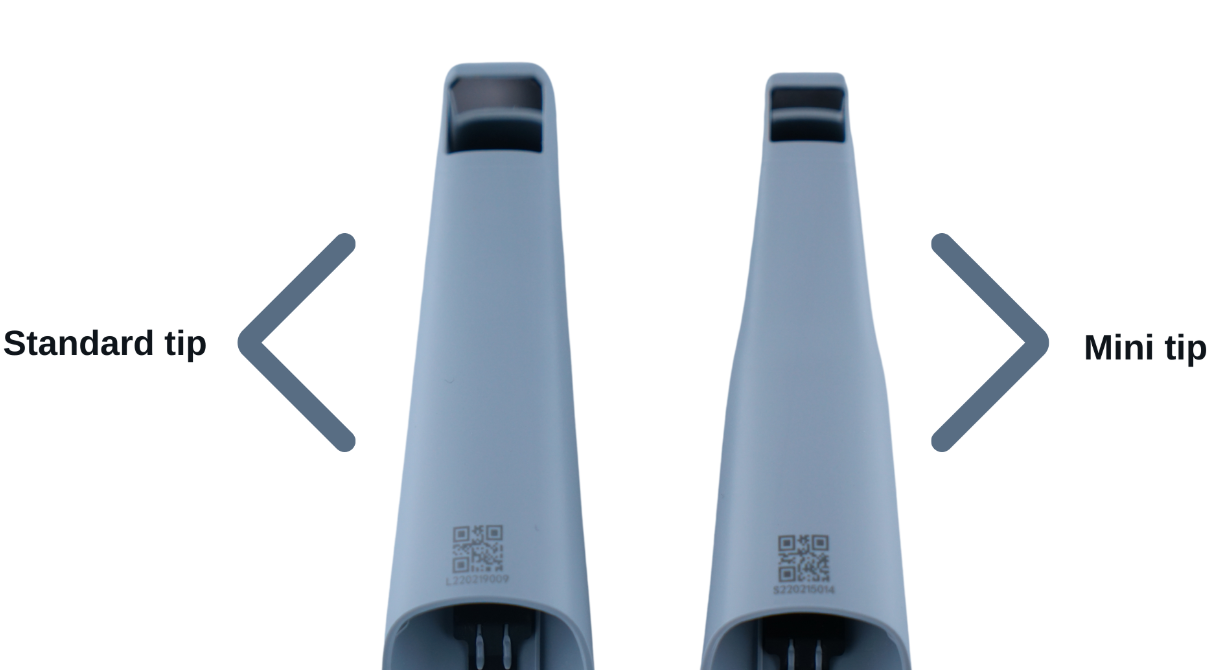

| Scan Field | Standard scanner tip: 16 mm × 12 mm × 22 mm Mini scanner tip: 12 mm × 9 mm × 22 mm |
| Scan Depth | -2-20 mm from exit surface of tip |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L × W × H) | 281 mm × 33 mm × 46 mm |
| Weight | 240 ± 10 g (without cables) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3 A |
Recommended PC Configuration
| CPU | Intel Core i7-8700 or higher |
| RAM | 16GB or more |
| Hard Disk Drive | 256 GB SSD or above |
| Graphic Card (GPU) | NVIDIA ® RTX 2060 6GB DDR3 or higher |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems |
| Screen Resolution | 1920×1080, 60 Hz or higher |
| I/O Ports | More than 2 Type-A USB 3.0 (or higher) ports |
