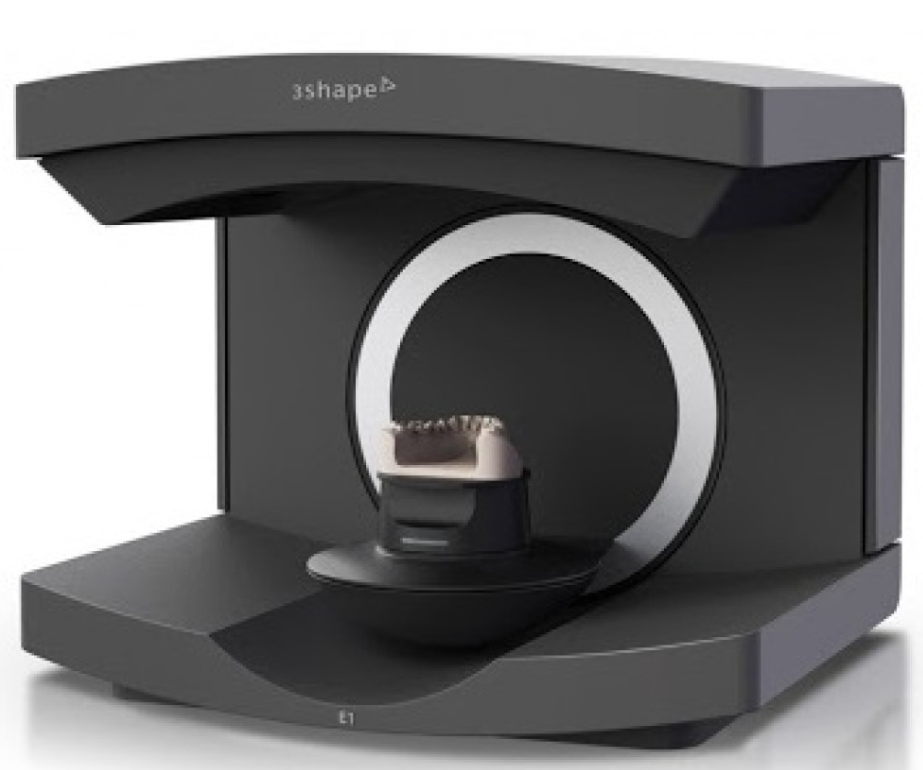

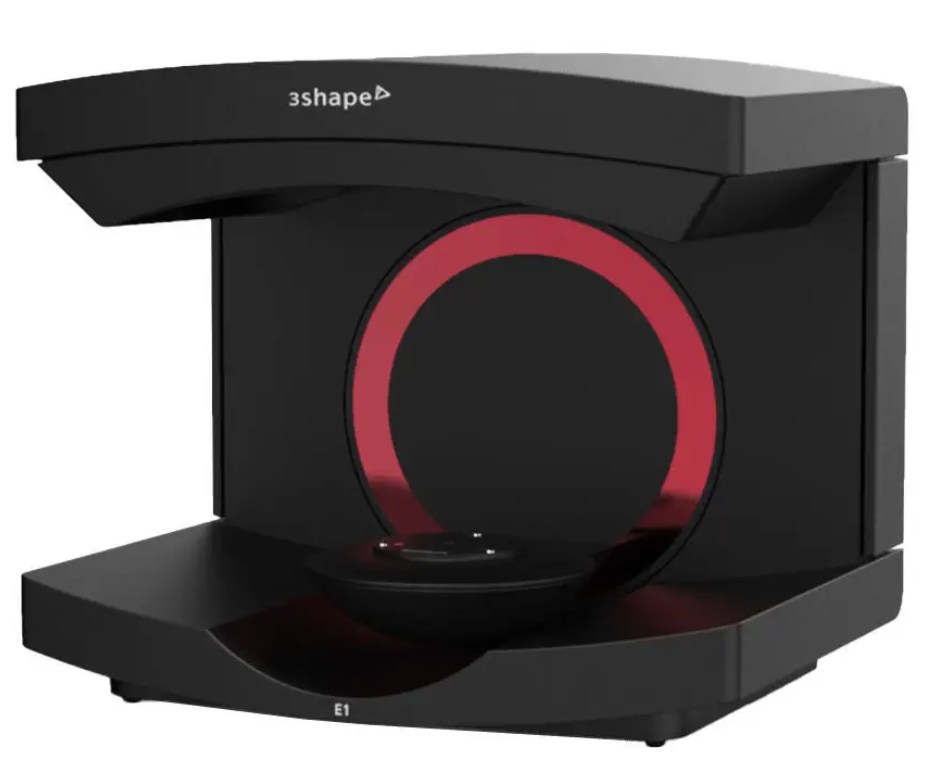

#3Shape E1 Dental Lab 3D Scanner The Entry-level economical lab scanner, for the initial startup for being a Digital dental lab. Comes up with the feature of Multi Blue LED lines for better scanning and accuracy of dental models and impression both.
Essential scanning to digitize your lab
2 x 5 MP cameras
Accuracy (ISO 12836): 10 µm
Scan speed (full arch): 32 sec
Scan Speed (full arch impression): 104 sec
Texture: n/a
Scanning Strategy: Standard
Key Features
The 3Shape E1 laboratory scanner features a blue light technology camera and can be used with various milling units.
It is an open system that accepts .stl and .dcm data formats.
Comfortable access and operation during scanning maximizes the use of the device.
Advantages and Benefits
One of the simplest and most cost-effective ways to digitize your laboratory
Open system using .stl and .dcm data formats
Compatible with tools from other manufacturers
Comfortable access and operation while scanning
Technical Specifications
Camera: 2 x 5MP
Full-arc scan speed: 40 seconds
Full-jaw impression scan speed: 130 seconds
Scan accuracy: 10μm
Dimensions (W x D x H): 335 x 283 x 362 mm
Weight: 12.1 kg
With the digital market becoming more competitive, 3Shape has officially launched a new line of scanners and they have overhauled their annual renewal program. In light of these changes, it is affordable for even the one-man lab to go digital for less than $200 a month! What does this mean for Whip Mix? As a family owned and operated company on its 4th generation, we have taken pride in building our name and reputation on manufacturing investment, gypsum and equipment for all labs, big and small… we can now provide cost effective digital equipment and help even the smallest lab grow their business with that personalized technical support that they have come to expect and love over the last 98 years.

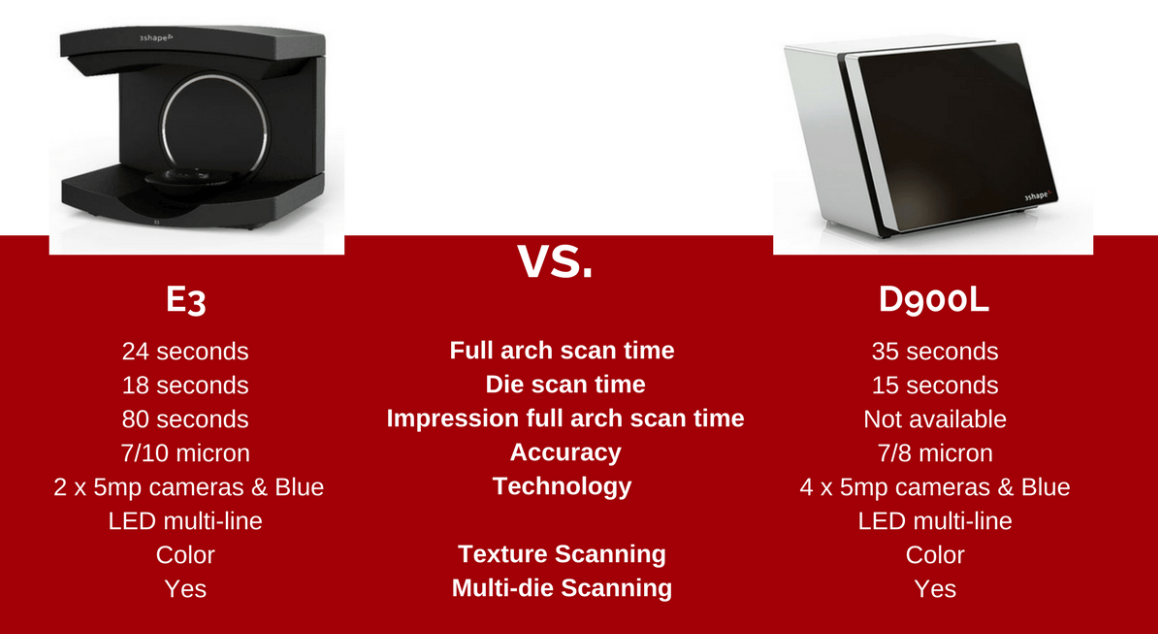

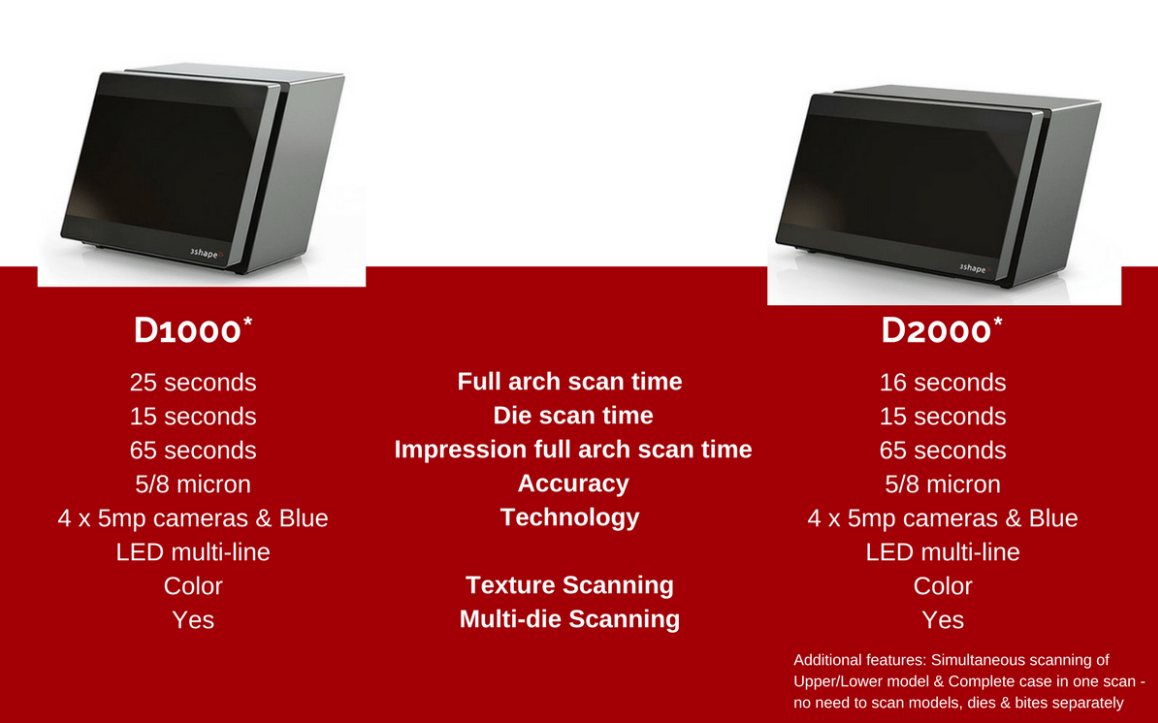

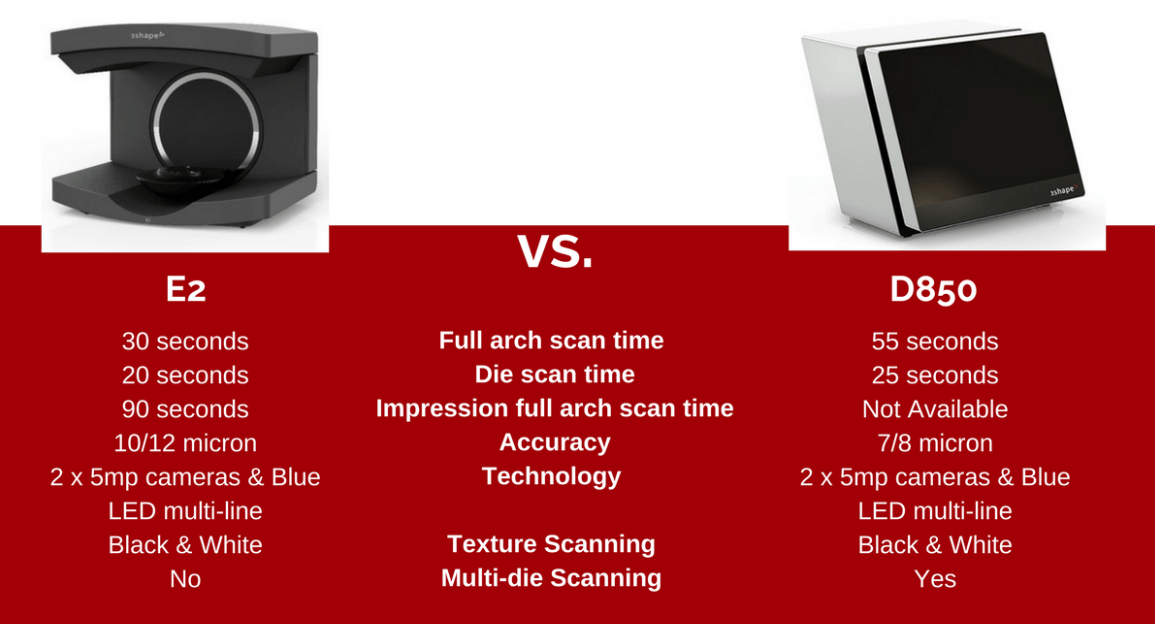

The D500 has been discontinued. The D750 scanner is being replaced by the E1, the D850 is being replaced by the E2 and the D900L is being replaced by the E3. With that being said, the D1000 and D2000 scanners are still going strong and will continue to be a viable option for the dental lab looking for a high production scanner and the capability of the All-In-One scanning feature with the D2000.
The new E series scanners and the D series scanners are available with two options for software. You can either go with Crown & Bridge software or Dental System Premium. If you chose to go with the Crown & Bridge Software, you can save anywhere between $1,000 and $1,500 depending on which scanner you go with.
