4 x 5 MP cameras Blue LED Technology Multi-die and Color Texture Scanning Expanded interior space No need for separate die scan All-in-one Scanning Room for 2 Models
@3Shape F8 lets labs do more, at once. The F8 lab scanner delivers high productivity – letting dental labs deliver simple upper and lower scanning, as well as a host of advanced scanning workflows, with less scanner interaction. With F8 as part of a complete 3Shape solution, labs can achieve complete workflow versatility to support all digital and analog case types.
Fast forward to design
The 3Shape F8 lab scanner lets you do more, at once. The F8 gives you unparalleled versatility and productivity – incredible scan-to-design workflow speeds with minimal scanner interaction from technicians. It lets you intuitively get to work and achieve more in less time.
More Efficiency

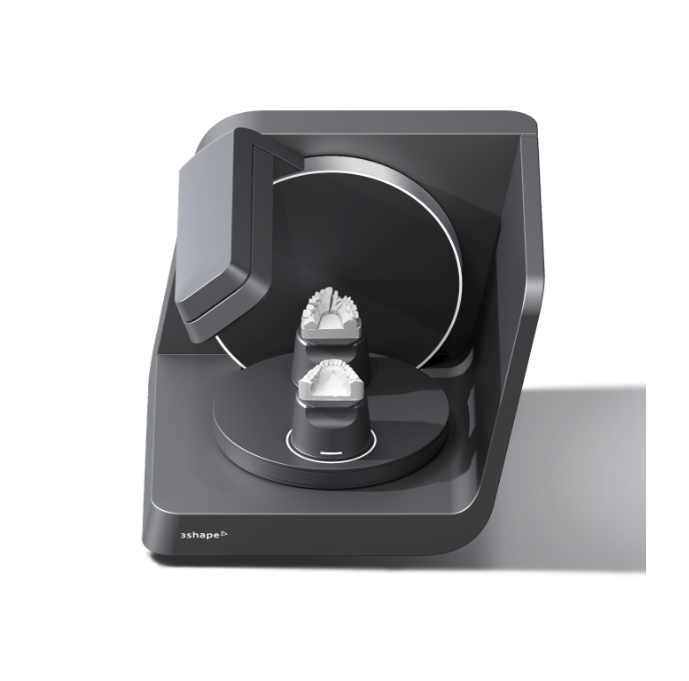

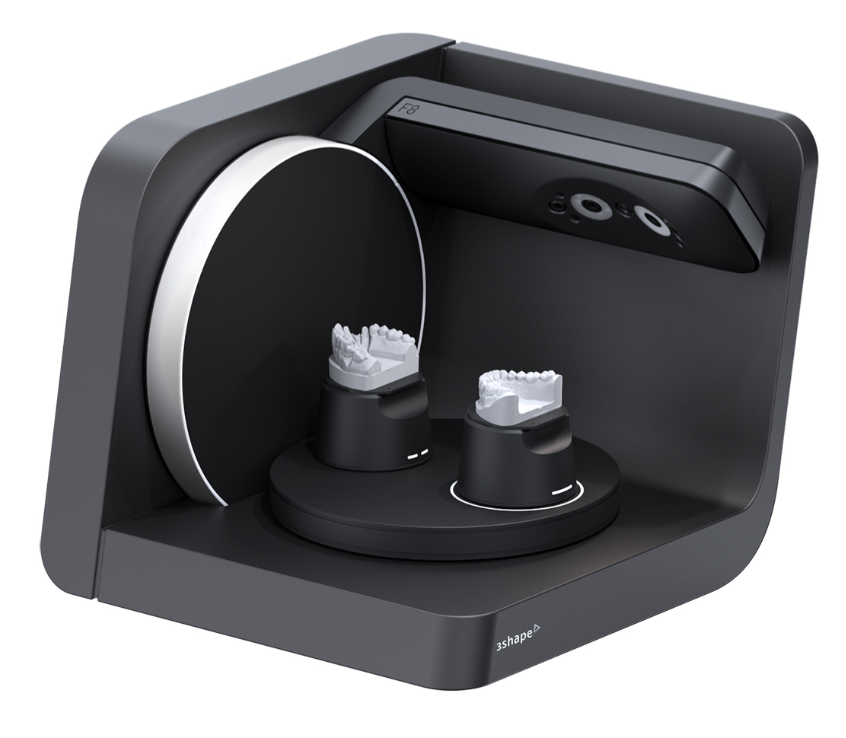

Dual model scanning for minimized scanner interaction
Intuitive magnetic place-and-scan design, auto-start, in-software and visual lights guidance, for improved user experience
Flexible ethernet-powered networking, for simple scanner sharing among multiple workstations
More Versatility

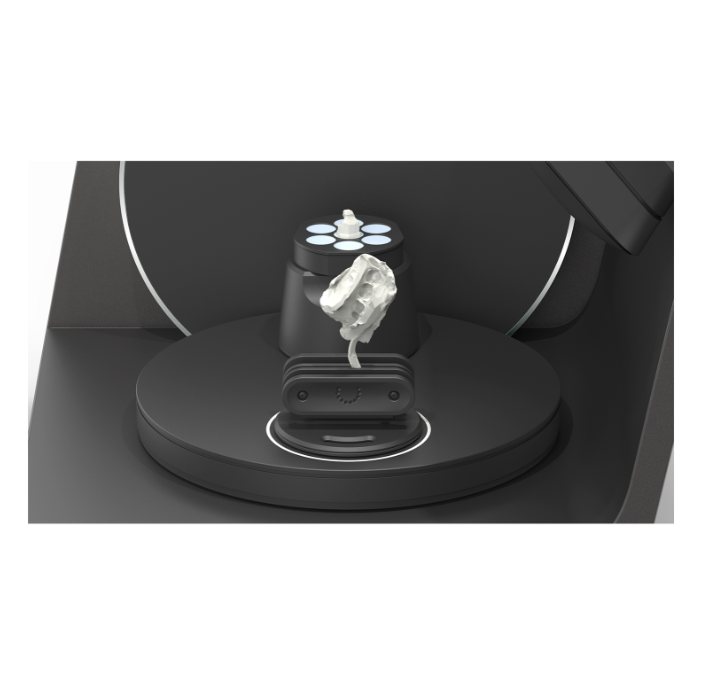

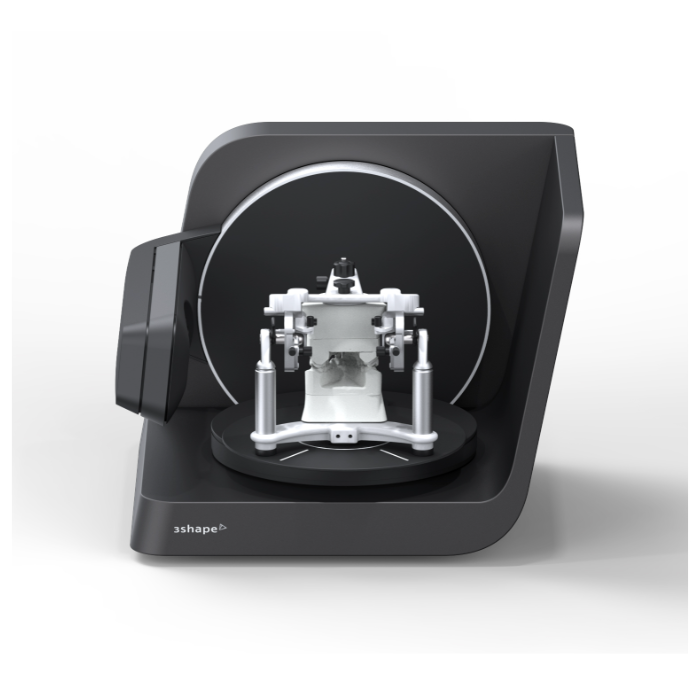

Easy articulator scanning with no fixation or removal of pin required
Exclusive F8 tools, plus the ability to use your favourite older tools, expands indication versatility and ease of scanning
A wide range of scan workflows allow you to provide a complete range of services to your clinics
More Speed
More than 20% faster end-to-end workflows to reduce the time spent on scanning
9 second full arch scan speed – the same fast speed as the award-winning 3Shape E4
Open scanner design for quick and easy access to place and remove models
Time-saving tools
Efficiency is achieved through the intuitive magnetic place-and-scan open design.
Auto-start allows for the work to begin as soon as you’ve placed the model(s), and scanner sharing options between workstations have been enhanced with ethernet capabilities. In short, it takes no time at all to start, and then complete, scanning.
3Shape F8 Dental Lab Scanner Flexible workflows
Unparalleled versatility to offer a complete range of quality services to your doctors is made possible by using new scanner tools that aid more workflows and with support for older tools, too.
With a complete range of indication workflows, including upper/lower, die-in-model, upright articulator and vertical impressions, what you can achieve is virtually limitless.
Lightning-fast scans
With a scan speed of 9 seconds, and our leanest scan-to-design workflows yet, you will speed through cases. The secret is in F8’s functional operation – meaning your full workflows are incredibly fast, from start to finish. With F8, combining analog and digital work is a unified, simple digital workflow.
1. More efficiency. F8 features an open scanner design that is engineered for quick and easy scanning. Reduce technicians’ hands-on time with the intuitive place-and-scan magnetic system and auto-start functionality, and connect to multiple workstations via ethernet.
2. More versatility. Provide, with unparalleled ease, a complete range of quality services to your clinics. F8 introduces new scanner tools that aid more workflows and support older tools, too. With a complete range of indication workflows, including upper/lower, die-in-model, articulator and impressions, you can now intuitively bring every analog case into your digital workflow.
3. More speed. Stay on top of your caseload with lean, automated scan-to-design workflows. With a scan speed of 9 seconds* and our leanest scan-to-design workflows yet, you will speed through cases.
| Dimensions, HWL | 35 x 44 x 43cm |
| Cameras | 4 x 5 MPSharing |
| Accuracy (ISO 12836) | 4 μm |
| Scan Speed (Full Arch) | 9 sec |
| Scan Speed (Full Arch Impression) | 45 sec |
| Texture | Color |
| Scanning Strategy | All-in-one / Die in model |
| Dual Model Scanning | yes |
| Scanner Sharing | Ethernet |
| Auto-Start | yes |
| Tilt-Free Scanning | yes |
| Legacy Indication Tools | Yes + F8 tools |
| Server Client Set-Up | Optional |
| Software and Apps | |
| ScanIt Dental Scanner Software | yes |
| Dental System (cheaper scale-up option) | Add-on |
| Studio Apps | Add-on |
| 3Shape LMS (Essentials free / Premium paid) | yes |
| Service and Support | |
| Warranty with LabCare | 5 years |
FAQ:
1、What is the key feature of the design in 3Shape F8 scanners?
The 3Shape F8 scanners are built with an open design, ensuring easy accessibility and versatility in dental lab settings.
2、How does the material system in the milling unit support easy material exchange?
Equipped with advanced scanner tools, 3Shape F8 scanners offer high precision in dental imaging, ensuring detailed and accurate scans.
3、How do 3Shape F8 scanners enhance collaboration in a dental lab?
3Shape F8 scanners enable seamless sharing of data and scans between different workstations in a dental lab, facilitating collaborative workflows and efficient information exchange.
