• novel, closed mono-block cast body for stability and precision • no external PC required (CORiTEC 150i PRO, CORiTEC 150i dry) • semi-open blank holder “C-Clamp” (optional) • ionizer optionally available • high precision due to integrated temperature compensation • wet and dry machining possible (CORiTEC 150i PRO) • minimum external compressed air, only 3 bar required • short amortization period • minimal footprint
422x556x644mm 75kg

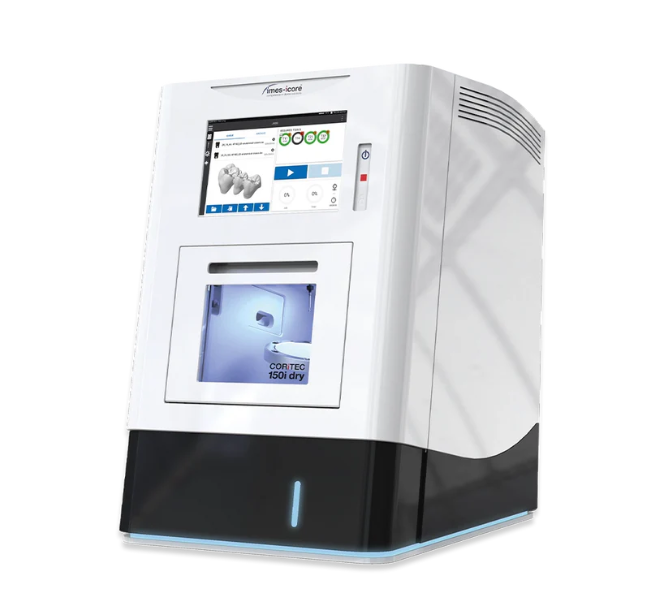

@CORiTEC 150i Dry 5-Axis Dental Milling Machine More performance, maximum flexibility and expanded application options.
Minimal space requirement. An exceptional ratio of power, speed and precision. This is what the powerful high-frequency spindle with 860 watts and 100,000 rpm offers. Each restoration is manufactured with optimal precision and flexibility to enable an almost free choice of materials and indications. Whether wet or dry processing, block or blank form, the CORiTEC ® 150i series impresses in all areas.

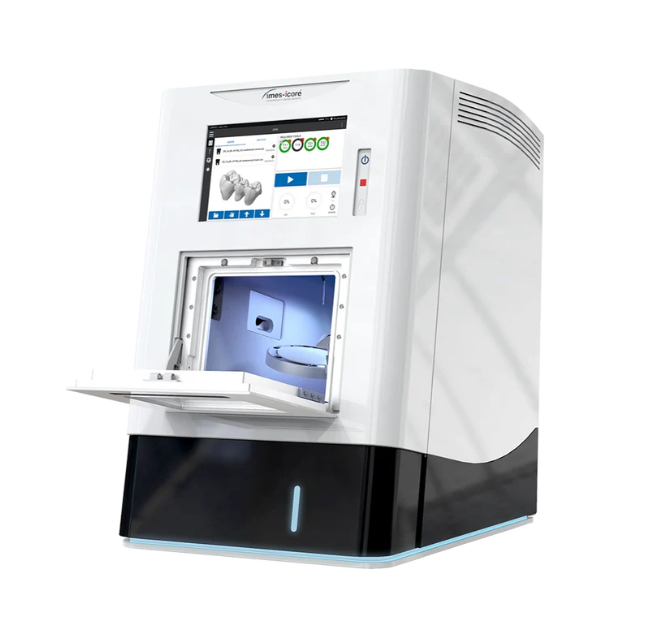

The CORiTEC 150i: A Flexible Milling System for Compact Workspaces. This machine, with its exceptionally durable monoblock cast body, allows for precise processing of round blanks and block shapes. Its small size and 5-axis simultaneous technology strike an impressive balance between machine size and functionality. Discover the remarkable capabilities of the CORiTEC 150i for your laboratory!

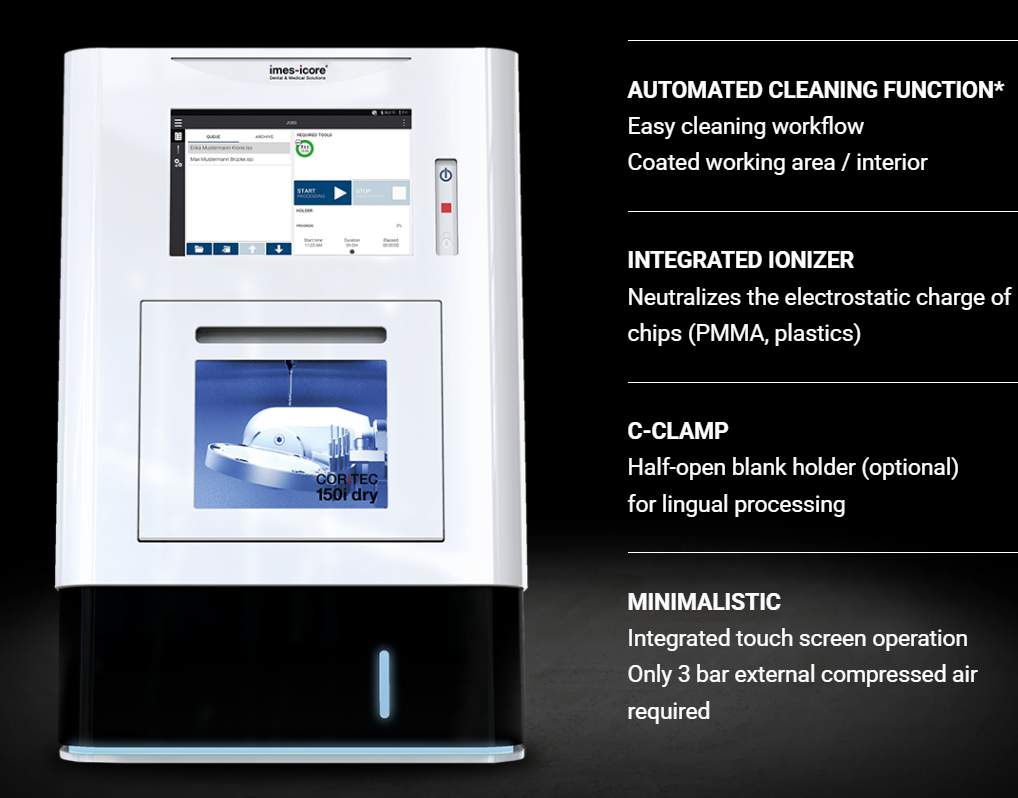

HIGHLIGHTS
• novel, closed mono-block cast body for stability and precision
• no external PC required (CORiTEC 150i PRO, CORiTEC 150i dry)
• semi-open blank holder “C-Clamp” (optional)
• ionizer optionally available
• high precision due to integrated temperature compensation
• wet and dry machining possible (CORiTEC 150i PRO)
• minimum external compressed air, only 3 bar required
• short amortization period
• minimal footprint
Technical data - CORiTEC® 150i dry
| Materials | Zirconium oxide, PMMA, PEEK, wax, composite, sintered metal |
| Compatibility | 98/98.5 mm with step |
| Indication | Crown, bridge, inlay, onlay, veneer, hybrid abutment, splint, full denture, model casting, telescopic technology |
| Mechanics/Electronics | |
| Number of axes and processing type | 5-axis, simultaneous machining |
| Max. angle of attack of the axis of rotation | A-axis +/- 30° / B-axis +/- 25° |
| Wet machining | YES |
| Spindle type | High frequency spindle |
| Speed Max./Pmax~ | 100,000 rpm - 0.75 kW |
| Tool holder | 3mm shaft |
| Tool changer | 10 times |
| Integrated PC | YES |
| monitor | Integrated 10´1" touchscreen |
| Ionizer | YES |
| Workpiece changer | Manually |
| Connection requirements | |
| Weight | 75 Kg |
| width x depth x height | 422x556x644mm |
| Mains voltage / frequency / max. power | 100V - 240V / 50/60Hz |
| Compressed air supply | 3 bar constant, 50 liters/minute |
| Accessories optional | C-clamp holder, simple holder, iVAC eco+ suction, machine table |

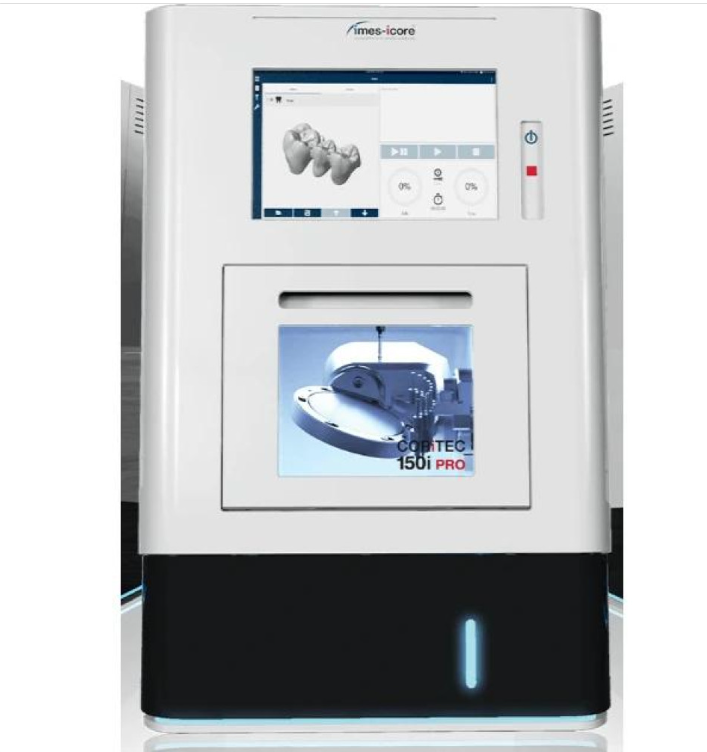

Technical data - CORiTEC® 150i PRO
| Materials | Zirconium oxide, PMMA, PEEK, wax, composite, sintered metal, glass ceramic, hybrid ceramic, pre-milled abutments |
| Compatibility | 98/98.5 mm with step, CAD/CAM blocks, Solid Connect Pre-milled Abutment |
| Indication | Crowns, bridges, inlays, onlays, veneers, hybrid abutments, splints, full dentures, model casting, telescopic technology |
| Mechanics/Electronics | |
| Number of axes and processing type | 5-axis, simultaneous machining |
| Max. angle of attack of the axis of rotation | A-axis +/- 30° / B-axis +/- 25° |
| Wet/dry machining | YES |
| Spindle type | High frequency spindle |
| Speed Max. /Pmax∼ | 100,000 rpm - 0.75 kW |
| Tool holder | 3mm shaft |
| Tool changer | 10 times |
| Automatic cleaning | YES |
| Integrated PC | YES |
| monitor | Integrated 10´1" touchscreen |
| Ionizer | YES |
| Cooling | 3 liters integrated |
| Workpiece changer | Manually |
| Connection requirements | |
| Weight | 75 Kg |
| Width x depth x height | 422x556x644mm |
| Mains voltage / frequency / max. power | 100V - 240V / 50/60Hz |
| Compressed air supply | 3 bar constant, 50 liters/minute |
| Accessories optional | C-clamp holder, single holder, 6-fold glass ceramic, pre-milled abutments, suction iVAC eco+, machine table |
