Standard blank holder 98mm C-Clamp blank holder 98mm Single holder for blocks and pre-milled abutments 6-way block holder 6-way holder for pre-milled abutments
422x556x644mm 77Kg

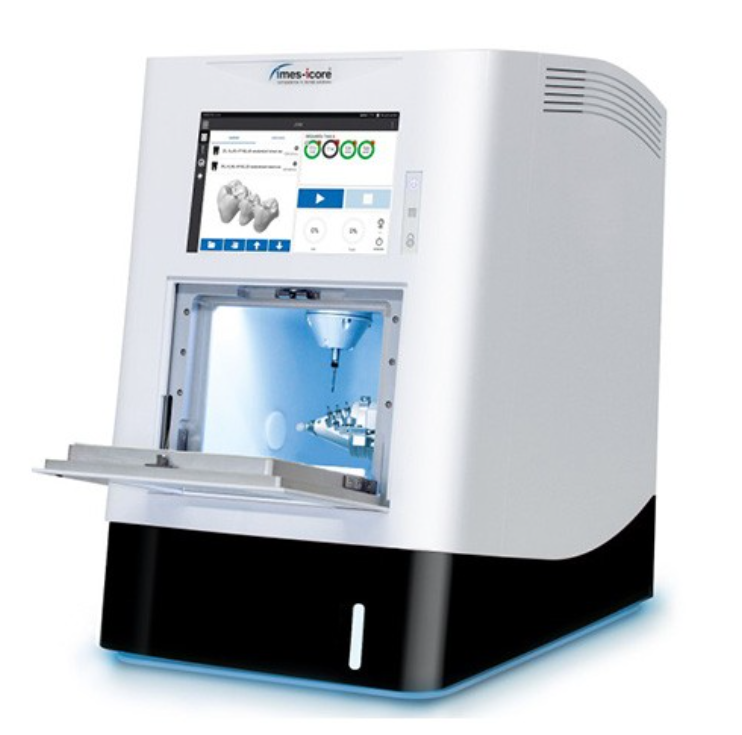

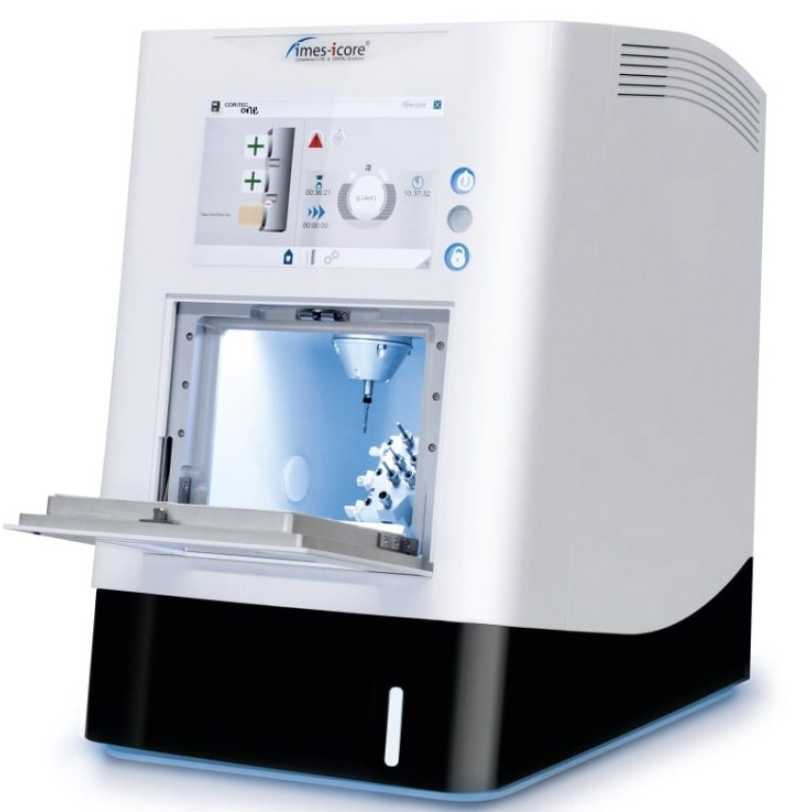

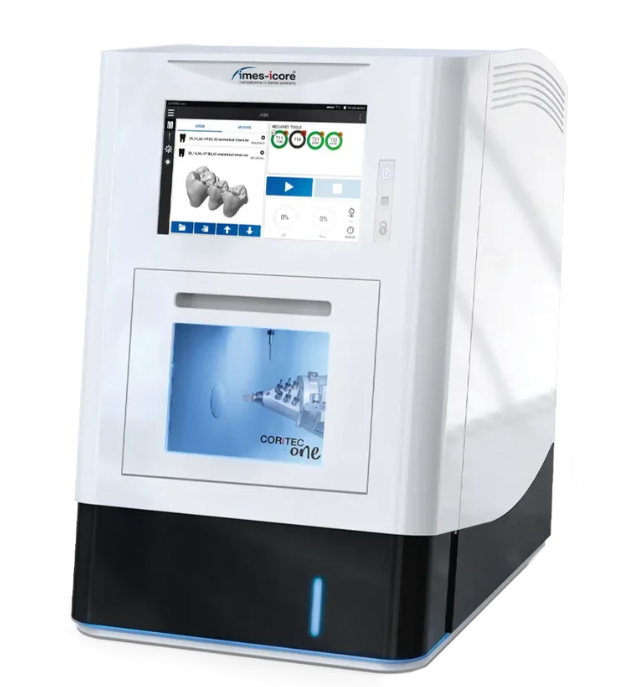

#CORiTEC One 4-Axis Dental Milling Machine The new CORiTEC one® is the perfect choice for processing all common CAD/CAM blocks. With the new, extremely stable axis kinematics, the machine is also able to mill prefabricated abutments. The high-quality cast aluminum construction ensures maximum stability with a minimum footprint. An integrated high-performance PC and a 10'1" HD touchscreen display support convenient and ergonomic operation. A single block holder with six tool positions and an intelligent tool change function guarantee an economical, safe and fast machining process with the highest quality. In combination with all open scanners, the CORiTEC one is ideal for all dental practices, practice laboratories and clinics. As a supplementary system for the specialized processing of glass ceramics, zirconium oxide, composite and pre-milled abutments, the CORiTEC one leaves nothing to be desired for clinics, laboratories and milling centers.
Wide Range of Applications
-Dense-sintered Zirconia
-Pre-sintered Zirconia
-Pre-milled abutment (Ti)
-Pre-milled abutment (CoCr)
-Glass ceramic
-Lithium disilicate
-Lithium silicate
-Hybrid ceramic
-Composite
-PEEK
-PMMA
-Wax
ONE Highlights:
- 4-axis machining
- Wet and dry machining of CAD/CAM blocks
- Machining of glass ceramics , lithium disilicate, feldspar ceramic, zirconium oxide, aluminum oxide, wax, PMMA, plastic, hybrid ceramic
- Processing of premilled abutment systems (Ti, CoCr)
- incl. 1x glass ceramic adapter
- 6-fold tool changer
- Tool holder with 3mm shank
- Innovative cooling/filtering system for easy handling
- No external compressed air required
- Integrated PC with 10.1" touch screen Display and installed Smart Control™ software
- modern, high-quality and ergonomic machine design
- powerful milling spindle with 100,000 rpm
The manual quick release system is equipped with 5 holders:
-Standard blank holder 98mm
-C-Clamp blank holder 98mm
-Single holder for blocks and pre-milled abutments
-6-way block holder
-6-way holder for pre-milled abutments
The semi-open blank holder, the so-called C-clamp holder, can be used to produce even the most difficult indications. The excellent axis kinematics also make the machine suitable for processing pre-milled abutments. With its integrated PC and touch display, the CORiTEC one⁺ is extremely user-friendly.
| Technical data | Description |
| Materials | Titanium, zirconium dioxide, aluminium oxide, PMMA, plastics, composites, wax, glass ceramics, hybrid ceramics |
| Compatibility | 98.5 discs, CAD/CAM blocks (single and triple adapters, maxi blocks (65 x 40 x 20 mm)), DD Prefabs, nt-Trading Premilled Abutments, Medentika PreFace® Abutments |
| Mechanics/Electronics | |
| Number of axes and machining type | 5 |
| Max. angle of rotation axis | 360° processing possible |
| Wet processing | Yes |
| Dry processing | Yes |
| Spindle type | High frequency spindle |
| Speed Max./Pmax~ | 100,000 rpm / 0.75 kW |
| Tool holder | 3 mm shaft |
| Tool changer | 10 times |
| Connection requirements | |
| Weight | 77Kg |
| Width x depth x height | 422x556x644mm |
| Mains voltage / frequency / max. power | 100V – 230V/ 50/60Hz / 500W |
| Compressed air supply | 2 bar (6 bar for round blanks processing) |
| Extraction optional | iVac eco+ / Silent Compact CAM |
