CAD/CAM blocks (1-way and 3-way adapter), maxi blocks (65mm x 40mm x 20mm) nt-trading pre-milled abutments, Medentika PreFace® abutments
422 x 556 x 644 mm 77KG

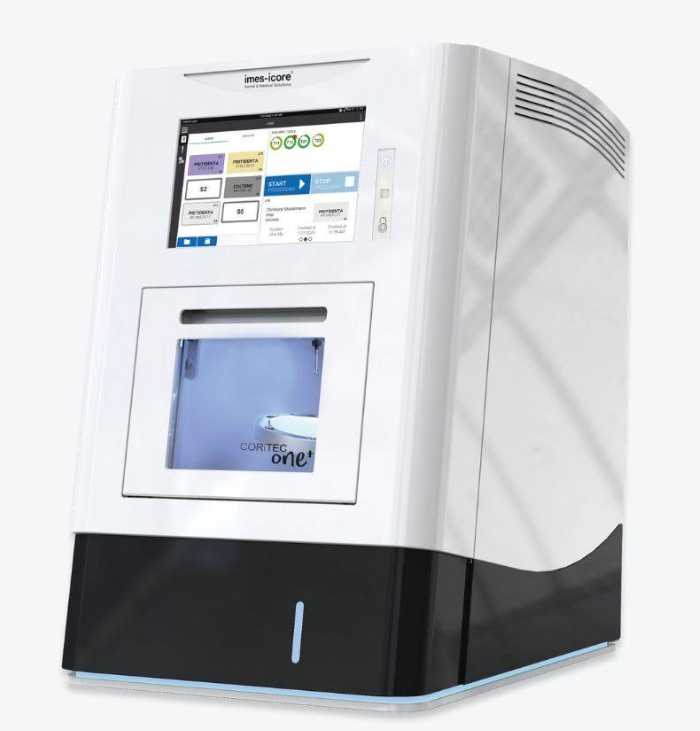

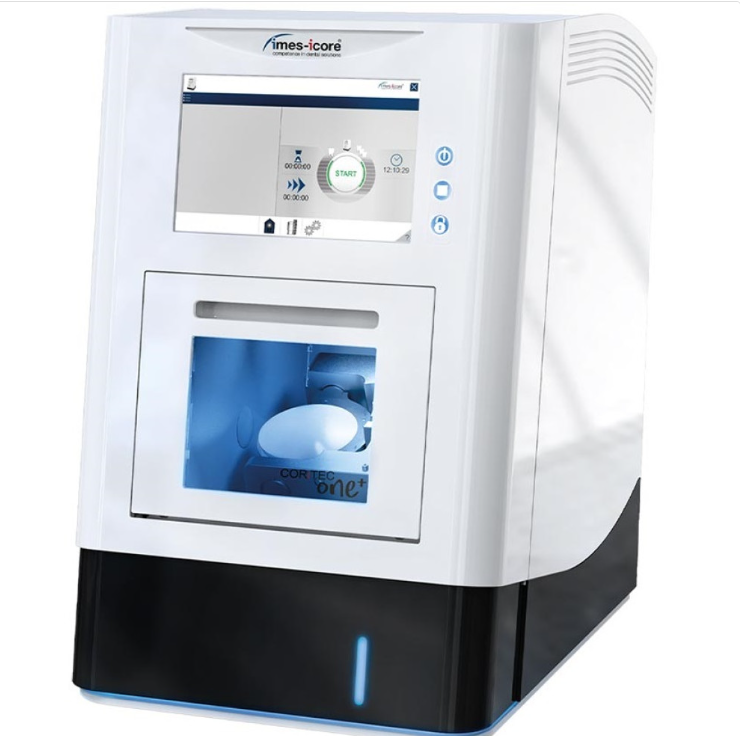

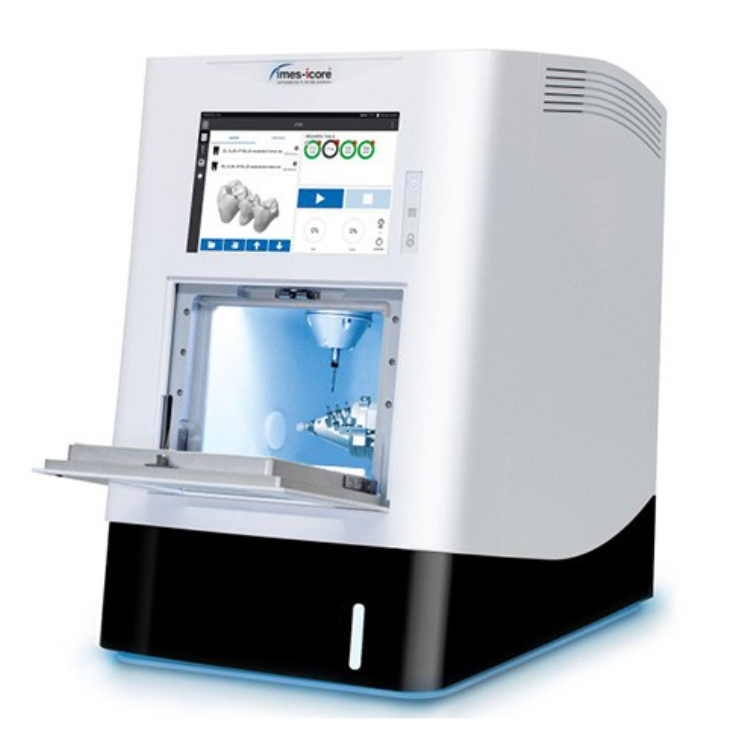

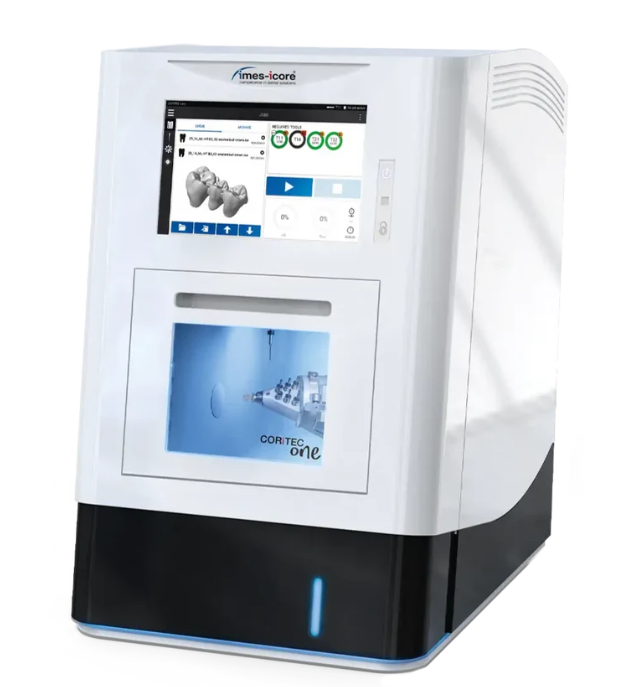

@CORiTEC ONE+ 5 Axis Dental Milling Machine, The intelligent Practice Lab Solution 2.0
The CORiTEC one+ stands as the top-tier model within the chairside area. Its 5-axis simultaneous technology and a wide array of holders provide an extensive range of options for various applications.This machine is ideally suited for dental practice labs when paired with either an intra-oral or desktop scanner. For dental laboratories or milling centers, it serves as an exceptional supplementary system, especially for specialized tasks like working with glass ceramics and pre-milled abutments.
Highlights
An open system compatible with all intraoral scanners
Optimized for streamlined integration into the CAD/CAM workflow, particularly with exocad
Half-open blank holder “C-Clamp” (optional)
Features a quick clamping system for ease of use
Operates independently without the need for external compressed air
Delivers high precision thanks to integrated temperature compensation
Capable of machining common material blocks and pre-made abutments
No external PC required
Auto-calibration functionality Includes an automated cleaning feature
Technical Specifications
| Number of axles and machining type | 5-axis simultaneous machining |
| Max. tilt angle of the rotary axis | 360° processing possible |
| Wet and dry processing | Fully integrated |
| Maximum speed / Pmax~ | 80,000 rpm / 0.4 kW |
| Axle drives | Microstep motors |
| Tool fitting | 3 mm shaft |
| Tool changer | 10-fold |
| Workpiece changer | Manual 3-way adapter |
| Supply voltage / frequency / power | 100V-240 V/50/60 Hz/500 W |
| Compressed air supply | 2 bar |
| Materials | Premilled abutments, zirconium dioxide, aluminum oxide, PMMA, plastics, composites, wax, glass ceramic, hybrid ceramics |
| Compatibility | CAD/CAM blocks (1-way and 3-way adapter), maxi blocks (65mm x 40mm x 20mm) nt-trading pre-milled abutments, Medentika PreFace® abutments |
| Width x depth x height | 422 x 556 x 644 mm |
| Weight | 77Kg |
