98/98.5 mm with step, CAD/CAM blocks, DD Prefabs, Lava® Frames, nt-Trading Premilled Abutments, Medentika PreFace® Abutments
758x790x857mm 205kg
The high-resolution, dynamic servo motors with absolute measuring systems used in the CORiTEC® 350i PRO+ series ensure up to 20% faster processing with optimal precision. Another advantage of the PRO series is that this machine system is constructed from a one-piece machine frame made of polymer concrete, thus ensuring the highest possible stability for vibration-free processing. The CORiTEC® 350i Loader PRO/PRO+ with fully automated blank magazine also enables versatile processing of up to 12 blanks in unmanned operation.
CORiTEC 350i series
THE AUTOMATED ALL-IN-ONE SOLUTION
1、CORiTEC 350i / 350i Loader
2、CORiTEC 350i PRO / 350i Loader PRO
3、CORiTEC 350i PRO+ / 350i Loader PRO+

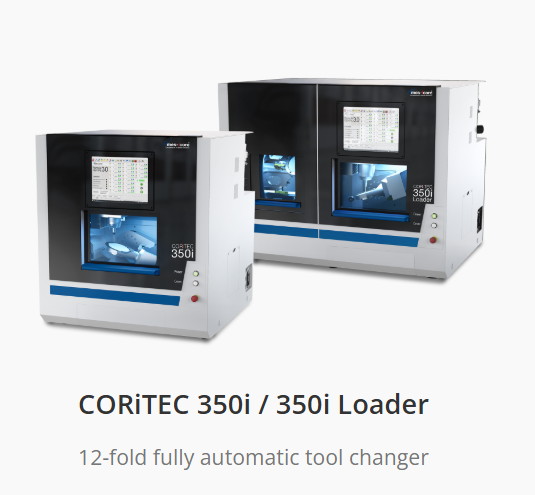

CORiTEC 350i / 350i Loader
THE AUTOMATED ALL-IN-ONE SOLUTION
The CORiTEC 350i processing system is an innovative machine concept, developed to meet any requirements of modern CAD/CAM processing. The processing of all relevant blank materials like cobalt chrome, titanium, zirconium dioxide, plastics, block materials, and new future materials is thus possible with a single machine system, virtually without restrictions. The optional zero-point clamping system of the CORiTEC 350i allows a simple blank change of the complete blank holder at the push of a button. In addition, the zero point clamping system can be used to clamp a wide range of adapters. The system can be used for a variety of applications, e.g. different PreFab abutment holders, glass ceramic holders or the C-Clamp. The CORiTEC 350i Loader with fully automated blank magazine also enables versatile machining of up to 12 blanks in unmanned operation.

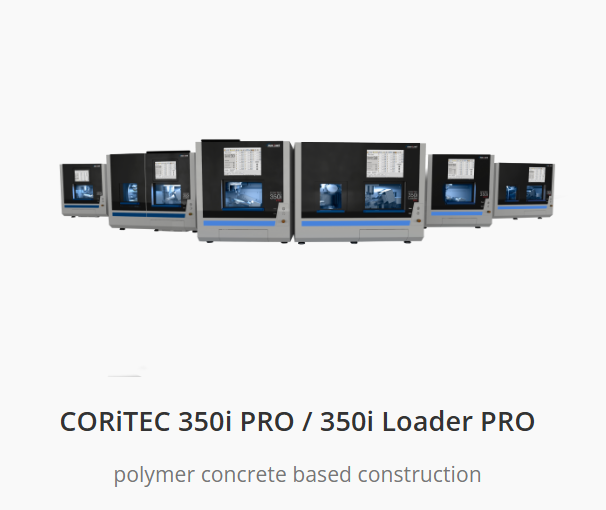

CORiTEC 350i PRO / 350i Loader PRO
THE PROFESSIONAL SOLUTION FOR HIGHEST DEMANDS
The high-resolution dynamic servo motors with absolute measuring systems used in the CORiTEC 350i PRO series guarantee up to 20 % faster machining with optimum precision. A further advantage of the PRO series is that this machine system is constructed from a one-piece machine frame made of polymer concrete and thus guarantees the highest possible stability for vibration-free machining. The CORiTEC 350i Loader PRO with fully automated blank magazine also enables versatile machining of up to 12 blanks in unmanned operation. Due to the precise repositioning of the zero point clamping system, different PreFab abutment holders can be used.

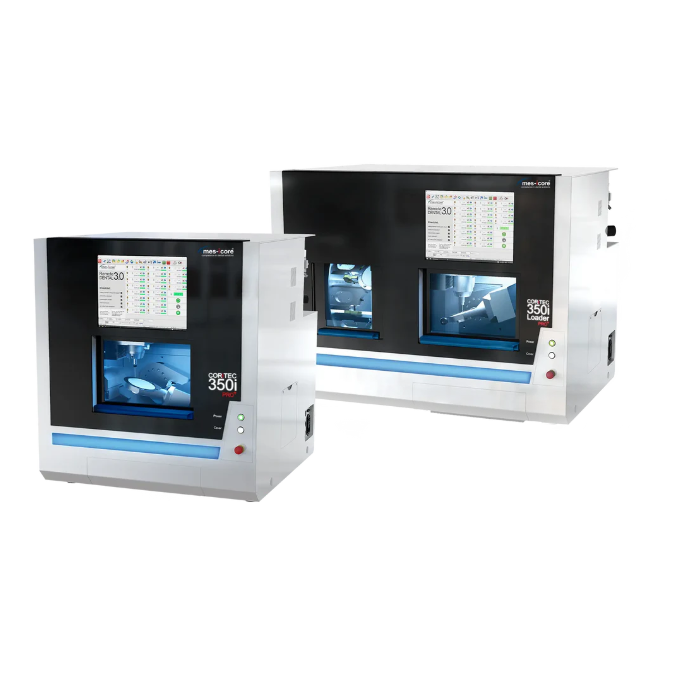

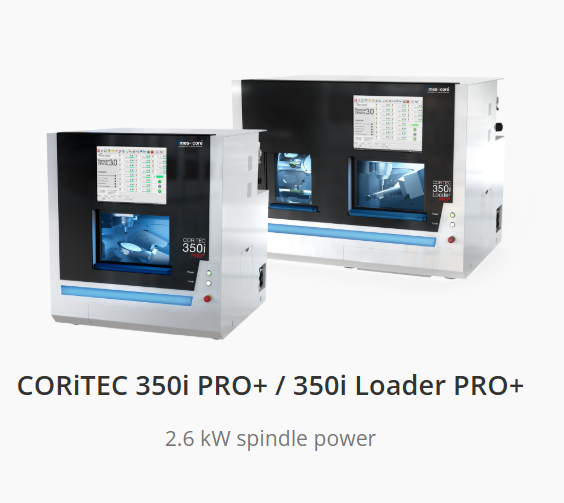

CORiTEC 350i PRO+ / 350i Loader PRO+
THE PROFESSIONAL SOLUTION FOR HIGHEST DEMANDS
As already implemented in the CORiTEC 350i PRO, the CORiTEC 350i PRO+ series also comes with high-resolution dynamic servo motors and absolute measuring systems. To use this advanced technology and to be able to fully exploit its full potential, the CORiTEC 350i PRO+ is equipped with a watercooled, powerful 3-fold hybrid ball bearing 2.6 kW milling spindle. Reaching the stability and reducing vibrations is given by the massive stainless steel blank holders. The water cooling ensures a constant temperature of the milling spindle, so thermal expansion of the milling spindle is significantly minimized and enables even more precise milling results. The CORiTEC 350i Loader PRO+ with fully automated blank magazine also enables the versatile machining of up to 12 blanks in unmanned operation.
Imes-Icore 350i PRO+
- 2.6kW high-frequency spindle with up to 60,000 rpm (water cooling required)
- 5-axis machining (3 +2 and simultaneous machining)
- dynamic AC servo motor drives with absolute encoder
- solid base structure made of polymer concrete
- integrated zero-point clamping system
- incl. second blank holder
- dry machining and wet machining integrated
- suitable for: zirconium oxide, aluminum oxide, wax, PMMA, plastics
glass ceramics, lithium disilicate, CoCr and titanium machining
- high-gloss housing with LED lighting
- incl. touchscreen and PC in Machine integrated
- Automatic 20x tool changer
- Tool holder 6 mm shank
- Integrated precision tool length measuring probe
- Temperature compensation for consistent maximum precision
even with ambient temperature fluctuations< br /> - suction device
- incl. CNC control software CORiTEC Re mote DENTAL 3.0
