WIDE ANGLE “PANORAMA” PHOTOGRAPHY MODE TWO SPECIFIC PHOTOGRAPHY MODES QUICK AUTOMATIC MEASUREMENT EASY-TO-READ AND COMPREHENSIVE ANALYSIS COMPACT AND STYLISH DESIGN
286-468毫米（宽）x 445-592毫米（深）x 486-681毫米（高） 17 Kg
#TOPCON SP-1P Ophthalmology Specular Microscope TOPCON SP-1P Microscope combines a modern and compact design with a wide display that can be rotated in any direction.
TOPCON SP-1P Microscope combines a modern and compact design with cutting-edge engineering for ease of use and maximum efficiency. TOPCON SP-1P is equipped with a wide display, which can be rotated in any direction. The touch panel allows you to refuse to control the handle. The screen rotates at all angles, allowing it to interact comfortably with the subject.
By touching the center point of the patient’s pupil on display, you begin automated processes of centering, focusing, and capturing the cell. It will take a few seconds to complete the operation of the device, and the process of learning how to use it will take a minimum of time. The ability to free up a large amount of space and ease of device use makes the SP-1P model indispensable for an ophthalmologist.
The whole operation takes a few seconds. It is carried out quickly, without delay, and requires minimal user training. Small size combined with ease of use makes the SP-1P a new generation instrument in the field of ophthalmology.
THE NEXT GENERATION IN SPECULAR MICROSCOPY

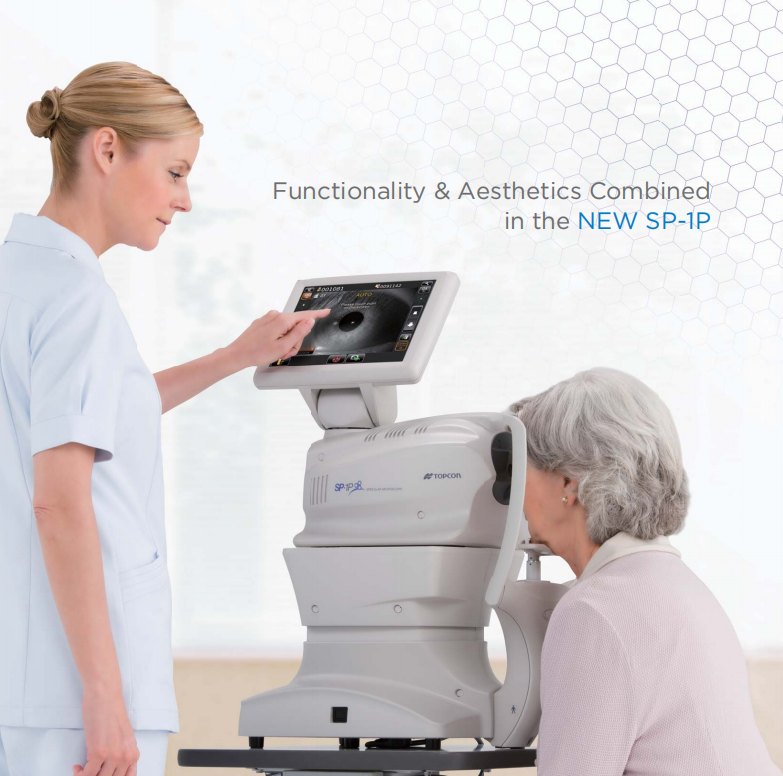

The Topcon specular microscope: SP-1P introduces a modern ergonomic design and innovative features that simplify its use and increase efficiency. A large 10.4-inch rotatable touch panel monitor eliminates the need for a control lever and can be turned to various angles for better interaction with the patient.
By simply tapping on the center of the patient’s pupil displayed on the monitor, the SP-1P automatically centers, focuses, and acquires the endothelial cell image. The operation takes a few seconds and is fast and smooth, requiring minimum training. The space-saving features and ease of use make the SP-1P the instrument for a new generation in eye care.
Key Benefits of the Topcon SP-1P Microscope
Wide-angle “panoramic” shooting mode – a significant increase in the analyzed area
Two special shooting modes – sequential and random
Fast, automatic measurement and analysis – instant analysis results and intuitive application process
Easy-to-read screen and comprehensive software – most commonly requested values are displayed at the top of the screen, and color pleomorphic/polymeric bar graphs can also be shown
Compact 10.4″ swivel touch panel
The SP-1P offers two selectable photography modes. The examiner can select between Sequence Mode and Free Style Mode.
The Topcon SP-1P Specular Microscope features a modern ergonomic design and innovative features that simplify use and increase efficiency.
SP-1 P Topcon is the latest generation specular microscope. Both its modern design and its compactness and ergonomics are impressive. Its innovative functions and ease of operation significantly increase its efficiency in actual daily practice.
By providing comprehensive information on the corneal endothelium, it enables ophthalmic practitioners to not
only to follow the health of the corneal endothelium but also to diagnose ocular conditions, determine the effect of medication, and predict the likelihood of postoperative complications such as corneal edema.
Consequently, the SP-1P is a vital diagnostic tool for optometrists and general ophthalmologists, as well as cataract and refractive surgeons and corneal specialists.
SP-1P SPECIFICATIONS
Corneal Endothelium Photography
| Photography Magnification | 254x (on the control panel) |
| Photography Range | 0.25 x 0.55 mm |
| Resolving Power | 125 Ip/mm or more |
| CORNEAL THICKNESS MEASUREMENT | |
| Measurement Range | 0.400 – 0.750 mm |
| OTHER SPECIFICATIONS | |
| Dimensions | 286-468mm(W) x 445-592mm(D) x 486-681mm(H) |
| Weight | 17 Kg |
| Power Supply Source Voltage | 100-240V AC, 50-60Hz |
| Power Input | 70-120VA |
