#EC-12H System
#ECG Holter System

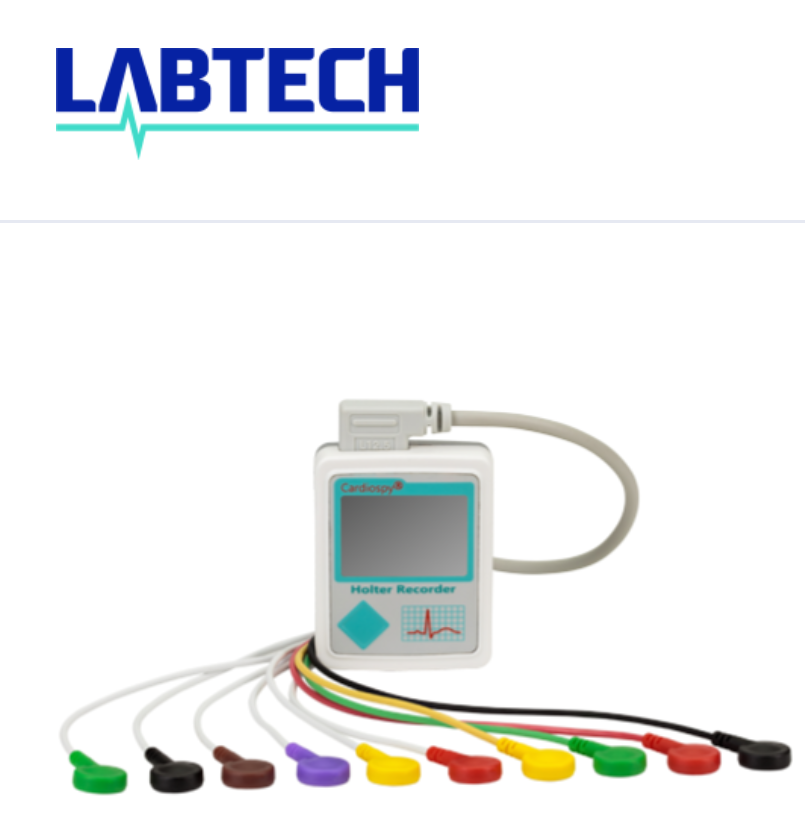

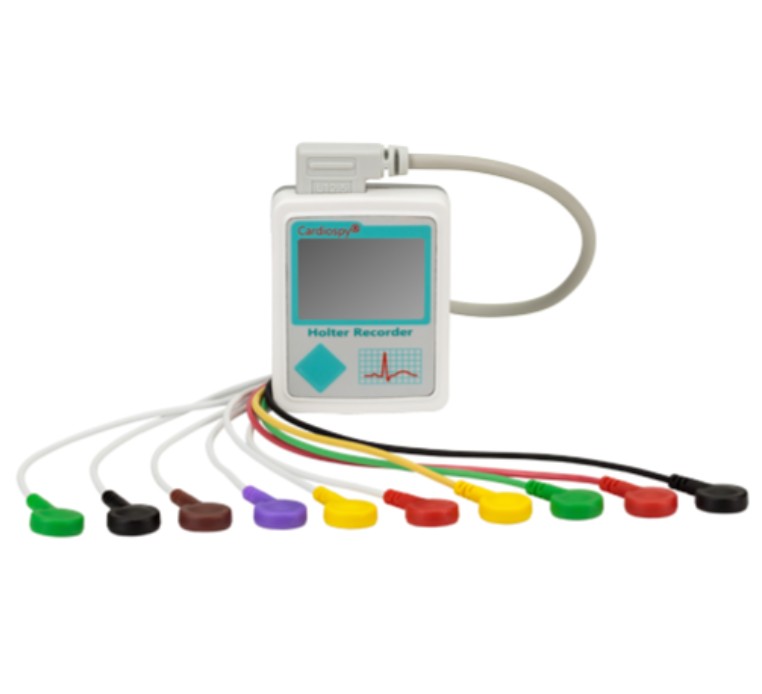

Twelve-channel, full disclosure Holter System without PC and printer. With Labtech EC-12H Holter ECG system you can make 1, 2, 3 or 12 channel recordings depending on the recorder and patient cable type being used. The Cardiospy analysis software provides ECG records of excellent quality.
Twelve-channel, full disclosure Holter System without PC and printer. With Labtech EC-12H Holter ECG system you can make 1, 2, 3 or 12 channel recordings depending on the recorder and patient cable type being used. The Cardiospy analysis software provides ECG records of excellent quality. The effective automatic evaluation and editing functions provide evaluations with nearly 100% precision in the shortest possible time. The program performs rhythm, ST, PQ, QT, Atrial Fibrillation and Flutter, BBB and AV blocks analysis, time and frequency based HRV, and it calculates HRT and microV-TWA parameters as well. Our software is highly user-friendly: it offers a wide range of report editing and printing options, it is suitable for network usage, and provides a wide range of languages to choose from.

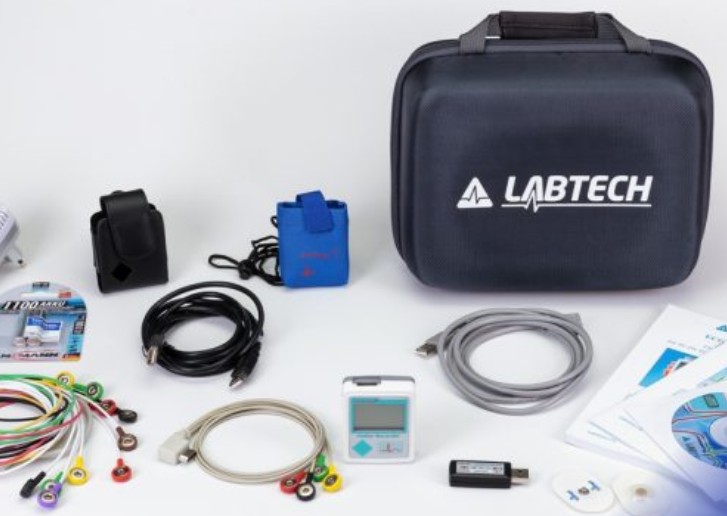

The System consists of: 1 pc EC-12H Holter Recorder + analysis SW + USB-02/B interface + accessories*.
The System can be extended by the following recorders: EC-2H, EC-3H, EC-12H, EC-ABP, EC-3H/ABP.
*The manufacturer reserves the right to change the list of accessories at any time.
| Parameters | EC-12H |
| Bipolar ECG Channels: | 1, 2, 3, 12 |
| Other ECG Channels: | +PM, Nehb, Standard 12 CH, Nehb |
| Respiration: | Yes |
| Patient cables for recording: | 1, 2, 3 and 12 channels |
| Number of snap type Leads | 3, 4, 5, 7, 10 |
Recording duration maximum (without battery changing): | 24h |
| The battery can be changed during recording: | Yes |
| Recording duration maximum (with battery changing) | 336 h |
| Dynamic Bandwidth | ±18 mV |
| DC Offset Range | ±600 mV |
| Frequency Response maximum | 0.05 Hz … 150Hz |
| Sampling Rate (per lead) | 125 Hz, 250 Hz, 500 Hz, 1000 Hz |
| Recording Rate | 125 Hz, 250 Hz, 500 Hz, 1000 Hz |
| Common Mode Rejection Ratio | 120dB |
| A/D Resolution | 16 bit |
| Input impedance | >100 MΩ |
| Power Source | 1x1.2 V AAA NiMH battery (or 1x1.5 V AAA alkaline battery) |
| Battery Life | min. 24 h, up to 48 h using a high-capacity battery |
| Storage Card Capacity | built-in 8GB (microSD) |
| Internal Voltage (max) | 3.3V |
| Display | LCD (Grey Scale 160x100 pixels) |
| Movement detection-3D | Yes |
| Patient Event button | Yes |
| Monitoring ECG | On PC via Bluetooth and on LCD as well |
| Reading Record | via USB cable |
| Size | 53 x 67.5 x 18.5 mm |
| Weight: | 50g |
