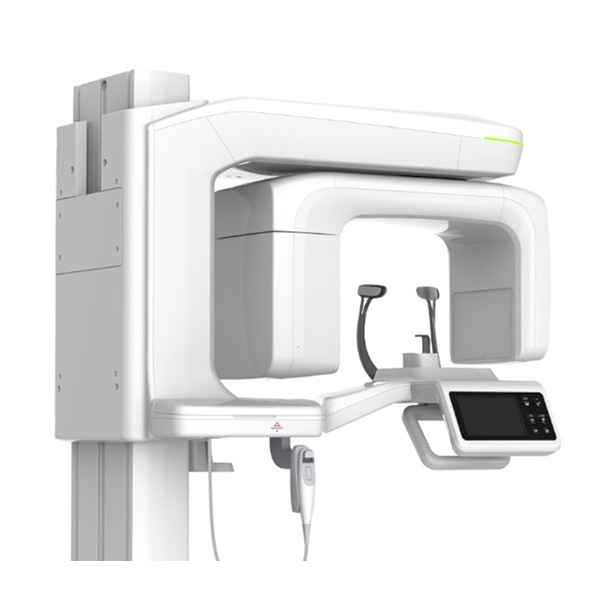

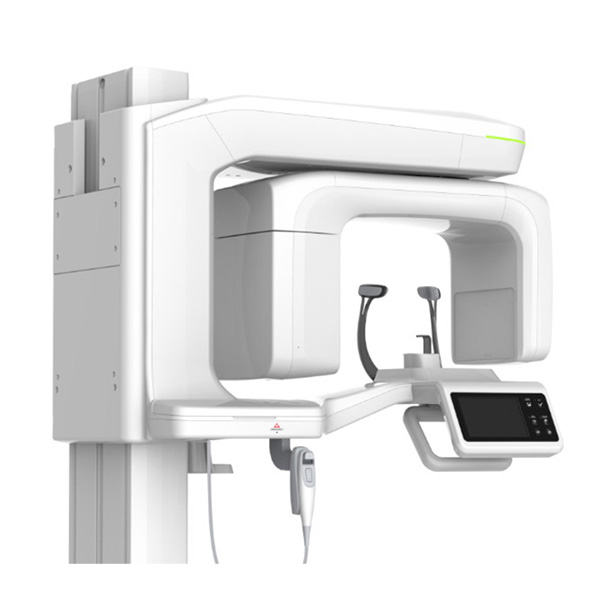

Green 16 and 18 combine four essential imaging capabilities in one unit: panoramic, cephalometric, CBCT and model scanning.
CBCT, Pano, Ceph (optional) and Model Scan
1085.0 mm (L) x 1343.5 mm (W) x 2315.4 mm (H) 165.9 kg

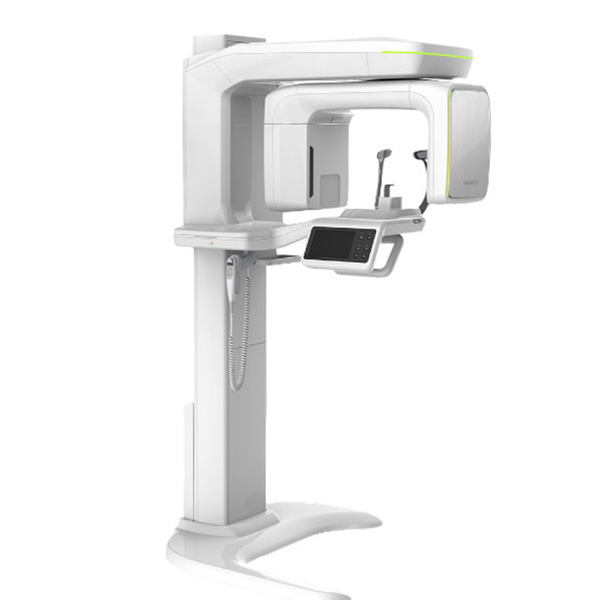

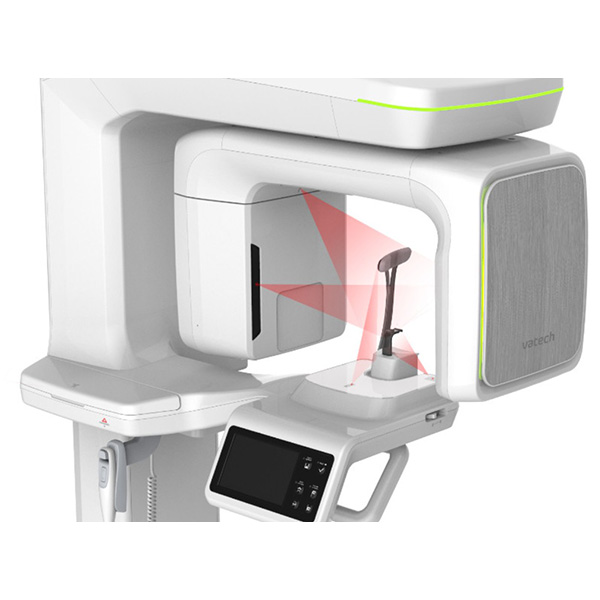

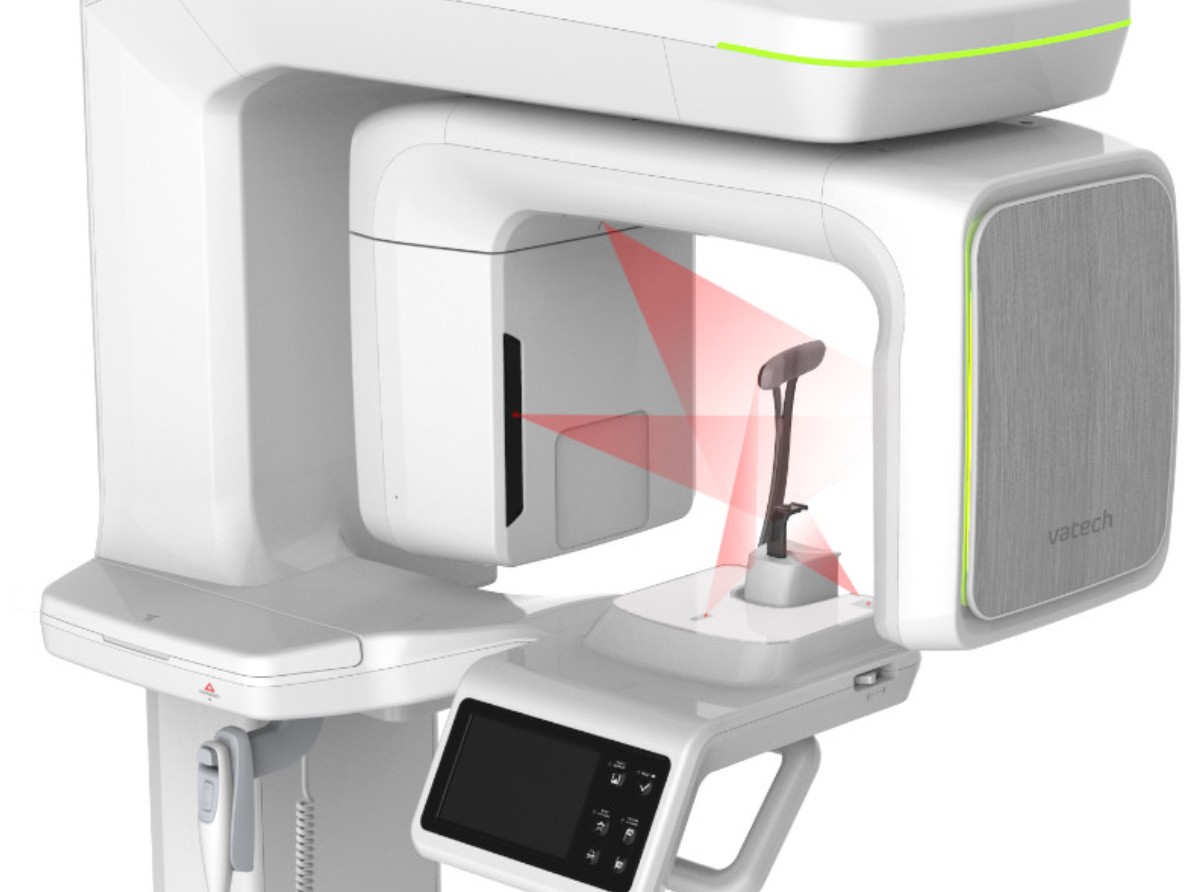

#Vatech Green 16/18 CBCT, The Vatech Green 16 and 18 are advanced 4-in-1 digital X-ray systems offering CBCT, Pano, Ceph and model scanning.
With low radiation output and high-resolution imaging, they deliver accurate diagnostic results while enhancing patient safety and satisfaction.
The Green 16 offers a maximum FOV of 16x9 cm, and the Green 18 extends this to 18x10 cm, catering to a wide range of clinical needs from endodontics to full arch and TMJ analysis.
Featuring fast scan times, metal artifact reduction and the user-friendly Ez3D-i software, these units elevate both diagnostic confidence and workflow efficiency.
Multi FOV Selection
1、Select the proper FOV size among 18x10, 13x10, 8x10 and 5x5 based on a particular diagnostic need.
2、It covers full arch region, sinus and left/right TMJ and is suitable for most oral surgery cases as well as multiple implant surgery. It also can measure airway volume.

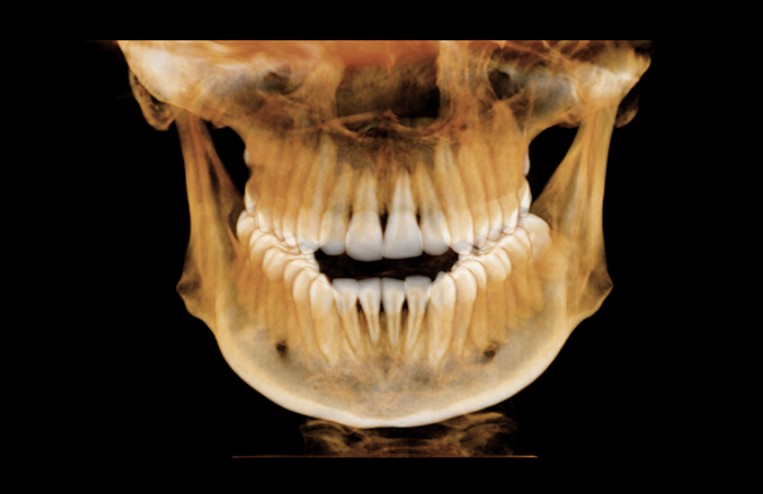

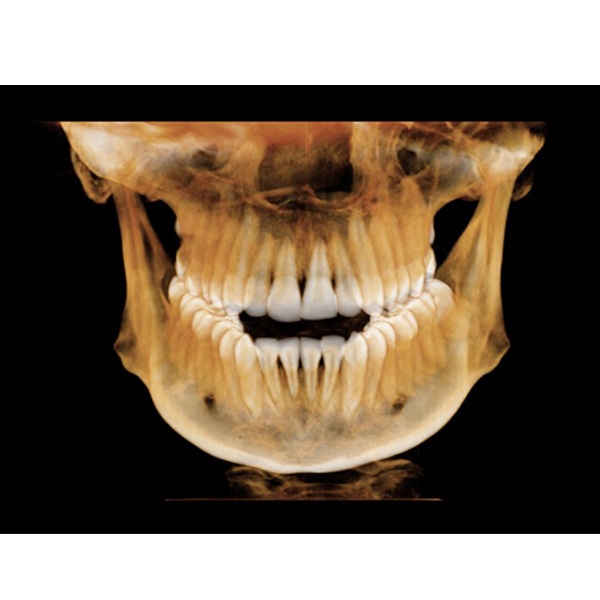

3D Scanning for Model
3D model scan enables users to store plasters as digital models for ease of management.
Key features:
Low-dose imaging with high diagnostic quality
Multi FOV options from 5×5 to 18×10 cm
4-in-1 system: CBCT, Pano, Ceph (optional) and Model Scan
Green scan time minimizes motion artifacts
ART-V reduces metal artifacts
Ez3D-i software enables airway and TMJ analysis
3D scanning for digital model storage
Insight Pan function and advanced workflow
Advanced 4-in-1 system
Green 16 and 18 combine four essential imaging capabilities in one unit: panoramic, cephalometric, CBCT and model scanning.
This compact all-in-one solution reduces equipment footprint while increasing clinical versatility.
Low dose with high quality
Traditionally, lower radiation meant compromised image quality. Vatech’s Green 16/18 overcomes this by delivering sharp, clinically usable images at low dose levels, improving patient safety without sacrificing diagnostic confidence.

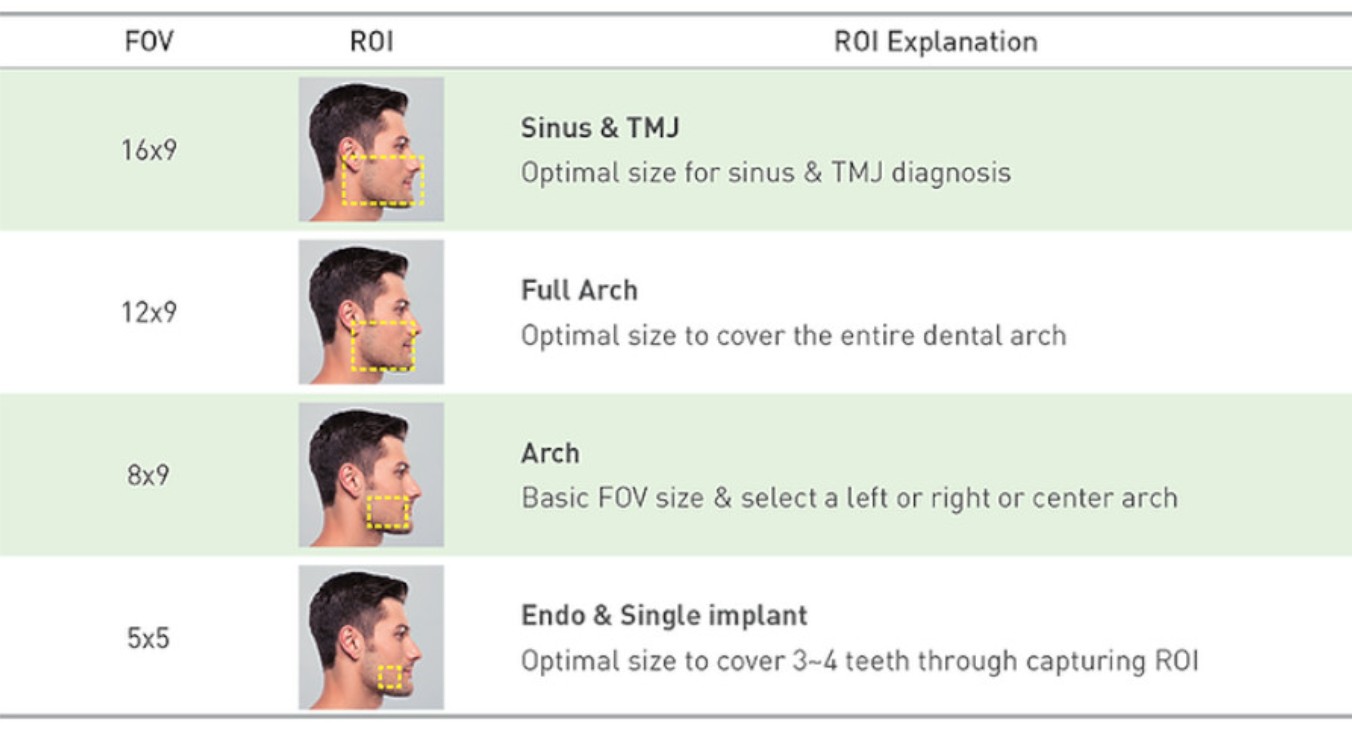

Multi FOV selection
With a range of field of view options including 5×5, 8×9, 12×9, 16×9 and 18×10, you can target specific regions like endo, full arch, sinus or TMJ. This reduces unnecessary radiation and tailors imaging to each case.

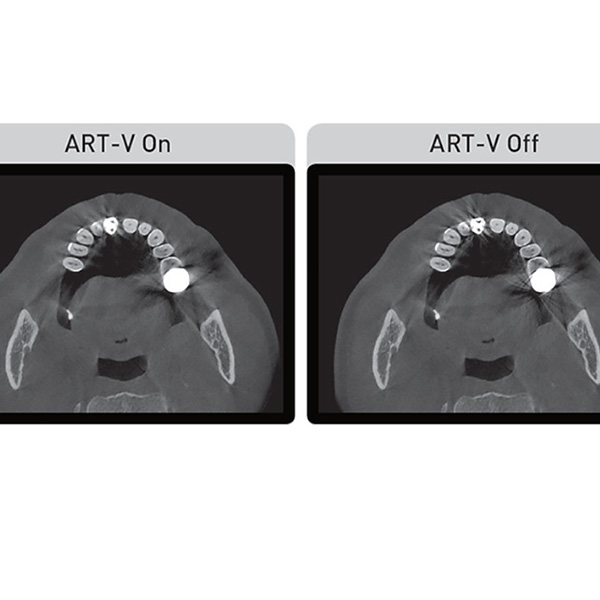

ART-V metal artifact reduction
Metal artifacts can obscure diagnostic details. The ART-V feature reduces these distortions, giving you clearer images for more accurate planning, especially in implant cases.
Green scan time
Shorter scan times reduce the risk of motion artifacts and improve workflow efficiency.
With panoramic scans in as little as 4 seconds and CBCT scans as fast as 2.9 seconds, patient comfort and image clarity are both enhanced.
3D model scanning
Digitise plaster models easily for digital storage and future reference. This adds convenience to your lab workflow and supports a fully digital environment.

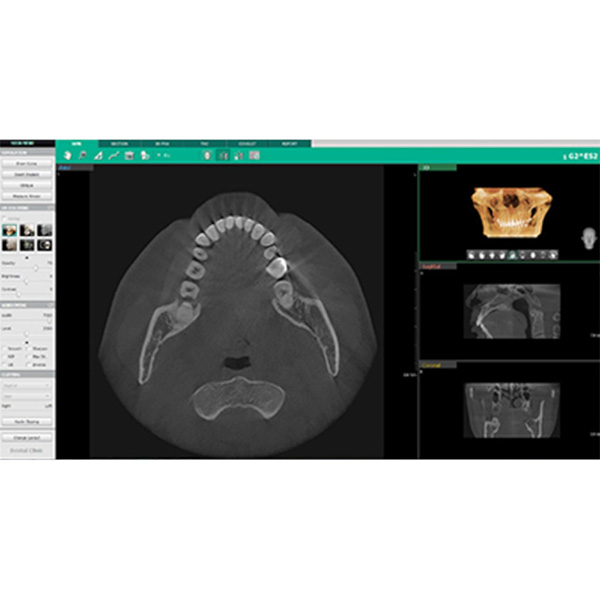

Ez3D-i software
Streamline diagnostics and treatment planning with Ez3D-i’s intuitive tools.
It supports airway volume measurement for sleep apnea evaluation and a dedicated TMJ layout for quicker, more accurate diagnoses.

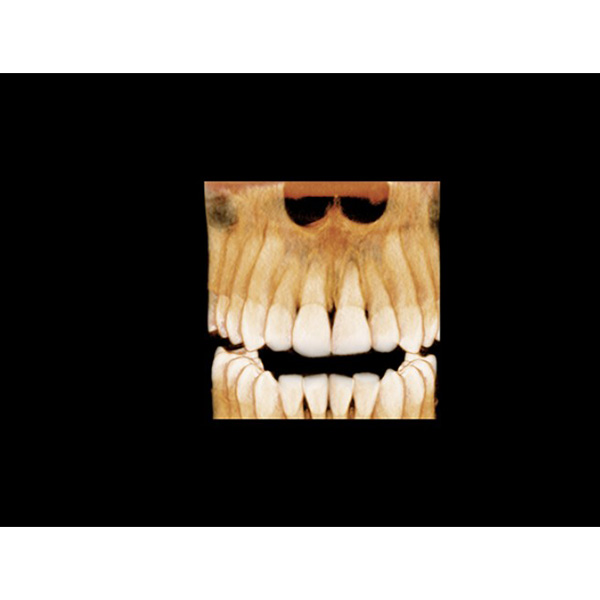

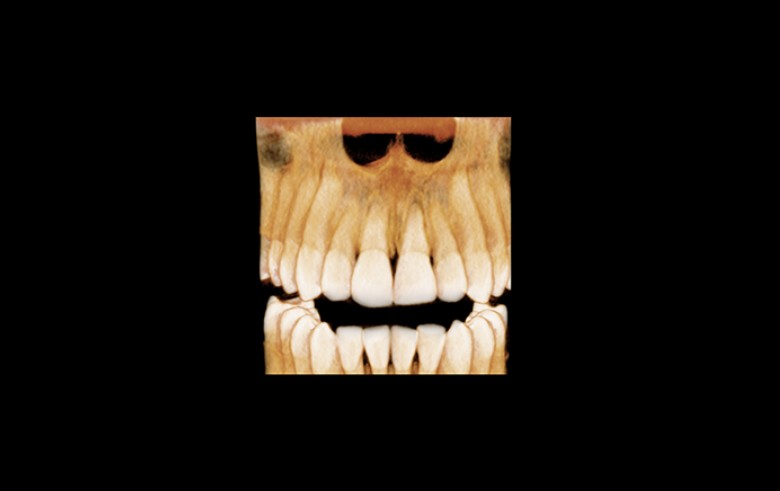

FOV 5X5
5X5 images are useful for specific area diagnosis with minimum X-ray exposure for patients, It can especially increase the accuracy of endodontic diagnosis by exactly checking the amount or root canals and abnormal root canal shapes such as C-shapes that are difficult to check using 2D X-ray system.

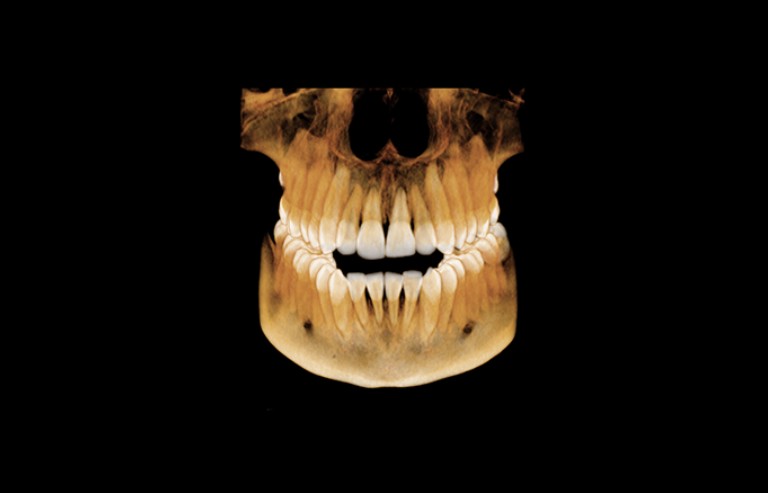

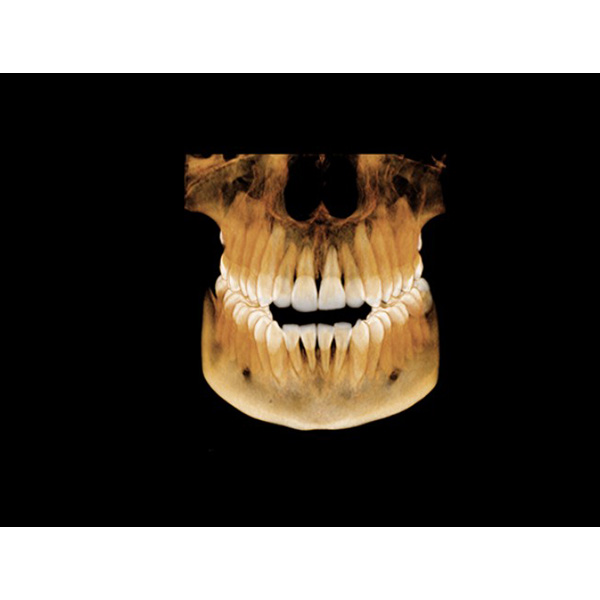

FOV 8X10
8 x 10 cm FOV is ideal for dual arch scans of the entire dentition, including third molars, implants and surgical guides.
FOV 13X10
13x10 images provide the optimal information for diagnosis of the entire dental arch. In addition, both TMJ, implant planning and facial surgery treatment planning is possible.

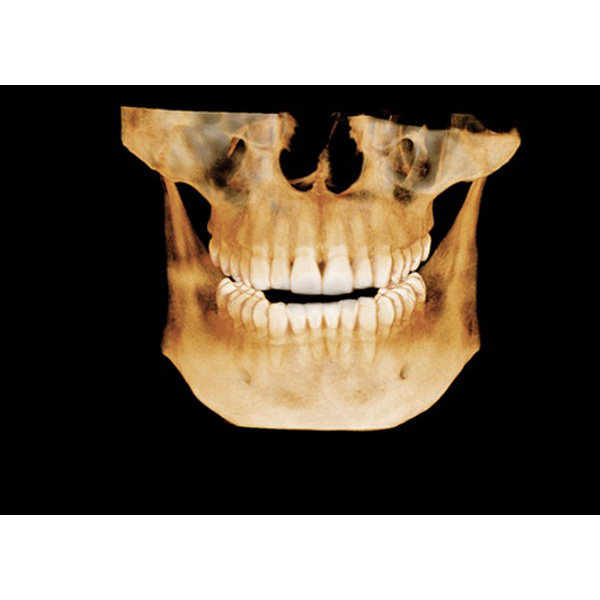

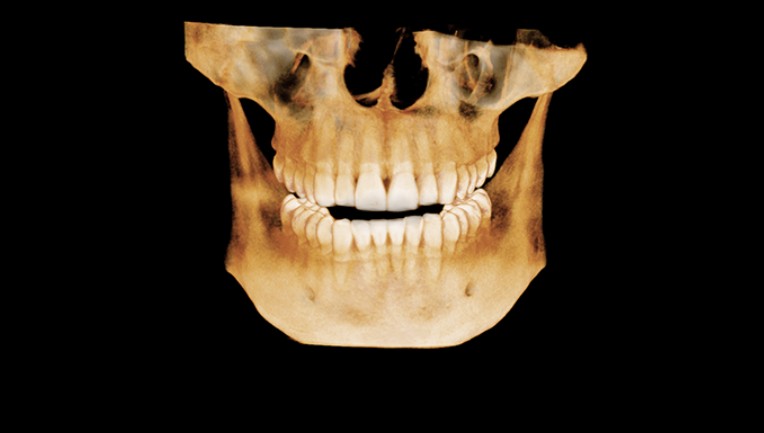

FOV 18X10
18x10 images from Green 18 enable you to do a comprehensive diagnosis including oral and maxillofacial surgery. The perfect FOV size will be helpful for complex orthognathic, implant, and orthodontic surgery.
Specifications:
Function: CT + Pano + Ceph (optional) + Model Scan
Focal spot size: 0.5 mm (IEC 60336)
CT FOV sizes: 5×5, 8×5, 8×9, 12×9, 16×9, 16×15 (Double Scan), 18×10 cm (Green 18 only)
Voxel sizes:
5×5: 0.08 mm / 0.12 mm
8×5 / 8×9: 0.12 mm / 0.2 mm
12×9: 0.2 mm / 0.3 mm
16×9 / 18×10: 0.2 mm / 0.3 mm
16×15: 0.3 mm / 0.4 mm
Scan times:
Pano: 4.0 sec / 14.1 sec
Ceph: 1.9 sec / 4.9 sec
CBCT: 2.9 sec / 9.0 sec
Gray scale: 14 Bit
Tube voltage/current: 60–99 kVp / 4–16 mA
Weight:
Without Ceph: 165.9 kg (no base) / 220.9 kg (with base)
With Ceph: 190.9 kg (no base) / 245.9 kg (with base)
Dimensions:
Without Ceph: 1085.0 mm (L) x 1343.5 mm (W) x 2315.4 mm (H) – no base
With Ceph: 1905.5 mm (L) x 1374.9 mm (W) x 2315.4 mm (H) – no base
Height with base: +30 mm
