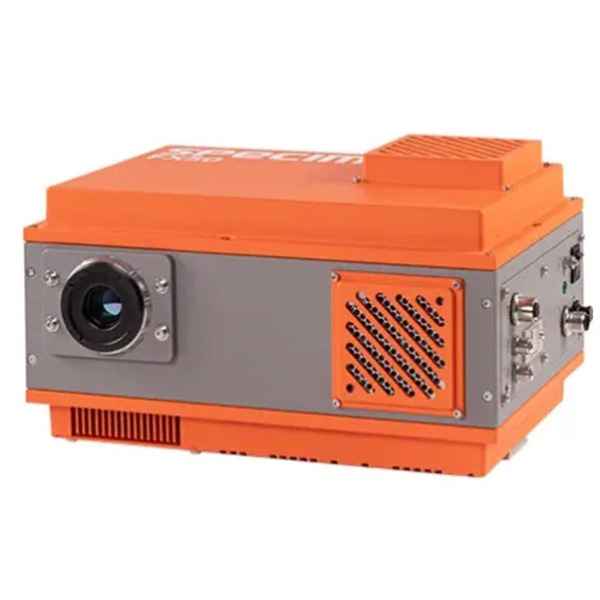

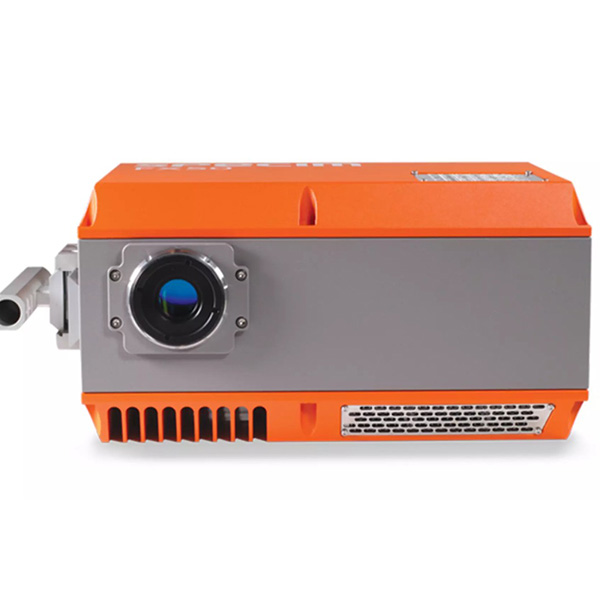

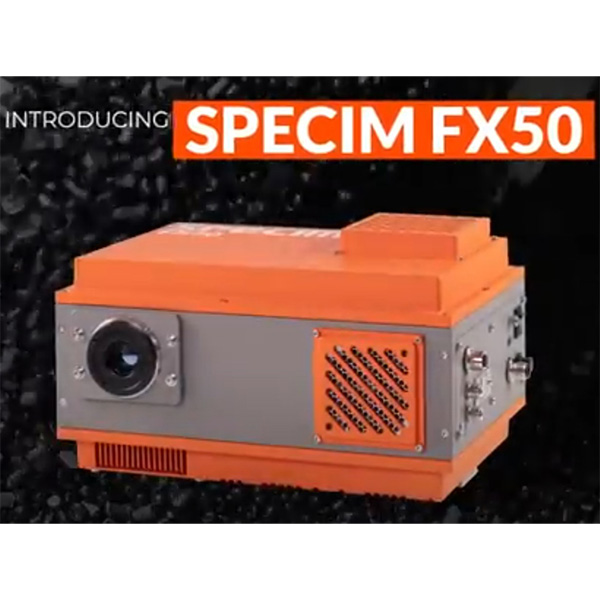

@Specim FX50 is a high-speed, accurate line-scan hyperspectral camera designed for industrial environments, covering the full mid-wave infrared (MWIR) spectral range of 2.7 – 5.3 μm. It is ideal for sorting black plastics, analyzing hydrocarbons and minerals, and detecting contamination on metal surfaces.
#Specim FX series Hyperspectral cameras specifically designed for industrial machine vision, configurations are available for VNIR, NIR and MWIR. Designed for integration into inline systems but can also be configured for laboratory settings.

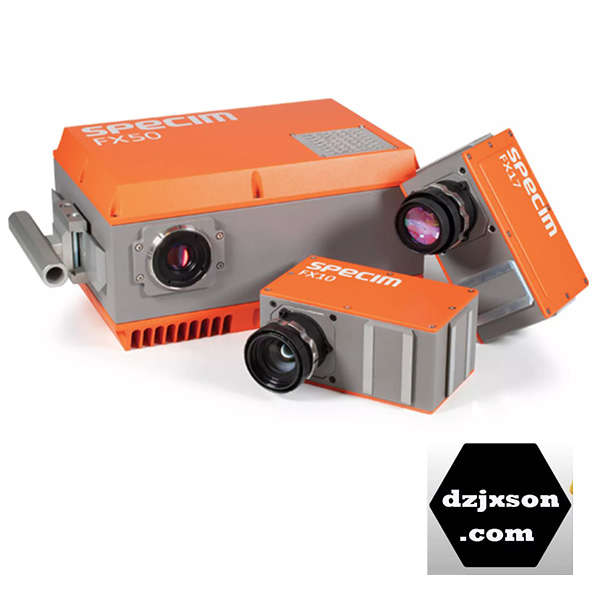

The Specim FX series consists of three models: the Specim FX10, Specim FX17 and Specim FX50. These highly reliable hyperspectral cameras cover wavelengths from visible and near-infrared (VNIR) to Medium Wavelength Infrared (MWIR). They are suitable for both laboratory and high-speed industrial machine vision applications due to their high frame rate, robust design, and ease of integration.
3 models of spectral cameras for VNIR (400 - 1000 nm), NIR (900 - 1700 nm), and MWIR (2.7 - 5.3 μm)
Integration on existing and new sorting lines
Non-contact and non-desructive optical method for a 100% imaging coverage
High frame rate camera for industrial speed requirements
Unified wavelength calibration between individual Specim FX cameras
There are 3 models available based on the hyperspectral data range to reveal:
Visible and Near-InfraRed area (VNIR), from 400 to 1000 nm = Specim FX10
Near-InfraRed region (NIR), from 900 to 1700 nm = Specim FX17
Medium Wavelength IngraRed region (MWIR), from 2.7 to 5.3 μm = Specim FX50
Features
Hyperspectral camera with compact form factor
Spectral range from VNIR, NIR to MWIR
High spatial resolution of from 1024 pixels (Specim FX10) to 640 pixels (Specim FX50)
High image speed
Easy mounting to industrial environment, line-scan mode
Unified wavelength calibration between units
Data analysis results directly communicated to sorting machines through commercial machine vision software
GigE Vision standard interface

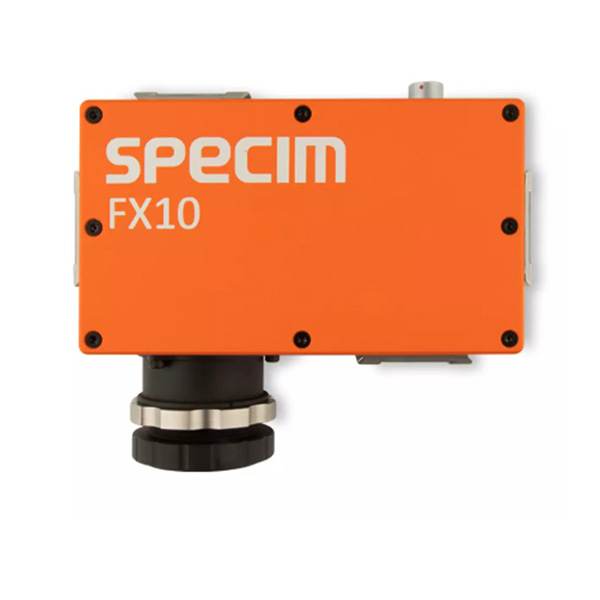

Specim FX 10
Vegetation & agriculture
Phenotyping
Colour & density in printing
Display & light source inspection
Food quality
Small Size: Flexible and easy to install
Fast Optics: High sensitivity and accuracy
High Speed: High frame rates capabilities
Easy Integration: Standard interface options
Unified, Comparable Data: Unified wavelength calibrations between individual units
Food Quality and inspection
Vegetation Analysis
Plant Phenotyping
Colour Inspection
Agriculture
| Fx10 | FX10+ | FX10C | |
| Spectral Range | 400-1000 nm | 400-1000 nm | 400-770 nm |
| Spectral Resolution (FWHM) | 5.5 nm (mean) | 15 nm (mean) | 5.5 nm (mean) |
| Spectral Sampling/Pixel | 2.7 nm | 6.3 nm | 2.7 nm |
| Spectral Bands | 224 | 100 | 140 |
| SNR @ Max Signal | 420:1 | 420:1 | 420:1 |
| Spatial Sampling | 1024 pixels | 1024 pixels | 1024 pixels |
| Bit Depth | 12 | 12 | 12 |
| Max Frame Rate | 327 FPS (Full Range) | 705 FPS (Full Range) | 514 FPS (Full Range) |
| Binning | 2,4,8 spectral and spatial | 2,4,8 spectral and spatial | 2,4,8 spectral and spatial |
| Sensor Type | CMOS | CMOS | CMOS |
| Sensor Cooling | Passive | Passive | Passive |
| Interface | GigE Vision, CameraLink | GigE Vision, CameraLink | GigE Vision, CameraLink |
| Dimensions (LxWxH) | 150 x 85 x 71 mm | 150 x 85 x 71 mm | 150 x 85 x 71 mm |
| Weight | 1.3 kg | 1.3 kg | 1.3 kg |
| Fore Lens FOV Options | 12 deg, 24 deg, 38 deg (default), 46 deg, 51 deg, 83 deg, VNIR MACRO | ||
Specim FX 17
Food & feed quality
Waste sorting
Recycling
Moisture measurement
Threat detection, Security
The Specim FX17 hyperspectral camera operates in the near-infrared region (900 to 1700 nm) and reveals chemical composition, moisture, and foreign objects. Ideal for industrial and laboratory use, it detects plastic types for recycling and measures sugar levels in fruits and vegetables, as well as moisture in baked goods.
Spectral range of 900-1700 nm
High spatial resolution of 640 pixels
High image speeds of up to 670 full FPS and up to 15000 FPS with 4 bands selected
Free wavelength selection from 224 spectral bands
Built-in image correction and unified spectral calibration between units
GigE or CameraLink standard interfaces
Easy mounting in industrial environments
CE and RoHS certification
| Specification | FX17 |
| Spectral Range | 900-1700 nm |
| Spectral Resolution (FWHM) | 8 nm (mean) |
| Spectral Sampling/Pixel | 3.5 nm |
| Spectral Bands | 224 |
| SNR @ Max Signal | 1000:1 |
| Spatial Sampling | 640 pixels |
| Bit Depth | 12 |
| Max Frame Rate | 670 Full FPS (FX17), 527 Full FPS (FX17e) |
| Binning | 1,2,4 spectral and spatial (default: 1 spectral x 1 spatial) |
| Sensor Type | InGaAs |
| Sensor Cooling | TEC |
| Interface | GigE Vision, CameraLink |
| Dimensions (LxWxH) | 150 x 75 x 85 mm |
| Weight | 1.56 Kg |
| Fore Lens FOV Options | 12 deg, 38 deg (default), 53 deg, 66 deg, 75 deg, 90 deg, NIR MACRO, OLESMACRO |

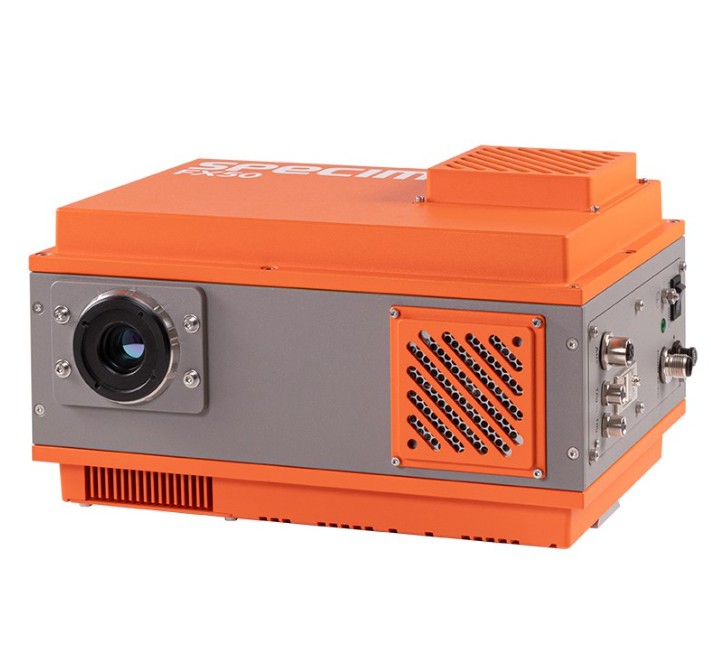

Specim FX 50
Black plastic sorting
Geology & mining
Metal industry
| Specification | FX50 |
| Spectral Range | 2.7-5.3 µm |
| Spectral Resolution (FWHM) | 35nm |
| Spectral Sampling/Pixel | 8.44 nm (without binning) |
| Spectral Bands | 154 (with default binning 2x1) |
| Dynamic Range | 2000:1 (1.5ms); 5000:1 (0.2ms) |
| Max SNR | 1300:1 (1.5ms); 1800:1 (0.2ms) |
| Spatial Sampling | 640 pixels |
| Bit Depth | 16 bit |
| Max Frame Rate | 377 Full FPS (with default binning) |
| Binning | 1,2,4 spectral and spatial (default: 2 spectral x 1 spatial) |
| ROI | Freely selectable multiple regions of interest |
| Sensor Type | MCT |
| Sensor Cooling | Stirling |
| Optics Temperature | TEC-stabilized (default is 20°C) |
| Digital Data Output/Control Interface | GigE Vision, Custom Ethernet |
| Camera Control Protocols | GenICam, JSON-RPC |
| Dimensions (LxWxH) | 280 x 202 x 161 mm |
| Weight | 7.0 kg |
| Fore Lens Options | 24 deg, 45 deg, 60 deg |
