· B BRAUN Dialog+ Hemodialysis Machine · Touchscreen display · Bicarbonate cartridge holder (model dependent) · User manual · Power and connection cables
152 cm (H) x 71 cm (W) x 56 cm (D) 78 KG

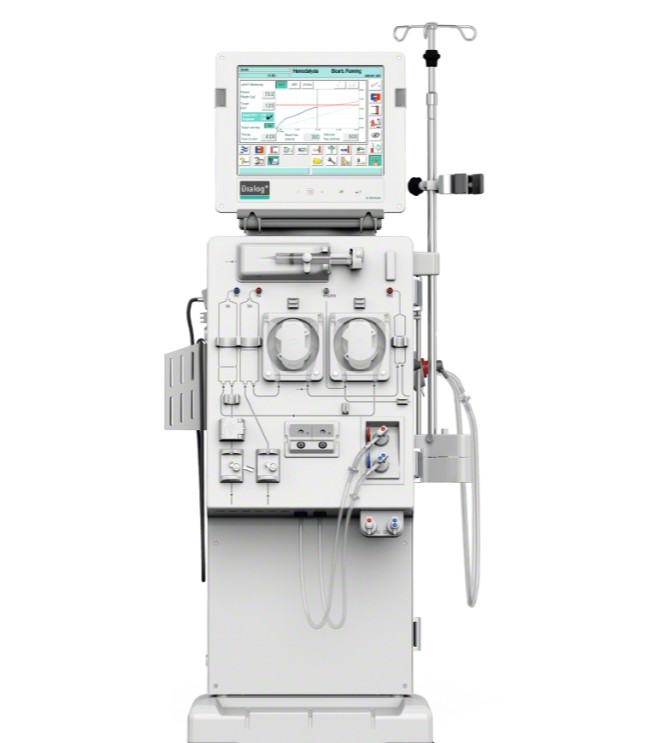

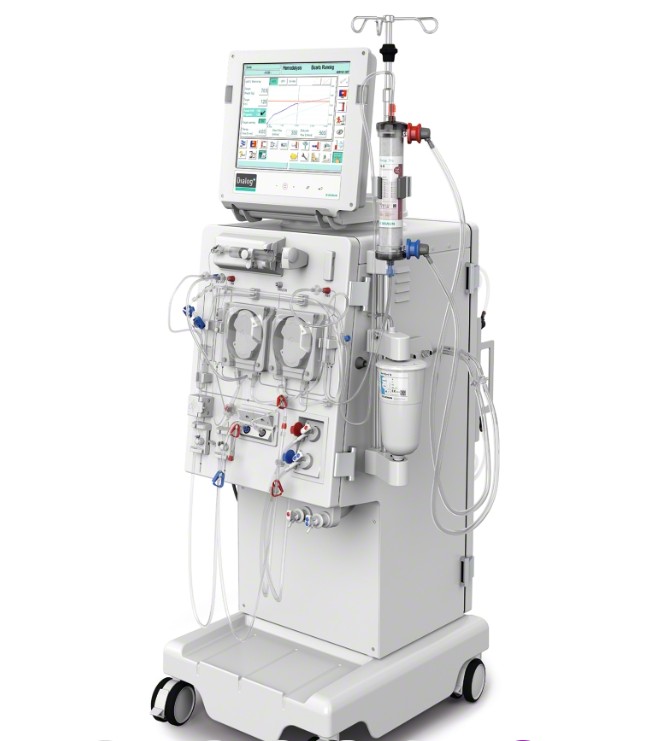

The Dialog+® from B. Braun is a haemodialysis system designed to deliver effective, personalised and safe therapy. Featuring a high-resolution touchscreen, adjustable treatment profiles and a patient card reader, it optimises care while reducing errors. With its profiling capabilities (UF, sodium, bicarbonate, temperature, dialysate flow, heparin) and intuitive interface, it improves patient comfort and staff productivity. Dialog+® also includes innovative options such as the UltraPureFluid system and the CRIT-LINE® interface for precise fluid management.
Dialog+® Haemodialysis System – Technological Excellence at the Service of Nephrology
The Dialog+® from B. Braun is much more than just a haemodialysis machine: it is an intelligent clinical assistant designed to meet the demands of healthcare professionals while ensuring optimal patient comfort. With state-of-the-art technology and an intuitive user interface, it allows for complete treatment customisation, real-time monitoring and remarkable operational efficiency.

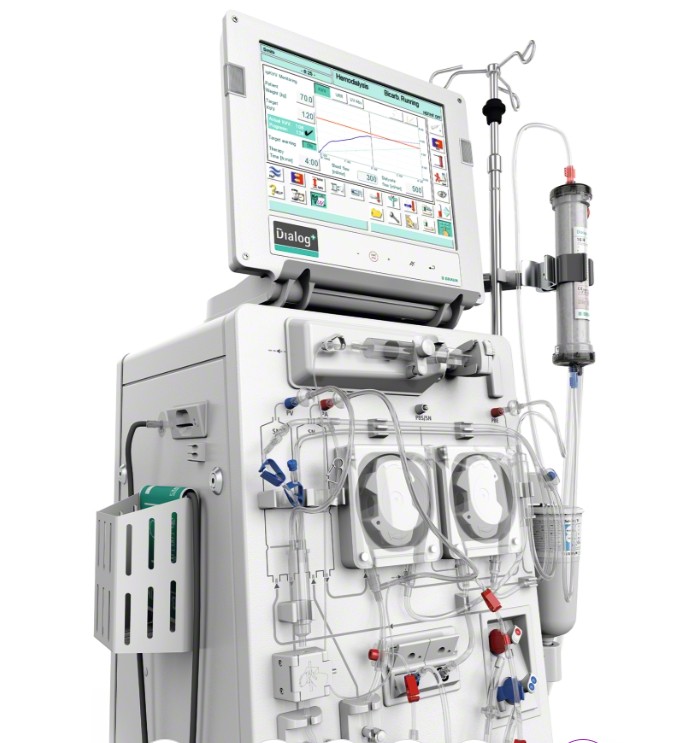

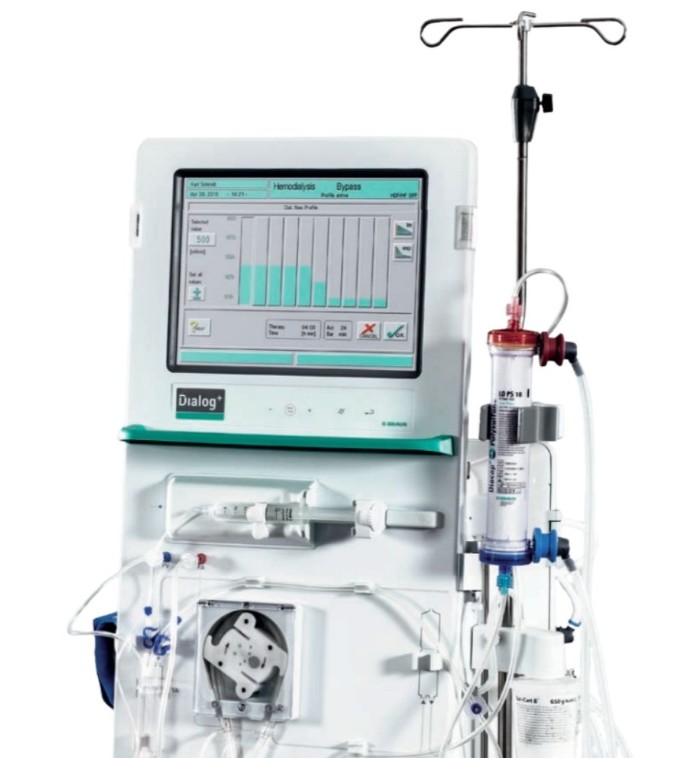

The high-resolution touchscreen (1024x768) combined with physical keys facilitates navigation and quick parameter programming. The rotating monitor allows easy reading of data from any position, improving ergonomics for caregivers.
The Dialog+® offers a profiling system for ultrafiltration, sodium, bicarbonate, temperature, dialysate flow and heparin. These profiles can be defined linearly or exponentially, offering maximum flexibility to tailor therapy to the specific needs of each patient.
The patient card reader option allows individual settings to be stored and retrieved, reducing configuration errors and preparation time. The system can also be equipped with the UltraPureFluid (UPF) module with Diacap® Ultra filter, ensuring exceptional dialysate quality and reducing the risk of infection.
Dialog+® supports single-needle therapy, ideal for patients with a single vascular access. The CRIT-LINE® interface enables dynamic fluid management by continuously monitoring blood volume and oxygen saturation.
In terms of maintenance, the system offers chemical, thermal and citric disinfection cycles with programmable durations. Technical mode (TSM) allows technicians to quickly diagnose internal components and access maintenance history.
Dialog+® is a comprehensive, reliable and scalable solution for modern dialysis centres, combining clinical performance, safety and comfort.
High-resolution rotatable touchscreen
Icon-based user interface with integrated help
Customisable profiling (UF, Na, Bicarb, temperature, etc.)
Patient card reader for parameter storage
Automatic dialyser rinsing programme
Online trend graphs
Technical mode for quick maintenance
Programmable Auto On/Off timer
Compatible with Solcart B™ cartridge
Technical Details
Dimensions: 152 cm (H) x 71 cm (W) x 56 cm (D)
Dialysate temperature: 33–40°C (programmable)
Conductivity: 12–17 mS/cm (programmable)
Dialysate flow rate: 300–800 ml/min (programmable)
Ultrafiltration flow rate: 0–3,000 ml/h (30 predefined profiles)
Blood flow rate: 50–600 ml/min (in increments of 10 ml/min)
Heparin flow rate: 1–10 ml/h (in increments of 0.1 ml/h)
Venous pressure: 10–390 mmHg
Arterial pressure: -400 to +700 mmHg
Air detection: ultrasonic sensor on the venous line
Disinfection: chemical, thermal, citric, decalcification
Processor: Pentium®
Interface: touchscreen + physical buttons, intuitive icons
Compatible Accessories
Solcart B™ bicarbonate cartridge
UltraPureFluid system with Diacap® Ultra filter
CRIT-LINE® interface for fluid management
Patient cards for profile storage
Disinfection and maintenance kits
Application Area
·Hospitals
· Dialysis centers
· Renal care clinics
·Specialized nephrology units
Technical Specifications:
Water Pressure: 0.5 to 6 bar
Water Temperature: 10°C to 30°C
Dialysate Temperature: 33°C to 40°C
· Dialysate Flow: 300 to 800 ml/min
Fluid Removal Rate: 0 to 4000 ml/hour
· Very accurate fluid control
Blood Pump Speed: 50 to 600 ml/min
· Heparin Pump Rate: 0.1 to 10 ml/hour
· Power Supply: 230 V (optional 120/240 V)
· Weight: approx. 78 kg (without accessories)
Size: approx. 51.0 x 63.7 x 16.78 cm
Frequency: 50 / 60 Hz
Content in the box
· B BRAUN Dialog+ Hemodialysis Machine
· Touchscreen display
· Bicarbonate cartridge holder (model dependent)
· User manual
· Power and connection cables
