490/17.3
590*630*1310(mm)

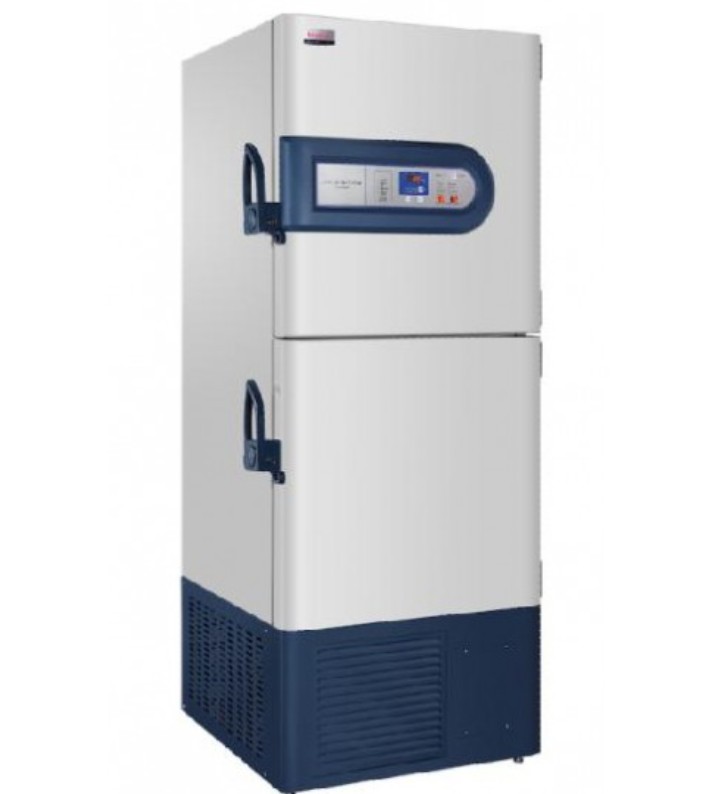

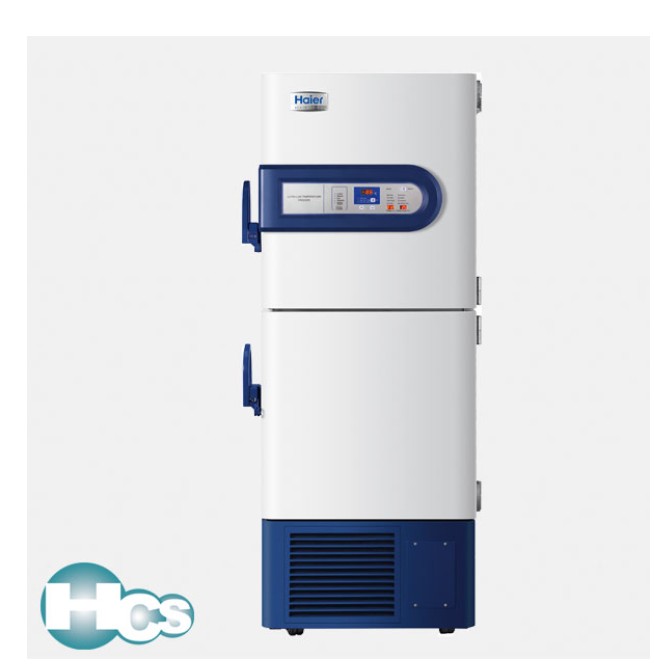

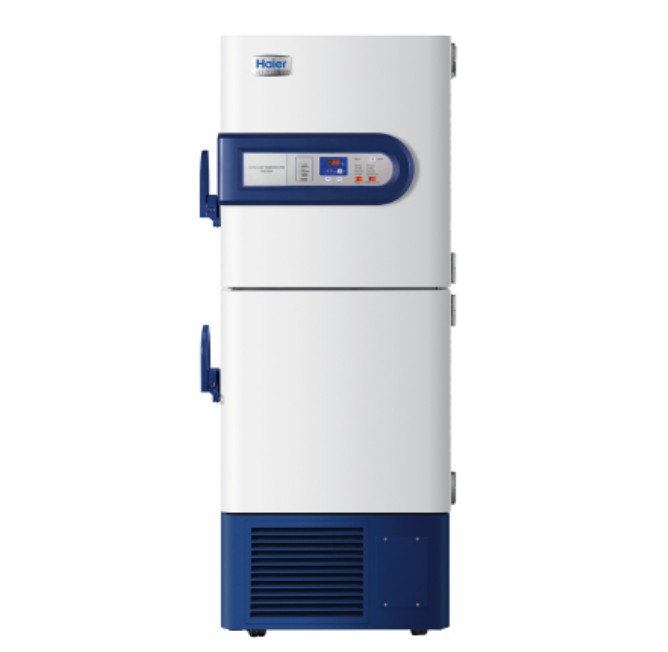

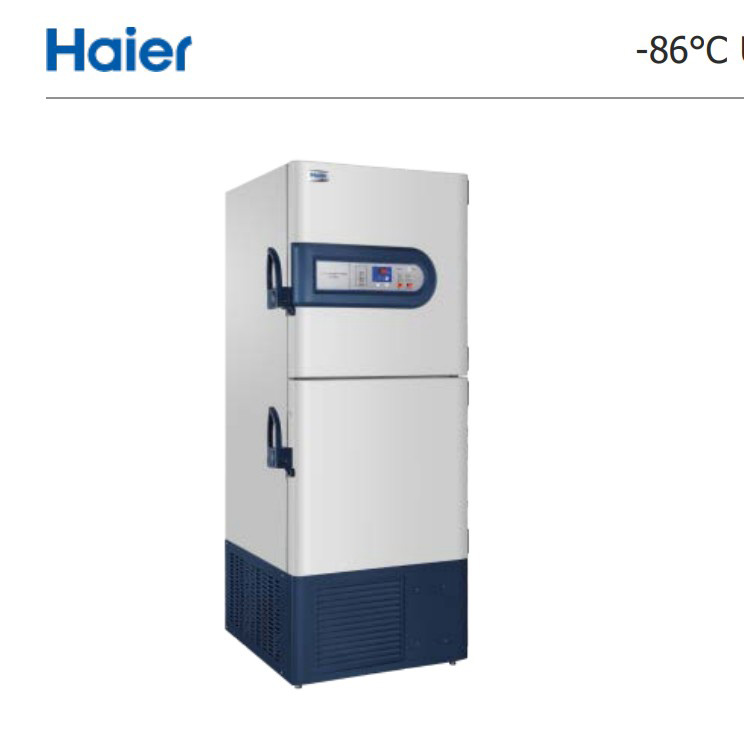

Haier DW-86L490J Ultra Low Freezer
VIP (Vacuum Insulation Panel) design with extra insulation cuts down on heat loss to cabinet by 25% and helps reduce energy consumption by more than 20%. Power consumption of the Haier DW-86L490J Ultra Low Freezer is only 11.5 kWh/day
Double door design
More convenient to be used by multiple users
Microprocessor Control System
Microcomputer electronic thermostat, LED temperature display, display precision 0.1°C, adjustable cabinet temperature setpoint -40°C~-86°C
Cabinet temperature/voltage/ambient temperature checking is available
Multiple alarm functions:
High/Low Temperature
Remote Alarm
Hot Condenser
Power Failure
Sensor Error
Low Battery
High Ambient Temp
Door Ajar
Sound and light alarm mode, attachable to remote alarm interface
Battery backup alarm function which operates continuously for >24hr in the event of a power outage
Standard configuration: USB interface
Standard 5V power supply available for test equipment
Ergonomic door design
Ergonomic design for easy door opening and closing. The door mechanism incorporates a door lock and the freezer is supplied with 4 keys as standard. There is also the ability to add a padlock if extra security if desired.
Low noise
Thanks to a cabinet and system design that has been optimised for noise reduction the Haier DW-86L490J only emits a sound level of only 50dB.
Multilayered sealing design
Four seals on the outer door seal strip and one seal on the interior door seal strip

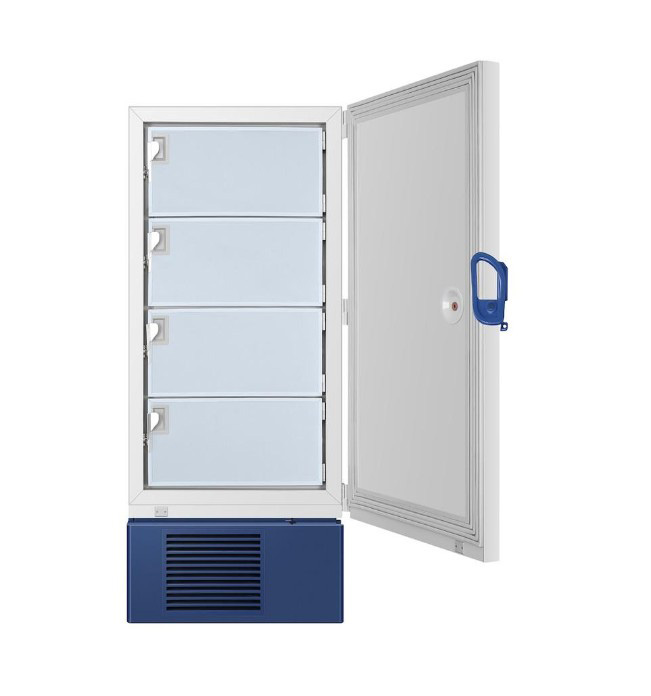

Inner Doors
Double stainless-steel inner doors to prevent cooling loss when opening the outer door. They are also easy to clean.
Air Filter
The air filter is easy to remove and clean. No tools are required.
Castors
4 casters + 2-foot locks, easy to move, lock and level.
USB data storage
Capable of storing more than 15 years of data.
Optional Items for the Haier DW-86L490J Ultra Low Freezer
CO2 backup system
LN2 backup system
Stainless steel racks
Temperature chart recorder
Cryo boxes
RS232/485 serial port
Volume: 490 litres
W/D/H: 860 / 900 / 1980 mm
Energy: 4197.5 [kWh/year]
Warranty: 3 Years
