0.35, 0.4, 0.5, 0.75, 1.0, 2.0
2880 views per second
Brand new 1 Year

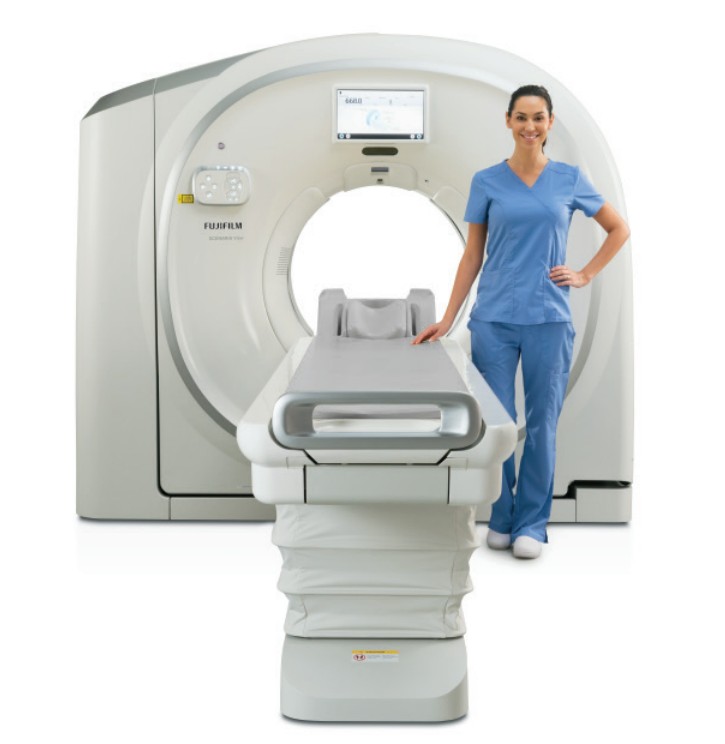

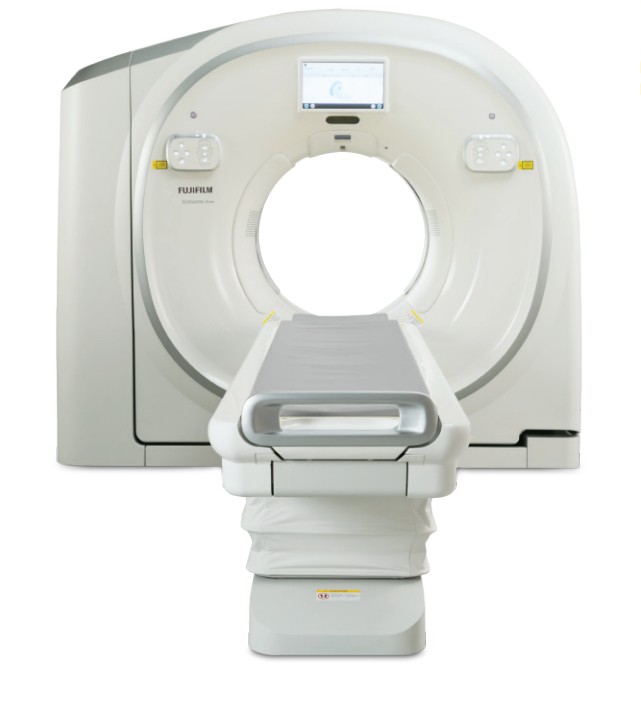

Fujifilm Scenaria View 128-slice CT System,SCENARIA View is a powerful premium performance CT solution that provides dependable routine application capabilities with available advanced clinical modules for Interventional CT, extended coverage Shuttle Scanning (for Perfusion Exams), Cardiac CTA and Dual Energy examinations. The View employs 64 discrete detector and electronics channels over a 40mm detector coverage and reconstructs up to 128-slices per scan rotation.
Unique and clinically valuable capabilities of the View include:
Fujifilm’s Next Generation Vision Model based Iterative Reconstruction capability “Intelli IPV” that can provide dose reduction up to 83% at the same image quality*.
A wider 80cm gantry aperture, a more powerful 84kW generator provides up to 700mA operation.
The advantages of the standard Auto Lateral Shift Table enables ±10cm lateral shift (20cm total shift range) providing easier and more accurate positioning of the patient’s anatomy of interest at the scan Field of View’s iso-center where spatial resolution is better than off-center.
HiMAR Plus metal artifact reduction minimizes objectionable metal induced artifacts.
The View includes XR-25 Dose-Check control and is XR-29 Smart-Dose Compliant, while providing FDA 510(k) Cleared Indication for use for Low-Dose CT lung Cancer Screening.
3D Auto Positioning Camera
3D Camera
Powered by Fujifilm’s REiLI artificial intelligence (AI), our 3D camera technology ensures optimal positioning of the patient within the gantry to acquire the scanogram images. The ceiling-mounted 3D camera recognizes the entire body anatomy. Once the target region is selected, the patient table can move with one button to the precise start and height position and automatically adjust laterally to place the anatomy in the gantry Isocenter. The console displays the 3D camera image, enabling the technologist to plan the CT scanogram with precision and efficiency.
AutoPose
The 3D auto positioning camera combined with the feature called AutoPose enhances scan workflow and dramatically reduces examination time by automating and shortening the operator’s procedure steps. AutoPose, using an automated algorithm, automatically suggests the scan range and dimension based on protocol and patient’s size observed during the scanogram (Scout) scan. The scan plan (box) is automatically positioned on the scanogram for ease and consistent results while minimizing the time for patient setup.
Focus Edition
Innovative Focus Edition advantages.
Continuing Fujifilm’s commitment to innovative healthcare, the SCENARIA View Focus Edition CT platform is uniquely designed with performance advantages to better meet the needs of a wide range of patients and providers. The Focus Edition is an outstanding CT for Radiology, Cardiology and Emergency Departments as well as outpatient locations. It leverages Fujifilm’s more powerful “Focus Engine” image processor and operator console, resulting in valuable benefits beyond our standard SCENARIA View CT Platform:
20% faster workflow, for more patient exams per day
UI update to the Synapse 3D Viewer on the Operator’s Console
Tilted gantry helical scanning feature for faster workflow and improved MPR capability
AI 3D camera and AutoPose for patient positioning for scanogram and planning
Higher level of cardiac CTA capability with “Cardio StillShot” 3D motion correction (optional)

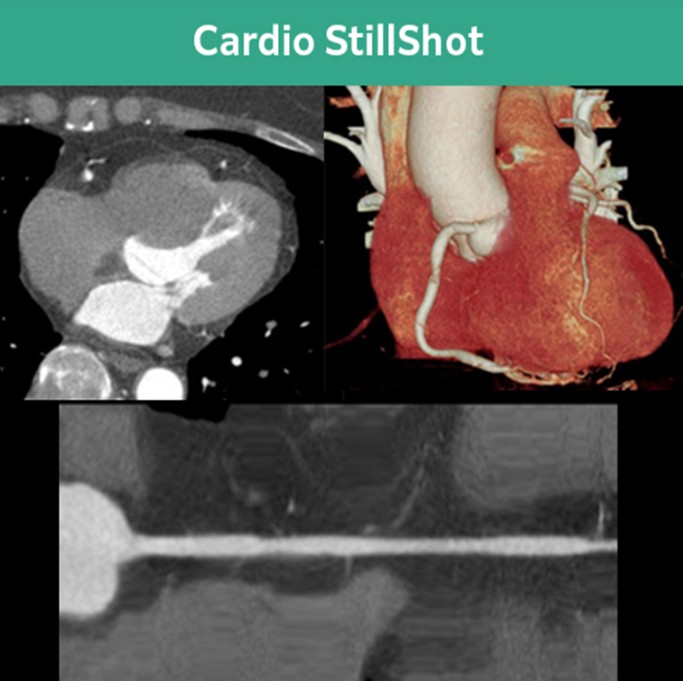

Cardio StillShot
The SCENARIA View Focus Edition’s optional Cardio StillShot software is revolutionary, with a proprietary algorithm that creates clear, high-quality images for even the most challenging heart rates.

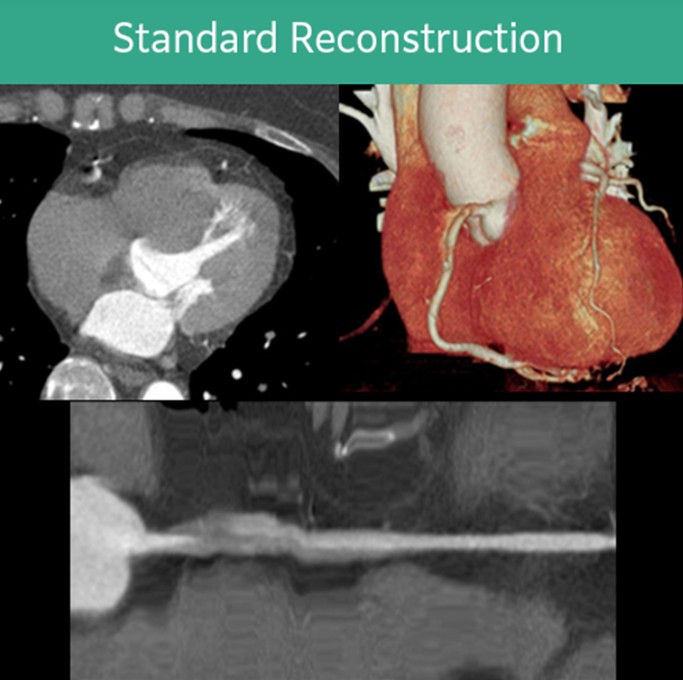

28 msec effective temporal resolution at 0.35 sec gantry rotation speed versus 175 msec native temporal resolution without Cardio StillShot – a 6-fold improvement to freeze cardiac motion
Motion correction for the coronary arteries, entire heart and the valves
Enables more exams to be performed with Prospective Gating versus Retrospective Gating due to lower patient radiation exposure
Enhanced Technologies
The Focus Edition’s enhanced clinical performance is driven by numerous technological advances that Fujifilm has refined to create an outstanding CT System, including:
Intelli IPV – Vision Modeled Iterative Reconstruction
HiVision Detector
HiMAR Plus – Metal Artifact Reduction
Cardio StillShot 3D Motion Correction (optional)
Advanced 3D Visualization Capabilities
AI 3D Camera and AutoPose
The Fujifilm SCENARIA View 128 is a high-performance radiography system that can help improve workflow in radiology departments. This system offers a variety of features and benefits that can help radiologists produce high-quality images more efficiently. In addition, the SCENARIA View 128 has been shown to provide significant improvements in workflow and image quality for radiology departments. If you’re interested in learning more about this system, contact us today. We would be happy to answer any questions you have and tell you more about the ways that the SCENARIA View 128 can benefit your practice.
