Rely on quality data at critical moments in the field or clinic Access results across a range of analytes, including acid-base, lactate, ionized calcium, blood gas, electrolytes and measured hematocrit Review rapid results easily in real time Share results with multiple connectivity solutions that fit your clinic’s needs
Acid-Base, Blood Gas, Chemistry, Electrolyte, Chemistry, Specialty
10.10 x 5.60 x 3.20 in, 25.65 x 14.22 x 8.13 cm (HxWxD) 1.5 lbs, 0.68 kg without battery, 1.9 lbs, 0.86 kg with battery
Comprehensive diagnostics for insights anywhere
Whether you’re in the field or the exam room, the i-STAT® Alinity v portable analyzer enables acid-base, blood gas, electrolyte, chemistry and hematology testing, for quality results in minutes.
无论您是在现场还是在检查室，i-STAT ® Alinity v 便携式分析仪都能在几分钟内进行酸碱、血气、电解质、化学和血液学检测，从而获得高质量的结果。

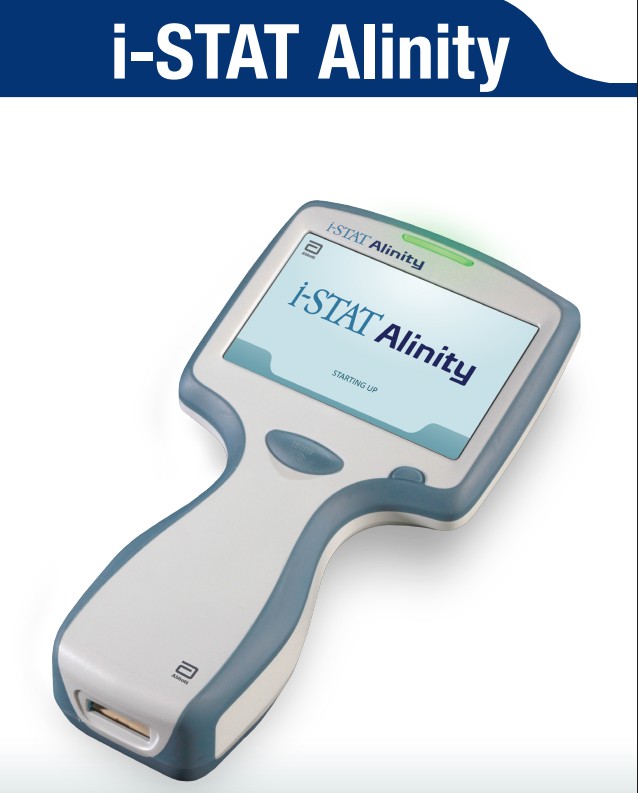

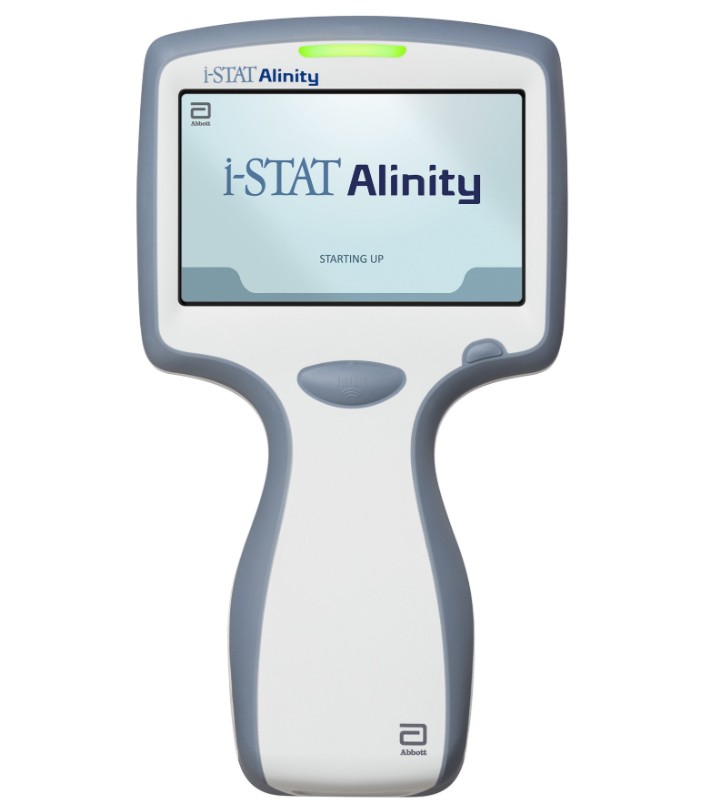

The i-STAT Alinity was built on the proven technology of the i-STAT 1 System, and is an easy-to-use, portable blood analyzer that delivers real-time, lab-quality diagnostic test results

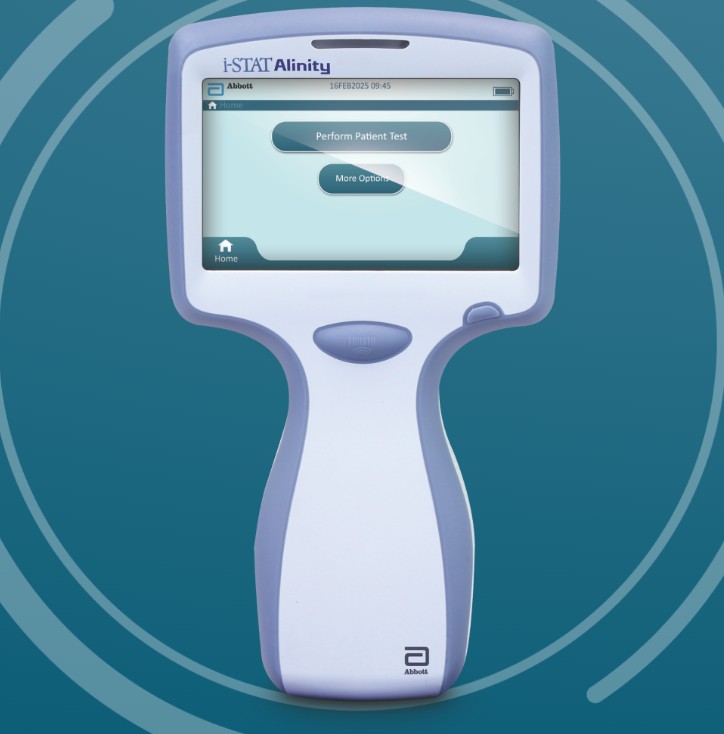

High-resolution color touchscreen and large touchscreen enables simple, intuitive navigation
Ergonomic design makes use balanced, comfortable and secure
Audio, color & light cues signal to operator completion of test results
Robust construction for fast-paced environments; built with materials that can resist damage
High-resolution camera captures 2-D barcodes with picture ID
Rechargeable battery designed to be easy to attach and remove
i-STAT Alinity's infrastructure can be easily integrated into your healthcare's network through wireless or wired connectivity options, lowering administrative burden and helps meet compliance demands
Power: Lithium ion rechargeable battery 3.65 (nominal) VDC, 19.3 Wh
i-STAT Alinity 基于 i-STAT 1 系统的成熟技术打造，是一款易于使用的便携式血液分析仪，可提供实时、实验室级别的诊断测试结果。
高分辨率彩色触摸屏和大尺寸触摸屏可实现简单直观的导航。
符合人体工程学的设计使使用起来平衡、舒适且安全。
音频、颜色和灯光提示向操作员发出测试结果完成的信号
结构坚固，适用于快节奏环境；采用耐损坏材料制成。
高分辨率摄像头拍摄带有图片标识的二维条形码
可充电电池设计便于安装和拆卸。
i-STAT Alinity 的基础设施可通过无线或有线连接选项轻松集成到您的医疗保健网络中，从而降低管理负担并帮助满足合规性要求。
电源：锂离子充电电池，标称电压 3.65 VDC，容量 19.3 Wh
Redefining point-of-care diagnostics
Easy-to-use analysis in the field or patient-side1

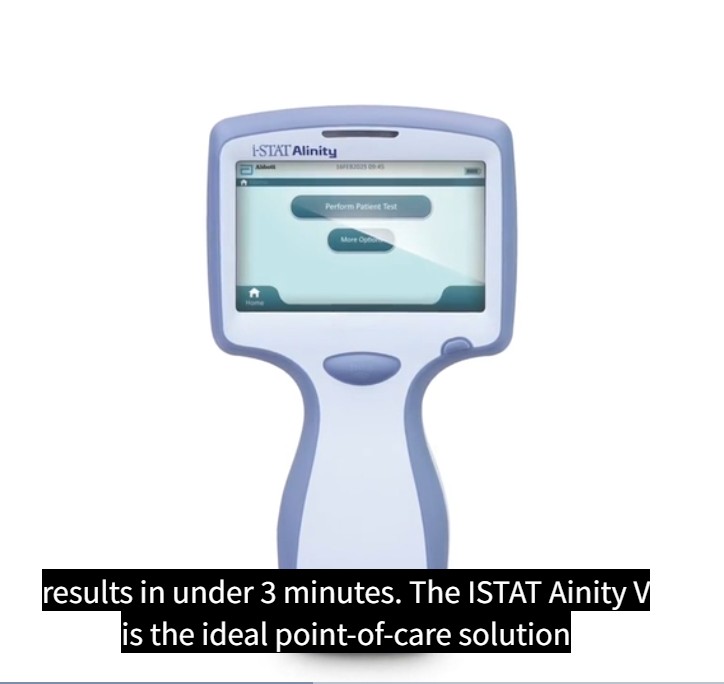

Diagnostic insights in 2-3 minutes for most test runs1
Minimal maintenance and no calibration required for maximum efficiency1
Blood gas and acid-base analysis on a cartridge-based handheld
Comprehensive internal quality control measures1
Intuitive touch screen and on-screen assistance1
易于在现场或患者身边进行的分析1
大多数测试运行可在 2-3 分钟内获得诊断结果¹
维护量极少，无需校准即可达到最高效率¹
基于卡盒式手持设备的血气和酸碱分析
全面的内部质量控制措施1
直观的触摸屏和屏幕辅助功能1
How it works
Rely on quality data at critical moments in the field or clinic
Access results across a range of analytes, including acid-base, lactate, ionized calcium, blood gas, electrolytes and measured hematocrit
Review rapid results easily in real time
Share results with multiple connectivity solutions that fit your clinic’s needs
工作原理
在现场或诊所的关键时刻，要依靠高质量的数据。
获取一系列分析物的检测结果，包括酸碱平衡、乳酸、离子钙、血气、电解质和血细胞比容。
实时轻松查看快速结果
通过多种满足您诊所需求的连接解决方案共享结果
What technology does the i-STAT Alinity v utilize?

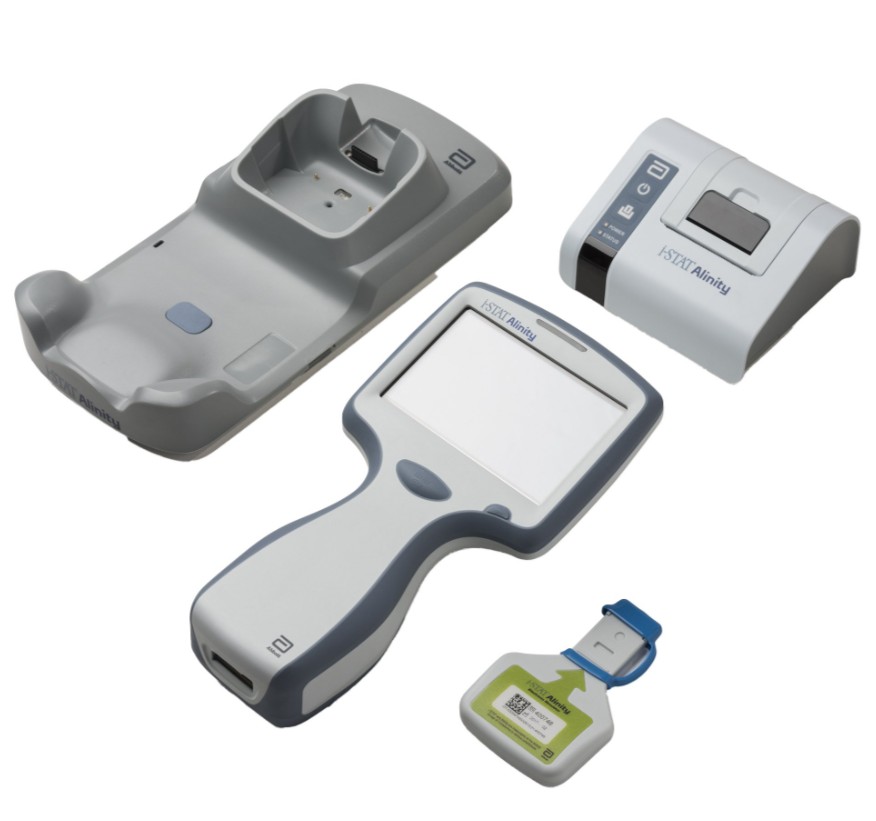

The i-STAT system consists of 3 components: the Alinity v handheld analyzer, a single-use biosensor cartridge, and information software interface. The technology combines silicon chip manufacturing with classic electrochemistry, facilitating the rapid reporting of laboratory parameters.
i-STAT系统由三个组件构成：Alinity v手持式分析仪、一次性生物传感器盒和信息软件界面。该技术结合了硅芯片制造和传统电化学方法，可快速报告实验室参数。
What tests can be run on the i-STAT Alinity v instrument?
The i-STAT Alinity v offers a variety of disposable, single-use cartridges that include analyte combinations for acid-base analysis, blood gases, chemistry, hematology, electrolytes, and some specialty tests like lactate. These cartridges are configured with parameters that can give insight into a patient's condition depending on the clinical situation.
i-STAT Alinity v 提供多种一次性使用的试剂盒，包含用于酸碱分析、血气分析、化学分析、血液学分析、电解质分析以及一些特殊检测（例如乳酸检测）的分析物组合。这些试剂盒配置的参数可根据临床情况提供对患者病情的深入了解。
What type of sample is used for the i-STAT Alinity v?
Whole blood samples only (venous or arterial) without anticoagulant, or whole blood collected into lithium heparin tubes may be used.
仅可使用不含抗凝剂的全血样本（静脉血或动脉血），或收集在锂肝素管中的全血。
What is the shelf life of the i-STAT Alinity v cartridges?
The cartridges are manufactured with 5-11 months shelf life, and shelf life will differ with each cartridge. Refer to the expiration date on the product box for shelf life.
墨盒的保质期为5-11个月，但不同墨盒的保质期可能有所不同。请参考产品包装盒上的有效期。
How do I store the i-STAT Alinity v cartridges?
To maximize shelf life, store all i-STAT test cartridges in the refrigerator at 35°-46°F. Once removed from the refrigerator, cartridges can be stored at room temperature (64°-86 °F) for up to 2 weeks – refer to cartridge box for additional information. Once a cartridge has been warmed to room temperature, do not return it to the refrigerator.
为最大限度延长保质期，请将所有 i-STAT 测试盒储存在 35°F 至 46°F (2°C 至 8°C) 的冰箱中。从冰箱取出后，测试盒可在室温 (64°F 至 86°F) 下保存长达 2 周——更多信息请参阅测试盒包装盒。测试盒一旦恢复至室温，请勿将其放回冰箱。
What species does the i-STAT Alinity v have reference ranges for?
Canine, feline, and equine.
犬科动物、猫科动物和马科动物。
Which analytes on the i-STAT Alinity V system are measured and which are calculated?
Measured: hematocrit (Hct), blood urea nitrogen (BUN), creatinine (Crea), ionized calcium (iCa), glucose (Glu), chloride (Cl), sodium (Na), potassium (K), pH, partial pressure of carbon dioxide (pCO2), partial pressure of oxygen (pO2), and lactate.
Calculated: hemoglobin (Hb), bicarbonate (HCO3), total carbon dioxide (tCO2)*, oxygen saturation (sO2), anion gap (AnGap), and base excess (BE).
*tCO2 is a measured analyte on the CHEM8+ cartridge and a calculated value on the CG4+ and CG8+ cartridges
测量指标：血细胞比容（Hct）、血尿素氮（BUN）、肌酐（Crea）、离子钙（iCa）、葡萄糖（Glu）、氯（Cl）、钠（Na）、钾（K）、pH值、二氧化碳分压（pCO2）、氧分压（pO2）和乳酸。
计算值：血红蛋白 (Hb)、碳酸氢盐 (HCO3)、总二氧化碳 (tCO2)*、氧饱和度 (sO2)、阴离子间隙 (AnGap) 和碱剩余 (BE)。
*在 CHEM8+ 试剂盒上，tCO2 是可测量的分析物；而在 CG4+ 和 CG8+ 试剂盒上，tCO2 是计算值。
Does the i-STAT Alinity v require calibration or quality controls?
No. Before running a test, each cartridge initiates a series of pre‑set internal quality control diagnostics, from monitoring the quality of the sample to validating the reagent.
不。在进行测试之前，每个试剂盒都会启动一系列预设的内部质量控制诊断，从监控样品质量到验证试剂。
Do the i-STAT Alinity v cartridges require warm-up before use?
If stored in the refrigerator, allow to warm to room temperature before running a test or adding sample. This is typically ~5 minutes for one cartridge and up to 60 minutes for a box of cartridges.
如果试剂盒存放在冰箱中，请在进行测试或添加样品前使其恢复至室温。通常单个试剂盒需要约 5 分钟，一盒试剂盒最多需要 60 分钟。
Why does the i-STAT Alinity v have software updates?
New software incorporates refinements to the internal quality monitoring system and allows the i-STAT Alinity v to recognize any newly launched cartridge types and to perform any newly launched features.
新软件对内部质量监控系统进行了改进，使 i-STAT Alinity v 能够识别任何新推出的墨盒类型并执行任何新推出的功能。
Does the i-STAT Alinity v require a lot of maintenance?
The only maintenance required for the i-STAT Alinity v is a software update twice a year.
i-STAT Alinity v 唯一需要的维护是每年两次软件更新。
How much blood is required to run a i-STAT Alinity V cartridge?
17-95 µL, depending on the cartridge used.
根据所用试剂盒的不同，用量为 17-95 微升。
If the i-STAT Alinity v analyzer is exposed to extreme heat or cold, will it still producereliable results?
The operating temperature for i-STAT cartridge testing is 61°-86°F. If it is out of this range, please take proper steps to get the analyzer back into this temperature before running a test.
Note: The i-STAT Alinity v analyzer will display an alert if the analyzer is outside of operating temperature.
i-STAT 试剂盒测试的工作温度为 61°F 至 86°F。如果温度超出此范围，请采取适当措施将分析仪的温度恢复到此范围后再进行测试。
注意：如果 i-STAT Alinity v 分析仪超出工作温度范围，则会显示警报。
