49.5 µm 内窥镜模式，具有最高分辨率 多视场选择 绿色扫描时间 人工智能驱动的自动分割 核心部件享有长达 10 年的保修期 包括传感器和发电机长达 10 年的保修
4×4、5×5、8×5、8×8、12×9、16×9厘米
14 Bit
Green16 is an advanced 4-in-1 digital X-ray imaging system that incorporates PANO, CEPH, CBCT and MODEL Scan. It provides high quality images with lower radiation by combining imaging processing and accumulated experience in dental imaging from VATECH. This will improve your diagnostic accuracy with increased treatment planning and patient satisfaction.
Green X™ 16
The highest resolution CBCT on the market
49.5 µm Endo Mode with the highest resolution
Multi-Fov Selection
Green Scan Time
AI-powered automatic segmentation
up to 10 Years of Warranty on core parts
including up to 10-Year Warranty on Sensor & Generator
Green16 是一款先进的四合一数字 X 光成像系统，集成了全景 X 光 (PANO)、头颅侧位 X 光 (CEPH)、锥形束 CT (CBCT) 和模型扫描功能。它结合了 VATECH 的图像处理技术和在牙科成像领域积累的丰富经验，能够以更低的辐射剂量提供高质量的图像。这将有助于提高诊断准确性，优化治疗方案，并提升患者满意度。
四合一数字[全景/头颅侧位/锥形束CT/模型]
多视场选择
绿色扫描时间
低剂量高画质
艺术-V
用于模型的 3D 扫描

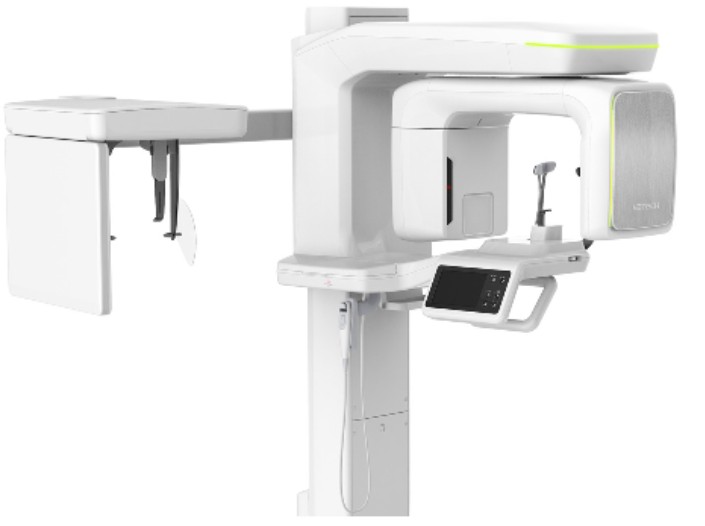

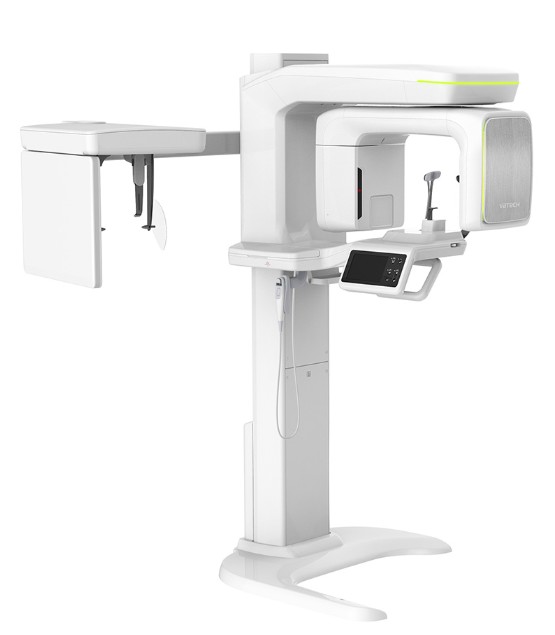

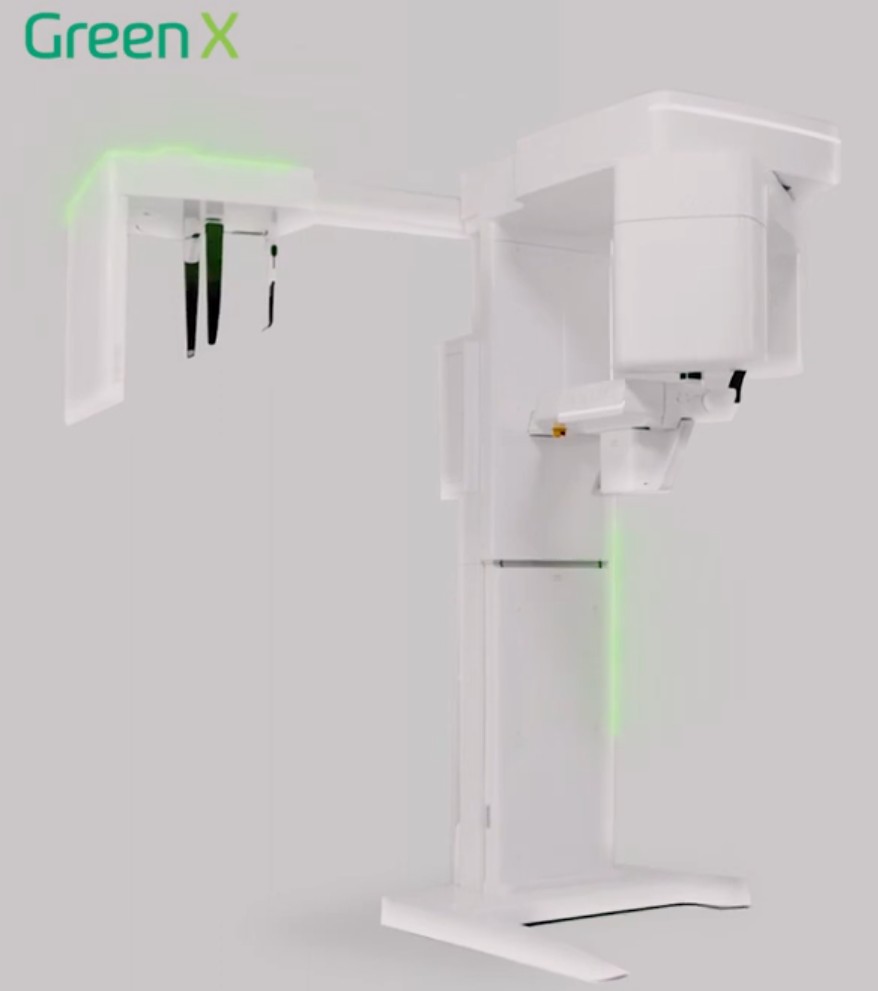

Green X 16 is an advanced 4-in-1 digital x-ray Imaging system that Incorporates Pano, Ceph {optional}, CBCT, and Model Scan. With VATECH’s extensive experience in the dental imaging field, the Green X 16 provides high-quality Images with lower radiation by combining image processing.
四合一数字
X光成像系统 [全景/头颅侧位/锥形束CT/模型] Green 16 是一款先进的四合一数字X光成像系统，集全景、头颅侧位、锥形束CT和模型扫描功能于一体。它结合了Vatech公司在牙科成像领域积累的图像处理经验和专业知识，能够以更低的辐射剂量提供高质量的图像。这将有助于提高诊断准确性，优化治疗方案，并提升患者满意度。
Green Scan Time
Due to its scan time, the Green X 16 minimizes motion artifact and enables faster workflow.
It produces superb diagnostic images, which will be a source of pride for any dental practice.
Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.
多视野选择

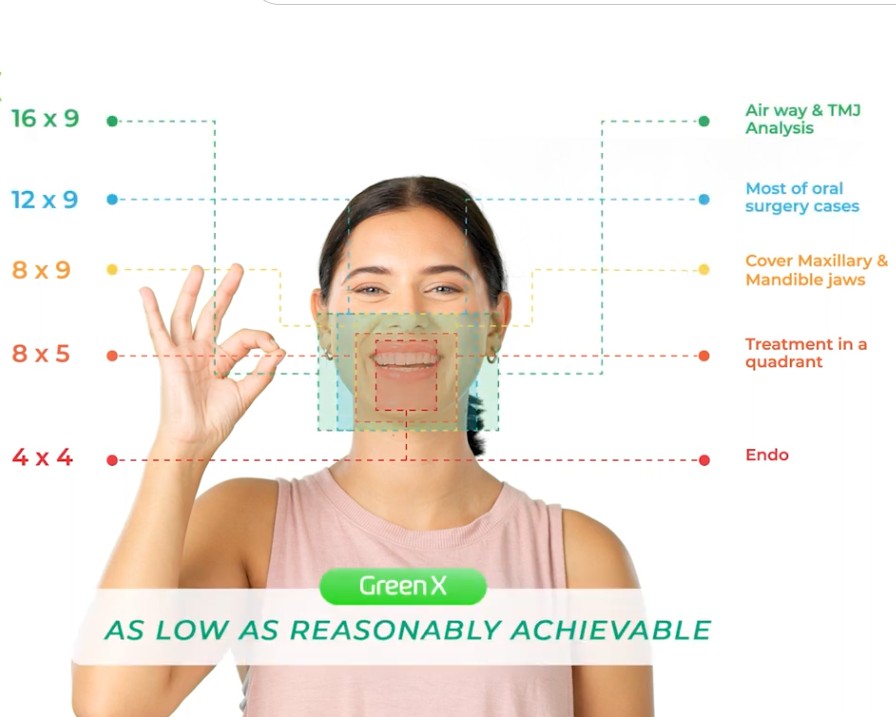

Green 16 提供多种可选视野。多视野功能使用户能够选择最佳视野模式，并最大限度地减少对非目标区域的曝光。根据具体的诊断需求，可在 18×10、16×9、13×10、12×9、8×9 和 5×5 等视野尺寸中选择合适的视野。它覆盖整个牙弓区域、鼻窦以及左右颞下颌关节，适用于大多数口腔外科手术以及多颗种植牙手术。
Use AI to work with Green X 16

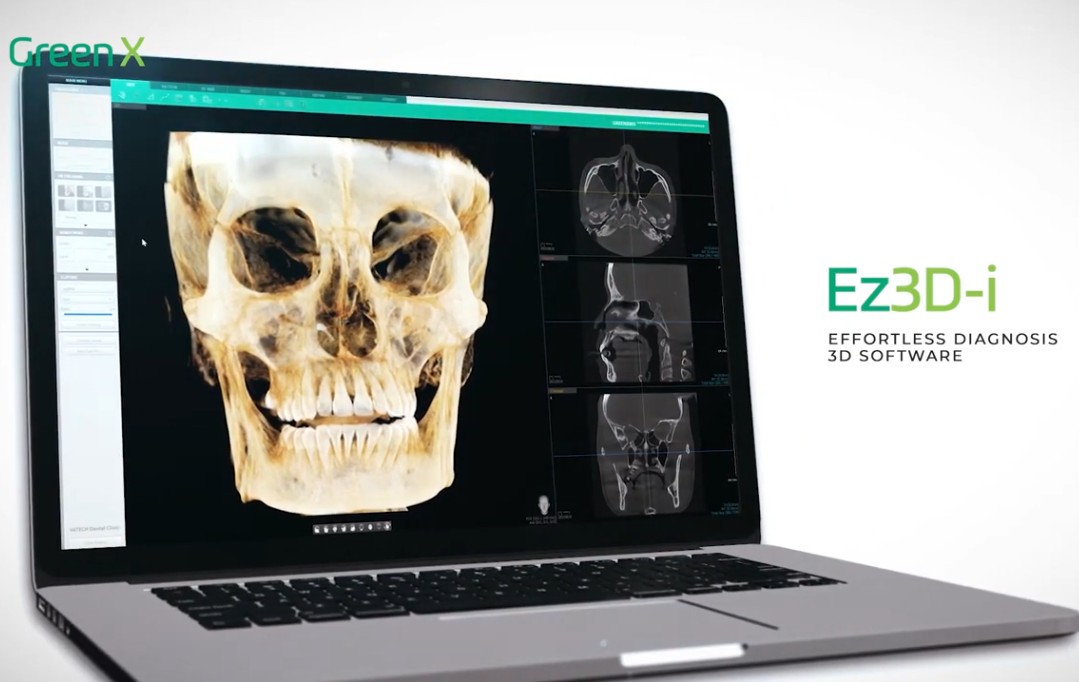

In today’s rapidly evolving dental field, AI is reshaping how professionals diagnose and plan treatments — and Vatech’s Ez3D-i software puts that power to work, enhancing speed, precision, and clinical confidence.

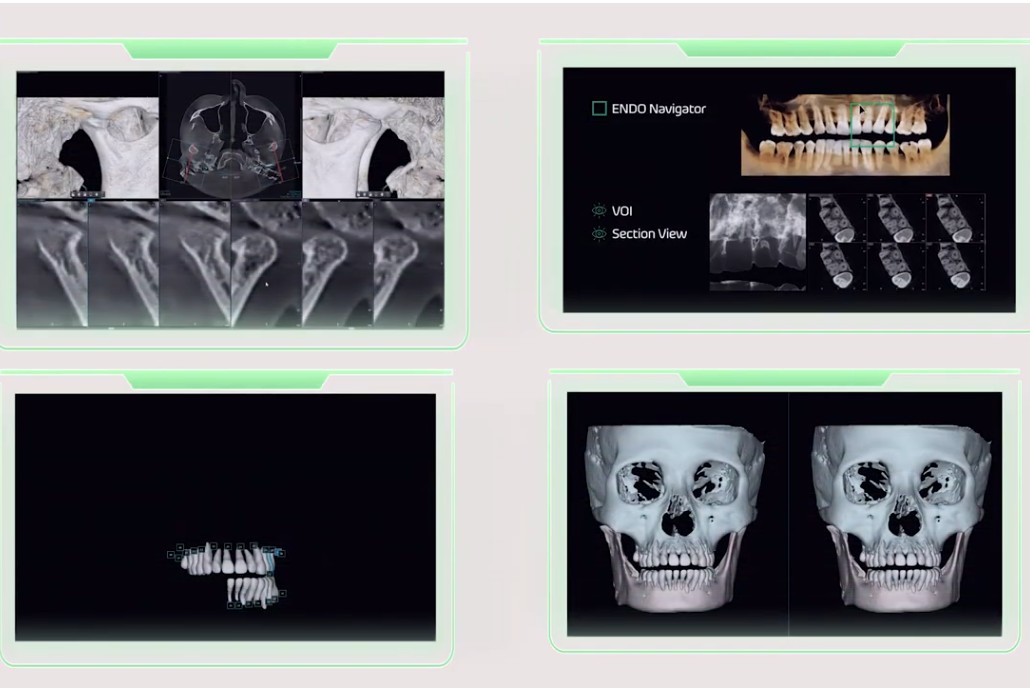

Featuring AI-driven tools like automatic anatomical segmentation, intuitive two-click root canal tracing with precise length and diameter measurements for Endo procedures, and smart implant planning with crown mirroring, Ez3D-i helps doctors work more efficiently and deliver better patient outcomes.
Discover how AI in Ez3D-i can transform your workflow and elevate patient care.
具有 3D 图像的专业诊断价值
Green 16 提供从 5X5 到 16X9 的多 FOV 尺寸，为专业人士提供更高的诊断价值。
FOV 5X5： 5X5 图像可用于特定区域的诊断，同时最大限度地减少患者的 X 射线暴露量。它尤其能够通过精确检查根管的数量和异常根管形状（如 C 形）来提高根管诊断的准确性，而这些是使用 2D X 射线系统难以检查的。
Green X 16 Specifications
| Function (Device Type) | 4 in 1: Pano + CBCT + Ceph + Model scan |
| Voxel size | 0.049 mm - 0.3 mm |
| Focal Spot Size | 0,5mm |
| FOV size without stitching | 4 × 4, 5 × 5, 8 × 5, 8 × 8, 12 × 9, 16 × 9 cm |
| FOV Double Scan | 16 x 15 cm |
| Upgrade to Ceph | Yes |
| Exposure Time | Pano: 3.9 – 14.1 sec Ceph: 1.9 – 3.9 sec CBCT: 2.9 – 18 sec |
| Dynamic range | 14 bit |
| Panoramic type | Pano + Magic Pan + Insight Pan with free FOV |
| Patient position | Standing, seated, wheelchair, face to face positioning |
| Dimension | 1085.0(L)×1343.5(W)×2345.4(H) mm |
| Weight | 240 Kg |
| SW | EzDent-i / Ez3D-i / EzOrtho |
FOV 8X9: 8X9 images enable comprehensive diagnosis and treatment planning including both maxillary and mandibular areas in a single scan. It is useful for complex implant surgery as well as left or right TMJ diagnosis.
8x9视野： 8x9图像可在一次扫描中同时显示上颌和下颌区域的全面诊断和治疗方案。它适用于复杂的种植牙手术以及左侧或右侧颞下颌关节的诊断。
FOV 12X9: 12X9 images can provide the most optimal information for oral diagnosis fully covering both maxillary and mandibular structures including the 3rd molar region in a single scan. It is suitable for most oral surgery cases as well as multiple implant surgery.
12×9视野： 12×9视野的图像能够提供最佳的口腔诊断信息，一次扫描即可完整覆盖上颌和下颌结构，包括第三磨牙区域。它适用于大多数口腔外科手术以及多颗种植牙手术。
FOV 16X9: 16×9 images from Green 16 enable you to do a comprehensive diagnosis including oral and maxillofacial surgery, helpful for complex orthognathic, implant, and orthodontic surgery.
FOV 16X9： Green 16 的 16×9 图像可让您进行全面的诊断，包括口腔颌面外科手术，有助于复杂的正颌、种植和正畸手术。
PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES
Green 16 provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.
MAGIC PAN: Creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).
NORMAL PAN: Focused image is reorganised throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.
全景影像的专业诊断价值：
Green 16 提供最精准、最高质量的全景影像。清晰锐利的全景影像带来更佳的诊断效果，尤其能清晰呈现前牙和牙根的细节。这些始终如一的高质量影像将成为全景成像的新标准。
魔力全景：生成更出色的全景图像。它是通过消除因患者体位不当造成的图像失真和模糊而获得的（可选）。
正常全景成像：对整个牙弓进行聚焦图像重新组织，图像质量得以提高。尤其在切牙和尖牙区域、颞下颌关节区域和根管内，图像更加清晰。
PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES

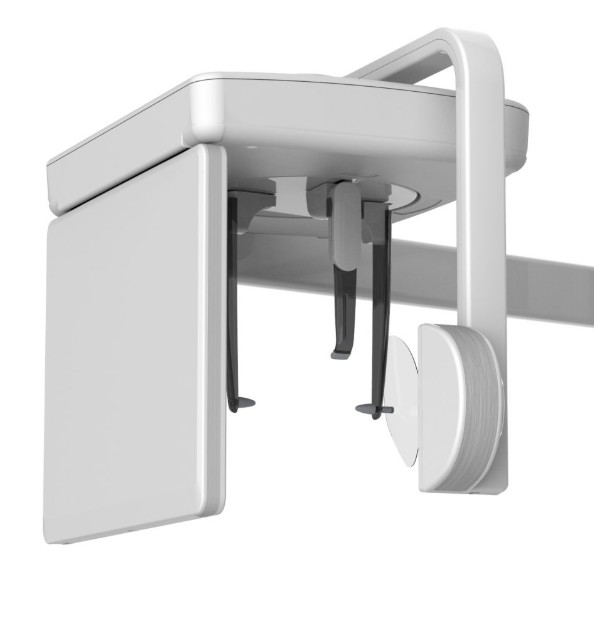

Green 16 provides optimal images with an exclusively designed sensor for cephalometric diagnosis.
SCAN TYPE CEPHALOMETRIC: Offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs. Full lateral gives 30% larger high quality images and the occipital orthodontics and maxillofacial surgeries’ area of the patient for comprehensive diagnosis.
Green 16 采用专为头颅测量诊断设计的传感器，提供专业的诊断价值，可生成最佳图像。
扫描类型：头颅测量扫描。提供两种图像尺寸，侧位片和全侧位片，您可以根据诊断需求选择其中一种。全侧位片可提供比侧位片大30%的高质量图像，并能更全面地显示患者的枕骨区域，适用于正畸和颌面外科手术。
