Advanced image quality Expanded therapeutic solution Efficient workflow
Fujifilm ELUXEO 7000 6000 8000 Endoscopy System Video Endoscope
Fujifilm ELUXEO, ELUXEO 7000, ELUXEO 6000, ELUXEO 8000, Fujifilm Endoscopy
ndoscopy System (内窥镜系统),
Video Endoscope System (电子内窥镜系统),
Gastroscope (胃镜),
Colonoscope (肠镜),
Medical Endoscope Machine (医疗内窥镜机)
4-LED Light Source (4-LED光源),
BLI LCI Endoscopy (蓝光/联动成像内窥镜),
Video Processor (图像处理器),
Gastrointestinal Endoscope (胃肠镜),
Flexible Endoscope (软式内窥镜)
WORKFLOW MANAGEMENT - ELUXEO® 8000 ENDOSCOPY SYSTEM
With a focus on workflow efficiency, the ELUXEO® 8000 is designed to support physicians with a simpler, more productive, day-to-day clinical workflow. The workflow management tools included in the new solution aim to deliver improved usability with connected systems and data integration. For example, during procedures, this could mean preventing accidental double insufflation of air and CO2** or enabling water irrigation with the touch of a button.
OPERATION VIA TOUCHSCREEN TABLET - ELUXEO® 8000 ENDOSCOPY SYSTEM

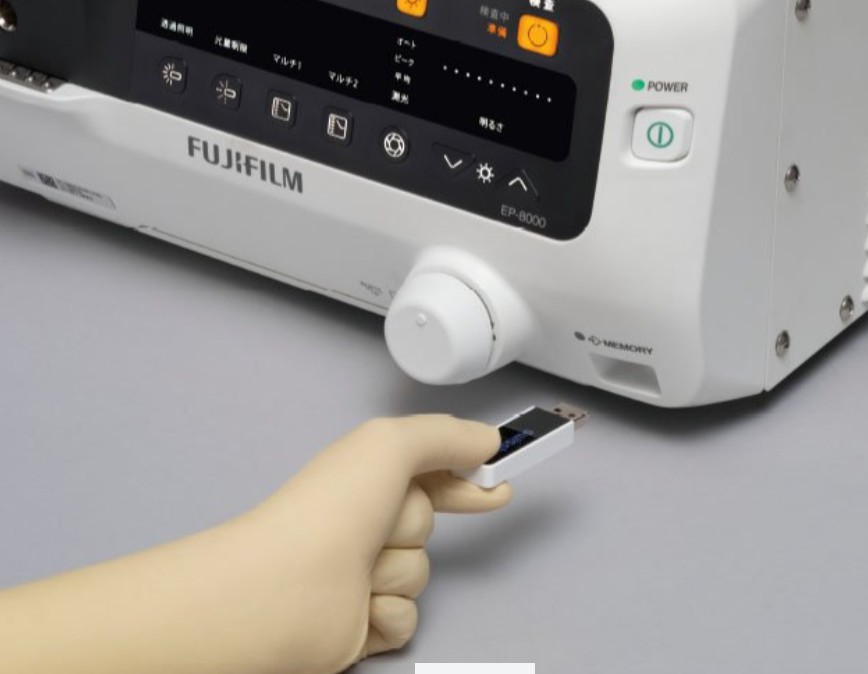

A striking new addition in this release is an optional 15-inch touch screen tablet with a user-friendly interface designed to enable a more intuitive way of operating the processor. Using this solution, physicians can record DICOM-compatible images and videos for documentation purposes. Continued development for this product has been planned by FUJIFILM to further enhance connectivity and the ability to collate intelligent information.
Together with our latest CMOS sensor and 4K output, the combination of ELUXEO® 8000 with our newly released 800 series endoscopes, achieves our cleanest and brightest endoscopic image yet.

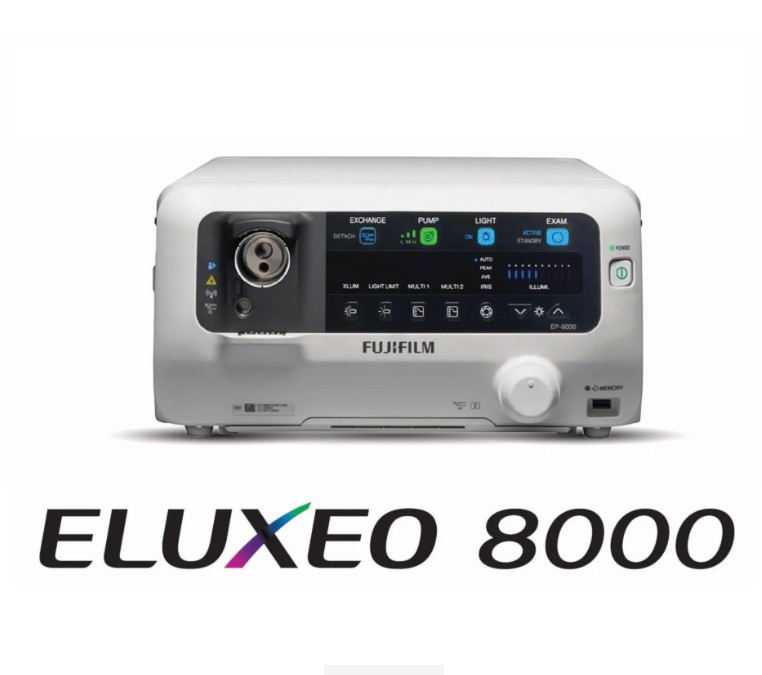

Welcome, Future. ELUXEO® 8000 Endoscopy System. FUJIFILM Welcomes New Era of Possibility for Endoscopy.
ELUXEO® 8000 is the new advanced endoscopy system with new therapeutic capabilities, workflow management and improved image quality.
This is the first of an entire series of new and upcoming innovations to be released under the WELCOME, FUTURE initiative.
To achieve high image quality standards, the ELUXEO® 8000 system features the LED Multi Light source. Now 4K ready, the EP-8000 system is installed with a 12G-SDI output, providing the possibility of 4K video quality. Its enhanced linkage and expandability with various peripherals and systems support easy operation and efficient workflow management.

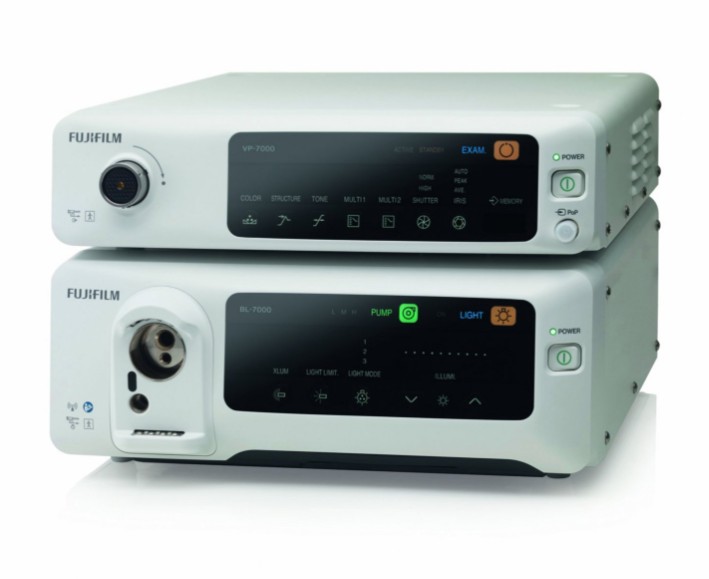

ELUXEO™ 7000

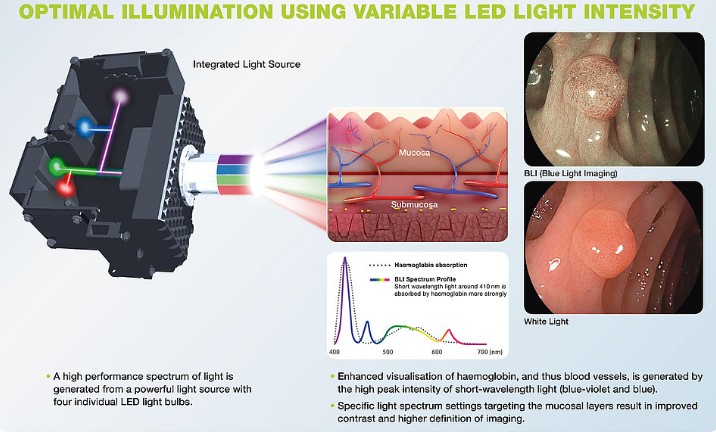

Fujifilm’s innovative 4-LED Multi Light™ technology supports advancing the standards of endoscopic imaging. Equipped with the new BLI observation mode.
The eco-friendly ELUXEO™ 7000 system features the innovative 4-LED Multi Light™ source, which is outstanding in terms of longevity and low energy consumption. The new LED light source reduces time-consuming and frequent changes of light bulbs.
The ELUXEO™ video processor VP-7000 enables you to make use of the many features provided by Fujifilm’s wide range of endoscopes along with the innovative 4-LED Multi Light™ system and its innovative visualisation modes BLI and LCI. It is also compatible with the 600 and 500 series of scopes. The processor creates high quality images and videos displayed in full HD. An automatic back-up mode for data storage is integrated and the processor is also DICOM compatible.
VP-7000
The ELUXEO™ video processor VP-7000 enables you to make use of the many features provided by Fujifilm’s wide range of endoscopes along with the innovative 4-LED Multi Light™ system and its innovative visualisation modes LCI and BLI. It is also compatible with the 600 and 500 series of scopes. The processor creates high quality images and videos displayed in full HD. An automatic back-up mode for data storage is integrated and the processor is also DICOM compatible.
| Current consumption | 0.8-0.5A |
| Type of color | NTSC/PAL |
| Video output | DVI (Resolution: 1280x1024 pixels, 1920x1080 pixels) HD-SDI (Resolution: 1920x1080 pixels) |
| Iris mode | AUTO/PEAK/AVE |
| Image zoom | Electronic zoom x1.00 to x2.00 (0.05 steps) |
| Compatible endoscopes1 | 700, 600, and 500 Series Endoscopes |
| Dimensions(W x H x D) | 15.4” x 4.3” x 19.1” (including projection) |
| Power | 100-240V, 50/60Hz |

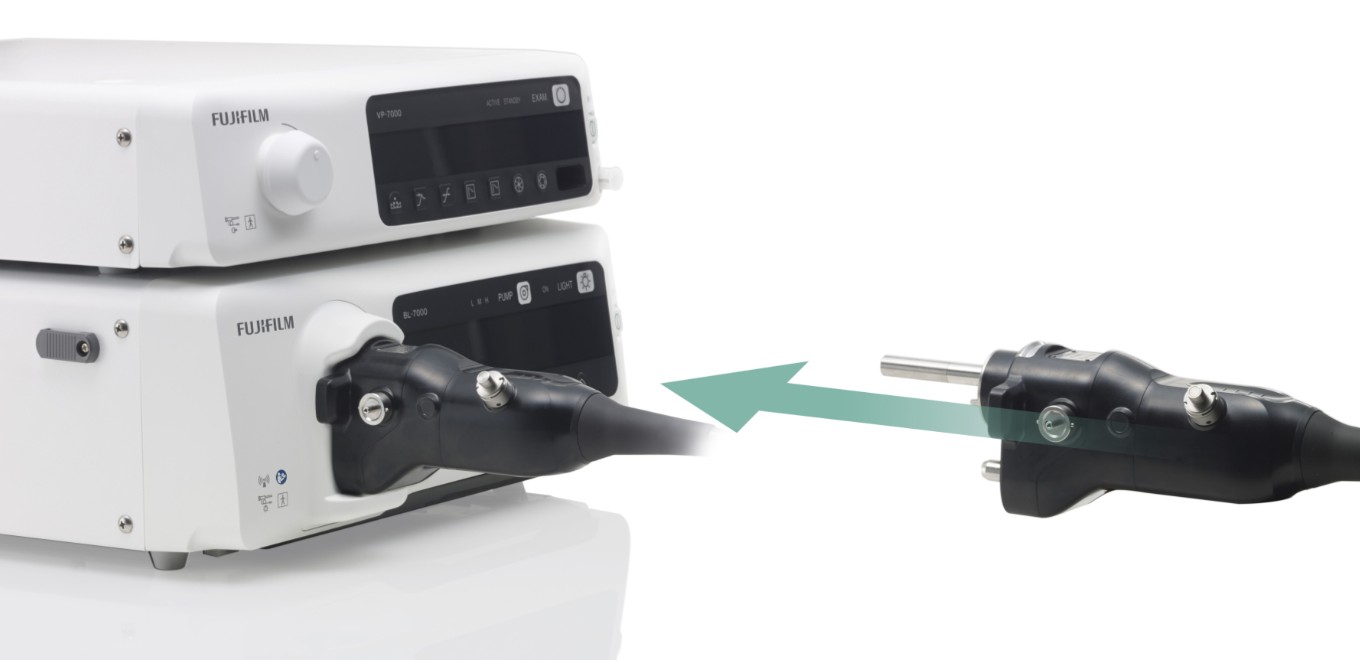

BL-7000
To achieve the highest standard, the eco-friendly ELUXEO™ 7000 system features the innovative 4-LED Multi Light™ source, which is outstanding in terms of longevity and low energy consumption. The new LED light source reduces time-consuming and frequent changes of light bulbs. The average life expectancy of LED lamps is 10,000 hours (Based on Fujifilm’s recommended conditions).
| Current consumption | 1.2-0.7A |
| Air supply pump | HI/MID/LOW/OFF |
| Light cooling method | Forced air cooling |
| Maximum air/water supply pressure | 65 kPa |
| Image zoom | Electronic zoom x1.00 to x2.00 (0.05 steps) |
| Compatible endoscopes1 | 700, 600, and 500 Series Endoscopes |
| Dimensions (W x H x D) | 15.4” x 6.1” x 19.1” (including projection) |
| Illumination type | LEDs |

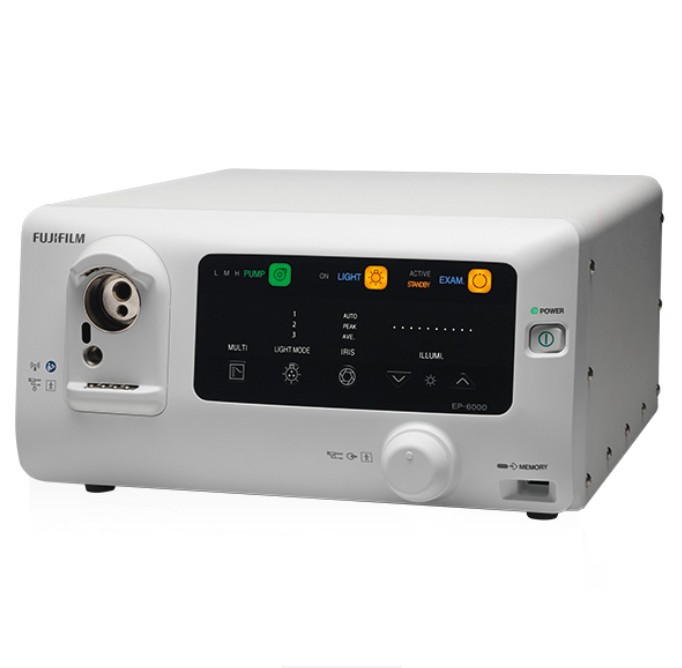

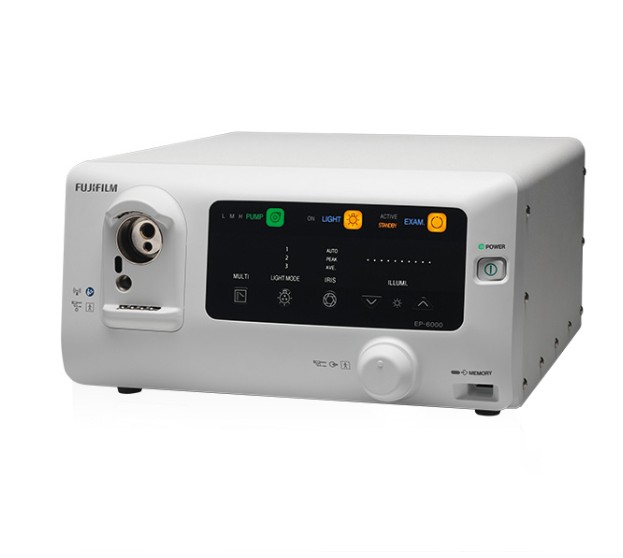

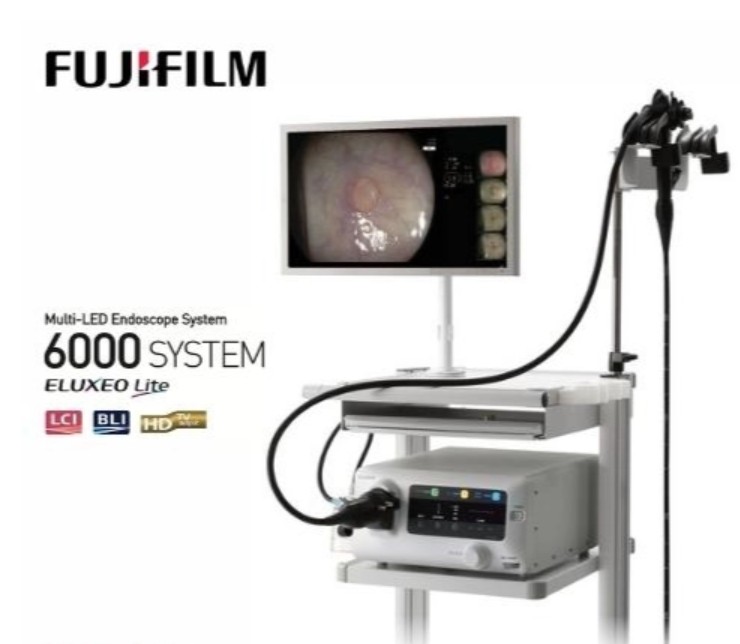

ELUXEO™ Lite 6000

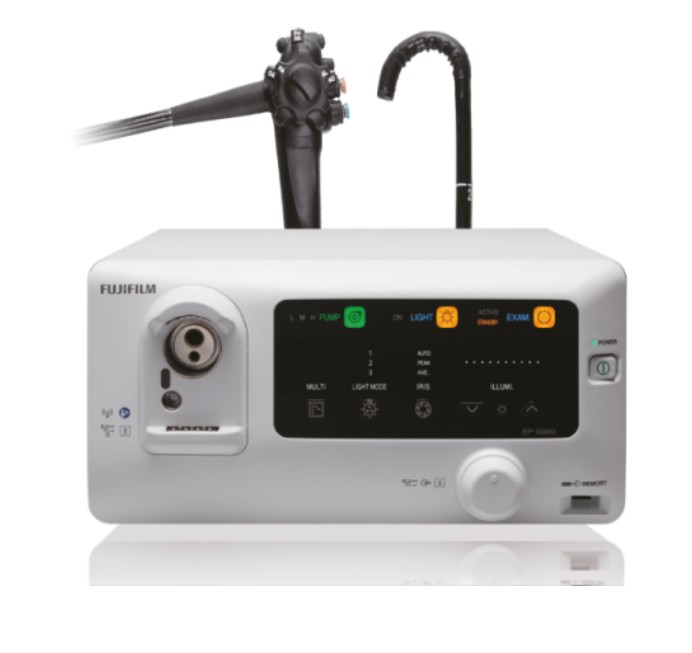

The ELUXEO™ Lite EP-6000 combines a reliable 3-LED light source with a processor that enables you to make use of the many features provided by Fujifilm’s wide range of scopes. Combined with the 700 series the innovative visualisation modes LCI (Linked Colour Imaging) and BLI (Blue Light Imaging) are available. Due to the use of economical LED lamps with a long durability this system is very eco-friendly. It is also compatible with the 600 and 500 series of scopes.
The ELUXEO™ Lite EP-6000 creates quality images and videos displayed in full HD on the monitor. Automatic back-up mode for data storage is integrated and the processor is also DICOM compatible.
| Light source | 3 LED |
| Internal memory | 4G |
| Air supply pump | High, Mid, Low, Off |
| External memory | USB Flash Drive |
| Compatible scopes | 760, 740, 720, 600, 580, 530 series* |
| Power rating | 100-240 V - 50/60 Hz - 2.0-1.1 A |
| Output | DVI-D x2, RGB-TV x1, S VIDEO x1, VIDEO x1 |
| Dimensions (w x h x d) | 395 x 210 x 485 mm (including projection) |
| Weight | 15 Kg |
| Optical radiation safety | Class 1 LED product |
