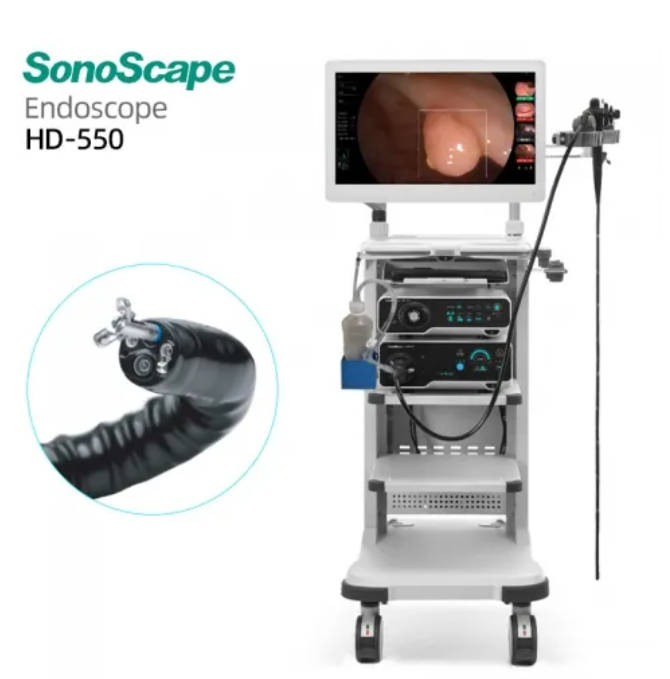

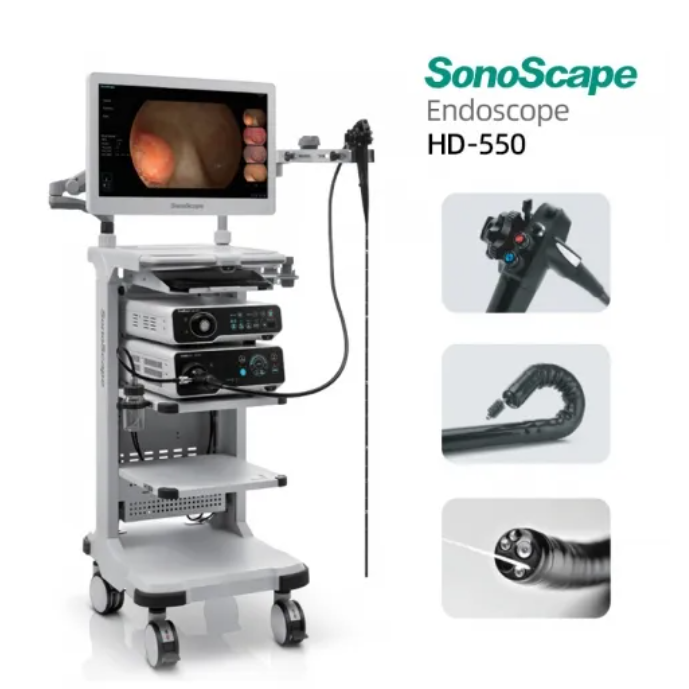

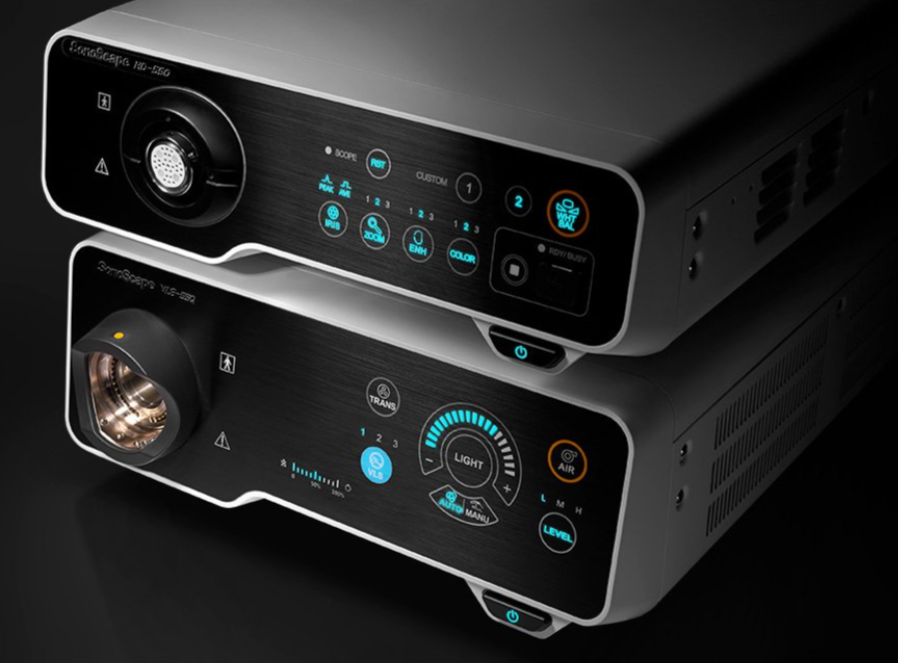

The SonoScape HD-550 is a high-definition medical videoscope system designed for comprehensive and cost-effective video endoscopy procedures. This system incorporates advanced technology to provide clear vision, enhanced image performance, and an efficient workflow for medical professionals.
The HD-550 processor has been developed to excel in a variety of routine and complex procedures, offering versatility and ease of use.
SonoScape HD-550
SonoScape HD550
HD-550 Endoscopy
SonoScape Video Endoscope
SonoScape HD-550 Price
SonoScape Gastroscope
Application
Video Endoscopy System (视频内窥镜系统)
Flexible Video Endoscope (软式视频内窥镜)
High Definition Endoscopy System (高清内窥镜系统)
Gastrointestinal Endoscope System (消化内窥镜系统)
Medical Endoscopy Equipment (医用内窥镜设备)
Key Features
Boosted Image Performance: Features a 4-LED light source enabling multi-spectrum and multi-mode imaging. It supports 1080p resolution for detailed visuals.

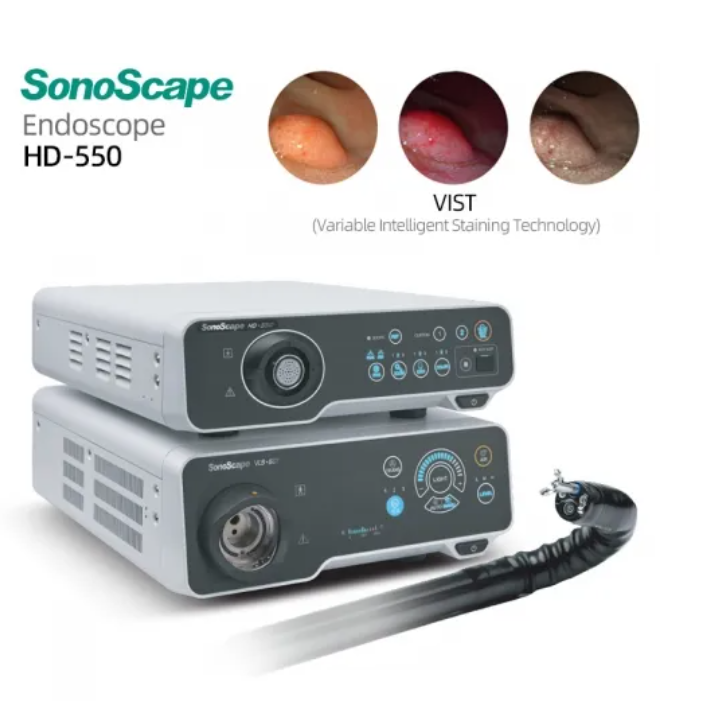

Versatile VIST Multimode: Incorporates Versatile Intelligent Staining Technology (VIST) which is interchangeable with a single button press, offering enhanced visualization without noticeable delay.
Extended LED Lifespan: The 4-LED light source is designed for an extended operational life, reducing the frequency of replacements.

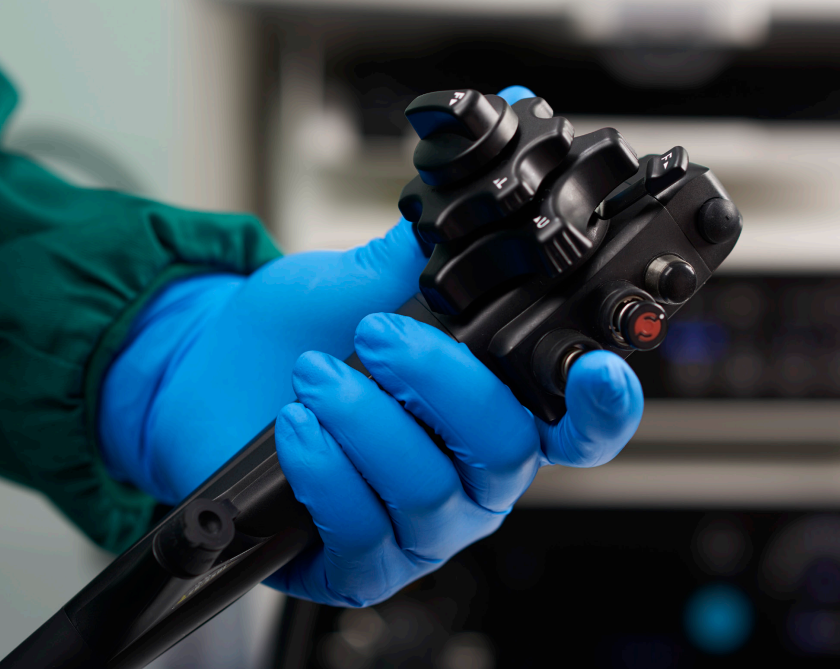

Ergonomic Design: The 550 series scopes are designed with a lightweight handle for improved comfort and ease during procedures.
Fulfilling Visual Field: Advanced anti-fog capabilities and optimized illumination ensure a clear and consistent view.
Ingenious Control: Features one-button control and a water jet function to minimize the risk of damage from manipulation.
Integrated Workflow: An integrated workstation with a 500GB hard drive allows for patient data access, image/video capture and recording, and report generation without additional software.

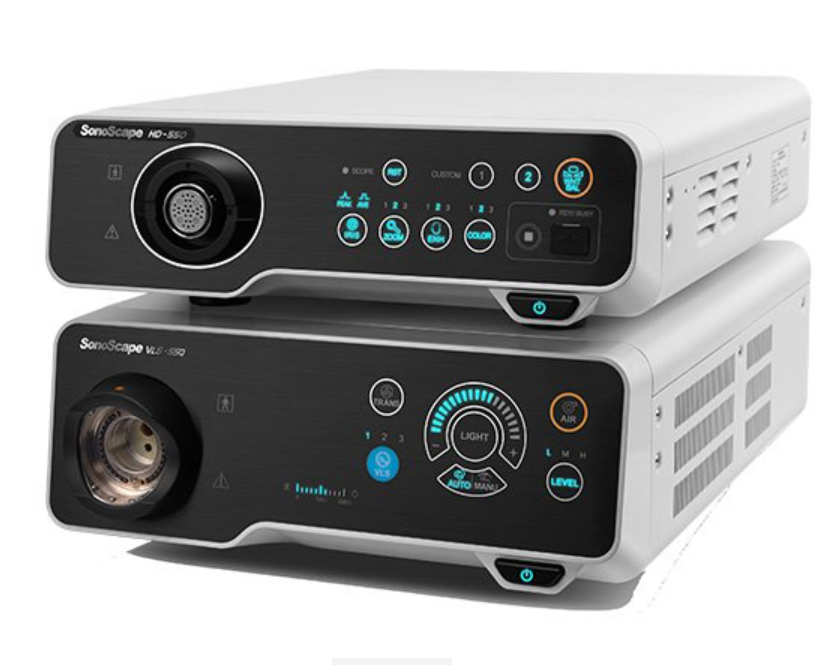

Mount Units: Securely place the HD-550 processor and HDL-500X light source unit onto the designated shelves of the mobile cart. Ensure proper ventilation around both units.
Connect Power: Connect the power cables to the HD-550 processor and HDL-500X light source, then plug them into a grounded power outlet.
Connect Monitor: Connect the monitor to the HD-550 processor using the appropriate video output cable (SDI, DVI, VGA, or S-Video).

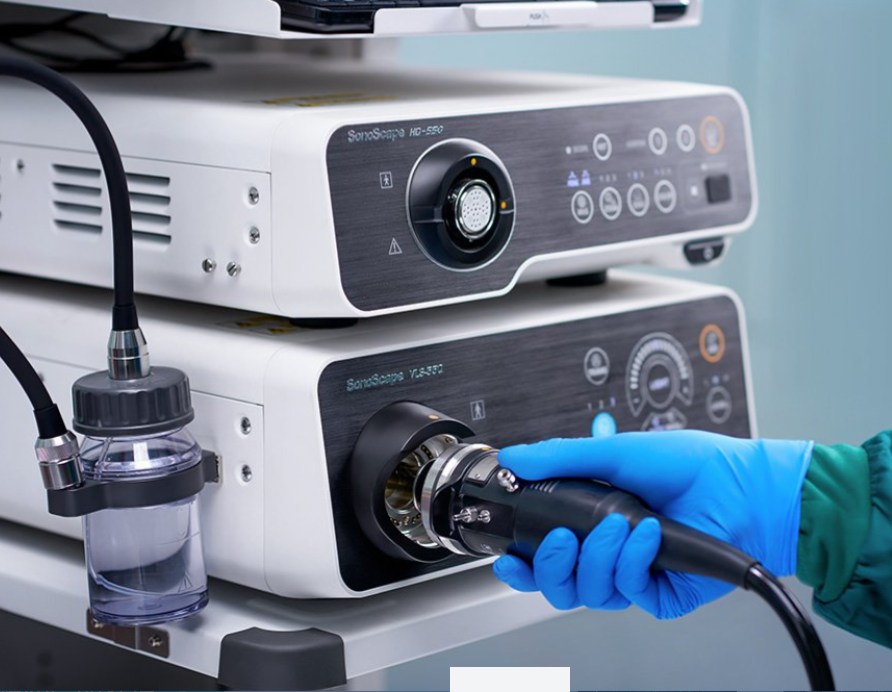

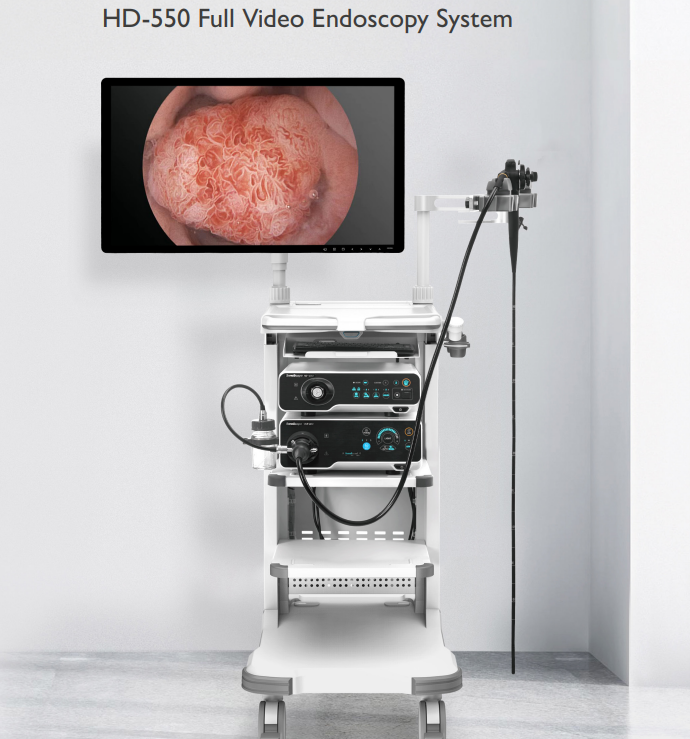

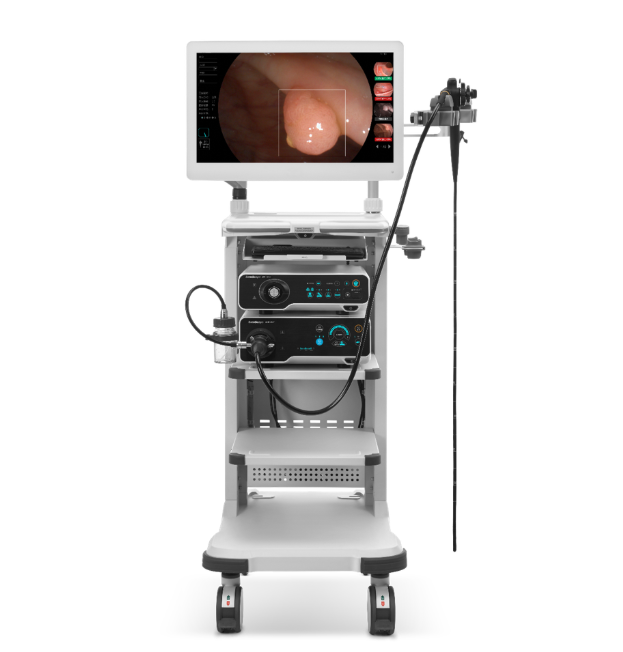

Connect Endoscope: Attach the endoscope to the HD-550 processor and the HDL-500X light source unit. Ensure the connection is secure and properly aligned. Refer to Figure 2 for a visual representation of the system setup.
Image Mode Selection
The HD-550 offers various imaging modes for different diagnostic needs:
White Light Mode: The default mode for general observation, providing highly illuminated and true-color images.
SFI Mode (Spectral Focused Imaging): A normal focus mode with enhanced vascular color, suitable for routine examinations.
VIST Mode (Versatile Intelligent Staining Technology): A boosted focus mode with increased mucosal detail, assisting in the characterization of lesions.
Switch between these modes using the dedicated buttons on the control panel (refer to Figure 4).
Image Adjustment and Control
Zoom: Use the zoom controls to magnify or reduce the image on the screen.
Color Adjustment: Adjust red and blue color levels in 12 steps, with +/-15 levels of adjustment.
White Balance: Perform auto or manual white balance calibration for accurate color representation.
Image Enhancement: Utilize auto/manual image enhancement and edge enhancement features for clearer visuals.
Water Jet: Activate the water jet function via the one-touch control on the endoscope for cleaning the lens during procedures.
Data Management
The integrated workstation allows for comprehensive data management:
Capture Images/Videos: Use the dedicated buttons on the endoscope or processor to capture still images or record video clips.
Patient Data: Access and manage patient data stored on the 500GB internal hard drive.
Report Generation: Create and edit reports directly on the system without the need for external software.
USB Export: Export data via the 3 USB ports. The system supports DICOM for medical imaging standards.
HD-550 Processor Specifications
| Station | Separated |
| Video Output | SDI, DVI, VGA, CVBS, S-Video |
| Resolution | 1080p |
| Chroma | 500 lines |
| Optical Zoom | 1.0x, 1.2x, 1.4x |
| Patient Data Storage | > 10,000 records |
| Peak/Avg Photo | Peak/Avg photo |
| Color Adjustment | Red, Blue, 12 steps, +/-15 levels |
| White Balance | Auto/Manual |
| AGC | Yes |
| Data Management | 500GB Built-in, 3 USB, DICOM |
| Image Enhance | Auto/Manual |
| Edge Enhancement | Contrast enhance, Edge enhancement |
| Contains/Diseases | L/M/H, auto/disease |
| Dimension (mm) | 480x370x125 |
V5-E5 Series Light Source Specifications
| 4-LED Lamp | Four LED lamps of different colors |
| White Light Mode | High color rendering index and high luminous flux |
| SFI/VIST Modes | High brightness and specific spectra in the 2 special light modes |
| Brightness | Auto/Manual, 1-15 levels |
| Illumination Mode | Continuous |
| Service Time | 10000 hours (Continuous use) |
| Hot Plugging | Yes |
| Dimension (mm) | 473x370x154 |
550 Series Scopes (General)
| Field of View | 140° |
| Depth of View | 3-100mm |
| Distal End Diameter | 9.8mm |
| Insertion Tube Diameter | 9.8mm |
| Instrument Diameter | 2.8mm |
| Angulation | U210°/D90°, L/R90° |
| Working Length | 1050mm |
| Water Jet | Yes |
| One-touch Control | Yes |
| Optical Fiber Transmission | Yes |
