The Defi 8 defibrillator model offered by Rad Farm is a modern high-tech medical device designed for emergency cardiopulmonary care. The device combines the functions of defibrillation, monitoring of vital signs and cardiac stimulation. Due to this, the defibrillator monitor with a built-in pacemaker becomes a universal solution for use in emergency medicine, resuscitation and clinical practice. The device is characterized by an ergonomic design, reliability and ease of operation.
#Defibrillator Monitor
#Biphasic Defibrillator
#External Defibrillator
#Emergency Defibrillator
#Medical Defibrillator Machine
#Factory Direct Defibrillator
#Wholesale Biphasic Defibrillator
#Cheap DEFI 8 Defibrillator Price
Defi 8 combines the latest technological developments and time-tested functions that ensure high efficiency in emergency care. Key technical characteristics include:
Biphasic defibrillation pulse with adjustable energy from 1 to 300 J, which allows adaptation to various clinical situations.
Built-in pacemaker with the ability to program parameters, providing temporary electrical stimulation for bradycardia.
Monitoring of ECG, SpO2, NIBP and temperature, which makes the device a full-fledged multifunctional monitor.
Large color display (8.4 inches), providing clear visualization of patient parameters.
Autonomous operation up to 4 hours, thanks to a powerful lithium battery.
Easy to operate, voice and visual prompts.
Data is recorded on a memory card. In addition, it is possible to transfer information via USB and Wi-Fi.
The Defi 8 defibrillator-monitor is actively used in various areas of healthcare due to its versatility and multifunctionality:
Ambulance - for emergency defibrillation and patient monitoring at the pre-hospital stage.
Intensive care units - as a permanent monitor with the ability to perform defibrillation and cardiac stimulation.
Operating and postoperative wards — to monitor vital functions.
Emergency rescue service (disaster medicine), air ambulance and military medicine — thanks to the robust body and autonomous operation.
Educational institutions — to train medical personnel to work with the equipment in real conditions.
Standard:
EKG Cable (5 Leads) ...... 1Pcs
Ground Wire ................. 1Pcs
Battery ........................... 2Pcs
Power cable ................... 1Pcs
Fuse ............................... 2Pcs
Cleaning Cloth ................ 1Pcs
Options:
ECG Cable (3 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
NIBP Cuff (infant 8 - 14 cm 5/Bag)
NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm
Paper Role
Thermal printer
Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)
Defibrillator carry bag
Standard parameters & configuration
Defi8: ECG . PR.DEFIBRILLATOR
Technical data
Defibrillator
Defibrillator type Manual Synchronized Asynchronized
Output waveform Biphasic technology
Energy accuracy < +1%
Energy Selection 0.3.5.7.10.20.30.50.100.200.300.360 joules (nominal at resistance of 50)
Charging time Maximum 8 seconds to 360 joules

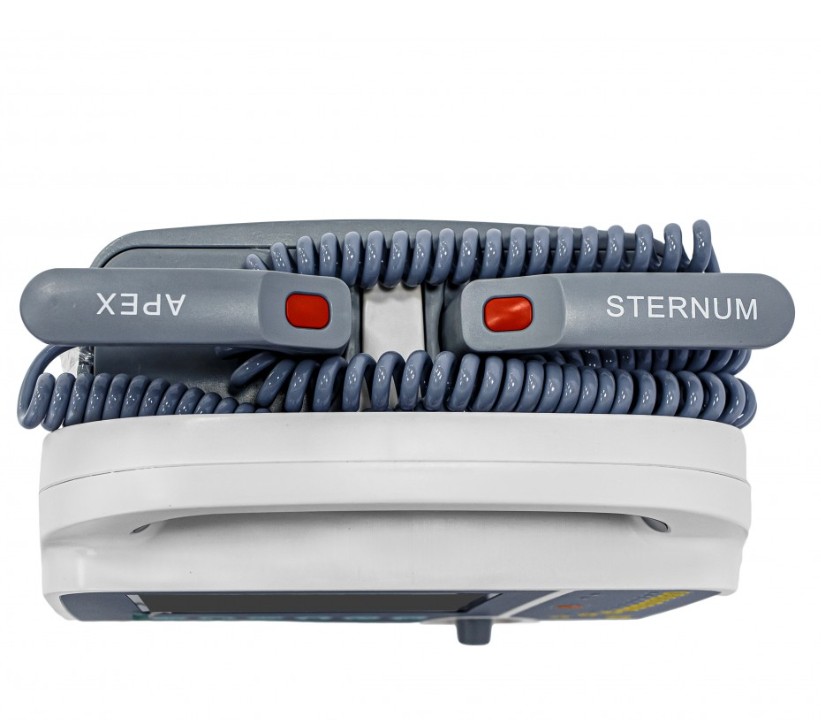

Standard adult/pediatric paddles
Reusable external adult paddles (pediatric paddles integrated)
Power supply requirements
AC power supply 110V 60 Hz /220V50 Hz
Vehicle voltage DC 12V
Internal buffer battery
Battery type Rechargeable lead-acid battery/lithium battery (optional)
Charging time: At least 4 hours for a full charge
Charge the battery during AC power supply operation of the device.
Charge indicator / Low battery indicator Red LED
Battery capacity: 100% of battery allows 120 minutes of monitoring and 30 discharges at 360 joules.
Display
LED Dimensions 7'diagonal {155mm*88mm}
Type High resolution true color graphic LED
Resolution 480X234
ECG
ECG line: I II III AVR AVL AVF V1 V6 GND
Protection: with stand 4000vAc/50Hz voltage in isolation and work against electrosurgery and defibrillation
Pulse range
Pulse range: 0-255bpm
Pulse oximetry (spO2) Options
Display: SpO2 value pulse histogram waveform pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: standard finger clip for adult AED mode (option)
AED function: automatic analysis and charging x3 with programmable automatic energy level selection via on-screen prompts and voice prompts.
Shock capable rhythms: Ventricular fibrillation with amplitude > =200uV Ventricular tachycardia with rates > =140bpm and QRS complex wave duration > =140ms.
Charge control: front panel, press button on paddle.
Prompts: Voice and visual prompts.
Recorder
Paper: 50mm thermal paper.
Speed: 12.5mm/sec. 25mm/sec. 50mm/sec. User selectable delay of 6 seconds.
Printing method: High resolution thermal print head.
Print Modes: Manual or automatic, user configurable.
On/off control: front panel and paddle.
